Sync playback: Analog: 4 channel 8MP @ 8fps, 4 channel 5MP @ 12fps, 4 channel 4MP @ 15fps, 4 channel 3MP @ 1080 1 Channel 4K @ 30fps, 2 channel 5MP @ 30fps, 3 channel 4MP @ 30fps, 4 channel 3MP @ 30fps, 4 channel 1080P @ 30fps, 4 channel 960P @ 30fps, 4 Channel 720p @ 30fps/mixed: 4 Channel 1080p @ 30fps, 3 channel 3MP @ 18fps, 2 channel 5MP @ 12fps, 1 channel 5MP @ 30fps, 1 Channel

Connection modes cameras: Analog: 4*4 (TVI/AHD: 8 MP; TVI/AHD: 5MP; AHD/TVI/CVI: MP; AHD/TVI 3 MP; AHD/TVI/CVI 1080P/720P; Analog: 960H) /Chain: 16 * Network (Max 8 MP (Max. capacity & le; 80 Mbps)/Mixed: 2 * analog + 7 * network (Max 8 MP)

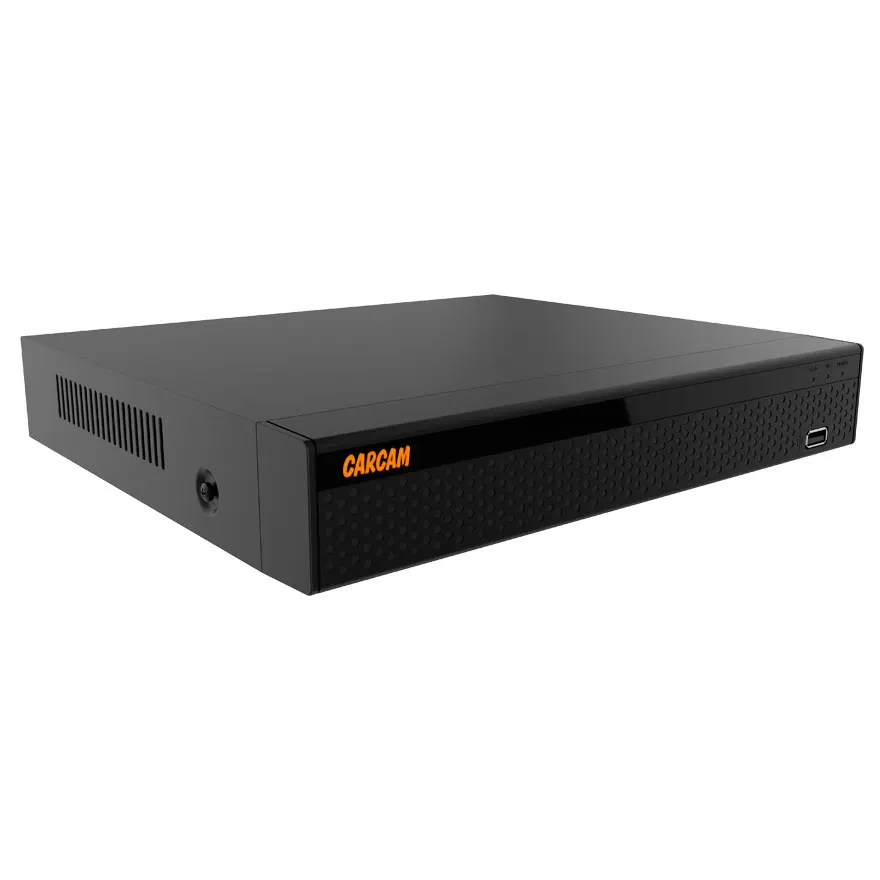

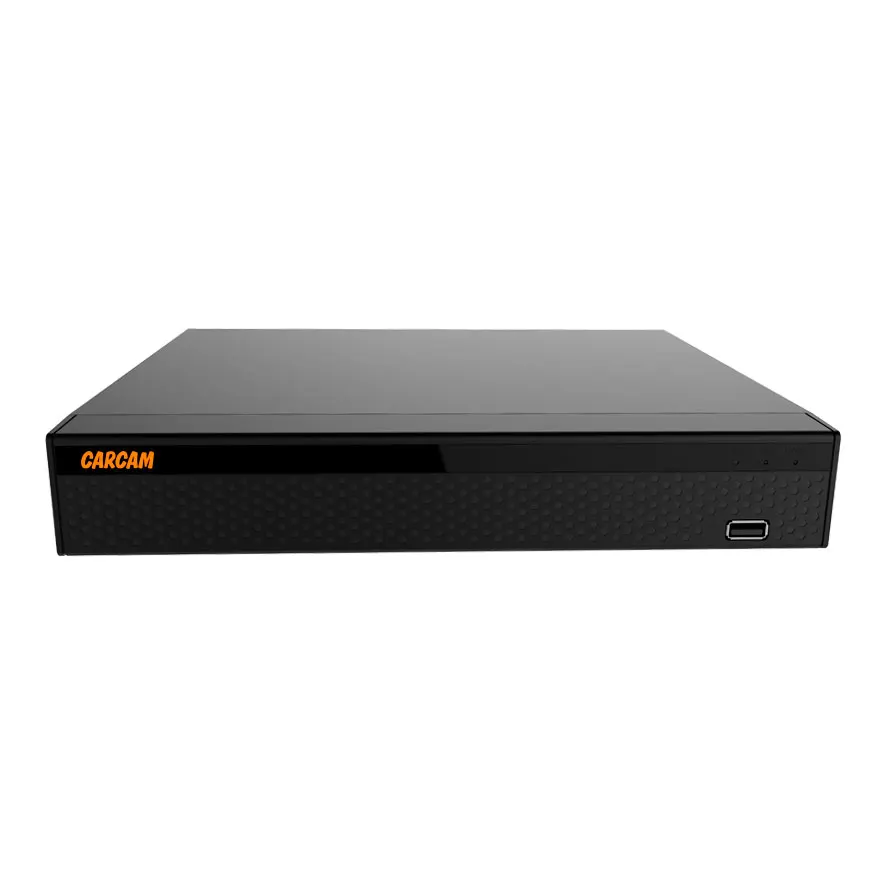

Carcam xvr1904-hybrid 4-channel DVR. The device supports simultaneous connection of IP and ahd cameras with a resolution of up to 8 megapixels. In order for you to store a large amount of data, the device is equipped with a SATA interface for connecting a hard drive up to 6 terabytes. The DVR supports connection to the cloud service camcloud, which allows you to remotely view video via a computer or smartphone. A large set of functions will allow the use of a DVR to create a high-tech video surveillance system both in residential and commercial premises.

The device supports connecting up to 4 AHD or 16 IP cameras. This allows you to use the registrar on objects with a large area. In addition, the Registrar supports mixed mode of operation analog + IP.

Video from cameras can be saved in a resolution of up to 4K 3840 × 2160p. Thanks to this, you can consider on the record the smallest details of what is happening at the observation facility.

The device supports remote access via the online camcloud service. Thanks to this, you can remotely control the system settings, as well as view video from cameras on your smartphone or computer. Also, cloud service provides many other features:

You do not have to connect an external media to the DVR every time to save an important fragment of the video. You can download videos from the data archive to the memory of your smartphone or remote computer.

Cloud service will allow you to always stay informed of the work of the video surveillance system. In case of alarm sensors, motion in the frame, camera fault or power off, the system will automatically send the alarm push notification to your smartphone.

Thanks to the cloud service, you can not only view video in real time, but also access the full archive of video files that are stored on the hard drive of the DVR.

There is a possibility of simultaneous viewing of the image from several CCTV cameras. The maximum number of remaining channels is 16.

The device supports high-efficiency video codec of the new generation h.265. This allows you to significantly reduce the size of the video file, saving the detail of the image.

The device is equipped with a SATA interface for connecting a hard drive up to 6 terabytes. Thanks to this, you can store a large amount of data directly on the DVR.

Thanks to the support of RS485 interface, the DVR allows you to remotely control PTZ CCTV cameras.

You will be able to configure the function of sending alarm notifications to your email address. When you activate this function, the DVR will alert you about system failures and movement in the frame.

In addition, the device is equipped with 4 microphones.

The recorder is able to maintain synchronous recording of video and audio from CCTV cameras.

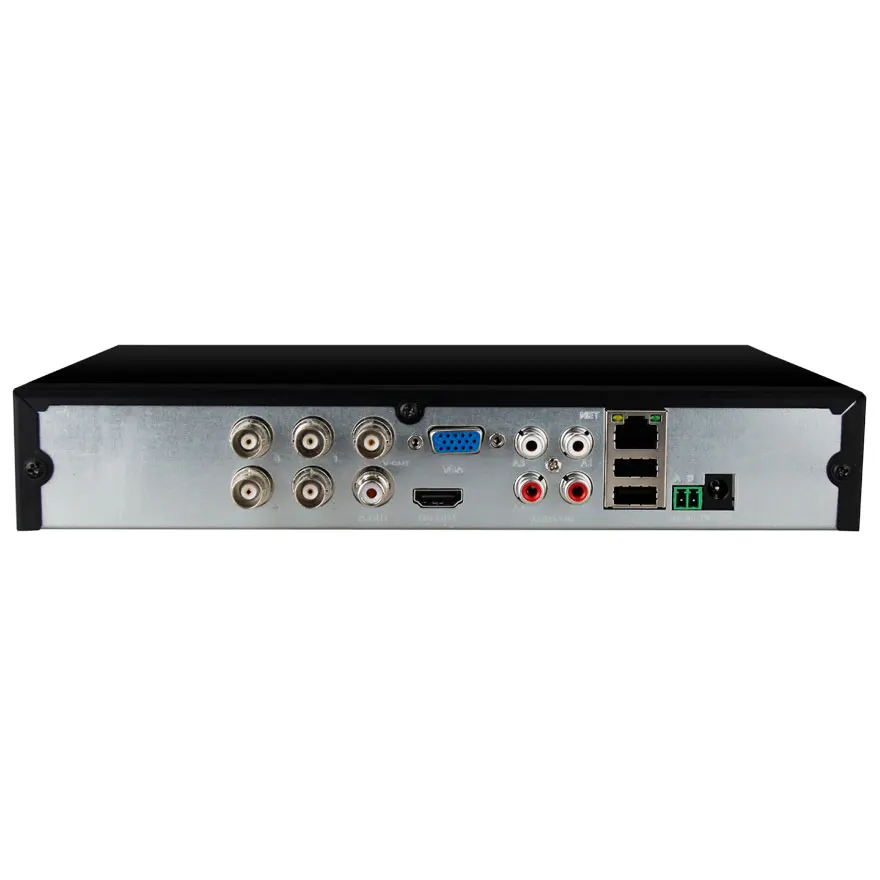

The device is equipped with HDMI and VGA interfaces for connecting any modern monitors.

A summary table of DVR modes depending on the resolution of the connected cameras and the selected video standard. The table shows the operating modes with the maximum number of channels and frames per second.

Resolution

IP PAL

IP NTSC

Analog PAL

Analog NTSC

3840 & times; 2160p

8x25fps

8x30fps

4x8fps

4x8fps

5 MP 2592 х1944)

12x25 fps

12x30 fps

4x12 fps

4x12 fps

4 MP 2560 х1440)

16x25 fps

16x30 fps

4x15 fps

4x15 fps

3MP (2048 х1536)

16x25 fps

16x30 fps

4x18 fps

4x18 fps

1080p (1920x1080)

16x25 fps

16x30 fps

4x25 fps

4x30 fps

960p

16x25 fps

16x30 fps

-

-

960H (960x576; 960x480)

-

-

4x25 fps

4x30 fps

720p (1280x720)

16x25 fps

16x30 fps

4x25 fps

4x30 fps

D1

16x25 fps

16x30 fps

-

-

* See the user instructions for detailed specifications.
