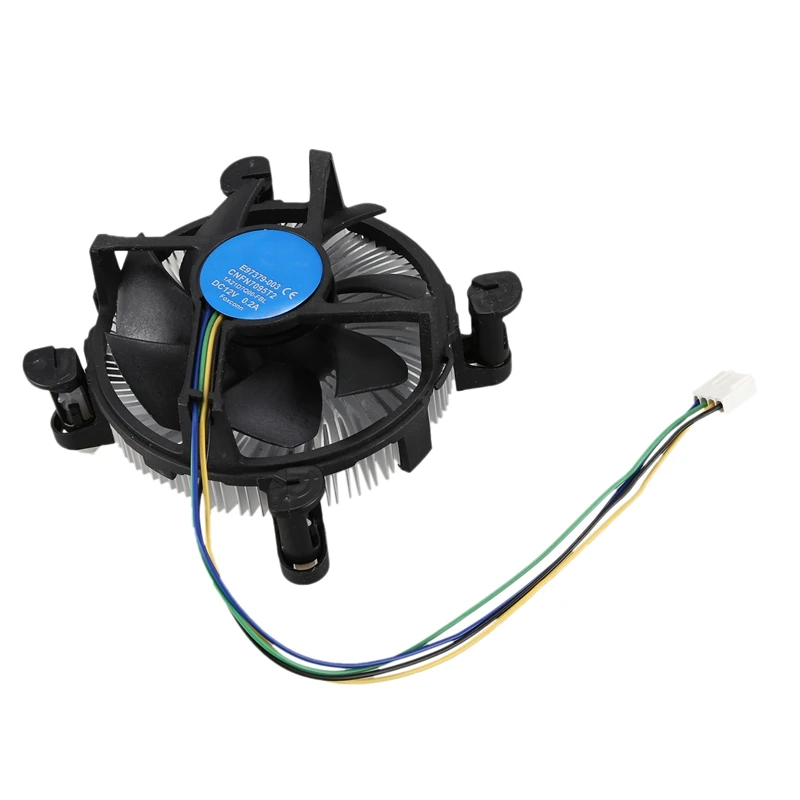

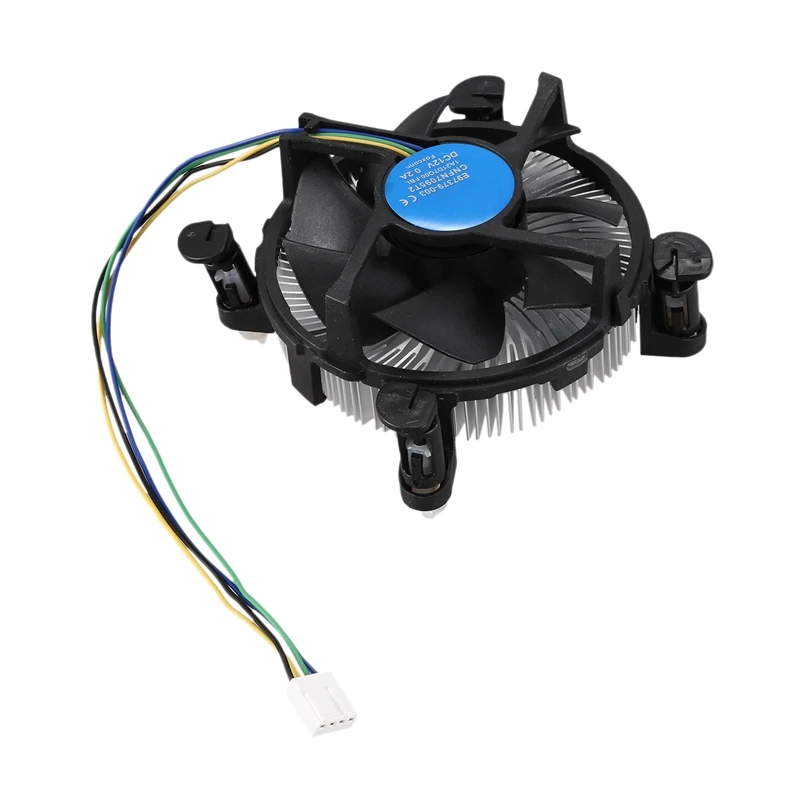

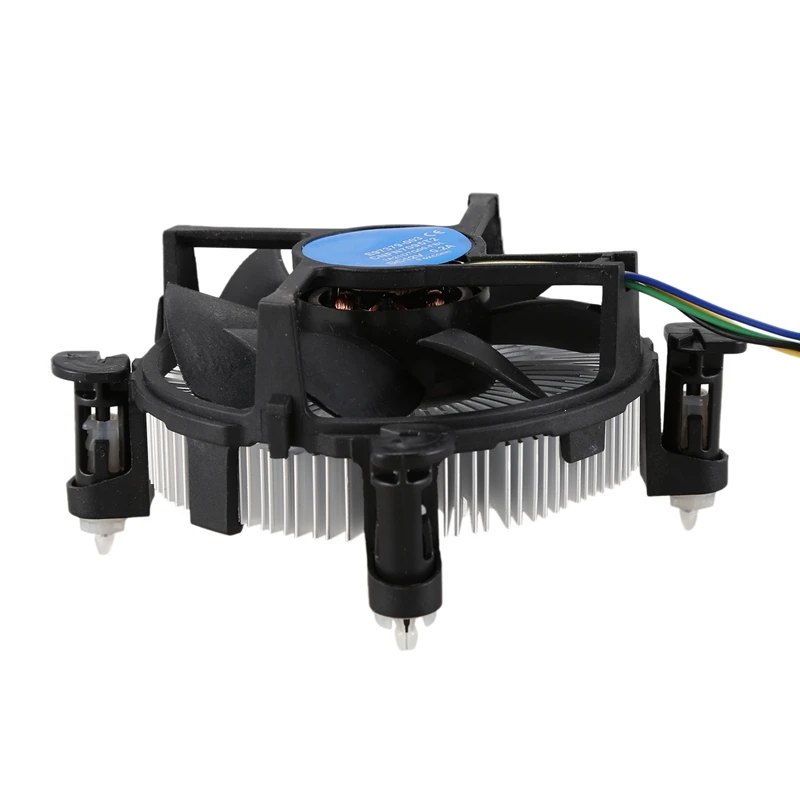

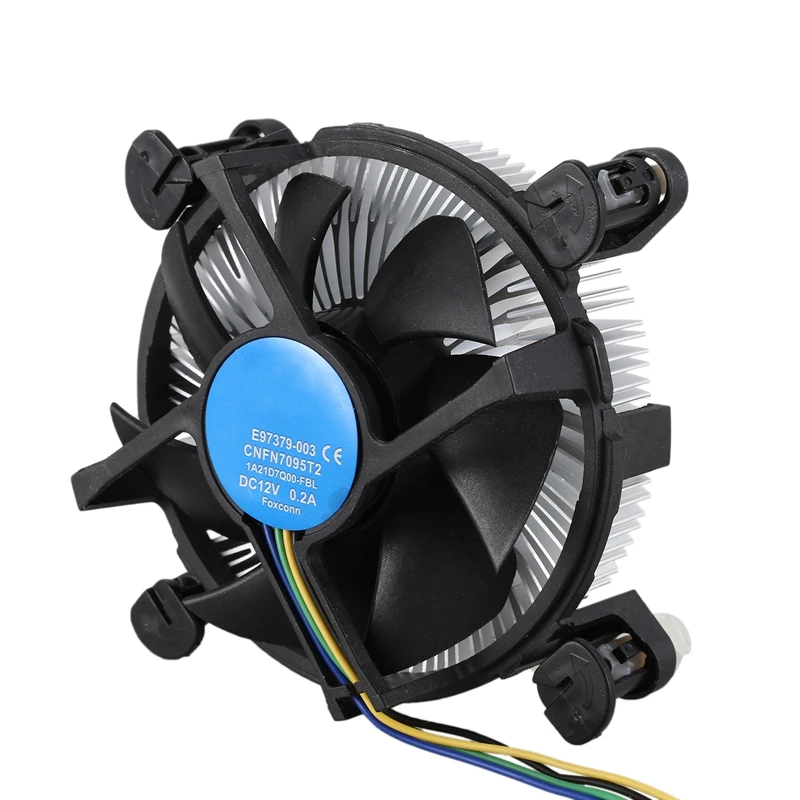

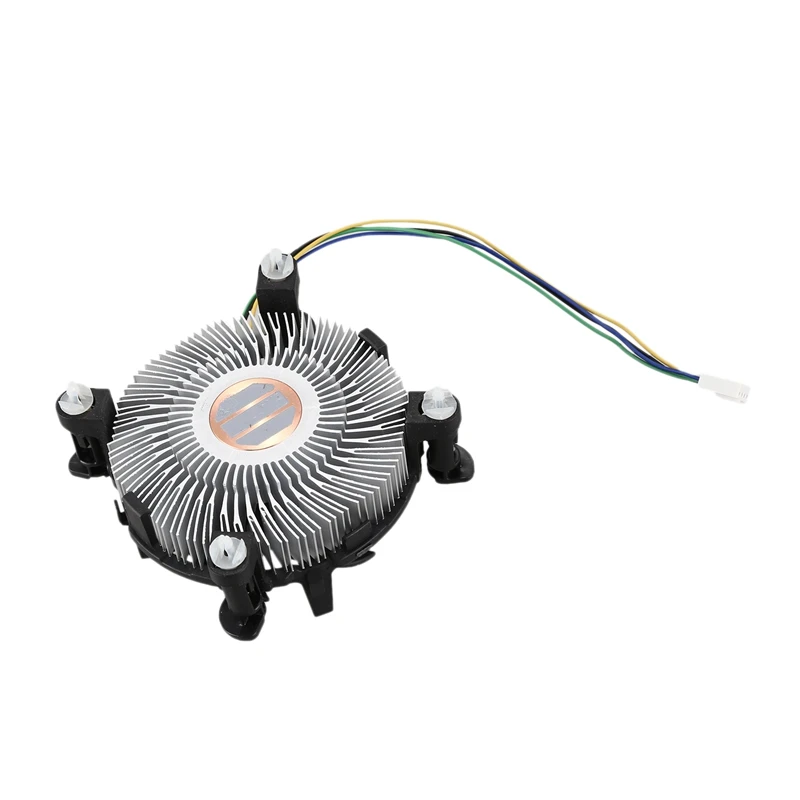

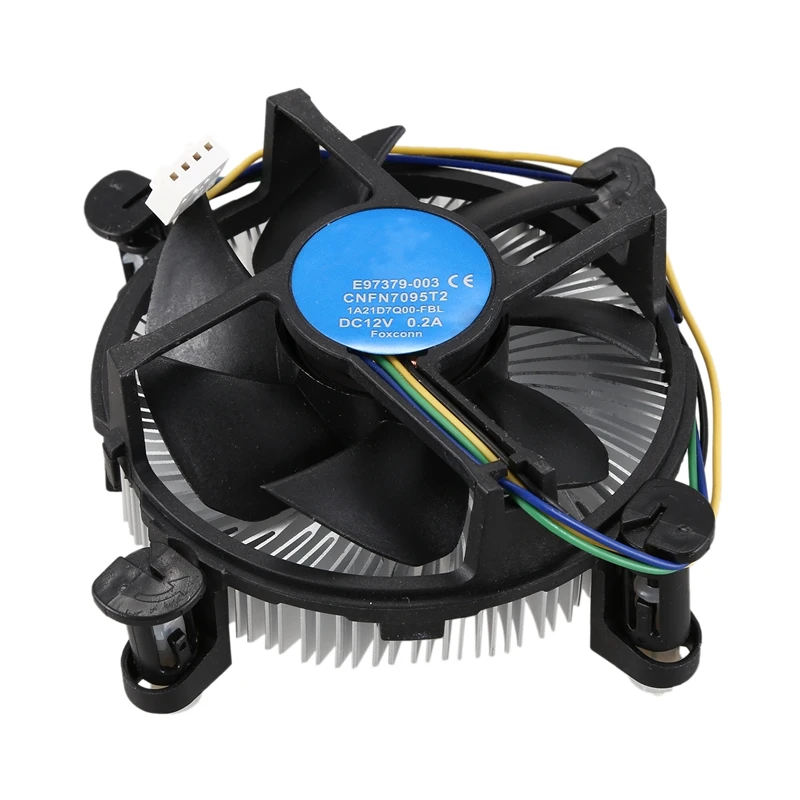

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } product description: This product is an copper core fan, which has obvious heat dissipation effect and is suitable for CPUs such as i3 i5 i7 G series. Radiator features: copper core, silent, with silicone grease on the bottom. The CPUs of the 1155 and 1156 interfaces are compatible. The fan does not support CPUs of the 1366 architecture. fan installation method
The fan is designed with a push-down fan. The original fan itself comes with silicone grease, so it can be installed directly (no need to apply silicone grease again). After installing the processor, install the fan. The first step: finishing the fan. The fan must pay attention to the position of the fan power cord and the button of the button. The line should be sorted out in advance. Do not let the fan make various contacts to the line during operation.
The initial position of the power cord is usually in the fan (can be taken out). Note that the black raised dots on the clip button are close to the fan as shown, and if the knob is not near the fan, restore it. Step 2: Adjust the radiator position. Place the heat sink in the proper position and place the fan horizontally above the processor cover. The bottom of the buckle (the tip of the tip) around the clip should be aligned with the four points on the motherboard.
The motherboard hole of the processor is distributed near the CPU socket, which can be easily found by the user watching the motherboard. original radiator must be seen before installation to see if the rotary switch is fully restored (in situ: the dot is next to the radiator).The third step: pressing the buckle .Since the radiator clip is designed with four clips, the correct way to install the clip is to "diagonally" press the mounting method.
Sequential pressing tends to cause uneven force on the fan, which makes it difficult to press the other two clips. Note that force is applied when the button is pressed, and the press is successful when a clear click is heard.
After installing the radiator, we need to connect the power cable of the radiator fan (the 4Pin interface of the fan) to the cooling power supply interface of the motherboard.
Step 4: Remove the fan
To remove the heat sink, first remove the power cord, separate the fan power cable from the motherboard, and then disassemble the heat sink clip.
Learn to install the radiator at the same time it will also be disassembled. There are two points to be aware of the removal method of the original radiator.
1. Rotate the raised point on the top of the clip post counterclockwise toward the outside of the heat sink in the direction indicated by the button.
2. After the rotating buckle column is lifted up with the thumb and forefinger, the four fasteners can be taken out in sequence.
original fan installation note:
First, the preparation work before the installation of the radiator is completed;
Reset the knob on the heat sink clip;
Press the knob diagonally to fasten the heat sink;
When unloading the processor, be sure to unplug the fan power connector first, then turn the knob counterclockwise to remove the fan.
Colour: Black
material: metal
Package Contents:
1 * radiator
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
