FPV traversing machine miniature long-distance 915MHZ receiver / black sheep TBS CROSSFIRE NANO | Cable Winder

Description modname=ckeditor



Type  1 : NANO Standard Edition【CROSSFIRE NANO】

Type  2 : NANO T antenna version SE【CROSSFIRE NANO】

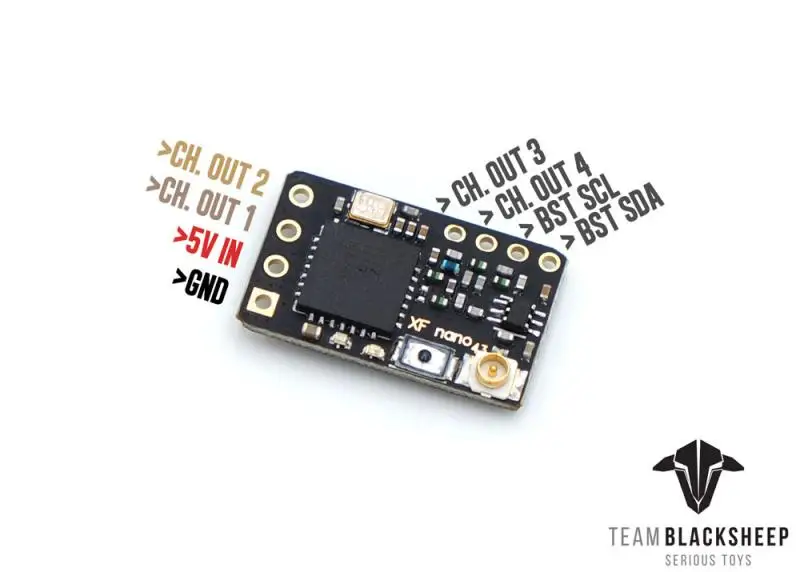

TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX we condense 2 years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case, the minimum!). The end result is a full range receiver, at the smallest size of any receiver in the industry (yes, it's smaller than the XM+).

\
\

SPECIFICATIONS

\
\

\
Weight: 0.5g (receiver only) \

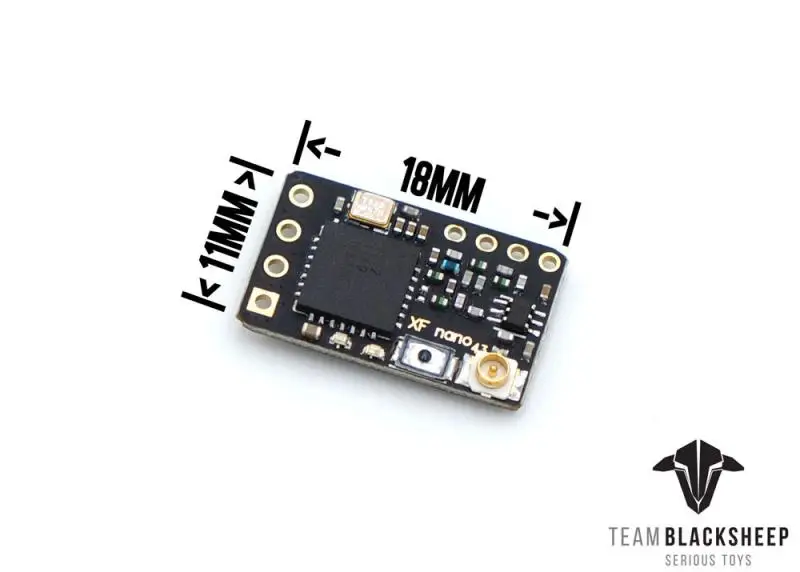

Size: 11mm x 18mm \
Requires: Firmware V2.25 \



\
\

INCLUDES

\
\

\
1x TBS Crossfire Nano Receiver \
1x TBS Crossfire Micro Receiver Antenna \
1x Spare shrink tube \
6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow) \
1 x pin header 1x4 \



\
\

DOWNLOADS

\
\

\
TBS Crossfire - RED Declaration of Conformity \
Quickstart Guide / Manual \



'

---
