Lux CCT CRI PAR PPFD Test Portable LED Light Spectrometer OHSP350P | Инструменты

  Product Description Product Name Portable Spectrometer Material Metal Alloy Function Lighting test  Package 30cm*20cm*18cm Wavelength range  350nm-800nm

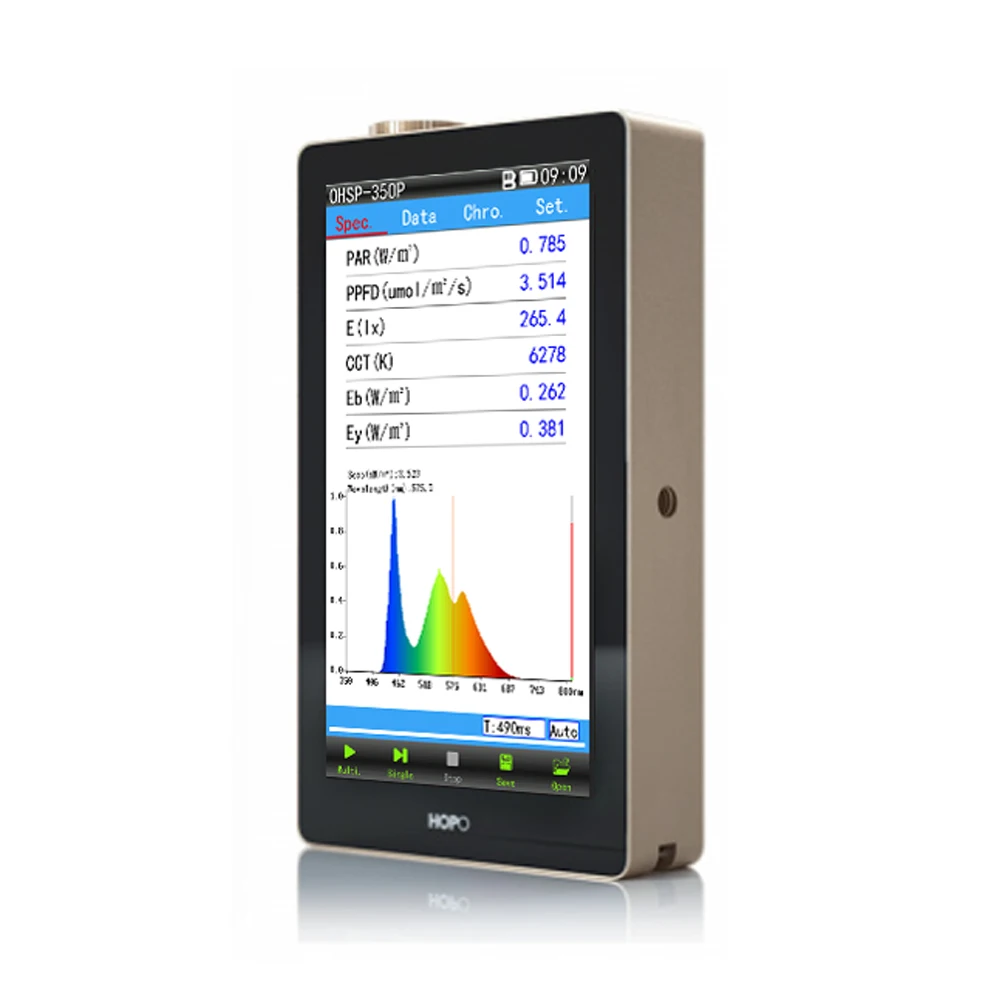

OHSP-350 Spectral irradiance colorimeter,  integrated spectrum, CCT, CRI, Lux, irradiation .etc,parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use  convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source. Test parameters CCT(K) illuminance(lx) Irradiance(W/m2) CIE1931 Coordinate x,y u,v u',v'   Candlelight(fc) Duv CIE1960 PAR CRI (Ra) R1-R15 CIE1976 PPFD  SDCM Red ratio(%) Colour Tolerance Elliptic graph Peak wave(nm) Purity%) Green ratio(%) CRI circular graph Half width(nm) Dominant(nm) Blue ratio(%) Spectral Power Distribution Central wave(nm) Centroid (nm) S/P CIE1931 X,Y,Z



Model Model Version Wavelength Range Function Description Link OHSP350 Essence 380-780nm Base parameters Click Left side OHSP350A Luminous Flux 380-780nm Need to Match Integrating Sphere ClickLeft side OHSP350B Blue Light 380-780nm Base+Blue Light ClickLeft side OHSP350BF Blue Flicker 380-780nm Base+Blue Light+Flicker Parameters Contact me OHSP350C Economical 380-780nm No software ClickLeft side OHSP350F Flicker 380-780nm Base+Flicker ClickLeft side OHSP350I Industry 380-780nm I / O control, 485 interface, open software interface Contact me OHSP350L Luminance 380-780nm Luminance(unit cd/m2)parameters ClickLeft side OHSP350P Grow Light 350-800nm Base+Grow Light parameters ClickLeft side OHSP350S Flagship 350-950nm Base+Grow Light parameters +TM-30 Parameters ClickLeft side OHSP350SF Full Function 350-950nm Base+Plant Light parameters +TM-30 Parameters +Flicker Parameters+Blue Light Contact me  OHSP350UV UV 230-850nm Base+UV Irradiation Parameters ClickLeft side OHSP350UVS UV Update 200-450nm UVA,UVB,UVC Irradiance, 1nm FWHM ClickLeft side

OHSP wishes to provide a handheld spectrometer with high flexibility for different kind of places, different use purposes and different usage scenarios to help you work more efficiently.

Features of OHSP handheld spectrometer

1. The lightweight and easy to carry handheld spectrometer makes impossible to possible.

2. Standalone and support PC connection, measure the light as you wish at anytime.

3. Intuitive user interface design, simple to use and makes professional data easy to learn.

 In-house RD team, one step production and direct sale service.  Spectrum the professional spectrometer tool with Own software.  Integration ability on optical, mechanical and electronic for customized service. Packaging & Shipping

 PACKING :                                                                            SHIPPING:
Selling Units: Single item                                                                        DHL
Carton size:29*17*20cm                                                                         Fedex
Bag size:23*18*8cm                                                                               EMS
Package Type:In standard export carton packing                                  TNT.....





Company Information

 Hangzhou Hopoo Light&Color Technology Co.,Ltd was established in 2014. located in Great Economic Circle in Hangzhou. High-tech enterprises engaged in research and development, production, sales and service of optical testing equipment.The company is formed by a group of young scientists and technicians with more than ten years'experience in optical research and development.With a wealth of experience and technology successfully developed a series of functional multiple optical testing equipment, in addition, products continue to innovate, take product diversification, multi-functional production routes, focus on the development of intelligent equipment and control systems, walking in the forefront of the industry.

Mission:

Honesty, Professional, Pragmatic, Efficient and innovative





FAQ

Q1. Can I have a sample order for products?

A: Yes, we welcome sample order to test and check quality. if your order is large.but sample is not for free. Q2. How do you ship the goods ? A: We usually ship by DHL, UPS, FedEx or TNT. Q3. Is it OK to print my logo on product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our products. Q4: Do you offer guarantee for the products? A: Yes, we offer 2 years warranty to our products.
