ANENG AN8008 Digital Multimeter 9999 counts True-RMS Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual | Инструменты

ANENG AN8008 Digital Multimeter 9999 counts True-RMS Square Wave Backlight AC DC Voltage Ammeter Current Ohm Auto/Manual | Инструменты

The product is battery-powered with true-rms, LCD display and backlight.

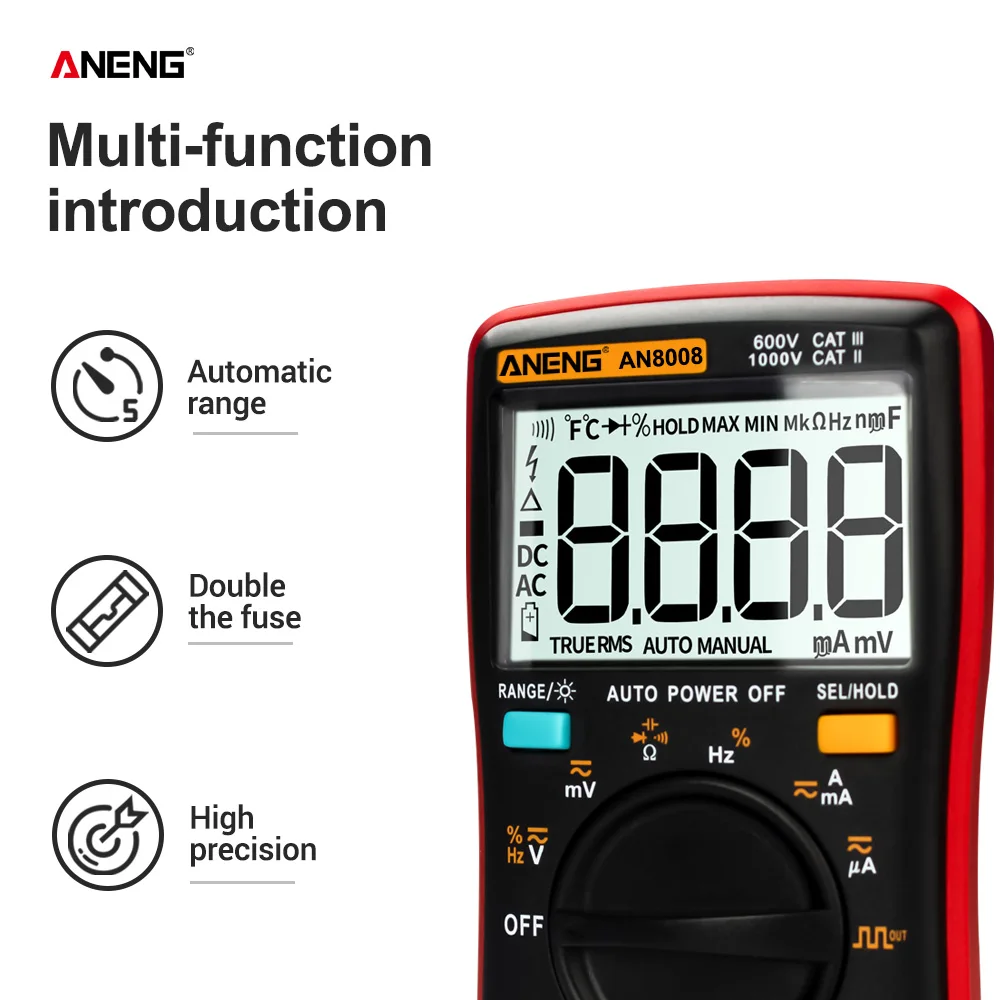

Features:

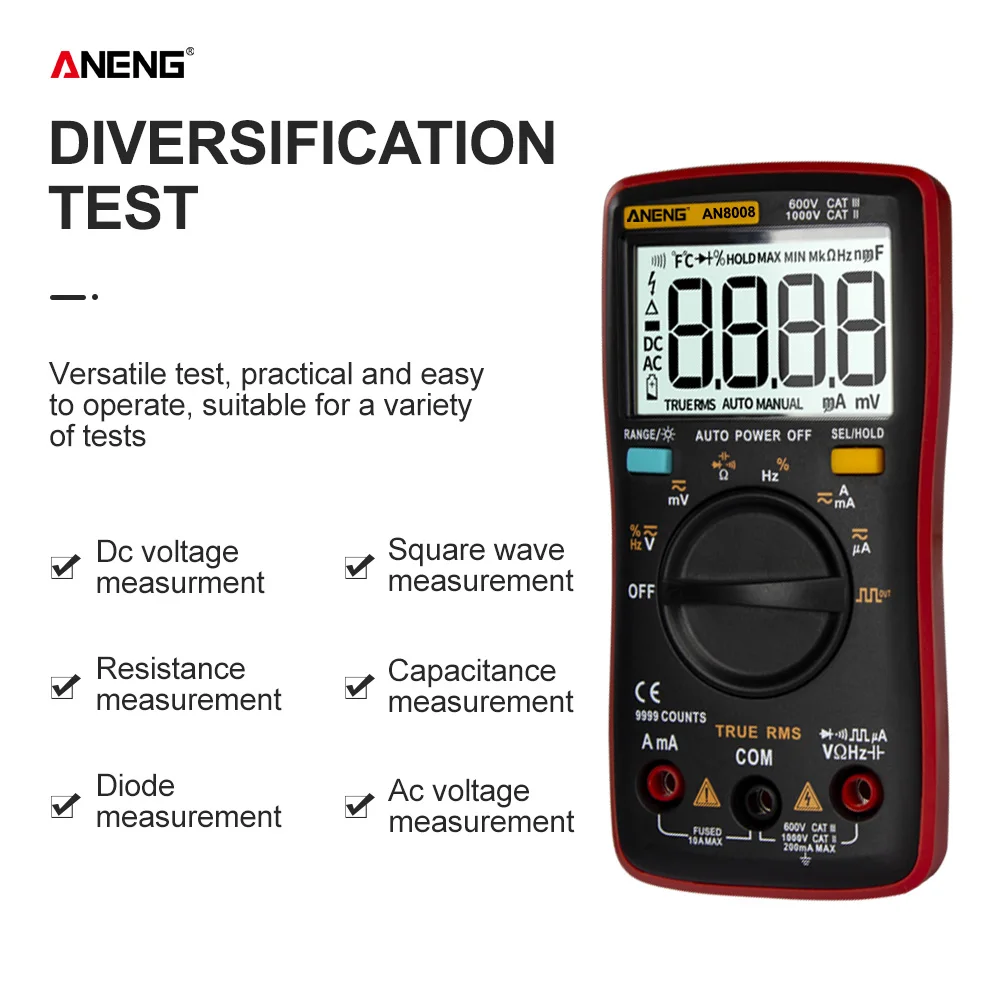

1.Multifunction:Can measure AC/DC voltage,AC/DC current,resistance,capacitance,
frequency,duty cycle,square wave output,diode and continuity.
2.Portable design:There is a back bracket for supporting multimeter,convenient to operate.
3.Wide range of applications:It's a perfect tool for the laboratory,factory and home.
4.Clear to read:With large LCD backlight display and data hold,easy to read data.
5.More advantages:Auto/manual range,true RMS,auto power off and over range indication.

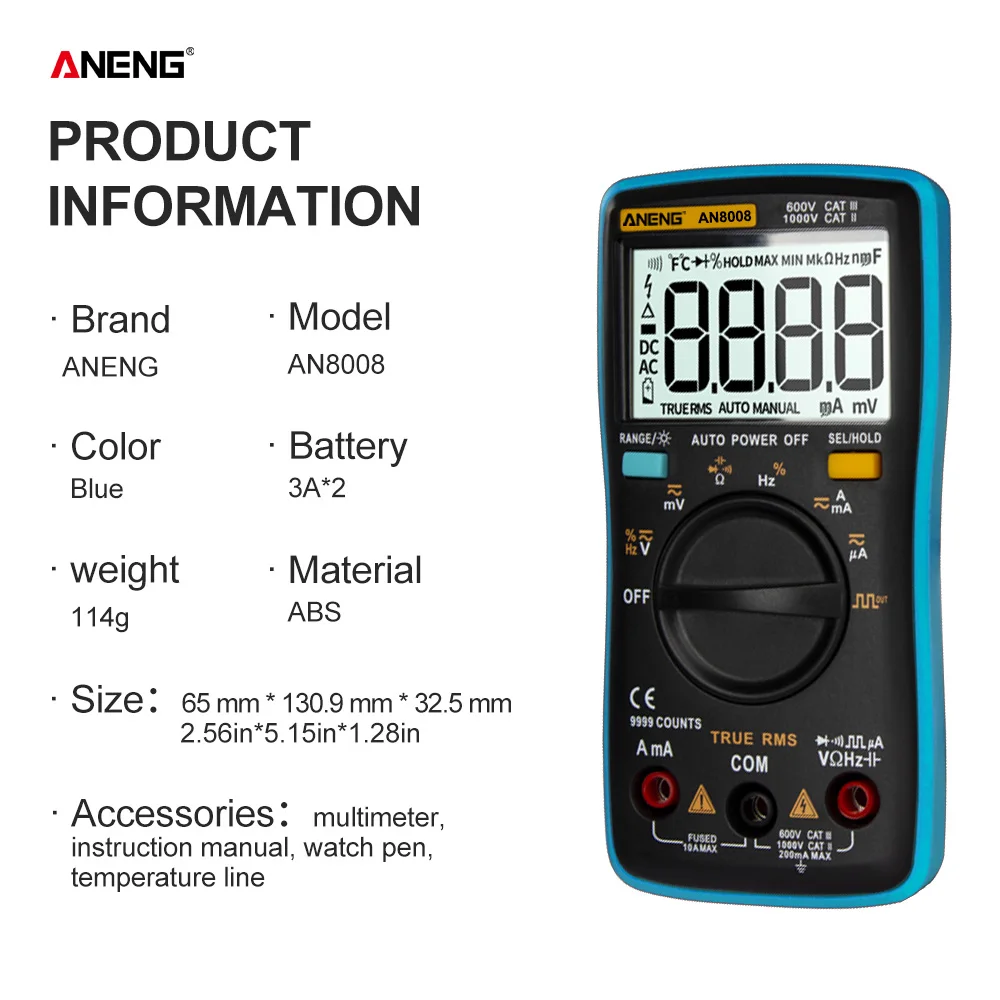

Specifications:
Brand Name:ANENG
Model:AN8008
Display Counts:9999
Diode Test:Yes
Continuity Test:Yes
Square wave output:Yes
Backlight:Yes
Data hold:Yes
Auto/manual range:Yes
Auto power off:Yes
Over range Indication:Yes
DC voltage:999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)

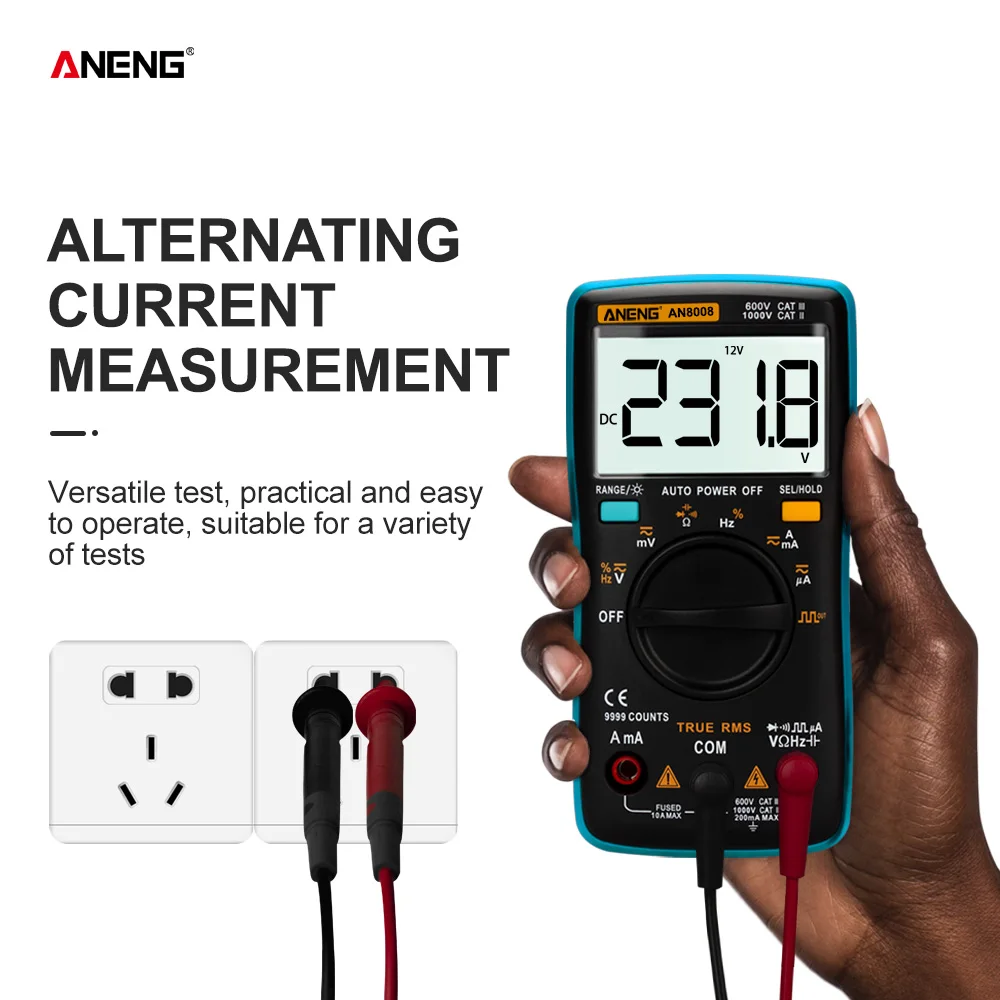

AC voltage:999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)
DC current:999.9mA/9.999A±(1.0%+3),99.99μA/999.9μA±(0.8%+3)
AC current:999.9mA/9.999A±(1.2%+3),99.99μA/9999μA±(1.0%+3)
Resistance:99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3),9.999MΩ±(1.5%+3)
Capacitance:9.999nF±(5.0%+20),99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)
Frequency:99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1% + 2)
Duty Cycle:1%-99% ±( 0.1%+2)
Power:2 x 1.5V AAA (Not included)

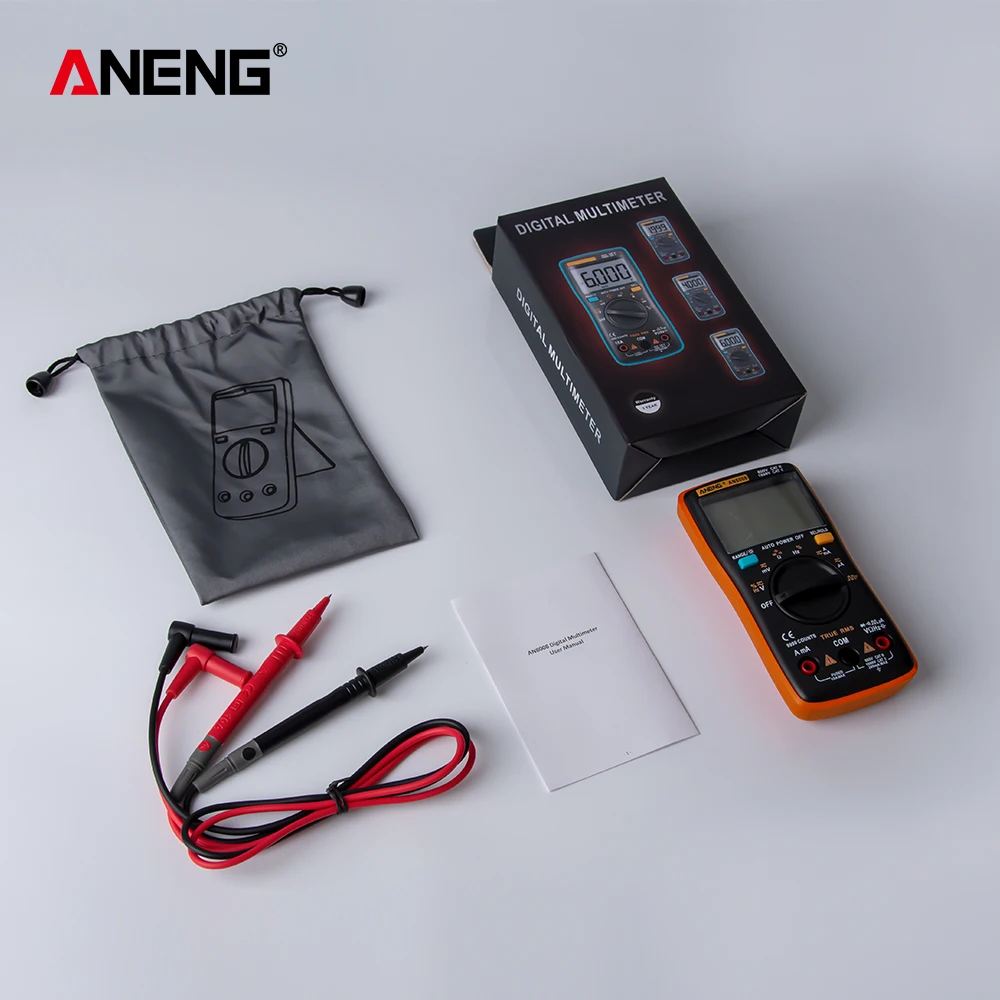

Packaging:

1 * Multimeter
2 * Test line
1 * Instruction manual
1 * storage bag
