the POE camera can be powered via DC 12V/2A Power, 48V PoE Switch or POE NVR.

Support 2D/3D noise reduction, digital wide dynamic;

Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate, high definition quality of image;

Professional anti-lightning, conform to GB/T17626.5 and  IEC61000-4-5;

Support ONVIF; access third party;

Support various mobile monitoring(iPhone,Android);

Provide web, CMS, center platform management software MYEYE, provide SDK development

Support cloud technology, easy to achieve network penetration, fro in-line and alarm information pushed to phone, etc.

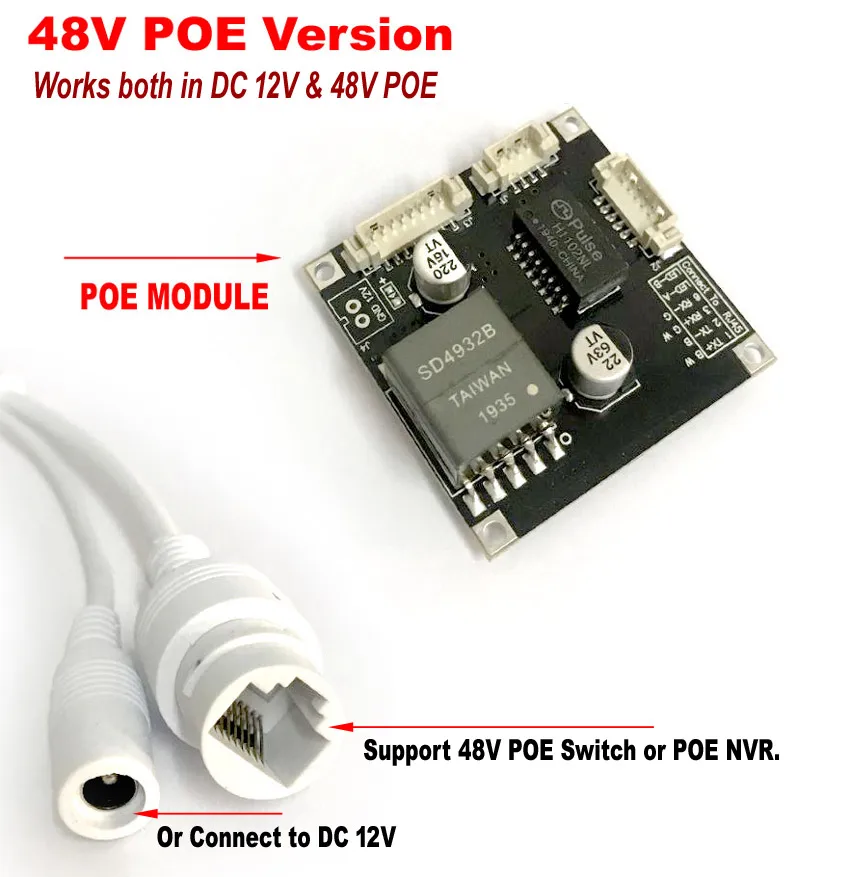

Support POE power supply and POE NVR, it will reduce the trouble of cable arrangement. and this POE meet to 802.3AF/AT standard, it is very stable and reliable for use.

Specifications:

Sensor

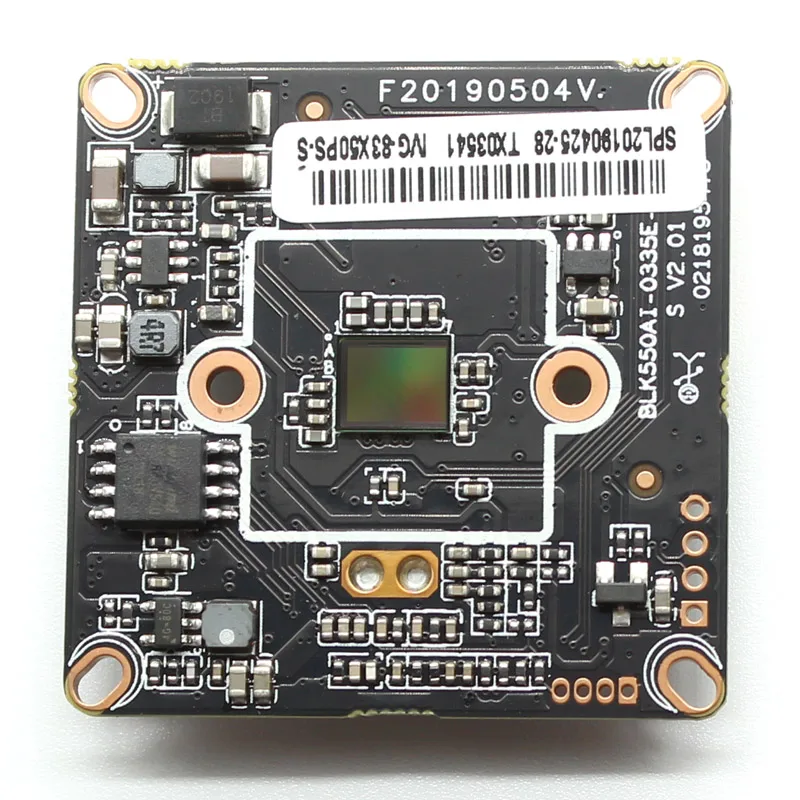

4mp/3mp 1/3" CMOS sensor

System structure

Embedded RTOS,dual-core 32bit DSP(Hi3516D), pure hard compression,watch dog

Minimum Illumination

color 0.01Lux/F1.2, black/white 0.001Lux/F1.2

Video compression

H.265++/H.265+/H.265/H.264, support dual stream, AVI; 0.1M~8Mpbs variable; 1~25f/s variable

Image output

Main stream:3mp 2048*1536(25fps); sub-stream: 704*576(15fps);

Wide dynamic

Support digital

Reliability

Comprehensive lightning protection, 7 * 24 hours 65C high temperature stable and reliable testing

Network interface

1*RJ45 10/100M adaptive Ethernet port;
support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

Singal interface

One photo resistance interface,one IR-CUT interface,
support photo resistance signal and IR-CUT links to IR

Shutter

1/50(1/60)s to 1/10,000s

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1k?,support sound pick-up input;1ch output,impedance:16?,30mw,support microphone

Other function

Support IR-CUT, Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; Support ONVIF;perfect SDK

Alarm I/O

1/0 (support alarm input and video link to background)

Mobile monitoring

Support multiple mobile monitoring (iOS, Android)

Power

Standard POE Switch, POE NVR or DC 12V/2A

Weight

0.25kg

Note:

1. This product power from 48V POE Switch or POE NVR.

2. It has auxiliary power supply connecter, can be used like a Non-POE IP camera (connect with a 12V/2A adapter), But it will not include the power adapter.

Integrated Monitoring System

System 1:Camera + POE Switch + Router + Computer/Laptop/Smartphone

NOTE: System 1also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.

System 2:Camera + POE Switch + Router + NVR + Monitor

POE IP Camera + POE NVR + Router + Monitor:
