KW-1200F series also can be applied to metal,powder,ceramics,fireproofing materials,magnetic materials,mechanical parts,mineral and rock,cement,precious metal,jewelry.,etc.

This product is the new upgrade multi-function density measurement instrument,which has been researched and developed for a long time;It has the function of reading density value instantly,also the abrasion loss of relative volume,DIN,ARI,AKRON,expansion rate,change rate of quality and volume can be displayed.this machine has been applied widely and covered the whole rubber plastic industrial chain.
  Principle:



According to ASTM D792,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,GB/T5163,GB/T 1933 standards etc.



  Features & Functions:   1.Density precision: 0.001g/cm³    2.Value showed: Apparent density, volume, mixture ratio, density and volume change rate

3.Power supply:AC 100V-240V 50HZ/60HZ Europe standard   4.Including RS - 232C communication interface.it is convenient to connect PC with printer.can be chose to print measuring data.
5. Accuracy,simple operation,quick;meet laboratory operation standard and quick cycle testing requirement on site.

6. Function of 10 group data storage for density value and DIN volume abrasion loss.

7. Totally according to DIN53516 standard;function of calculating average value for multigroup data.

8. Either water or liquid can be used as medium.The medium temperature can be set from 0℃ to 49℃ and the medium density can be set to 19.999.

7. Function of waterproof medium density setting, aerostatic buoyancy compensation setting.

8. Function of weight loss value setting,fixed weight loss value setting,density setting for reference rubber.

9. As for new materials researching and developing,the percentage content of main material for two mixed objects can be displayed.

10. Automatically judge if the samples is qualified or not by setting top and bottom limitation;alarm warning.

11. Function of automatic zero tracking,buzzer warning,and overload warning.   12.Adopt a big tank design , it can decrease the inaccuracy caused by supporting wire's buoyancy.

13. Adopt completed high capacity injection moulding PC water tank,which can resist wear,fall off,and corrosion.

14. Adopt completed special windproof and dustproof cover.which makes the structure more convenient and durable.

15. Density of any rubber plastic products with any shape can be measured.   16.With completed injection moulding testing plat,and the high transparency water sink that built in imported PC.Testers can inspect the samples in water clearly.



17.The suspension wire made up of 0.5 mm stainless steel is perpendicular to nacelle,which would not touch the water sink,therefore accuracy of the test result can be ensured.

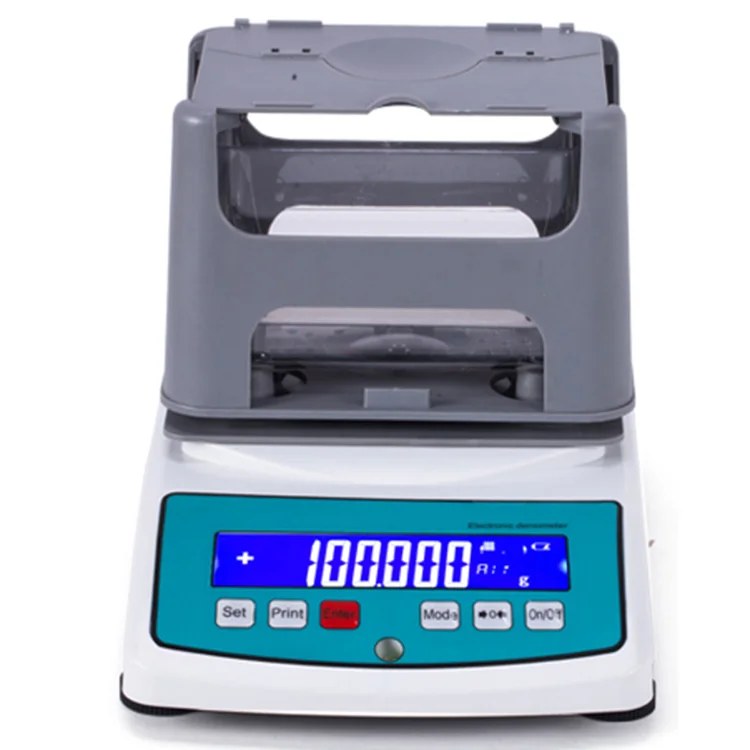

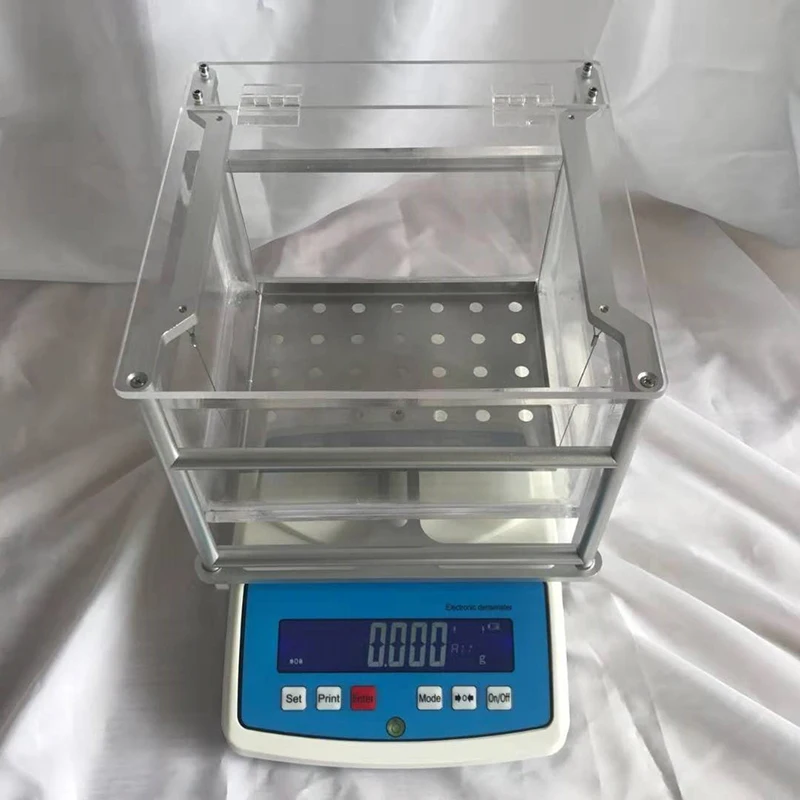

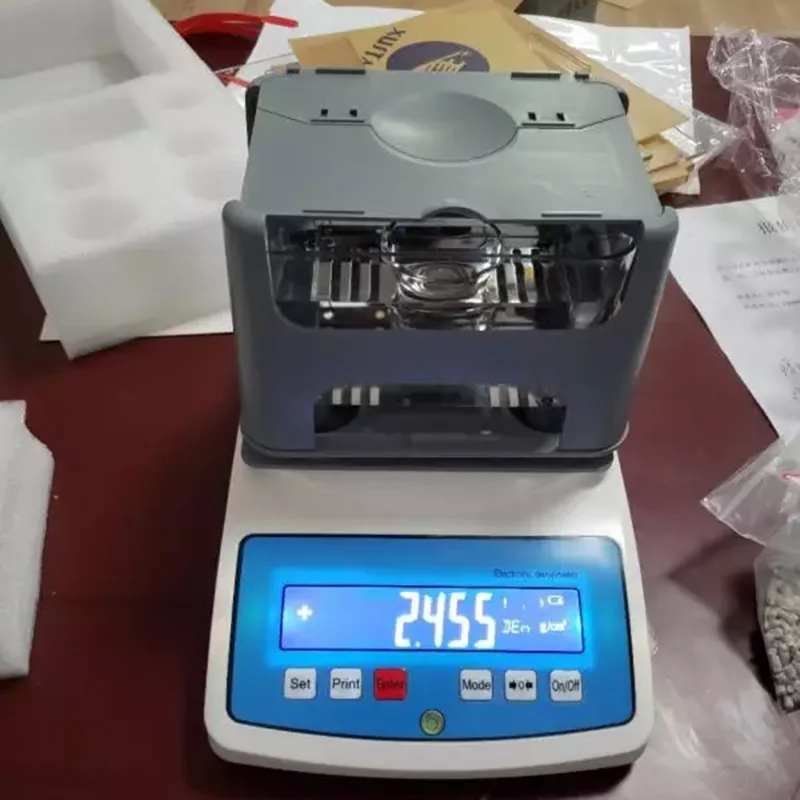

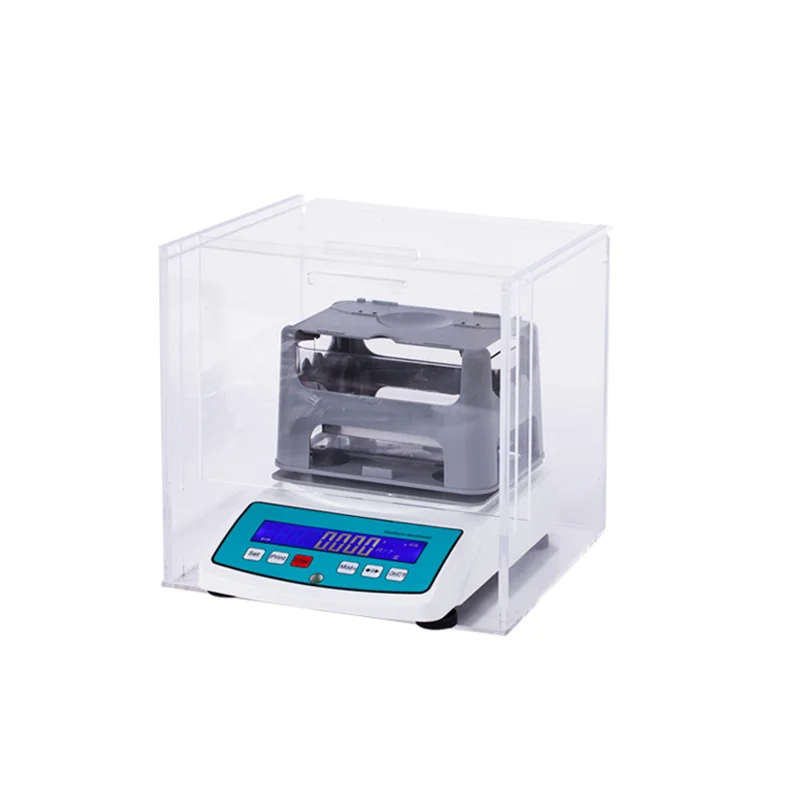

    Specifications:   1200g Rubber Density Tester Electronic Plastic Densimeter Polymer Specific Gravity Testing Machine



Model     KW-1200F   Max. Weight     1200g   Density Accuracy 0.001g/cm³       Repeatability Accuracy ±0.01g/cm³         Value Showed Density , volume         Sample Range Non absorbent solid or paste. For example, rubber, plastic, wire and cable, pearl cotton, alloy, powder metallurgy finished product, compact ceramics, magnetic materials finished products, sealant, asphalt glue, precious stones, rocks, etc. PVC/PP/PE/ABS/PPS granule .         Testing Time About 5 seconds         Density Range 0.001g/cm³ - 99.999g/cm³         Principle Archimedes' principle of water displacement         Check Way Autocorrection  (Press one button)         Power AC-220V/50HZ  (Please inform us in advance of customized power supply)         Standard File  Instruction & certificate & warranty card.           Standard Accessories: Notice:The printer is optional accessory

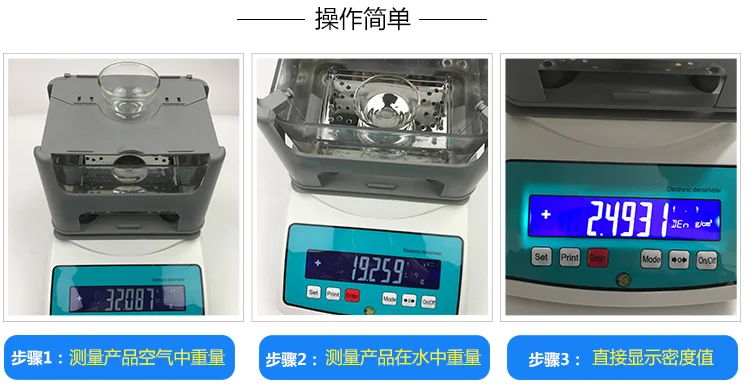

Solid Measuring Procedure:

    Step 1:

Place sample on test board to measure weight in air,and then press MEMORY button to memory.

    Step 2:

Place the sample into water to measure weight in water,and then press MEMORY button to memory. Density value is displayed.

    Results:Density values(unit:g/cm³)




Floating Bodies Messuring Procedure:
