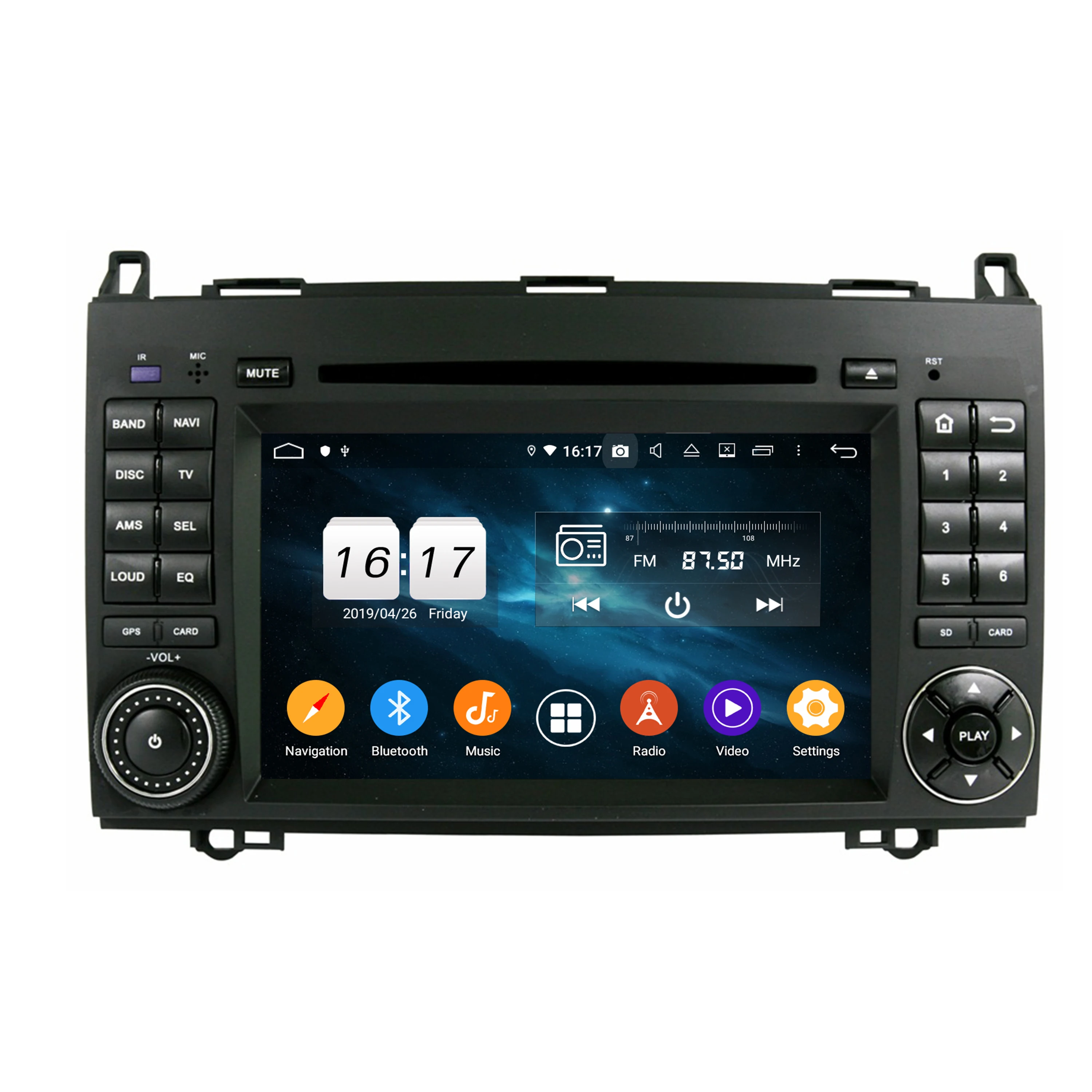

7" 2 Din 8 Core Android 10.0 Car Radio For BENZ A-W169 B-W245 Viano Vito Multimedia Player Stereo Audio DVD 4+64G DSP Recorder |

7" 2 Din 8 Core Android 10.0 Car Radio For BENZ A-W169 B-W245 Viano Vito Multimedia Player Stereo Audio DVD 4+64G DSP Recorder |

System and Hardware Parameters

OS

Android 10.0 System

TFT drive IC

Rockchip PX5

CPU

Rockchip PX5 ,Cortex A53,  Octa Core

Loader

SHINNY  SD-28EF-PJJ-53X

Main Frenqency

1.5GHz

Pick up

EP-HD860XCF

RAM

SAMSUNG DDR3 , 2GB/4GB

Video Decoder

SUNPLUS 8202VGQ

Flansh

16GB/32GB/64GB

Motor drive IC

AMTEK-AM5888S

DSP

BU32107

DVD decoder IC

Sunplus 8202VGQ

CarPlay

Optional (built in)

EQ IC

ROM BD37033FV-ME2

Android AUTO

Optional (built in)

Audio IC

ROM BD37033FV-ME2

4G network

Optional (built in)

MCU IC

STM8S207R8

Radio

NXP 6686

Power IC

RT7291A

Bluetooth

BT4.2 (RD210)
internet connection by BT, 3 ways call,Phone power and signal display

Working Temperature

-20℃-+80℃

Parrot Blutooth

FC6000T

DVR

USB Camera, Optional (external)

Touch Screen

Capacitive and multi-touch screen

DAB BOX

SHINWA  DB-MF03

LCD Screen

Hanstar Screen

OBD

Optional (external)

Amplifer IC

TDA 7851

TPMS

Optional (external)

Power supply

4*50W

DVB-T(MPEG4)

Optional (built in)

GPS

JUMPSTAR JS-U710

ISDB-T(Full SEG)

Optional (built in)

WIFI

BL-8188-EU1

Rear view

AHD rear view camera input

Easy Connect

Support

Multi-media Parameters

Radio Parameters

Music Format

MP3,WMA,AAC,RM,LFAC etc

Frenqency Range

FM:76.0MHz-108.0MHz

Video Format

MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream...

Frenqency Range

AM: 522KHz-1620KHz

Picture Format

JPG/BMP/JEPG/GIF/PNG

Country

China,Europe,Eastern,Europe,Russia,USA1,USA2,Japan

DVD Parameters

Amplifer Parameters

Vidio output range

1.0V-1.2V(75Ω)

Test Voltage

13.8V

Compatible Disc

DVD/DIVX/MP4/MP3/MP2/VCD

Max output power

4*50W

GPS Parameters

WIFI Parameters

Operation system

Android 10.0 System

Power supply

Vcc_3.3V

Support Map

Android 10.0 Map

Suppoted Protocol/standard

IEEE802.11B/g/n compatible WLAN

Main Frenqency

1.5GHz

Interface type

USB2.0

Map Solution

800*480/1024*600

Frequency

2.4-2.484GHz

Modulation

OFDM/DBPSK/DQPSK/CCK

RF Power

15dBM
