Контроллер скорости мотора с ШИМ, цифровым дисплеем, процентным тахометром, плавным пуском и остановкой DC 6-60V.

Контроллер скорости мотора с ШИМ цифровым дисплеем процентным тахометром плавным пуском и остановкой DC 6-60V.

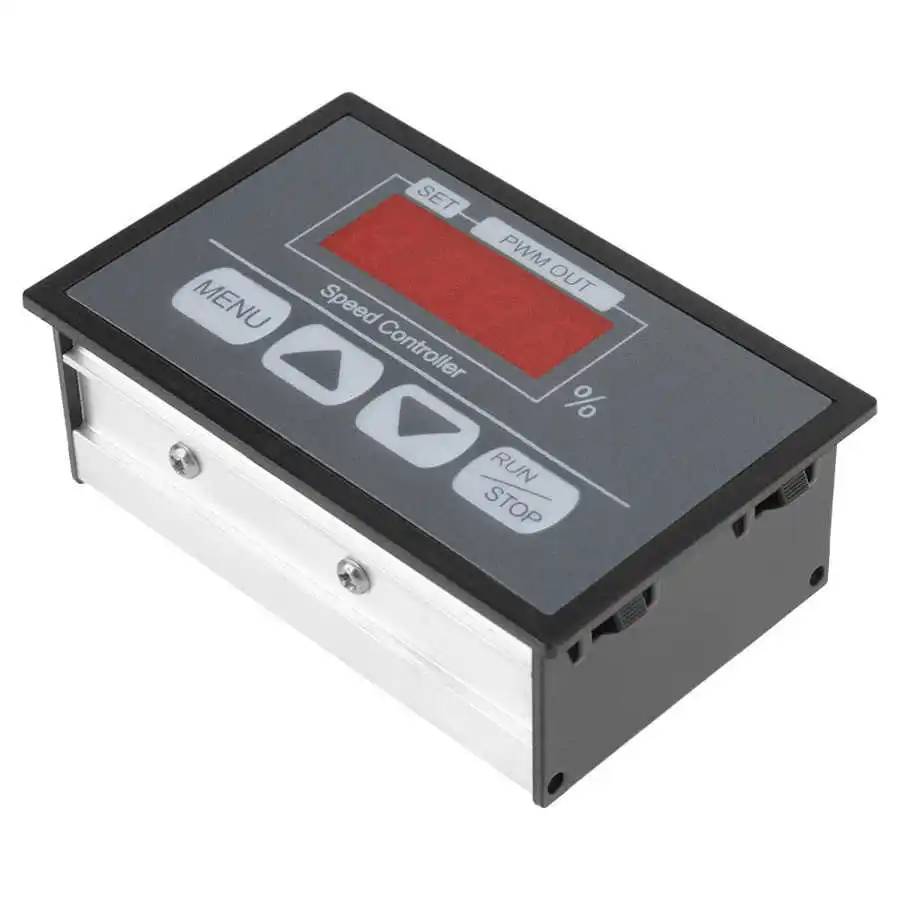

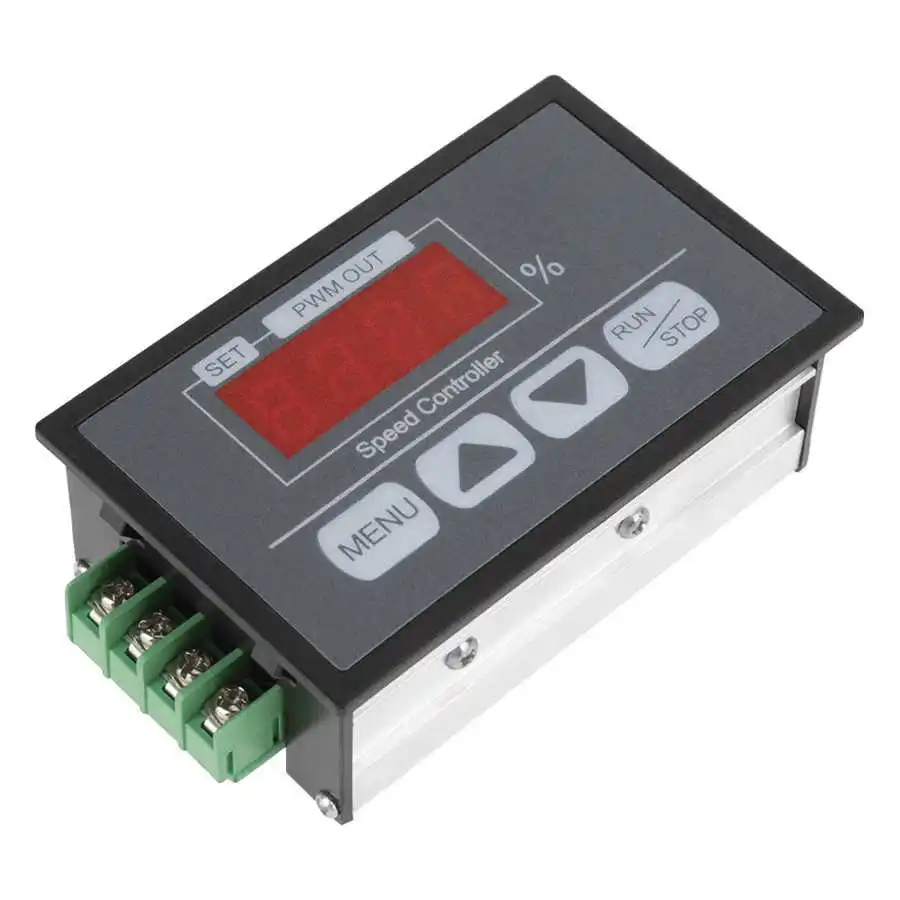

6-60V Digital Display Percentage Tachometer DC Motor Slow Start and Stop Speed Controller

Features:

Specifications:

Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed control mode: jog + -
Speed regulation range: 0-100%
Control frequency: 21KHZ

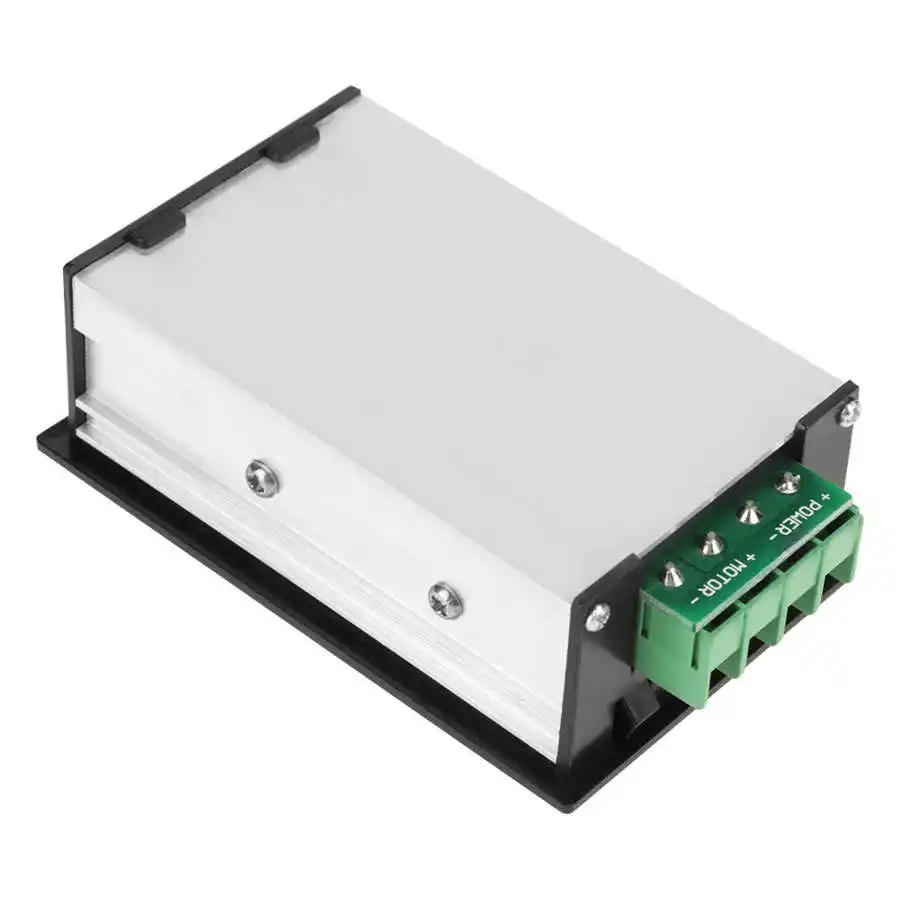

Type of connection: Barrier terminal
Support motor: brush motor
Significant speed:  0-100%

Size: 10 x 6cm / 3.94 x 2.36in

Weight: 100g

Detail:

1.Slow start time setting Function 1: 000 - 100 Slow start to 100% Speed time adjustable between 0-10 seconds Default is 1 second.
2.Slow stop time setting Function 2: 000 - 100 Slow stop time is adjustable between 0-10 seconds Default is 1 second.
3. Speed lower limit setting function 3: 000 - 080 The minimum speed is between 0-80% adjustable and less than the maximum speed setting The default is 0.
4. Speed upper limit setting function 4: 000 - 100 The maximum speed is adjustable between 0-100% and greater than the minimum speed setting The default is 100%.
 5.Acceleration and deceleration value setting Function 5: 001 002 005 010 015 020 025 Each time you press the plus/minus key, the speed changes correspondingly by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Package included:

1 x Motor Controller

Note:

1.The input voltage must differentiate "+" ,"-", can't input 220V voltage

2.The input voltage should be equal to the rated voltage of the motor within 6-60V
