NEW 2500W ZVS Induction Heater Heating PCB Board Machine+Heating Coil+70mL rucible+Pump+Power Supply | Инструменты
Описание товара

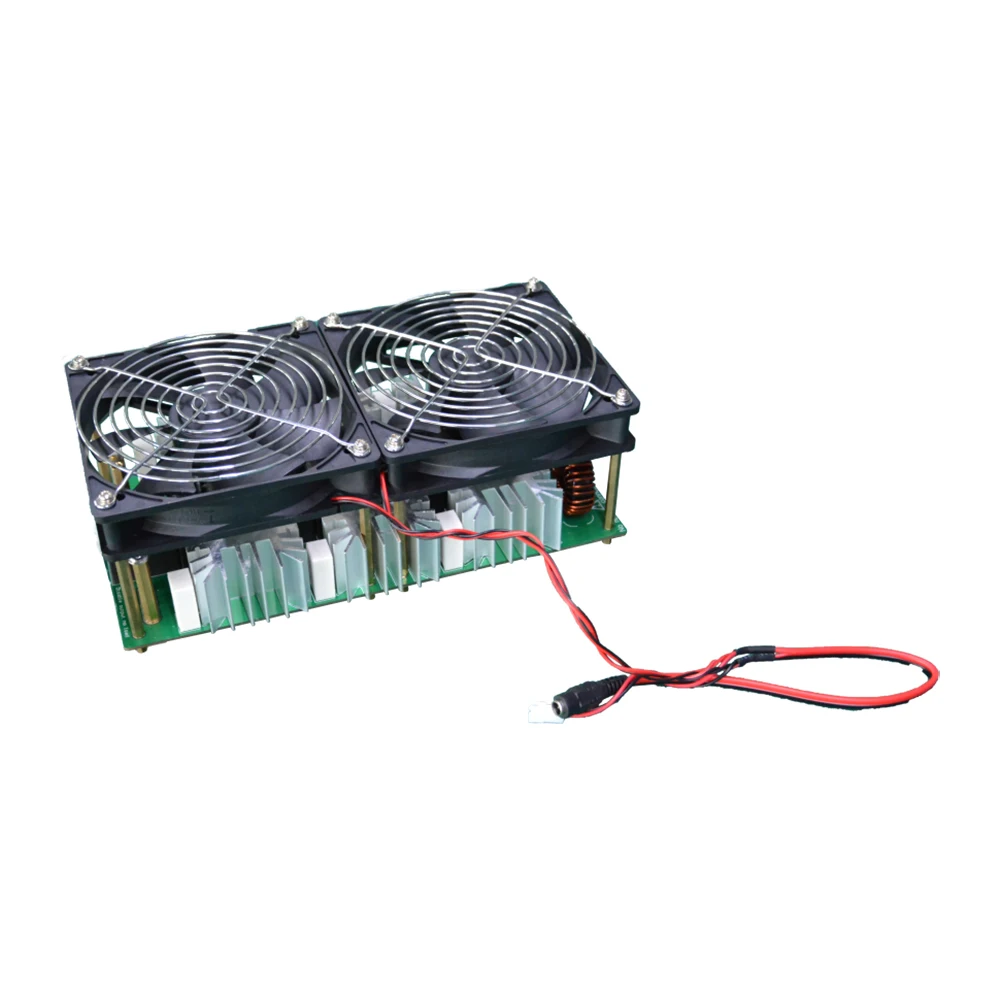

2500W ZVS Induction Heater Induction Heating PCB Board Heating Machine Melted Metal + Heating Coil+ 70mL Crucible+Pump+Power Supply
Parameter:Product size: 120mm * 240mmInput voltage: 12V-48V (recommended above 36V)Power requirements: less than 12V ≥ 10A 15V or more ≥ 20AMaximum power:2500WMaximum current: 50AFor induction heating, it is recommended to use a switching power supply of48V50A or higher. Ifthe powersupply is 24V or more, a power supply of 20A or
more is required. The higher thevoltage, the larger thecurrent, the higher the
heating power, the faster the heating speed.[1] The heating plate is made of 240*120mm military grade PCB, and the performance is
stable;[2] The power line is fully covered with copper cover design, which can increase current and
generate less heat;[3]Using an oversized and large power heat sink, the heat dissipation is better;[4] The output uses three M4 copper columns in parallel, which can be connected to other
outputs such as high voltage packages;[5] Six IRFP260 and 12 capacitors are used in parallel resonance, which has high power
efficiency;

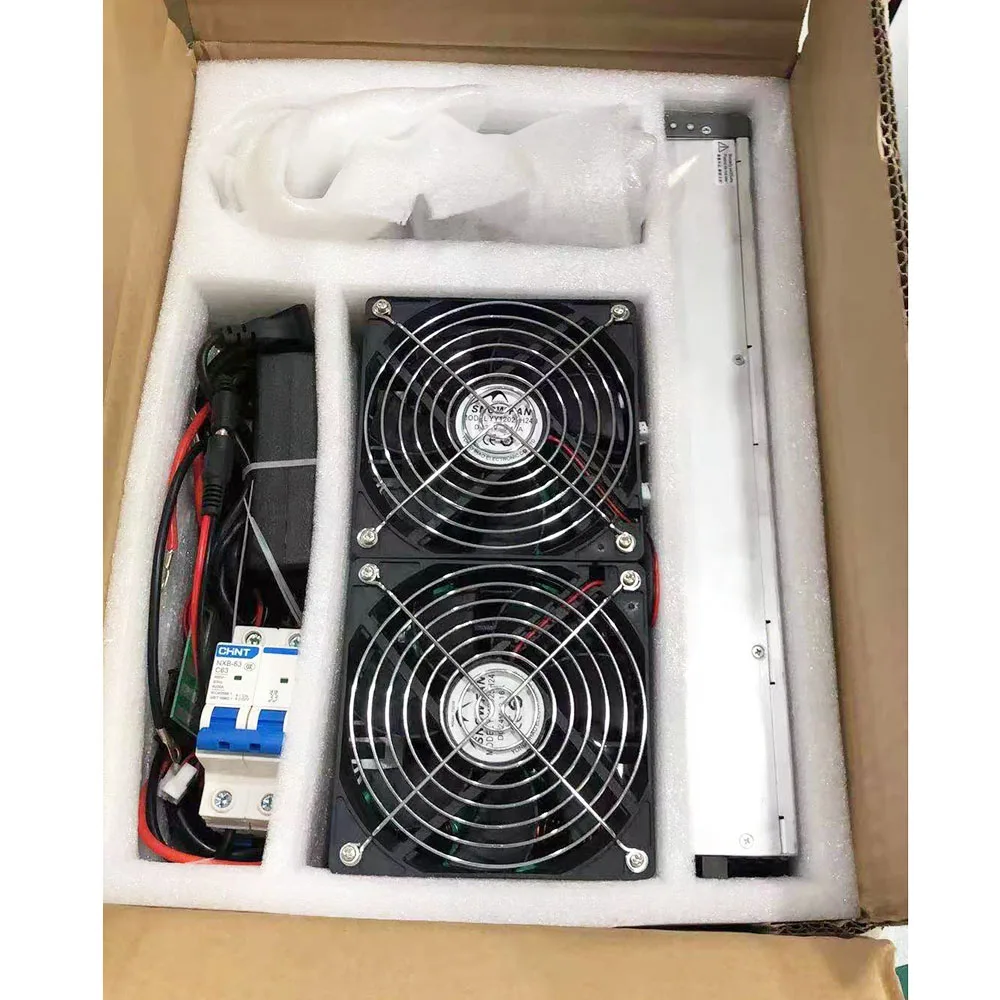

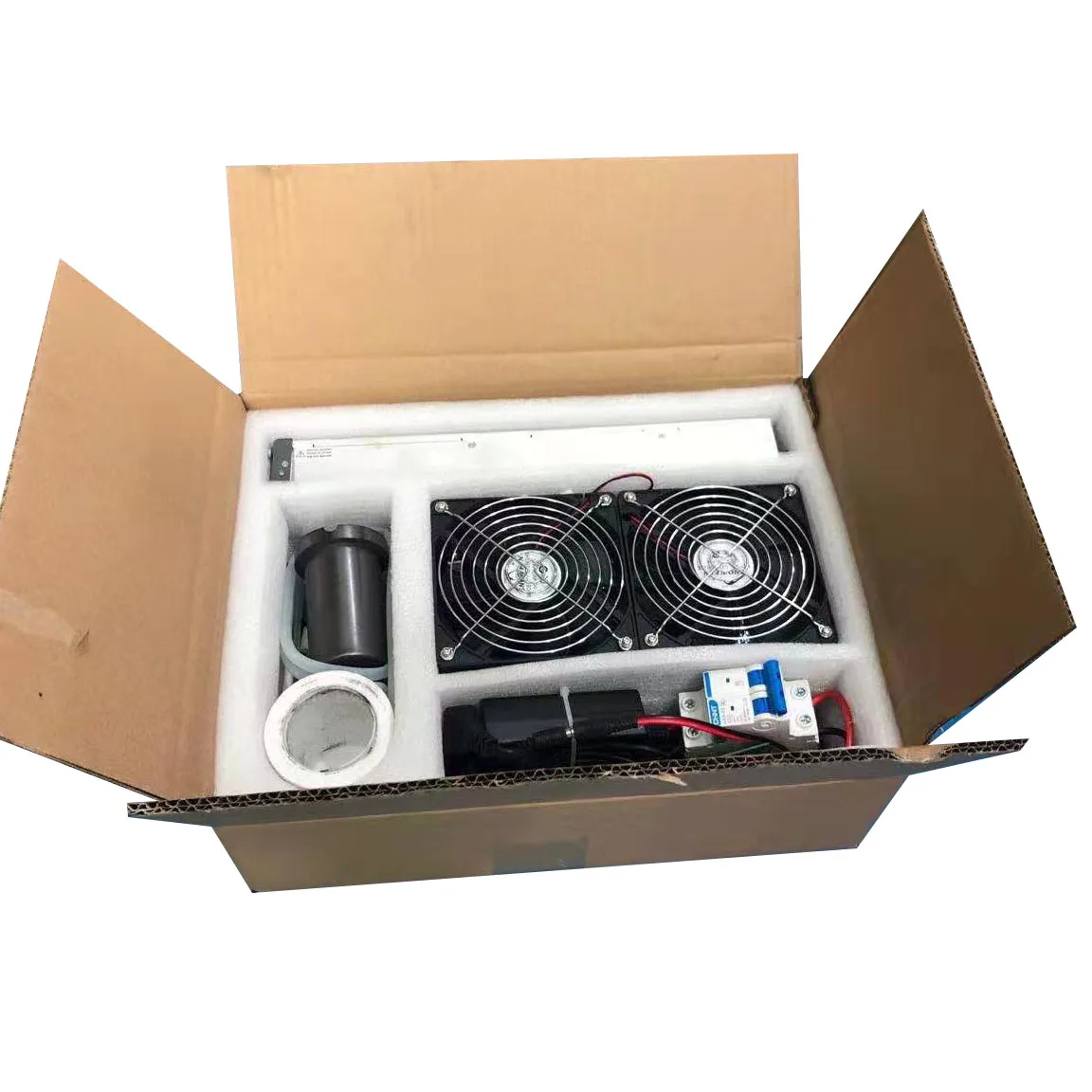

Package：
1 xpower supply(This power supply is disassembled second-hand communication power supply)
1 x PCB Board
1 x 48V Copper Tube
1x water pump

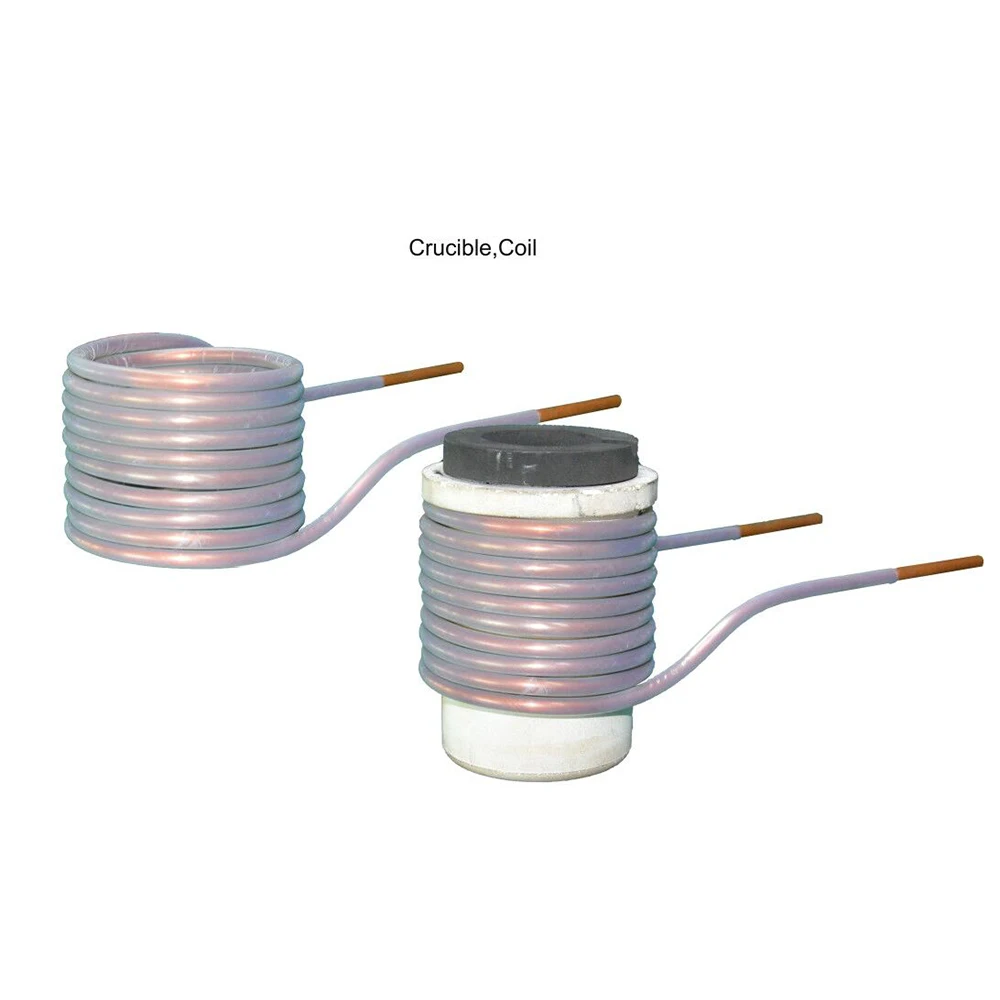

1 x crucible（57×87mm）
NOTE:
When in use, it is necessary to continuously observe the running state of the
machine，If the motherboard is damaged, please don't turn it on again easily, it
is dangerous
[Buyers must see / pay special attention][1] The power of induction heating is very large. In addition to the heat generated by the
board and components, the heat generated by the copper tube is also very large. Buyers can
bring their own water-cooled cooling system. You can buy a small water pump and a rubber
hose with an inner diameter of 4mm or 2m. You can also purchase a matching water pump in
the package.[2] It must be noted when using a switching power supply, because a high-power switching
power supply generally has a slow-start function, that is, it slowly rises when the output
voltage starts, and if the voltage rises to 10V, the induction heating circuit is turned on
because If the voltage is not enough, the circuit will not vibrate, so that the two MOS tubes are
turned on at the same time to burn the components. Therefore, it is necessary to connect the
induction heating circuit after the switching power supply voltage is stable;[3] When heating metal objects, try not to heat the metal with too much volume. Otherwise,
the overload may occur due to power overload. It is better to add a 50A fuse or ammeter and
air switch when using.
[4] Although this driver board can withstand more than 50A current, it is recommended not
to exceed 48V55A in order to prevent accidents and damage for long-term continuous
operation.[5] The heating coil of the package has a diameter of 60mm and a design voltage of 86V. If avoltage of 40V or more is used, the heating coil with an inner diameter of 60mm or more
must be used. The pump uses a 12V DC power supply. Please use the voltage regulator
module to supply power separately to avoid burning the fan. Water pump.[6] For induction heating, the copper tube in the package of this product should be used, or itshould be wound according to the standard of 10 mm inner diameter of 60mm. Otherwise,
the buyer will bear the responsibility for any burning problem.[7] This heating module is designed to be used in environments above 2000W. If the workingpower is low, you can purchase the 1800W induction heating machine.[8] The cooling water needs at least 10kg.
[9] If the input voltage is 110V, two power supplies are needed in parallel.
Precautions for use:[1] This module has requirements for specific voltage and current. The voltage of 12V must beused above 10A. The power of the power supply will be too low, which will cause the actual
output voltage of the power supply to be greatly reduced when the power is output. Below
12V, the two MOS transistors will be turned on at the same time, which will burn out the MOS
tube;[2] Some buyers will not notice the power requirement of the power supply when the MOS
tube is heated. If the MOS tube is abnormally heated, first consider whether the output of the
power supply meets the requirements.[3] The board should not be unloaded, otherwise it will emit a high frequency of noise, and
then the MOS tube will burn out.[4] Induction heating is recommended to use 36V30A power supply, 12V power supply is too
small to heat almost no reaction, and 12V power supply heating is likely to cause the power
supply output voltage to drop, below 12V is very dangerous.[5] Induction heating power is very large, and heat is inevitable, so be sure to dissipate heat.one year warrantyWe are not responsible for any custom duty or import tax, it is buyer’s responsibility.
