Lintratek Repeater 70dB GSM 900 3G 2100 WCDMA Mobile Phone Signal Booster LCD 23dBm Cellular Amplifier From Russian Warehouse | Мобильные

Lintratek Repeater 70dB GSM 900 3G 2100 WCDMA Mobile Phone Signal Booster LCD 23dBm Cellular Amplifier From Russian Warehouse | Мобильные

Hot Sale Tri Band 900+1800+2100MHz Signal Booster Set, ship from Russian warehouse & Spanish warehouse, fast delivery. Click below picture to purchase:

Lintratek Dual Band Signal Repeater 900mhz + 2100mhz with AGC Function 70dB White 23dBm From Russian Warehouse

If you need, Please check your phone 4G signal as below ,

Apple system: call : *3001#12345#* , signal strength will show on the top left corner.

Samsung system : call : *#0011#

Or you can download " network cell info lite " app to check .

Put your phone in the place where you gonna to install the outdoor antenna to check its signal strengthness:

Android : setting→about phone→status→network, dbm display shall be at -75dbm to -85dbm around ;
IOS : dial *3001#12345#*, dbm display shall be at -75dbm to -85dbm around ;

Please check frequency range firstly when you plan to buy signal booster .When your order delivery almost end , please let us know , we will help you extend delivery to protect your order and your money . Thank you !

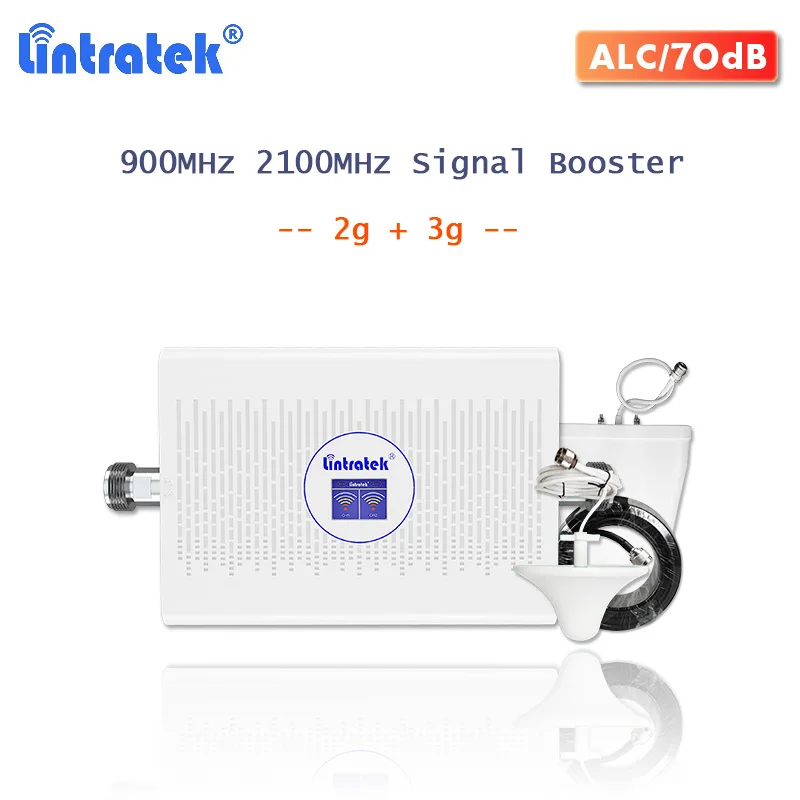

GSM + WCDMA/HSPA 2100 3G Network
2G Voice GSM 900 Communication Amplifier 2G 3G

Note : If you're dissatisfied with this product when you get or do not it , please contact with our professional customer service once . We will help you immediately . Thank you for your cooperation ! :)

And , if you like our product , please give us 5 stars feedback . We will try our best service .

Product information:

Model : KW23C-GW
Gain Control + ALC
N Female Connector
GSM 900 3G WCDMA 2100MHz(Band 1)
Uplink : 890~915/ 1920~1980MHz ; Downlink : 935~960/2110~2170MHz

NOTE: This one is 70dB Gain !!!

Selling Point:

1.New design in 2019, Size is 180x120x18mm, 0.72KG!

2.Coverage: cover about 300-1000sqm without barrier, but one antenna mostly can cover 300 square meters. This repeater can work with 3-6 indoor antennas.

3.GSM 900 + WCDMA 2100

4.70dB high gain, 23dBm large power, can go through the barriers easier.

5.Easy to install.

6.Full kit: Repeater + Outdoor antenna + Indoor Antenna + 10 meters cable

7.With LCD display

8. 1 Year Guarantee

Feature:

1.High linear design, low interference to BTS.

2.Compact size, low consumption, easy to install, great coverage.

3.Expand signal coverage where signal is weak, suitable for home use.

4.Improve your mobile signal, no more bad reception, no more dropping calls.

5.With intelligent LCD display function.

AGC function:

Automatical Gain Control: It can adjust Gain automatically, so that your mobile phone can get the best signal while it doesn't interference with signals of your neighbour.

Working principle:

1.Outdoor antenna received the signal from signal tower.

2.Then, through cable sent the signal to the indoor repeater.

3.The repeater accepts and improves the signal.

4.After that, the fine signal goes into indoor antenna, via cable to your mobile phone.

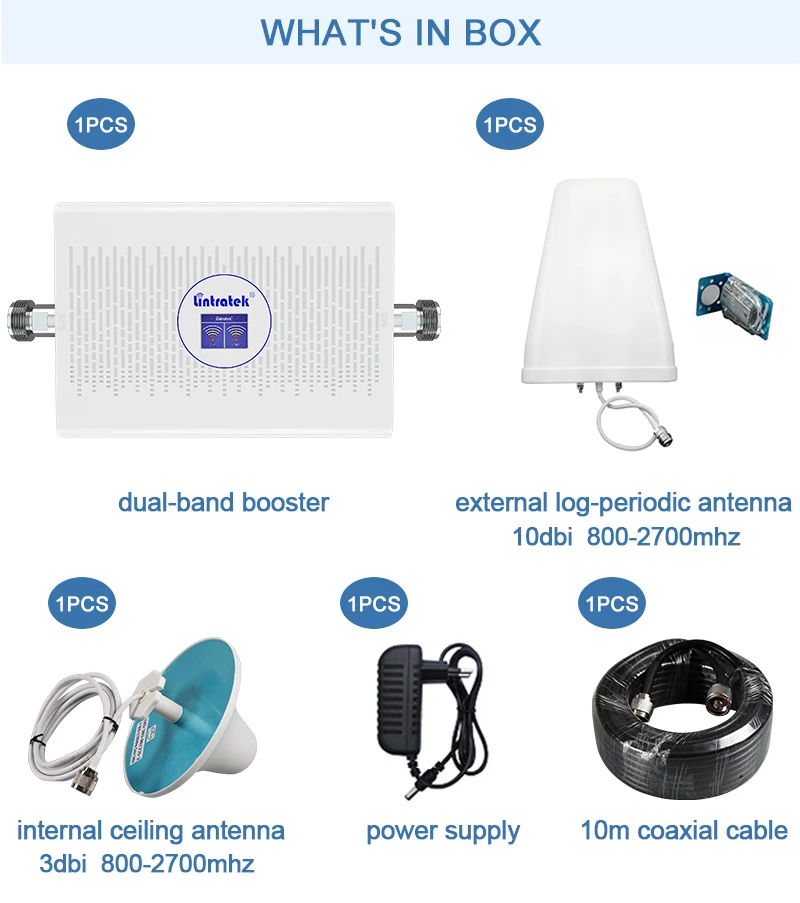

Packaging Including:

1. GSM 900 WCDMA 2100 Dual-band Signal Repeater

2. AC Power Cord

3. Outdoor log-periodic antenna

4. Indoor ceiling antenna

5. 10m coaxial cable

Accessories:

#External log-periodic antenna

10dBi Gain

Frequency: 800-2700mhz

N female connector

Advantage: Waterproof

#Internal ceiling antenna with 2 meters cable

3dBi Gain

Frequency: 800-2700mhz

N male connector

Advantage: 360° omnidirectional

#10 meters cable

RG6 5D coaxial

N male connectors

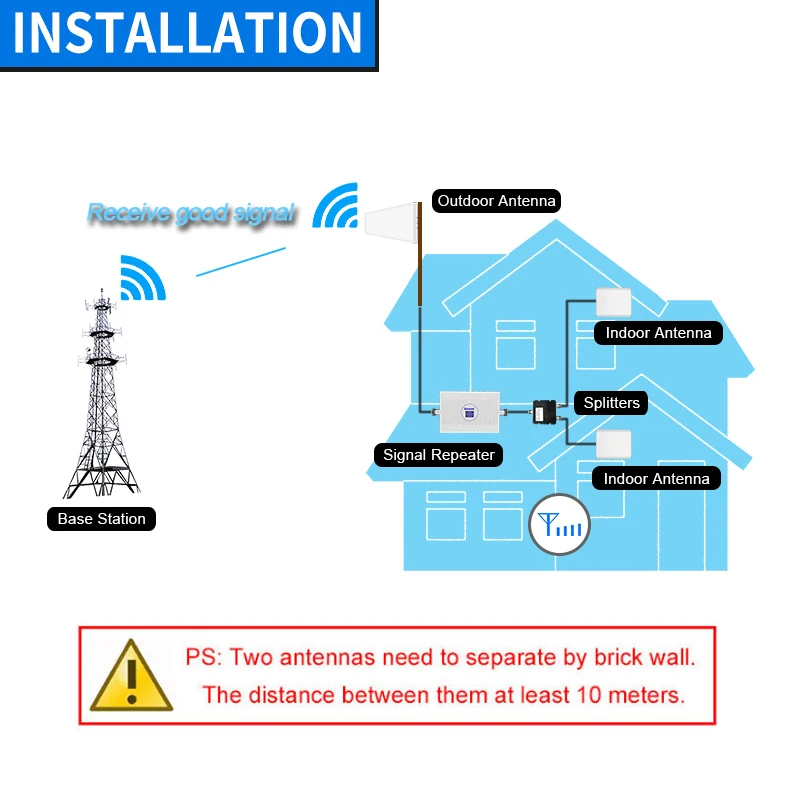

Installation Approaches:

1.Fix up outdoor antenna(usually use the yagi antenna) on the housetop and point to signal tower.

2.Connect outdoor antenna to "BTS" in repeater via cable.(Notice: the machine must be away from outdoor antenna for more than 10 meters)

3.Connect indoor antenna(usually use panel antenna) to "Mobile" in repeater via cable(the machine must be away from indoor antenna for more than 1 meters)

4.Plug the power adaptor, power light will be lighting, when the outdoor antenna receive the strong signal the LCD will be display the signal Please note that,when you find signal twinkling and have no full signal display that means have no signal input and you need to check your outdoor antenna position.

TIP: The outdoor antenna should be "isolated" from the internal antenna, that is, there must be constructive obstacles (walls, partitions, etc.) between the antennas.
