LED Strip Controller

Model No.: FUT035

Voltage: DC12V-24V

Color temperature: WW/CW

Output connection:Common anode

Output: Max. 6A/Channel, Total output Max.10A

Control Distance: 30m

Size: 85*45*22.5mm

Remote power supply: 2 x AAA battery (not included)

Telecontrol distance:30 meters

Material: ABS

Remote : With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunications, etc. The remote looks fashionable and elegant, with simple and practical functions of  brightness dimming, the capacitive touch screen design makes the remote easy to use

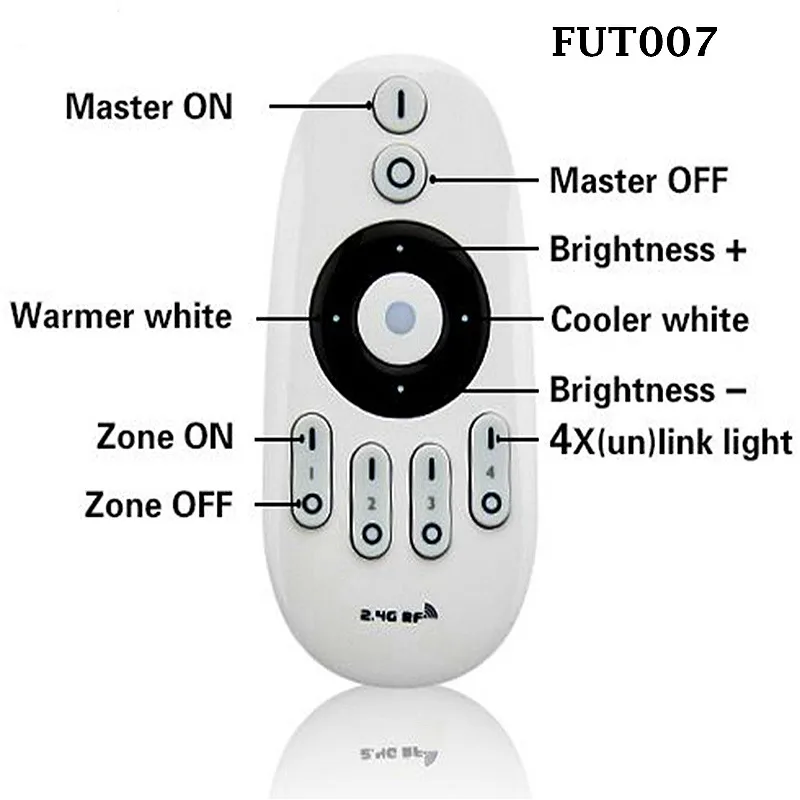

1.Brightness & color temperature adjusting:To adjusting all controllers, first press "Master ON" or to adjusting individual controllers, then press "Zone ON"; secondly set the adjustment for color temperature or brightness.

2.Night light mode: for individual controllers, press and hold the "Zone OFF" from one of the 4 zones, For all controllers, press and hold "Master OFF", The lights now consume only 0.4watts.

3.Resume function: The previous setting will be resumed while power on again!

4.Matching Code:Press one of the "Zone ON" buttons one time within 3 seconds when power on again, the light will blink 3 times if matching is successful;

5.Clearing Code:Press one of the "Zone ON" buttons five times within 3 seconds when power on again, the light will blink ten times if clearing is successful;

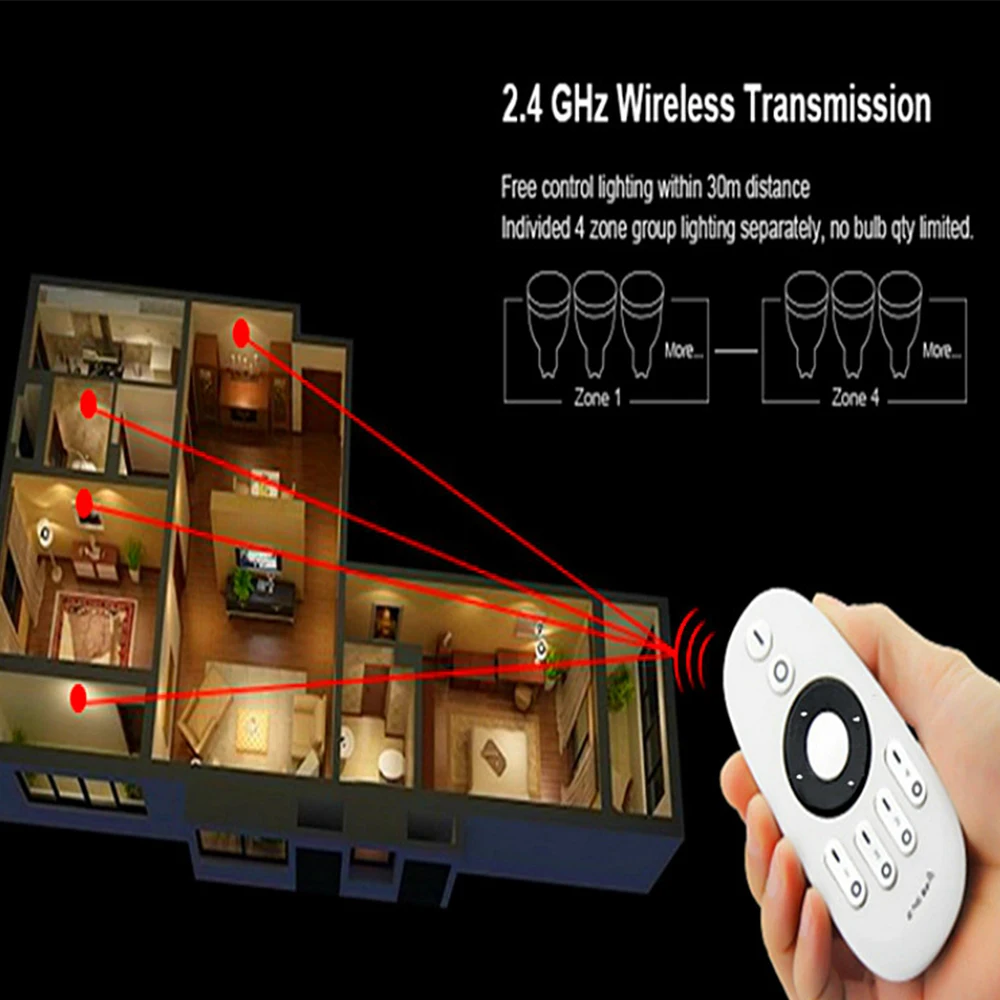

6.Grouping:You can add an endless numbers of controllers t a zone on the 4 channel remote by code-matching to different zones.This way you are completely flexible in creating different group combinations.Below you can see some grouping example
