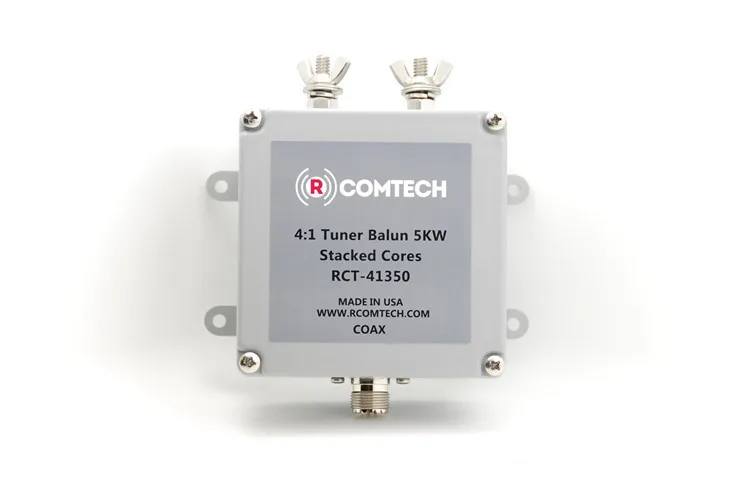

RCT-41350 4:1 5kW voltage type balun antenna | Бытовая техника

RCOMTECH High-Power Baluns and Transmission Line Transformers let your antenna perform to its fullest potential and reduce the stresses on your equipment. RCOMTECH baluns will deliver the power to your antenna with minimum loss and perform a perfect transition from balanced to unbalanced. This will result in the strongest signal that your antenna is capable of producing consistently with the lowest SWR under given conditions. This results in less stress on your transmitter so that components will last longer and operate better. RCOMTCH baluns exhibit far wider bandwidths than conventional baluns because more of the flux is confined to the immediate vicinity of the core, so much more energy goes to your antenna. Extremely high efficiency is achieved over the entire frequency range.

4:1 voltage type (Voltage/Tuner) 5kW balun characteristics

Custom imported high-efficiency low-permeability ferrite, with coating seal Superimposed core efficiency Widest operating frequency range Lowest core pressure Eliminate common mode current and radiation common to feeders Reduce transmission RFI and reception noise Insertion loss is less than 0.02 dB High standard waterproof box, long-term UV resistance SO-239 nickel-plated connector with waterproof gasket and TEFLON insulation (silver-plated optional -X) ​ Part Number :       RCT-41350 Core Type :       Outstanding low permeability ferrite mix coated toroid core with special design for    maximum bandwidth by Fair-Rite Product Winding Type :       Stacked cores/Dual wire Winding Material :       Polyimide Coated Winding Wire(Essex ALLEX Class 240 ) provide exact impedance    matching and superb insulation, unlike common Thermaleze wire Ratio :       1:1 Power Handling(CW/SSB) :       5kW /5kW (7kW intermitten) Frequency Range :       1 to 54 MHz Band of Operation :       160M - 6M Insertion Loss :       Less than 0.02db Termination Impedance :       200 Ohms Termination Type :       1/4-20 Studs/Hex nuts/Wing nuts/Eyebolts Connectors :       Gasketed SO-239 connectors are nickel-plated with Teflon insulation (option X silver    plated) Hardware :       All Stainless Steel Enclosure Type :       NEMA rated 4x junction box provide sturdy weatherproof and an additional level of    protection against corrosion Dimensions :       4 in. x 4 in. x 2 in. Additional :       Very high efficiency (98-99%) Mounting Type :       Antenna Mounting Options are available in the Accessories section Warranty :       Lifetime
