S373 Водопроводный кран Давление 6 мм Насадки для мелкого атомизированного разбрызгивания 0,4 мм Латунные распылители для туманообразования Система орошения дезинфекции охлаждения.

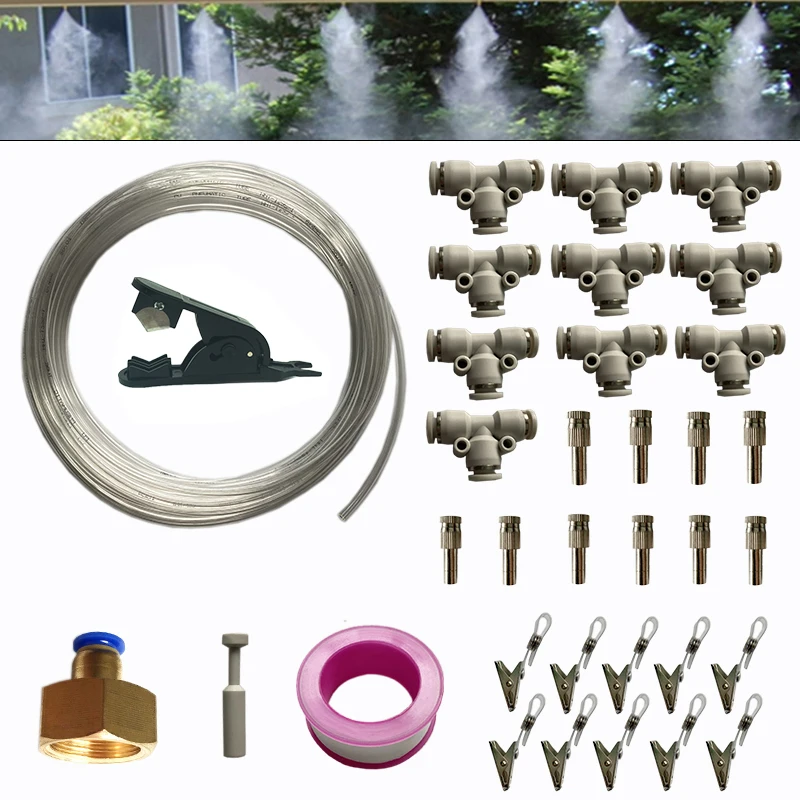

Description Packing List:   10X Meters 6mm Tubing 10 X pcs 3-way Tee Connector 10x pcs Quick insertion Nozzle 1x pcs Pipe Cutter 10x pcs Pipe Clip 1x pcs End Plug 1x pcs Teflon Tape 1x pcs 1/2'' Female Connector   Key Features:   1) It is easy to assemble and operate; 2) It can be applied for Misting or Spraying the Plants or Flowers in the feild of Garden, Greenhouse or Patio; 3) The Mist Area can reach to 0.8m~2m depend on the water gage; 4) It is made of good and healthy material.     Specification   Size: 10 meters  Color : Black & Blue & White Tube: 6mm water tube (External Diameter: 6mm; internal Diameter: 4mm) Nozzle: 0.4mm Orifice Quick Insertion Nozzle; 3-way Tee Connector: 6mm Internal Diameter; Plug is same 6mm structure; Brass Connector: Internal Thread Diameter is 20mm;    Function: Can work under normal water pressure(4-5bar)     Description:

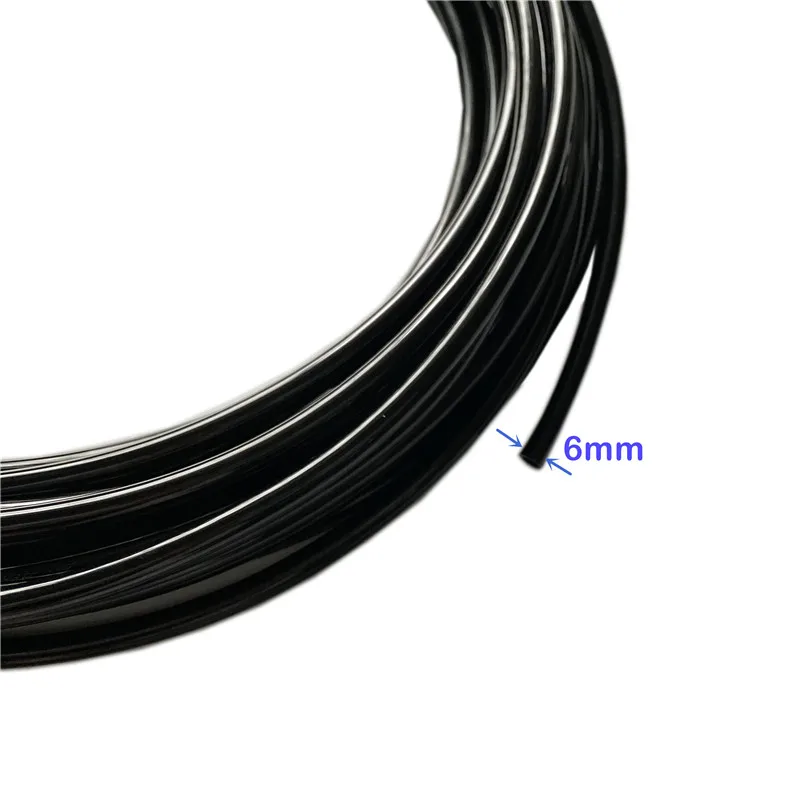

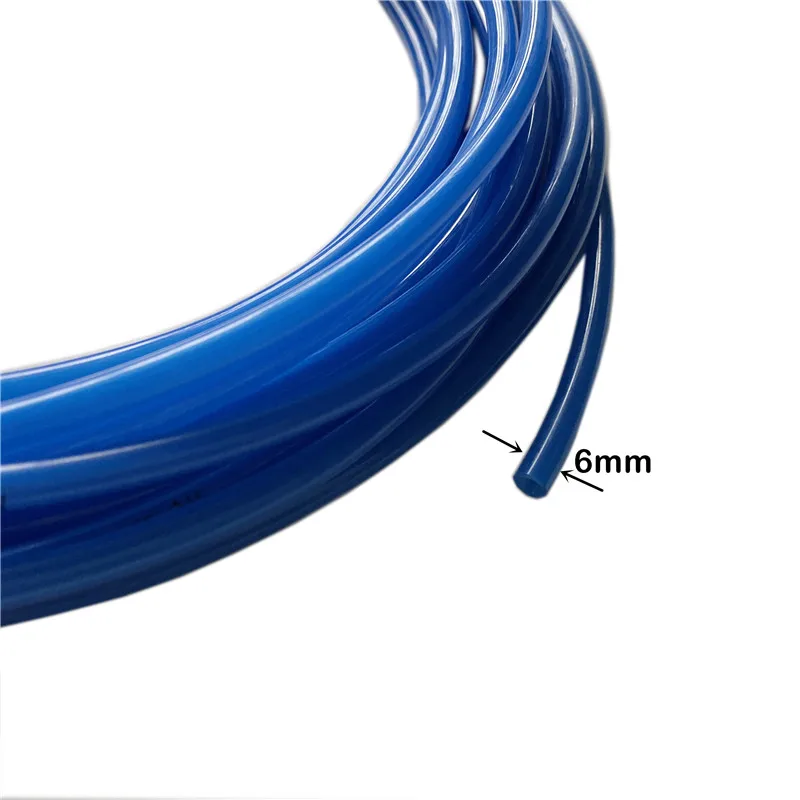

Tubing:

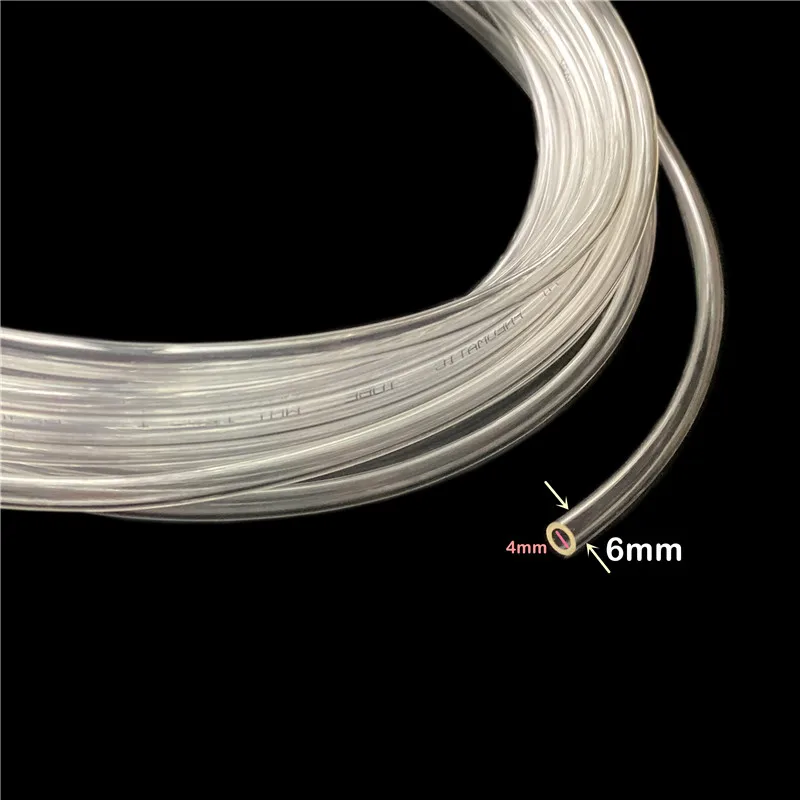

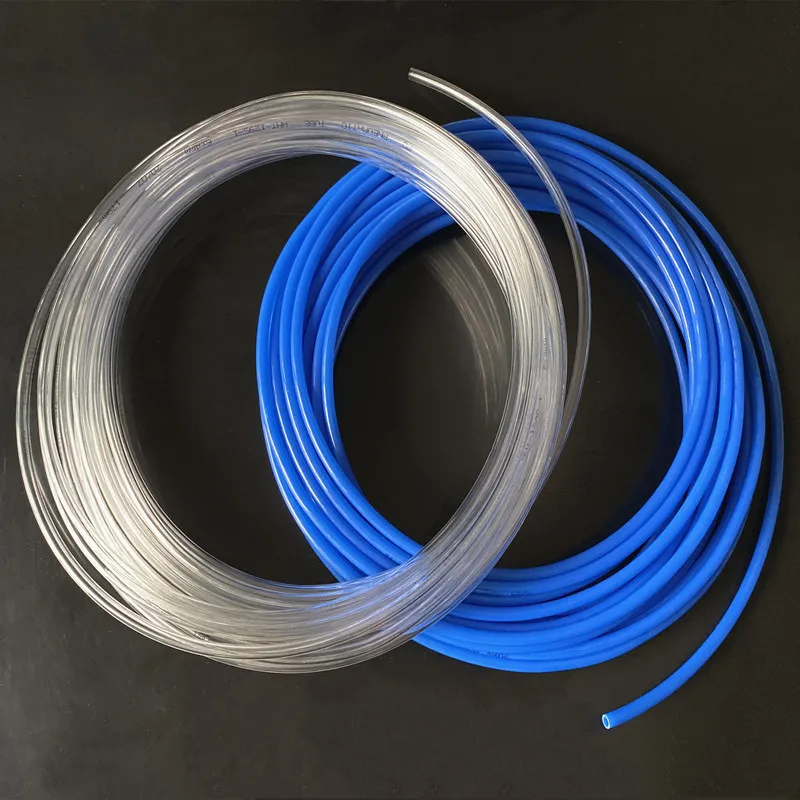

White Kit is transparent tubing, clearly view the water flow to prevent nozzle clogging;

​

Nozzle:

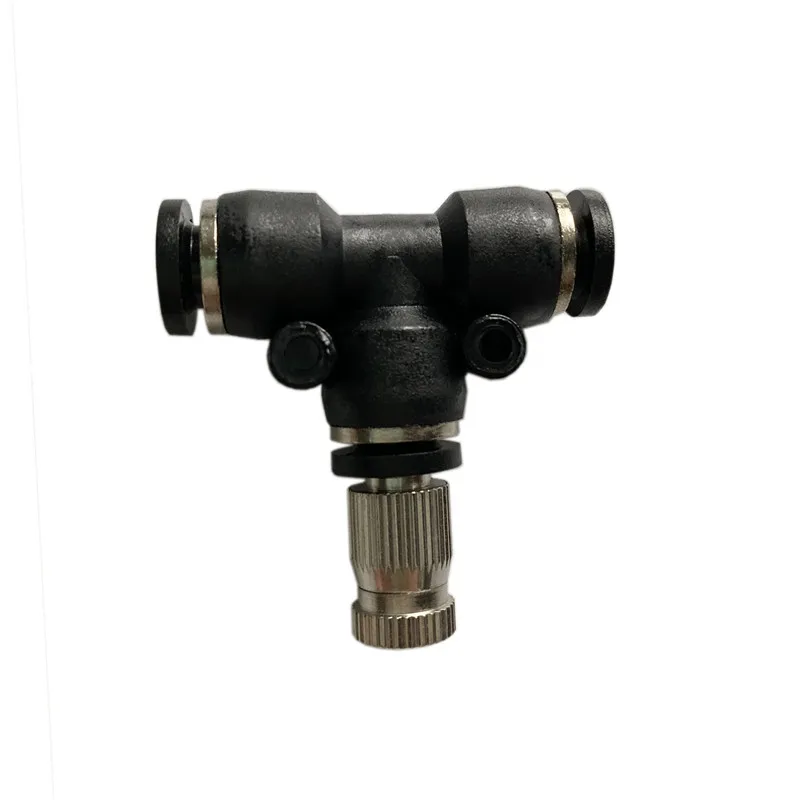

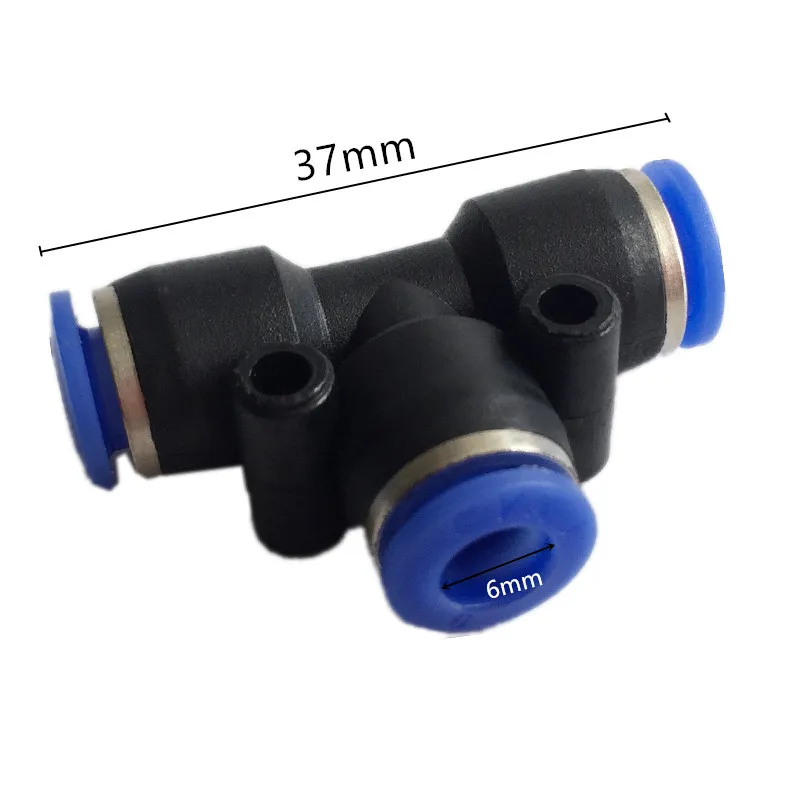

Tee:



Adapter:



Accessories:







Design Features

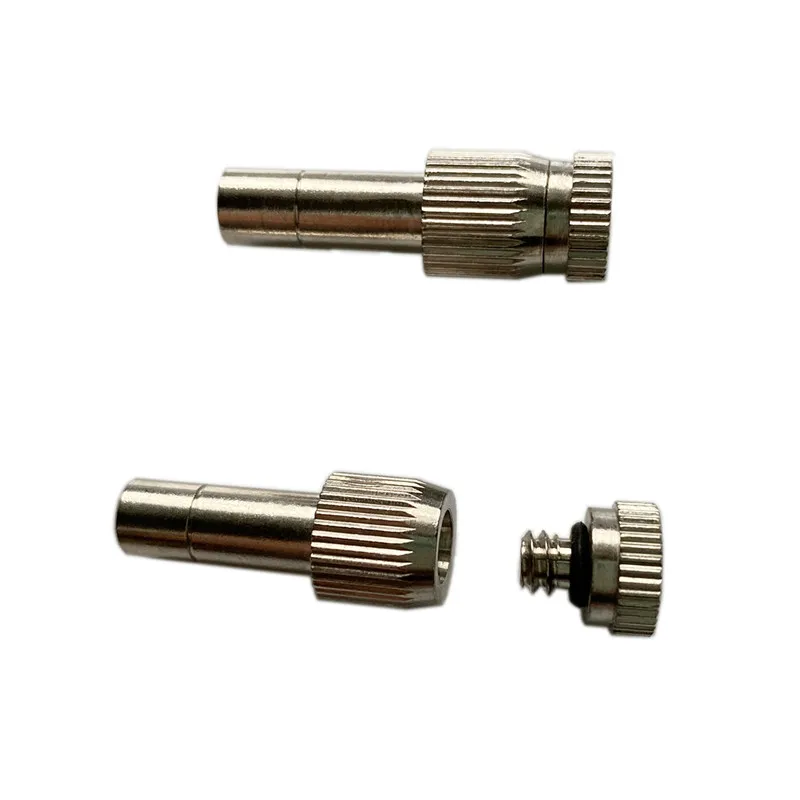

  The brass fine atomizing nozzle is a brass main body with nickle planting.   The liquid forms a centrifugal vortex in the guide vane, and the fine hollow mist particles are sprayed from the nozzle hole, which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.     Instruction as below:

Installation Steps:

1. It is recommended to installed the misting system at a height of 2.5m-3m.

2. Connect the adapter to the water tap.

3. Turn on the water tap to wash the system for 1 minute to purge the system and remove any impurities.

4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.

5. Turn on the water tap to wash the system for 2 minutes to insure that the system is fully purged.

6. Turn the water off and install the last nozzle into the fitting with the end plug.

7. Fix the misting line by the clamps provided.

8. Turn on the tap slightly until jets are working, enjoy the cooling misting system.

9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.

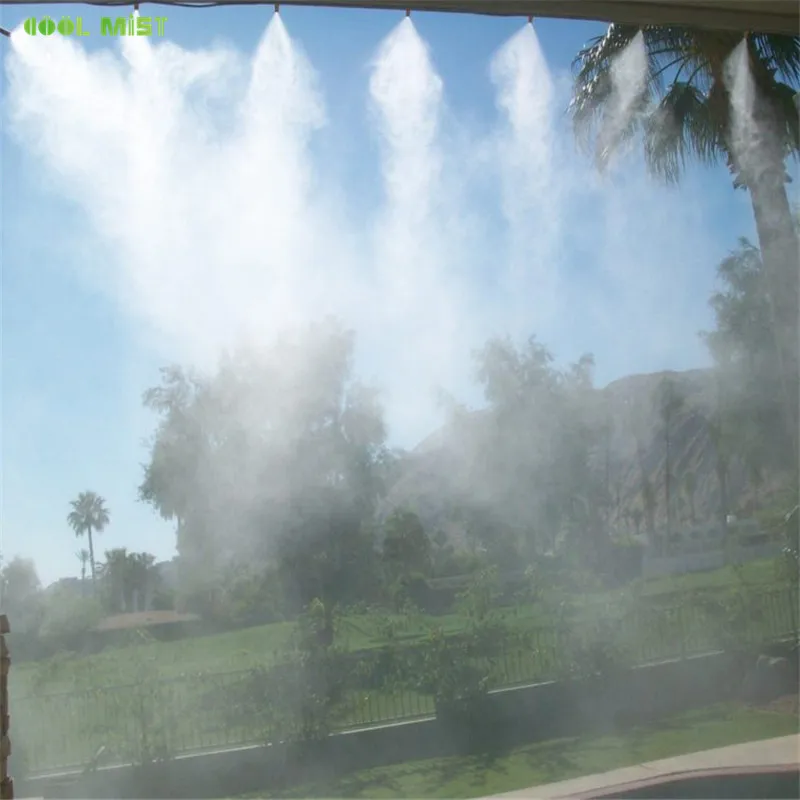

Application as below:   Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc   Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime. ​ ​



---
