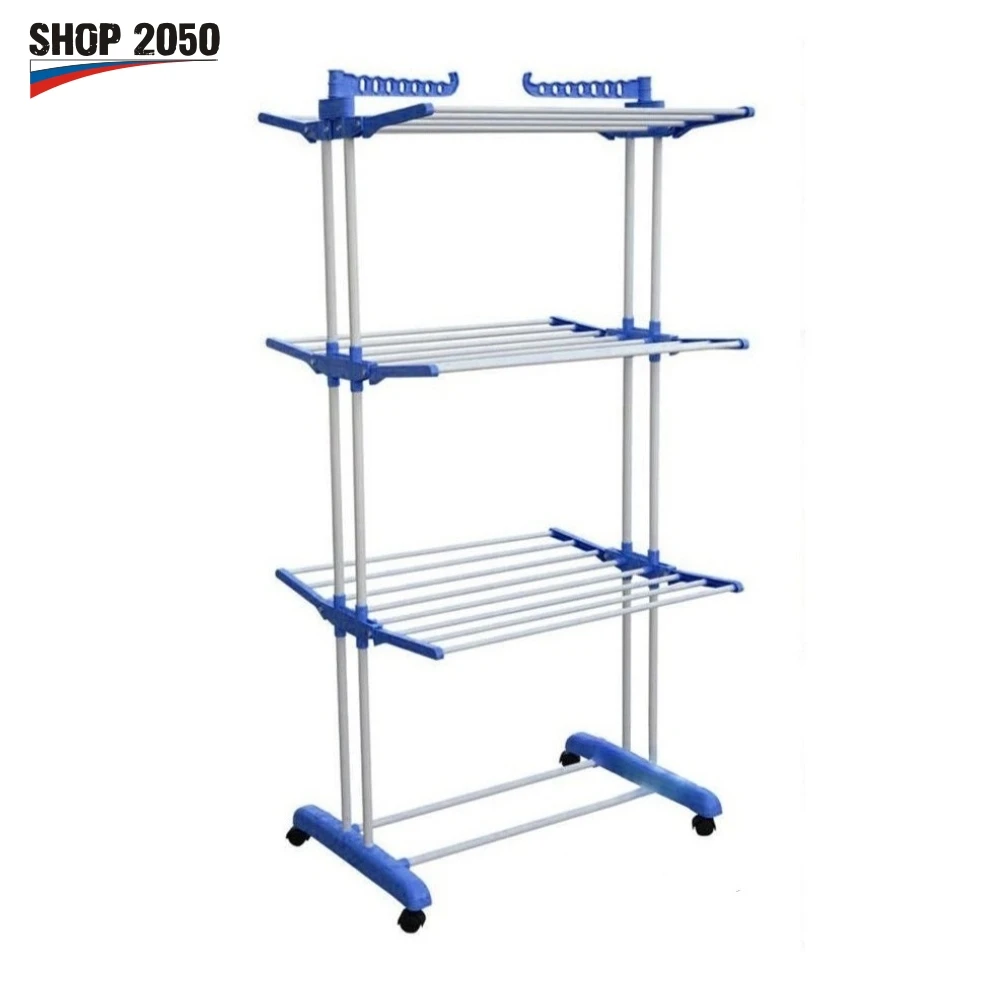

The vertical dryer consists of three floors, each of which has two shelves for laundry. On each of the shelves of three crossbars of 60 cm width and two crossbars in the central part. Thus, the total length of 24 crossbars on the entire design is more than 14 meters. And this is not counting two Verites of additional large hooks, on which you can hang almost two dozen hangers.

Features:

Material: steel, plastic.

Size with down tiers:

-Height 170 cm,

-Width 75 cm,

-Depth 23 cm.

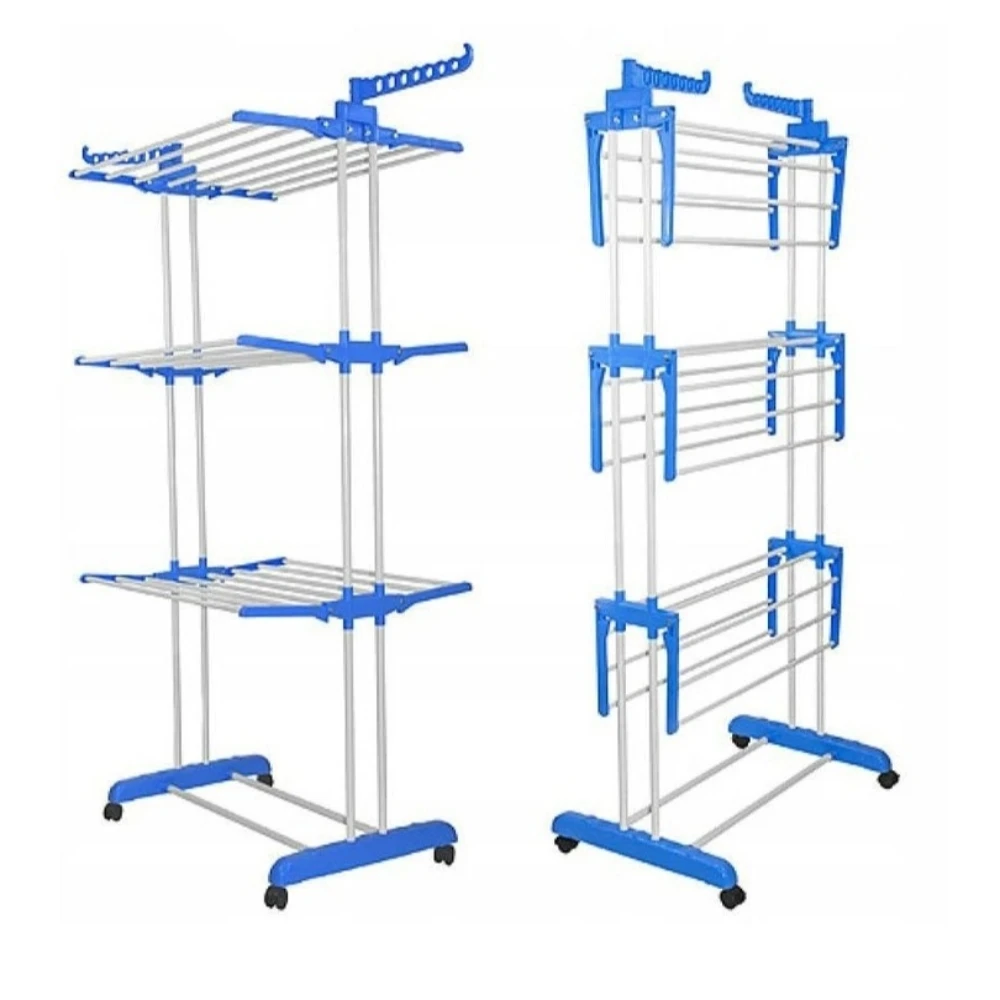

Size with raised tiers:

-Height 170 cm,

-Width 75 cm,

-Depth 64 cm.

Will withstand 40 kg of linen.

Completely does not fold, the lower part with wheels does not fold.

Help in assembly.

On the box there is a complete set-up and part numbers. For convenience, lay out the round railing on the floor, so it was easier to look for the right size.

1. sobirite bottom stand with wheels. To do this, you need to take two perils under the number J (their only two such length) and insert in the groove parts of the bottom F, after insert the wheel into into into

2. then assemble 3 Central shelves. Their railing is narrow and short, only 6 pieces, on each shelf 2 perils. We insert the railing into the desired parts. On 2 and 3 tiers go parts D, their 4 PCs. On the top tier comes part C with a through hole, their 2 pcs.

3. we then collect the central axis. Alternately vertically we insert in the groove of the railing I (they are the shortest, their 12 pieces), and we attach on them alternately central shelves. The upper part is different, it has a through hole. The vertical direction of plastic parts is chosen as on the instructions on the box.

4. then fix the racks at the top of Part B and tighten the bolts on it. Do not drag the bolts, plastic can crack if you tighten too much.

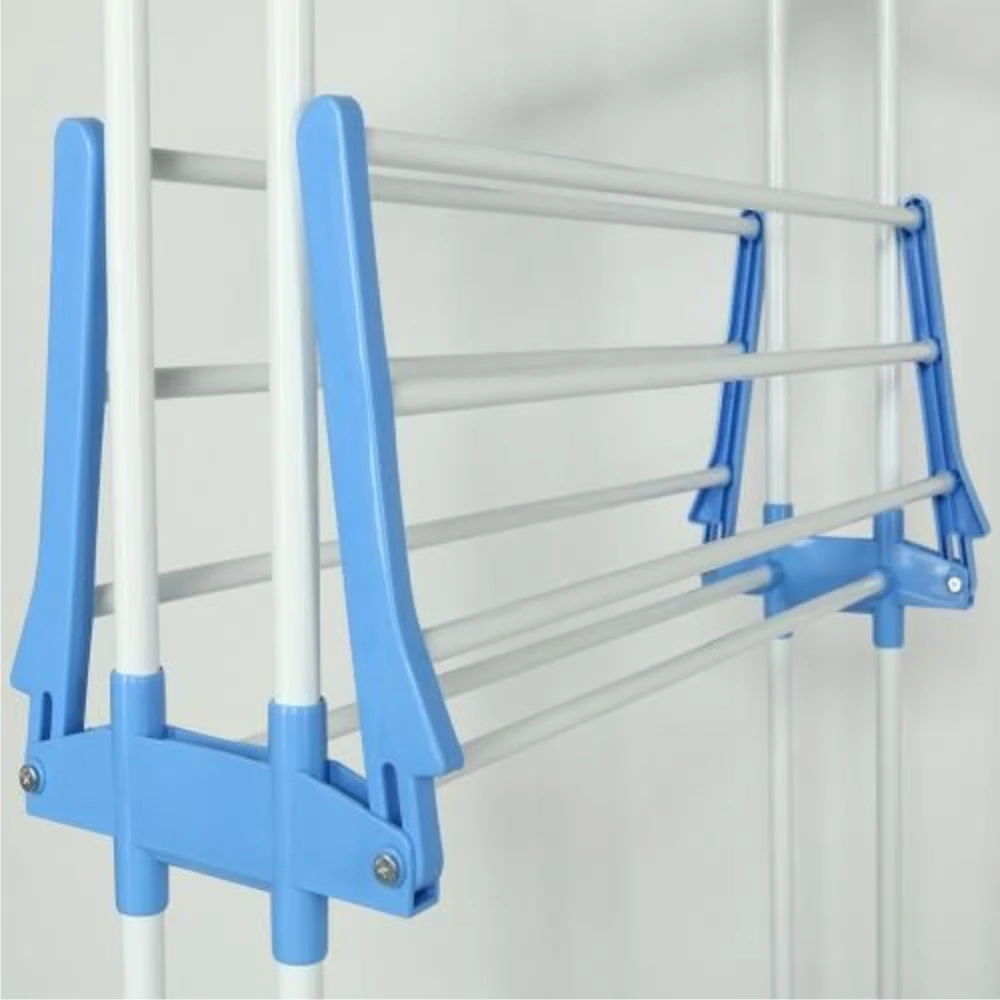

5. we collect alternately shelves from parts E and N. Please note that the plastic parts of the shelves are not the same, but mirror (6 left and 6 right).

6. Insert the shelves into the slots on the center and tighten the bolts. The vertical direction of plastic parts is chosen as on the instructions on the box. Bolts strongly tighten do not need that the shelves would fall freely and rise without tension.

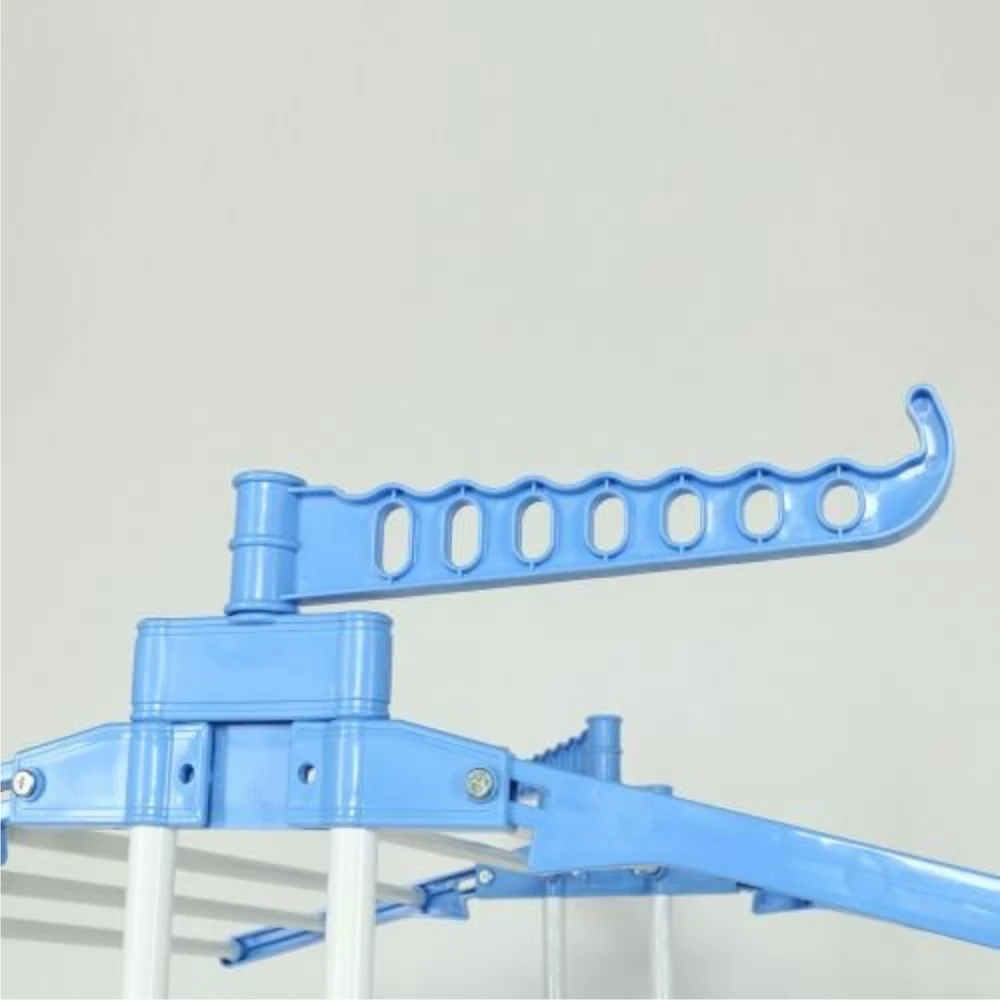

7. we insert two remaining parts for hangers on special mounts at the top of the design.
