Модуль дисплея малого размера 1,3 дюйма OLED (B) с разрешением 128 * 64, интерфейсами SPI I2C и прямым / вертикальным разъемом 40,5x37,5 мм.

Brand NameTnkmoModel Number1.3inch OLED (B)OriginMainland ChinaCompatible Brand/ModelSonyMeasurement unitpiece/piecesEach pack1

Unavailable in

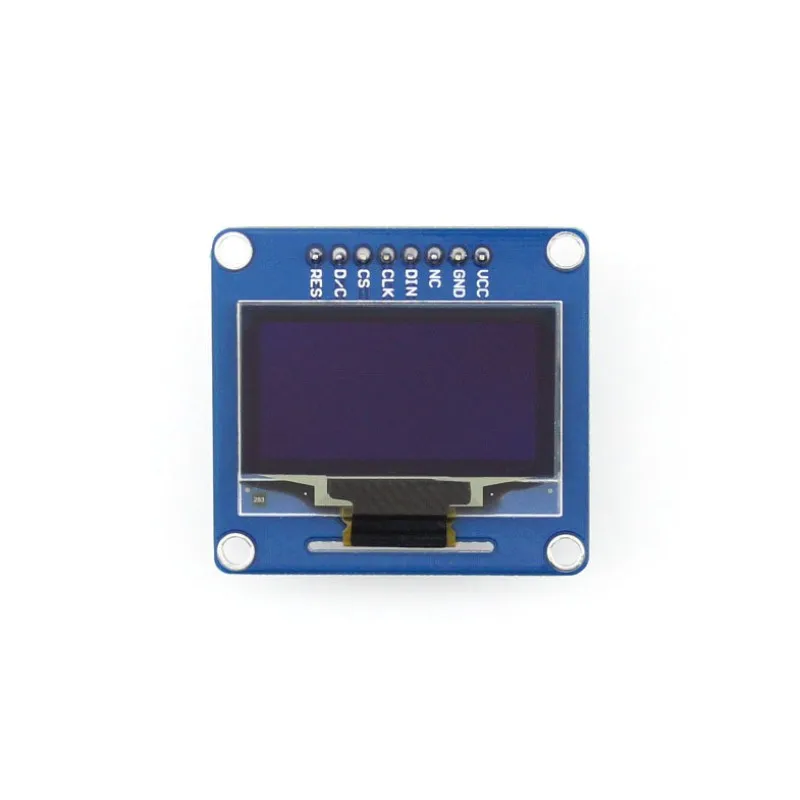

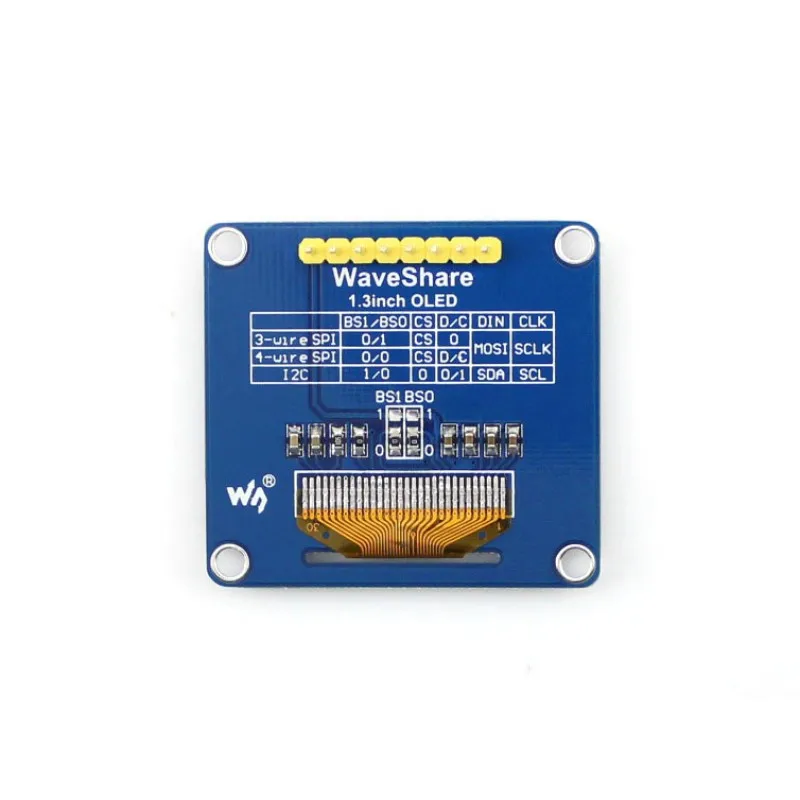

Description 1.3inch OLED, SPI/I2C interfaces, straight/vertical pinheader Key Parameters Driver Chip SH1106 Interface 3-wire SPI, 4-wire SPI, I2C Resolution 128*64 Display Size 1.3inch Colors Blue Visible Angle >160° Dimension 40.50mm*37.50mm Operating Temp. () -30~70 Storage Temp. () -30~80 Interface PIN NO. SYMBOL DESCRIPTION 1 VCC Power positive (3.3~5V power input) 2 GND Ground 3 NC NC 4 DIN Data input 5 CLK Clock signal input 6 CS Chip selection, low active 7 D/C Command signal, low level for command, high level for data 8 RES Reset signal, low active Hardware Config Mode/Interface BS0/BS1 DIN SCK 3-wire SPI 1/0 MOSI SCLK 4-wire SPI 0/0 I2C 0/1 SDA SCL Ordering Info

The 1.3inch OLED provides 2 options for the onboard pinheader:

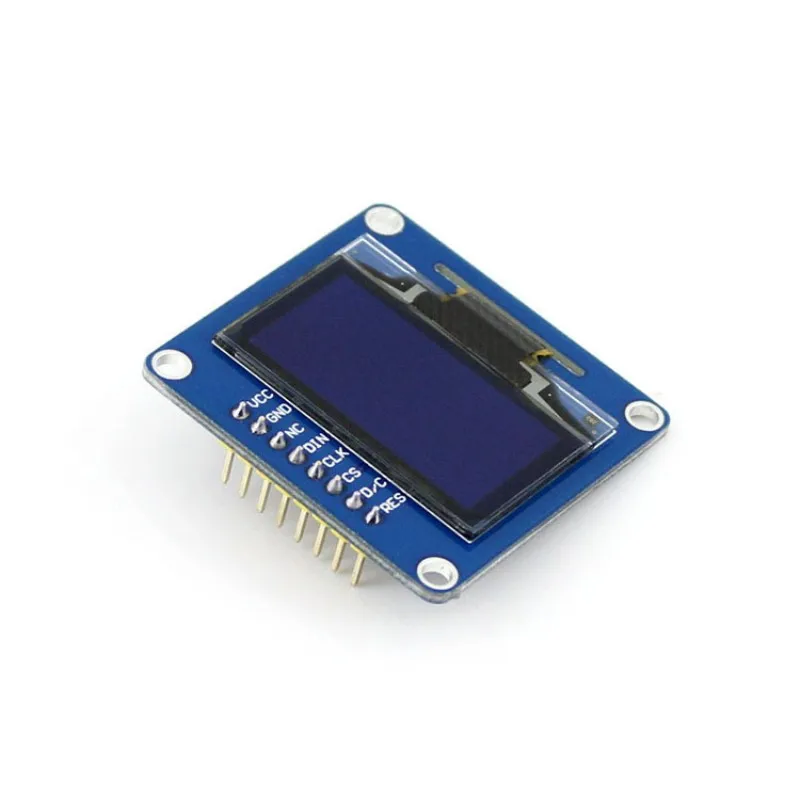

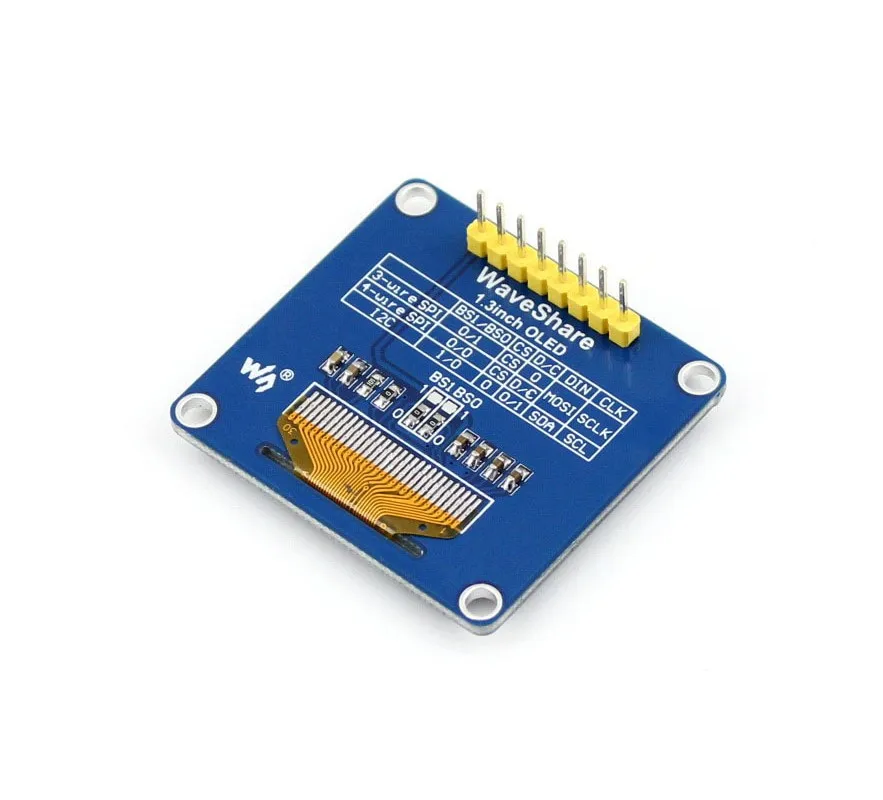

1.3inch OLED (A): curved/horizontal pinheader 1.3inch OLED (B): straight/vertical pinheader

---

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www..com/wiki/1.3inch_OLED_(B)

---

Photos   Dimension

PACKAGE CONTENT

Weight: 0.008 kg

1.3inch OLED (B) x 1 Selection Guide Part Number Color Resolution Display Size (mmxmm) Interfaces Driver Dimension (mmxmm) Pinheader 0.91inch OLED Module White 128x32 22.38×5.58 I2C SSD1306 36.0x12.5 PH2.0 connector 0.95inch RGB OLED (A) 65K colorful 96x64 20.14x13.42 SPI(4-wire SPI) SSD1331 31.7x37.0 angled/horizontal 0.95inch RGB OLED (B) 65K colorful 96x64 20.14x13.42 SPI(4-wire SPI) SSD1331 31.7x37.0 straight/vertical 0.96inch OLED (A) 1/4 yellow section, 3/4 blue section 128x64 21.7x11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0x33.5 angled/horizontal 0.96inch OLED (B) 1/4 yellow section, 3/4 blue section 128x64 21.7x11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0x33.5 straight/vertical 1.3inch OLED (A) Blue 128x64 29.42x14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5x37.5 angled/horizontal 1.3inch OLED (B) Blue 128x64 29.42x14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5x37.5 straight/vertical 1.5inch OLED Module White (16 gray scale) 128x128 26.86x26.86 4-wire SPI, I2C SSD1327 44.5x37.0 PH2.0 connector 1.5inch RGB OLED Module 65K colorful 128x128 26.86x26.86 3-wire SPI, 4-wire SPI SSD1351 44.5x37.0 PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.



---
