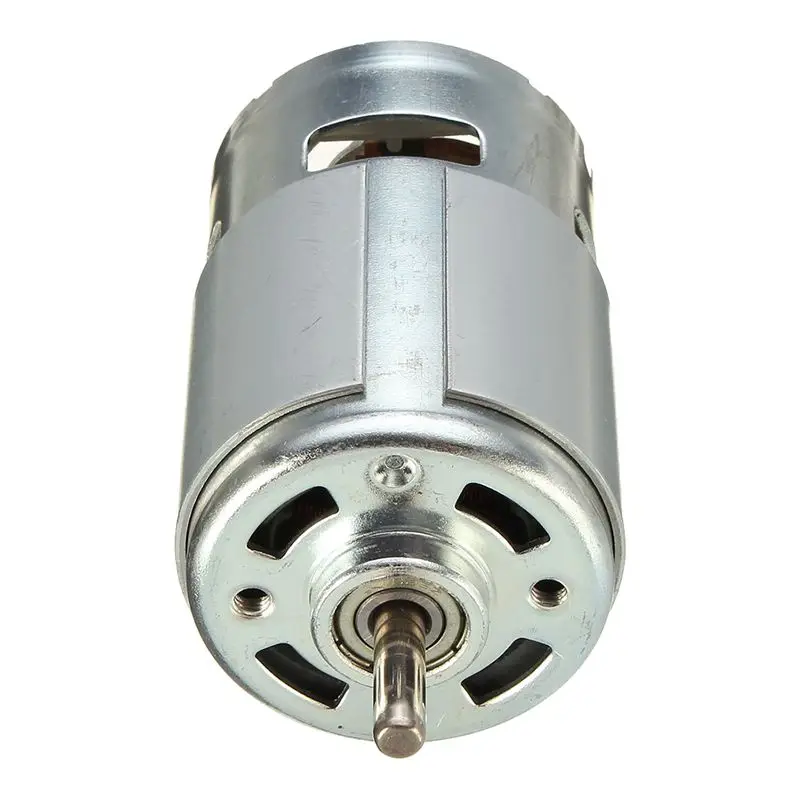

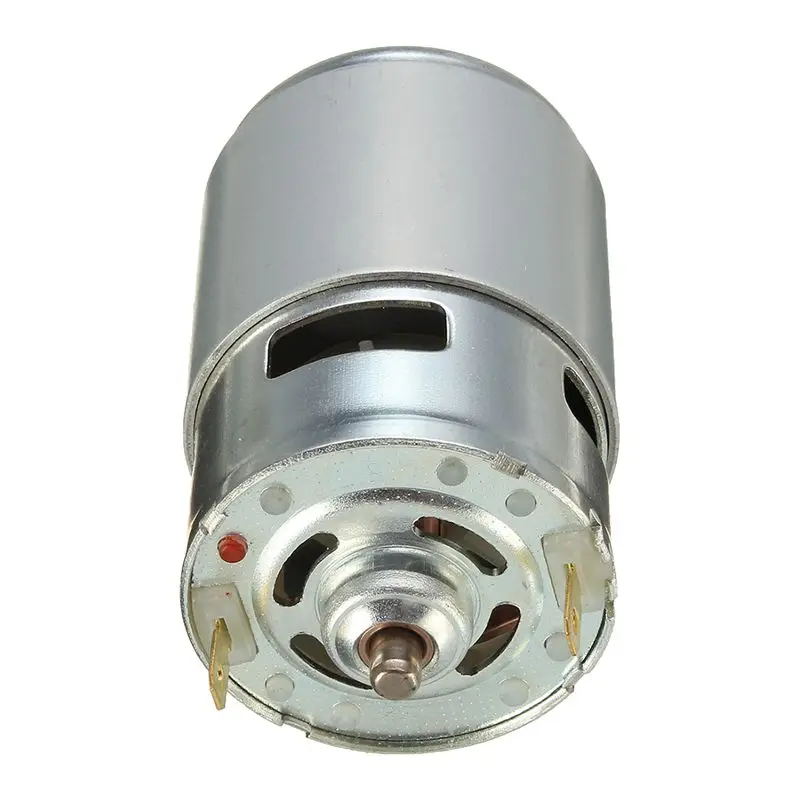

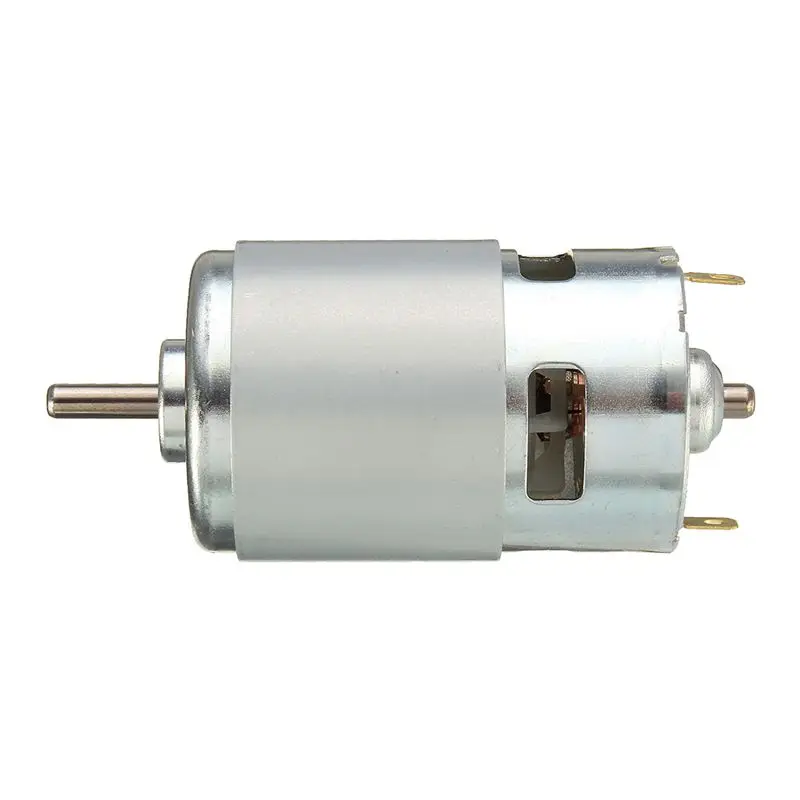

This is the front end of the motor ball bearing, copper sets of back-end, 5 groups winding, at a voltage of 24V, large torque, low noise.
Model: 775
Shaft Diameter: 5 mm
Shaft length: 17 mm
Body length: 66.7 mm
Front steps diameter: 17.4 mm
Former high level: 4.7 mm
Body diameter: 42 mm
Motor Overall Length: 98 mm
Diagonal installation pitch: 28.8 mm
Mounting hole size: M4
Mounting hole: 2
Cooling fan: Yes
Rated voltage: 24 V
Current Rating: 0.16 A
Rated Speed: 7000 RPM
Different voltage parameters:
DC 12V, current 0.14A, speed 3500RPM
DC 18V, current 0.15A, speed 4500RPM
DC 24V, current 0.16A, speed 7000RPM
DC 30V, current 0.17A, speed 8100RPM
DC 36V, current 0.20A, speed 9000RPM
Material:Metal
Colour:Silver
Package Included: 1 x 775 Motor
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
