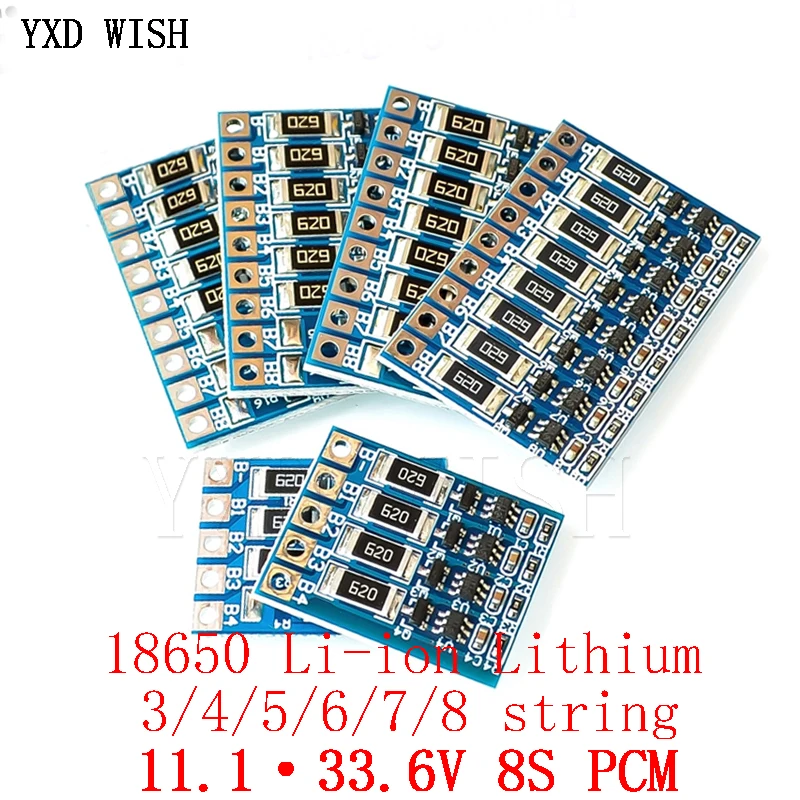

    4.2V Balance Protection Board Batteries 18650 Li-ion Lipo Battery Lithium 3S 4S 5S 6S 7S 8S Charging Diy | Обустройство дома

    Описание товара

    4.2V Balance Protection Board Batteries Balance 18650 Li-ion Lipo Battery Lithium 3S 4S 5S 6S 7S 8S Battery Charging Board Diy



    Specification:

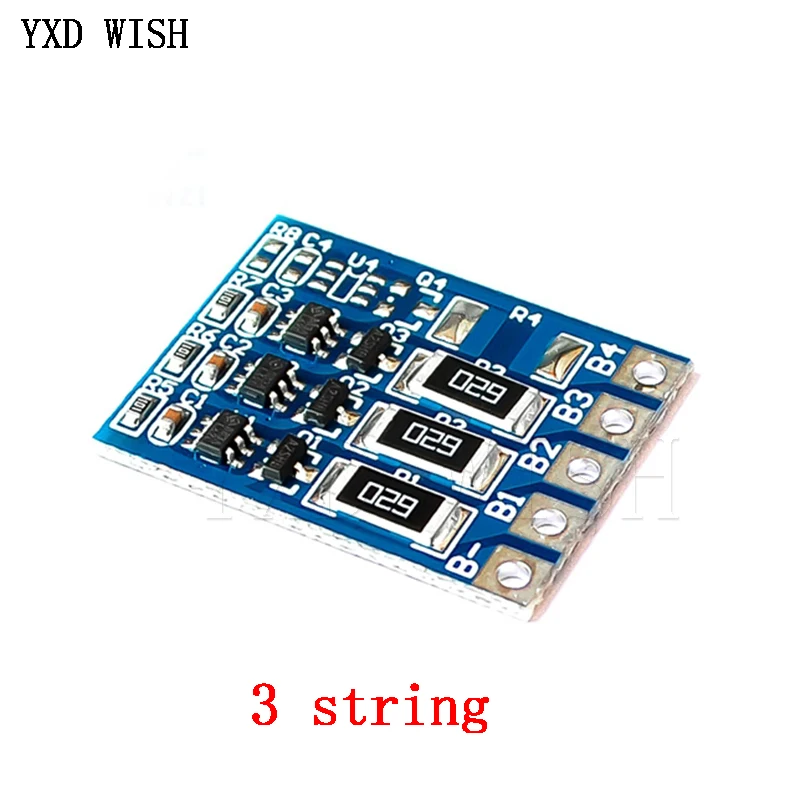

    3 series 4 series battery equalization board parameters
    Features: 4.2V equalization voltage, equalization current is 66mA;
    Purpose: charge balance
    Technical parameters: balanced voltage and balanced current



    Precautions:


    This equalization board is suitable for lithium battery packs without equalizing charge. The charge equalization makes each battery pack in the battery pack fully charged at the same time.
    This equalization board has no charge and discharge protection function and cannot replace the protection board. When the battery is charged, the first fully charged battery is discharged through a resistor to balance the shunt.



    Solder point description:


         B4 no need to connect
         B3 Connect the positive terminal of the battery pack
         B2 Connect to the contacts in battery 2 and battery 3
         B1 Connect to the contacts in battery 1 and battery 2
         B- Connect the negative pole of the battery pack;
     Product size: 26*20.5*2.4mm



    4 strings of battery equalization board parameters:


    Features: 4.2V equalization voltage, equalization current is 66mA;

    Solder point description:
         B4 connect to the positive pole of the battery pack
         B3 Connect the contacts in battery 1 and battery 2
         B2 Connect to the contacts in battery 2 and battery 3
         B1 Connect to the contacts in battery 3 and battery 4
         B- Connect the negative pole of the battery pack;

    Product size: 26*20.5*2.4mm



    5 Strings of battery equalization board parameters


     Features: 4.2V equalizing effect, acting current is 68mA;


    Welding point description:


      · B5 is connected to the positive pole of the battery pack;
      · B4 connects to the contacts of battery 4 and battery 5;
      · B3 is connected to the contacts of battery 3 and battery 4;
      · B2 connects to the contacts of battery 2 and battery 3;
      · B1 is connected to the contacts of battery 1 and battery 2;
      · B- Connect the negative pole of the battery pack;


    Product size: 37.3*25.8*2.4mm



    6 series battery balance board parameters


    Features: 4.2V equalization voltage, equalization current is 66mA;


    Solder point description:


        B- Connect the negative pole of the battery pack
        B1 Connect to the contacts in battery 1 and battery 2
        B2 Connect to the contacts in battery 2 and battery 3
        B3 Connect to the contacts in battery 3 and battery 4
        B4 Connect to the contacts in battery 4 and battery 5
        B5 Connect to the contacts in battery 5 and battery 6
        B6 connect to the positive pole of the battery pack


    Product size: 37.3*25.8*2.4mm



    7 series battery balance board parameters


    Features: 4.2V equalization voltage, equalization current is 66mA;


    Solder point description:


        B- Connect the negative pole of the battery pack
        B1 Connect to the contacts in battery 1 and battery 2
        B2 Connect to the contacts in battery 2 and battery 3
        B3 Connect to the contacts in battery 3 and battery 4
        B4 Connect to the contacts in battery 4 and battery 5
        B5 Connect to the contacts in battery 5 and battery 6
        B6 Connect to the contacts in battery 6 and battery 7
        B7 connect to the positive pole of the battery pack
     Product size: 37.3*25.8*2.4mm



    8 string battery balance board parameters


    Features: 4.2V equalization voltage, equalization current is 66mA;


    Solder point description:


        B- Connect the negative pole of the battery pack
        B1 Connect to the contacts in battery 1 and battery 2
        B2 Connect to the contacts in battery 2 and battery 3
        B3 Connect to the contacts in battery 3 and battery 4
        B4 Connect to the contacts in battery 4 and battery 5
        B5 Connect to the contacts in battery 5 and battery 6
        B6 Connect to the contacts in battery 6 and battery 7
        B7 Connect to the contacts in battery 7 and battery 8
        B8 connect to the positive pole of the battery pack
    Product size: 37.3*25.8*2.4mm
