Description50KHz-2000MHz Malachite SDR Radio DSP SDR Receiver 3.5" Touch Screen Without Registration Code

Optional Versions:
- Version 1: 50KHz-200MHz without registration code.
- Version 2: 50MHz-2GHz with Official code 2GMhz.Our official code can work for latest firmware,like 1.10C

-Version 3: 50KHz-200MHz with registration code.The code only can work for 1.10 a firmware.

Features wider frequency, CW decoding and other functions. (note :200-400Mhz has been hidden by the author,can not wroking)As to the touch screen , it's a capacitive as well as ISP screen. Capacitive touch screen has nothing to do with the screen material because the touch module is independent.The touch problem of Malachite reaction is the same. First of all, the main controller is a single chip microcomputer with a main frequency of 480m, which is not as smooth as a mobile phone. Moreover, the touch will produce strong interference when it works. The author's updated firmware reduces the refresh rate, so that the touch will be less smooth.In addition, long press the volume key can turn off the touch function, when turning off touch signal interference ,it will be greatly improved.Touch screen operation has certain skills, touch time should be extended.Before placing order ,pls kindly note this.

Features:
1 The radio is constructed based on SDR principle, and its functions are determined by loaded software.
2) The frequency range is 50KHz-200 MHz (without registration code) or 400MHz-2GHz (with registration code).
3) All types of analog modulation: AM, SSB, NFM, WFM;
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker, AGC, equalizer.
5) Fully functional chip msi001 is used;
6) The clock frequency of stm32h743 is 480MHz.
7) With touch screen: 3.5" IPS display.
8) There is a built-in UHF.

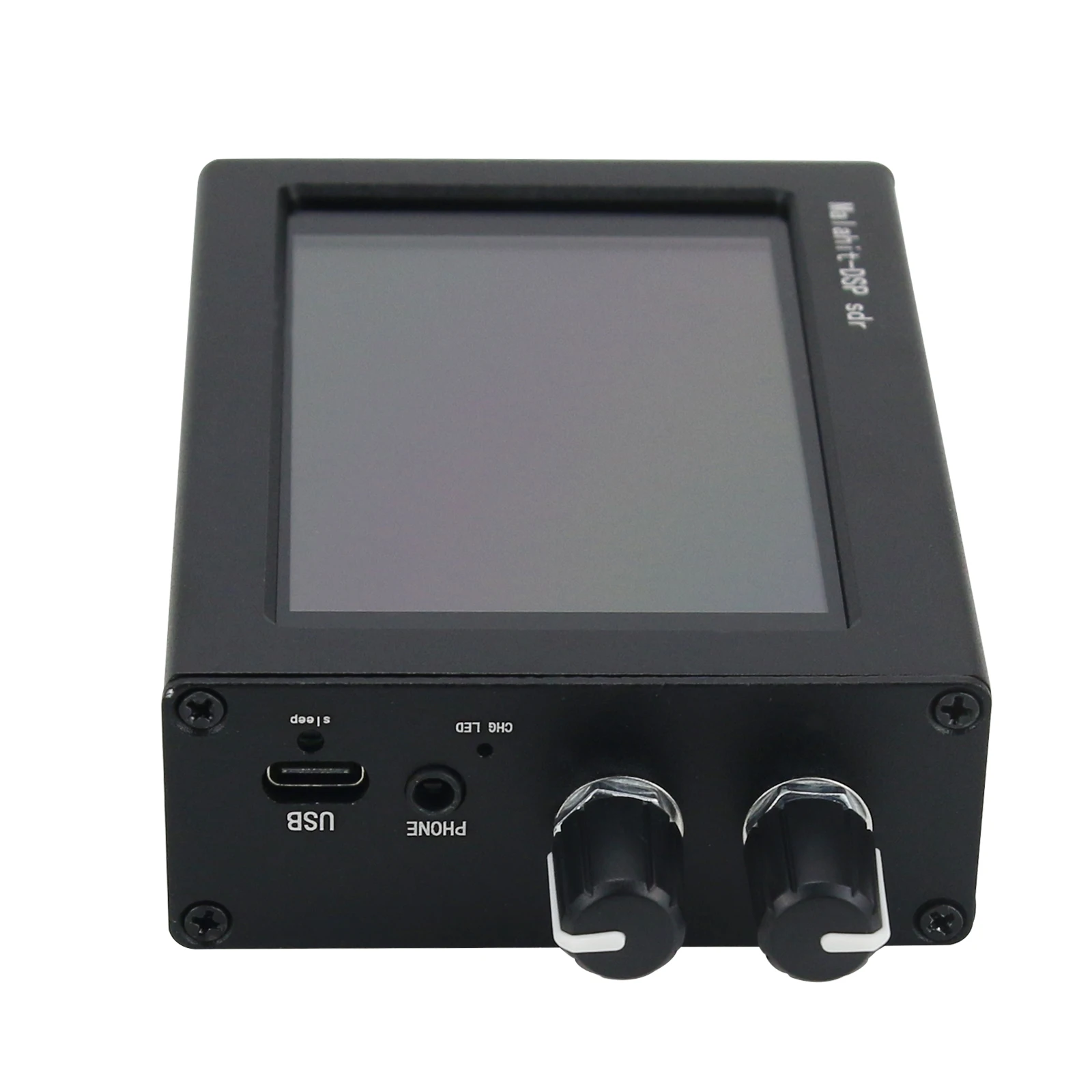

9) Control: 2 encoders with buttons and a touch screen
10) It is powered by an external TYPE-C (for Huawei mobile phone) interface and can be charged by TYPE-C. The internal battery voltage is 3.7V and the capacity is 2500mAh.
11) Current consumption when listening to headphones is 300mA.
12) Built-in receiving module improves the HF reception on antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design.
13) Connecting to a computer via USB, it can transmit CAT, IQ and audio.
14) 160kHz span, with scalability.
15) Sensitivity is 0.3μV = 10dB at s/w under the condition of up to 250MHz.
16) Due to the characteristics of the msi001 chip used, dynamic blocking range is about 85dB.
17) There is backlight control.

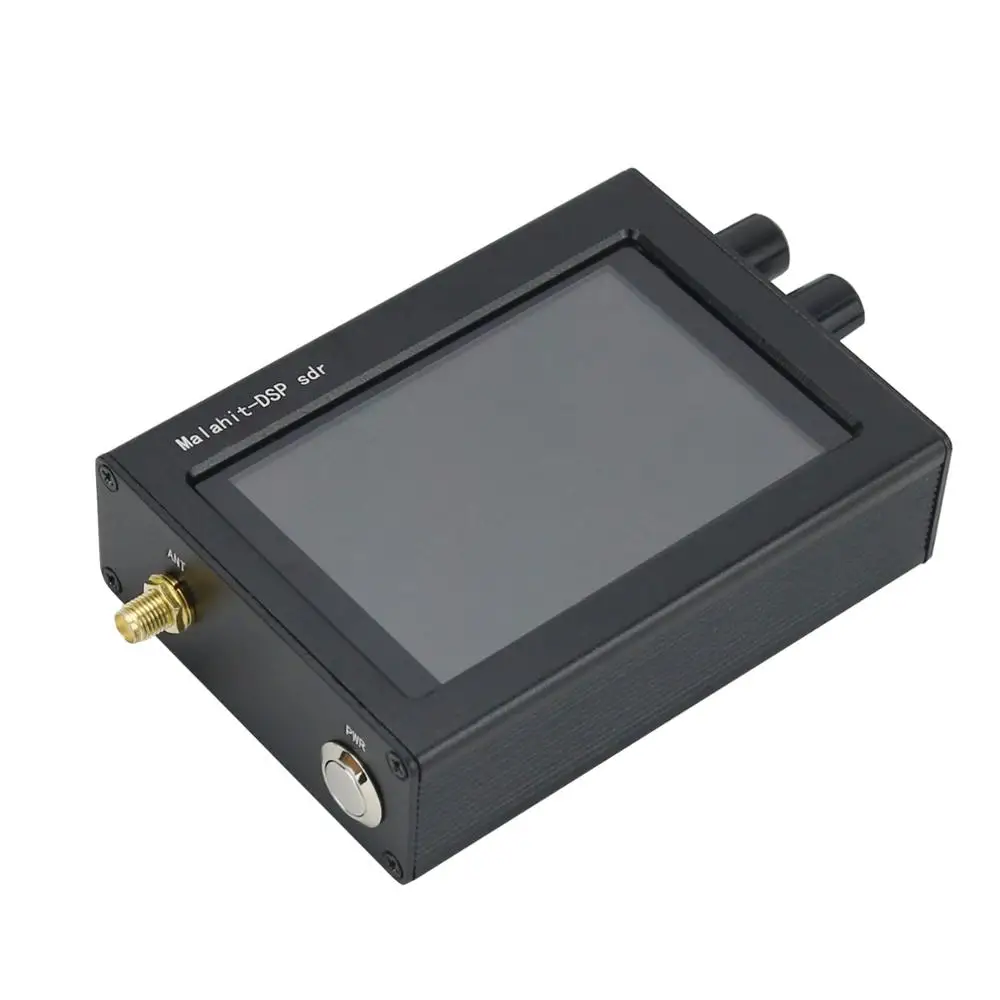

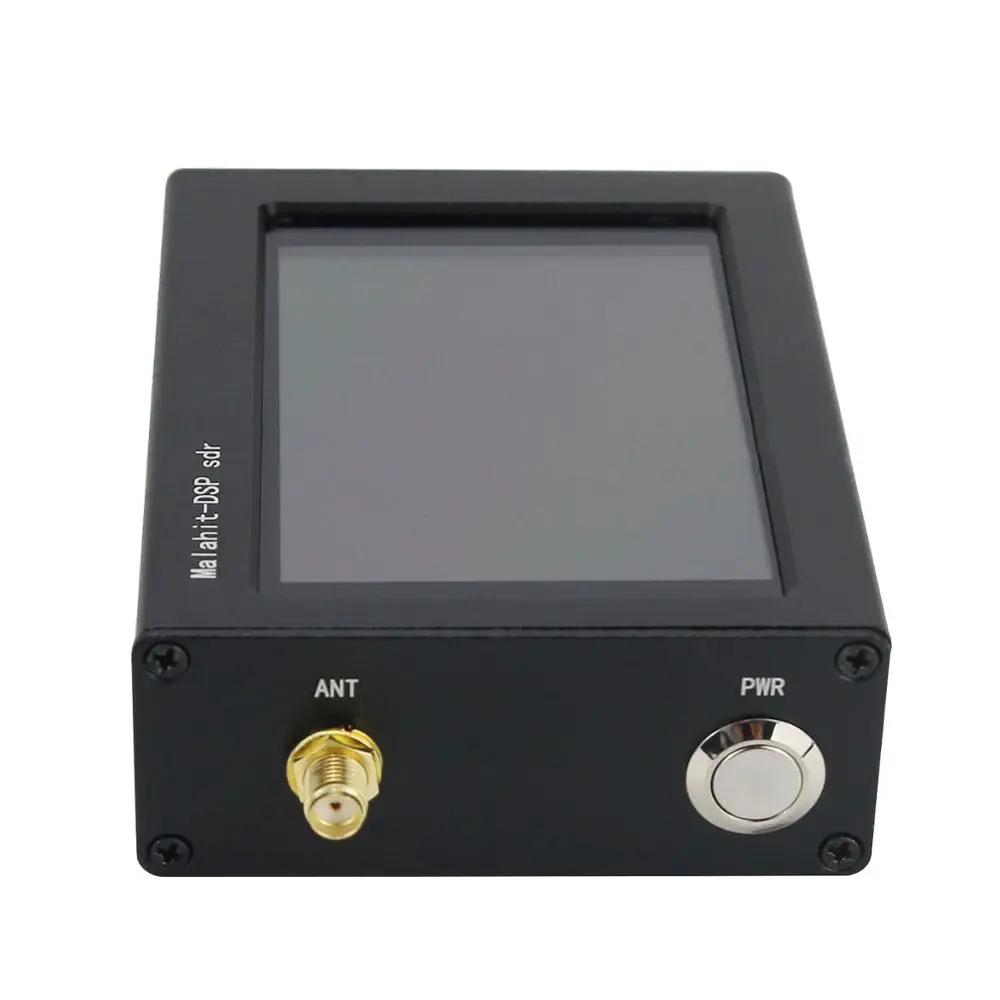

18) SMA female antenna socket;
19) Dimensions 102X74X29mm (excluding the sizes of protrusions).
20) Weight 240g.

Package Included:
- 1 x Malachite SDR Receiver
- 1 x Antenna

Note:
- It is assembled.
- Only main unit is included. Charger, antenna and other accessories are not included. Please purchase separately.
- Its motherboard can be powered by a mobile phone TYPE-C charger for Huawei. Users can configure their own long wires as antennas for easy listening.
