Tuya Smart APP WiFi Touch Wall Switch Light Wireless RF 433Mhz DIY Relay Timer Module Google Home Alexa AC 110V 220V 10A On Off |

Tuya Smart APP WiFi Touch Wall Switch Light Wireless RF 433Mhz DIY Relay Timer Module Google Home Alexa AC 110V 220V 10A On Off |

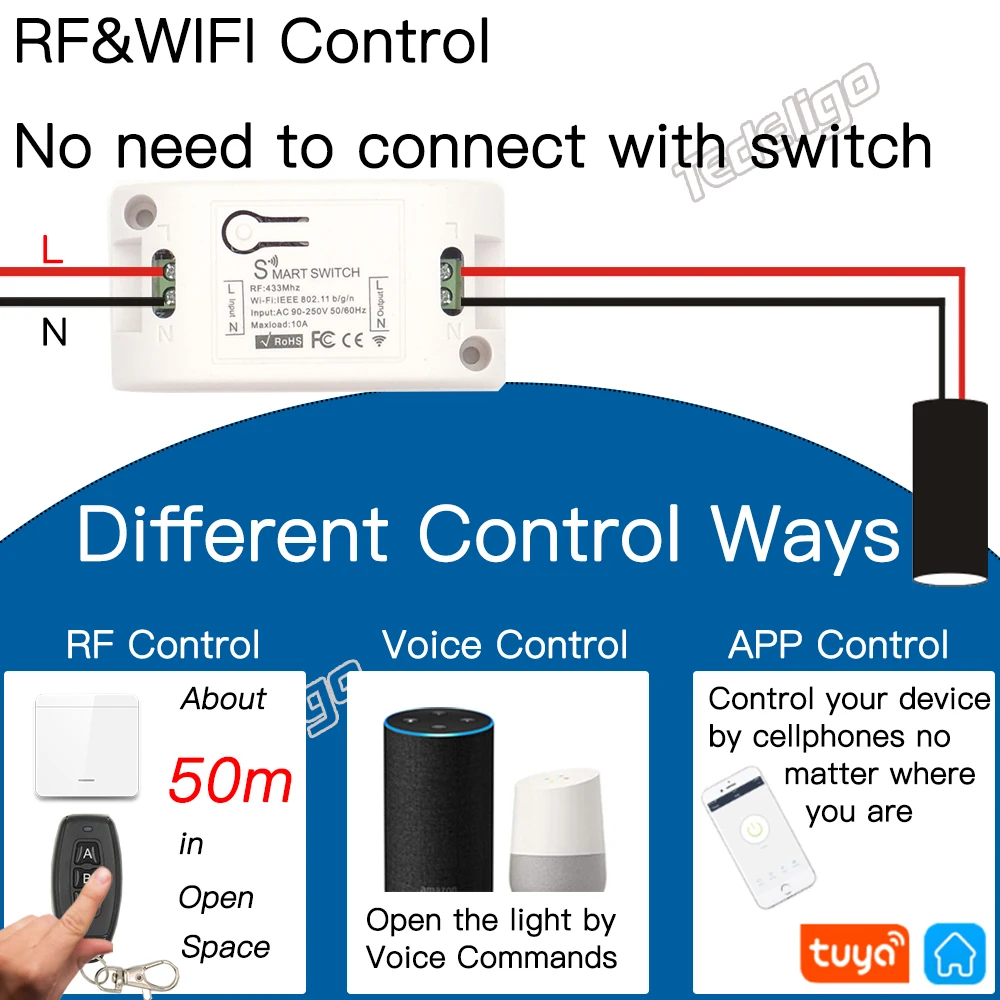

Connect and Three control ways
voice control,rf wall switch control and APP phone control

Multi switches or remote controls can control different receivers.
 Save energy,avoid darkness

Work with Alexa,Google home
 Voice control the switch

Timer,set up schedule,countdown

Use one switch to open the lamp,use a remote to off the lamp

Change the default status
when power off and comes again,the switch can on/off/remember last status automatically,you can set up it on your phone.

RF wireless control
How to Set up:
1.press learning button 2times
2.press wall switch button 1time
3.succeed
How to clean data:
press learning button 8times to clean data.All wall switches/remotes cannot control this switch anymore.

Note:
If you set up with a wall switch already and want to change this wall switch modes,you need to clean data first.

WiFi control
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.

Voice control,work with amazon alexa and google home
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.

Tempered Glass.Good Quantity

WaterProof
Wet hands can also control

The indicator will light when you pressed the switch
 Easy to find in the dark

Product Detail:

parameter

Controller

Input power

AC 90-250V

RF Frequency

433MHz

WIFI Frequency

2.4GHz

WiFi Standard

IEEE 802.11 b/g/n

Remote storage

12pcs

Size

3.19*1.61*0.98 in(81*41*25 mm)

Weight

0.1 lb(45 g)

Max Current

10A

Shell

Yes

Port

L/N

Certification

CCC,CE,RoHS

Feature

Has WiFi Function

Feature2

Can Work with Tuya,Smart Home

Feature3

Time Function

Feature4

Voice Control by Google Home,Amazon Alexa

parameter

Touch Switch

Size

3.38*3.38 in

Frequency

433MHz

Battery

1*23A 12V battery(Not include)

Control Distance

20-50 meters

Material

Plastic

Weight

0.26 lb

Working Voltage

3V

Feature1

Has 3M glue,can stick anywhere

Feature2

Easy to exchange battery

Feature3

Luminous and indicate light

Feature4

HD Crystal Glass

Package include

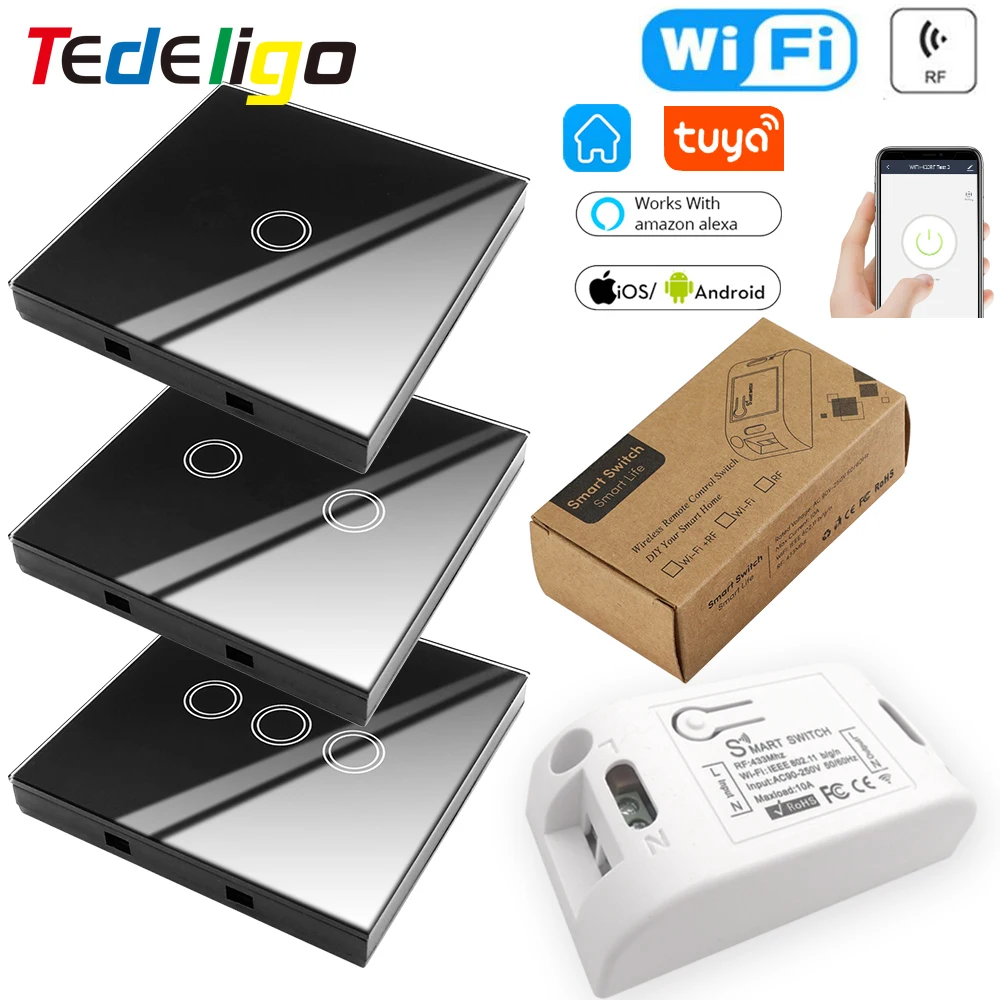

For controller : 1pcs RF+WIFI receiver(with box) and 1pcs Product manual
For switch : 1pcs Black Touch button switch(not include battery,with box) and 2pcs screws,2pcs 3Mglues

Questions and Answers
1.Can one receiver be controlled by multi cellphones?
Yes.Of course.Our switch support family sharing.
2.Can i use a switch open the controller,and use a remote close that controller?
yes,of course.The switch and remote both can control this device.They can work well perfectly.
3.When the power off and suddenly comes again,does the lamp/device light automaticly?
This status can be set up.You can find it on your phone,change the status as you like.
4.Does the receiver need Neutral line?
Yes.Our receiver needs both Live line and Neutral line.


Please contact with us if you have any questions.Thank you.
