EU DUTY FREE ConhisMotor 60v 1500w Fat Wheel Chopper Rear Ebike 175mm 190mm Conversion Kit 45A Controller Electric Bicycle 750C | Спорт и

EU DUTY FREE ConhisMotor 60v 1500w Fat Wheel Chopper Rear Ebike 175mm 190mm Conversion Kit 45A Controller Electric Bicycle 750C | Спорт и

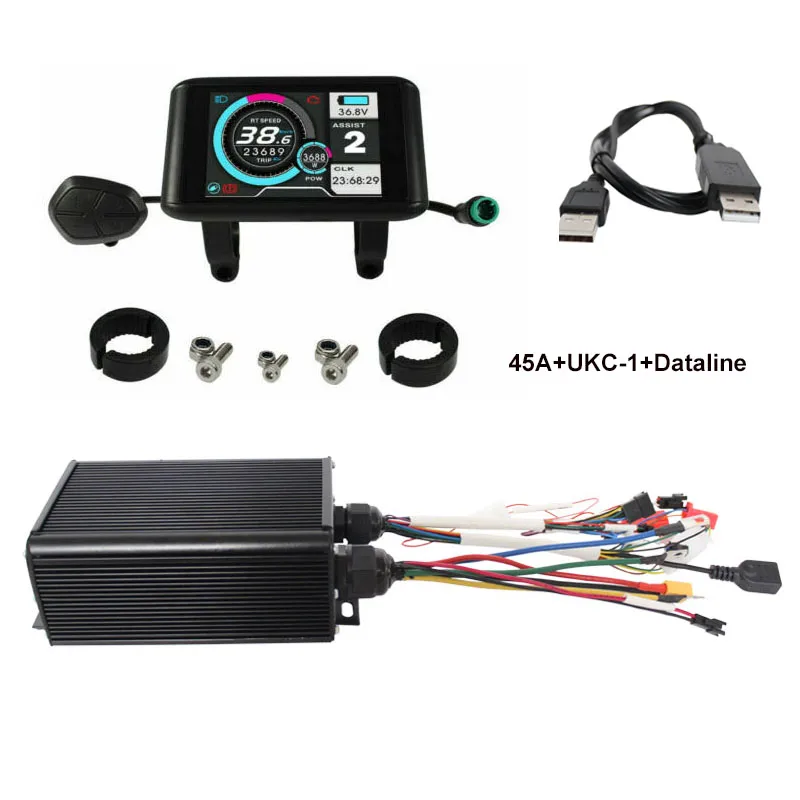

Controller standard accessories

1. 12 MOSFET 45A 48V, 60V, 72V Universal Voltage 1500W-2200W Intelligent Programmable Sine Wave Controller
2. USB Data Cable (to connect with computer to change setting)
3. Light Connection Adapter Cable (From "O" ring to SM-2A Plug)
4. Hall Sensor Adapter Cable (from DJ7061Y-2.3-21 to DJ7061-2.8-21 Plug)
5. Battery Power Adapter Cable (From "O" ring to Anderson Plug)

Advantage:

1. Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience

2. Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable

3. Universal Input Voltage Range: 48V/60V/72V

4. Work with or without display

5. Parameter setting via Mobile Phone App or Computer

6. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection

7. Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, reverse, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc.

8. Best heat sinking with thicker Heat sink Aluminium Plate

9. Anodized Aluminium Controller Case against scratch

Technical Data:

General Specification:

1. Power supply: 48V/60V/72V, MAX DC current: 45A, Max phase current: 70A

2. Rated Power: 48V 1500W/ 60V 1900W/ 72V 2200W

3. Peak Power: 48V 2100W/ 60V 2700W/ 72V 3200W

4. Low Voltage Protection: 40V/50V/60V

5. Brake: Low Voltage Brake

6. Alarm: Low Voltage Alarm

7. Rotor Position Detecting Method: Hall sensor

8. Mobile phone App or computer software can communicate with the controller to modify parameter

RisunMotor programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and obtain the diagnostic info easily and quickly.

1. FOC-180° sinusoidal drive controller applied to BLDCM or PMSM.

2. It takes only 2-3 minutes for the motor to be well matched on its best electronic angle at the first time.

3. The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.

4. The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing.

5. The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage

6. Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.

7. System status and fault intelligent management system can effectively monitor the current system operating mode external input state, the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.

8. Multi peripheral interfaces: reverse, cruise, anti-theft electronic brake, etc.

9. Parameter modifications and settings are available through Mobile phone via Bluetooth or computer via USB data cable

10. CAN BUS is optional to communicate with body instrument and BMS

Packing Information
Net weight:13kgs
Gross weight:15kg
Packing size:68×25×68cm

Customs Duty:
Duty free only to all EU countries.

Delivery Time:
Normally we only need 7- 15working days to send out
It will take about 7-15 days for us to build and test this new battery pack for you.

Warranty:
One year quality warranty (warranty is invalid for natural wearing or any damage due to wrong operation), we will exchange defective parts
If you meet any problem, please firstly kindly check wiring diagram and FAQ below.

Return Policy:
We do our best to serve our customers. We will refund you if you return the items within 15 days of your receipt of the items and it is only the reason of product itself like wrong product, defect, damage, anything that is seller's fault, not the buyer's personal preference or failure to use. Besides, the items returned must be in their original conditions.

Feedback:
You satisfaction and positive feedback is very important to us. Please kindly leave positive feedback and 5 stars if you are satisfied with our items and services. We hope to be friends with every customer and share photos, video and experiences together.
If you have any problems with our items or services, please feel free to contact us before you leave negative feedback. Otherwise we will don't give any warranty.

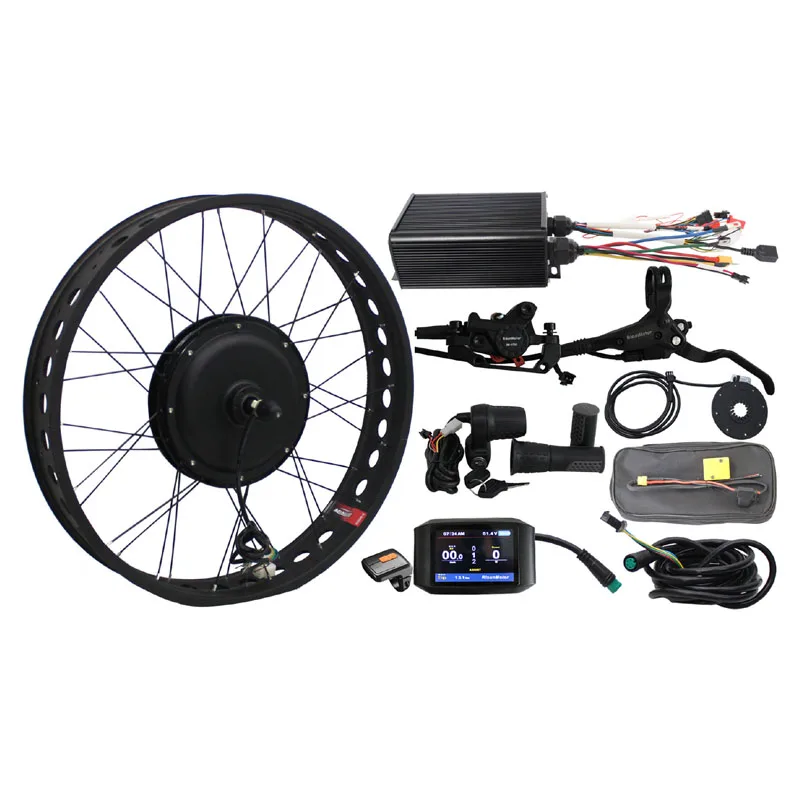

This kit include all you need to convert a bike to an E-bikeexcept the battery ! (We also supply battery, please kindly check our battery category.)
