All Pro cameras (with cooler) need to be connected to an external 11-15v power supply to image.

Even when the cooler is not being used the power supply must be used for the camera to be recognized.

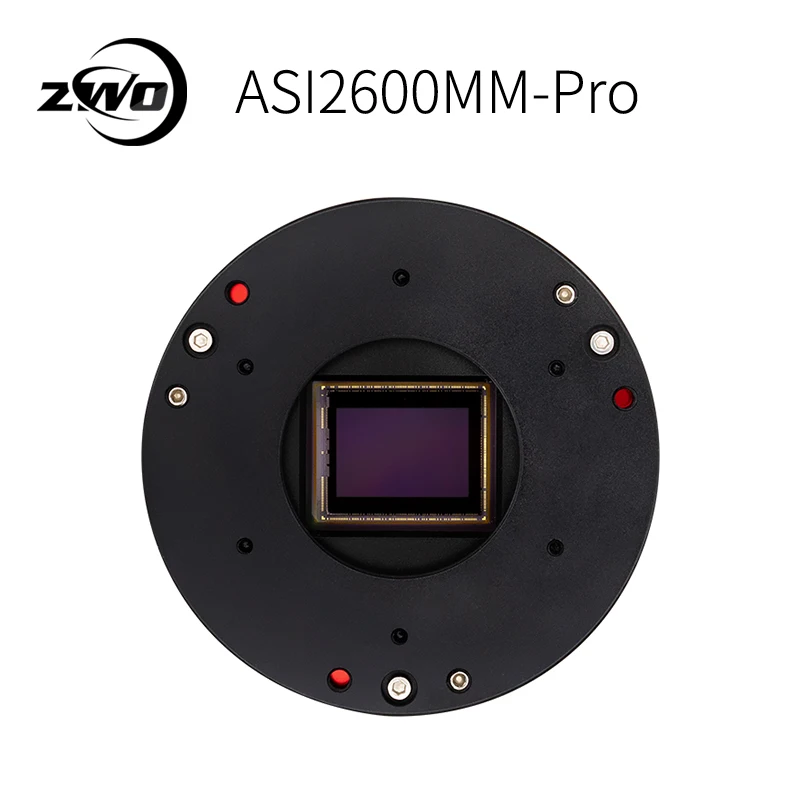

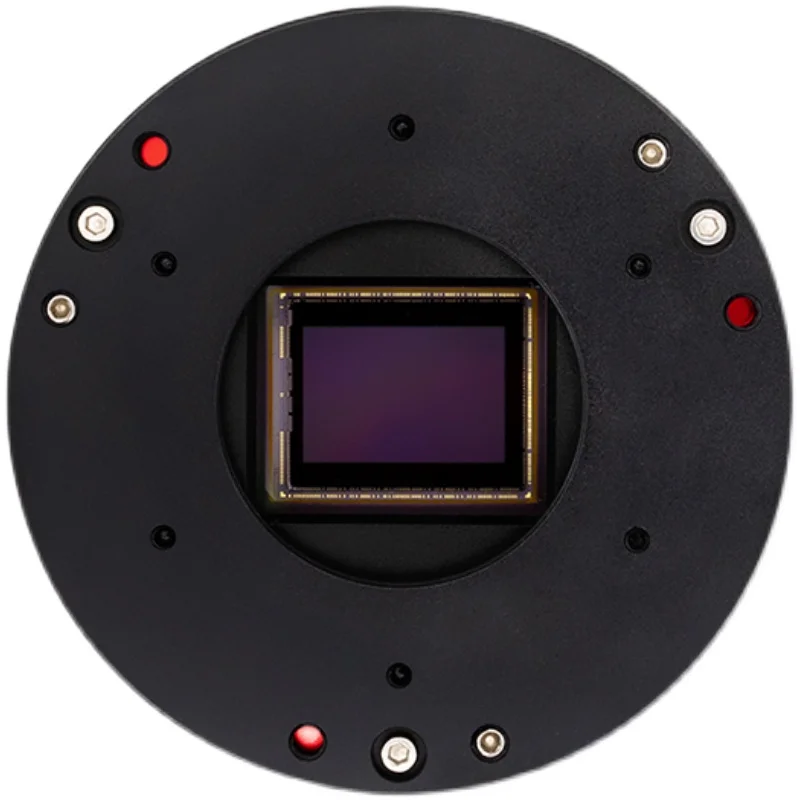

ASI2600MM Pro uses Sony’s latest back-illuminated IMX571 APS-C format native 16-bit ADC sensor. It’s one of the most anticipated astronomy cameras of 2021. Here is some of the reasons why:

Ultra-high 14 stops dynamic range

Ultra-low 1.0e readout noise

Innovative breakthrough design resulting in zero amp-glow

16-bit ADC sensor

Like the colour version, the ASI2600MM Pro also has a very light weight of just 700 grams.

This is a 26MP camera featuring a small pixel size of 3.76um yet also having the incredible ability of accommodating a large well depth of 50ke.

The sensor length and width are 23.5mm * 15.7mm. The diagonal is 28.3mm.

As one of the few CMOS astronomy cameras with 16-bit ADC on the market, ASI2600MM Pro was conceived having in mind the optimal characteristics for astrophotography. This 16bit ADC is not a CCD 16bit ADC. It can really achieve a dynamic range output of 14 stop, which will significantly improve the image sharpness and contrast, and also create smoother and more natural contrast transitions (as well as colour gradients when using different types of filters).

Sony’s back-illuminated CMOS image sensor improves the sensitivity and noise reduction – the key factors to enhancing image quality. It does this by radically realigning the fundamental pixel structure from front-illumination to back-illumination, while still retaining the advantages of CMOS image sensors such as low power consumption and high-speed operation.

With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor’s light-sensitive area (photo-diode), impede photon-gathering carried out by the on-chip lens. A back-illuminated structure minimizes the degradation of sensitivity to the optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors. These components have been moved to the back-side of the silicon substrate.

The ASI2600MM Pro boasts excellent performance with a dynamic range of up to 14 stops. When the gain value is set to 100, the HCG high gain mode is turned on. We’re not saying it’s magic…but we’d like to think it is pretty close. With the HCG-mode turned on, the readout noise is greatly reduced, and the dynamic range is basically unchanged. To improve the data quality, it is recommended to set the gain to 0 or gain 100 during deep-sky imaging.

Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images. It is the tell-tale signs of ‘amp glow’. As the ASI2600MM Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.

Dark flame with amp glow – 300s exposure time

Dark frame from ASI2600 without any amp glow – 300s exposure time

There is a polyimide heater completely fitting the protective window in the ASI2600MM Pro camera. It can help avoid any potential annoying dew or icing issues depending on the environment in which you capture images.

The power of the heater is around 5W. You are free to turn it off anytime in your photography software if you want to save power.

According to the test results of Sony, the QE peak value of the ASI2600MM Pro is 91%.

Thanks to the two stage TEC cooling, ASI2600MM Pro can lower the CMOS sensor temperature to more than 35 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during extended exposure times.

The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0 °C, the dark current noise is only 0.0022e/s/pixel. This means a 300s exposure will only cause 0.7e dark current noise, which is less than the readout noise. While at a cooling temperature of -20 °, the dark current can even reduce to 0.00012e/s/pixel, which is completely negligible!

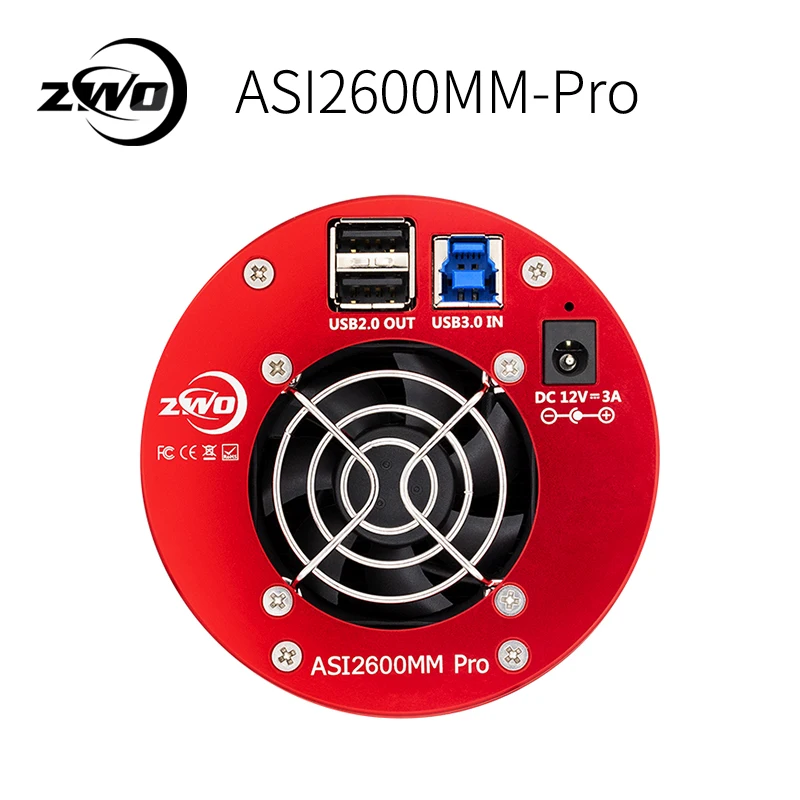

The ASI2600MM Pro is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission.

For the detailed connection methods of ASI2600MM Pro:

//astronomy-imaging-camera.com/tutorials/asi2600-guide-4-connection-methods-to-get-55mm-back-focus-length

Nikon-T2 adapter

EOS-T2 adapter

2” filter (optional)

Nikon lens

Canon lens

Dear friends, if you need to change the connection size, you can buy

the following connection M42/ M48 /M54/ M68 flange ring.
