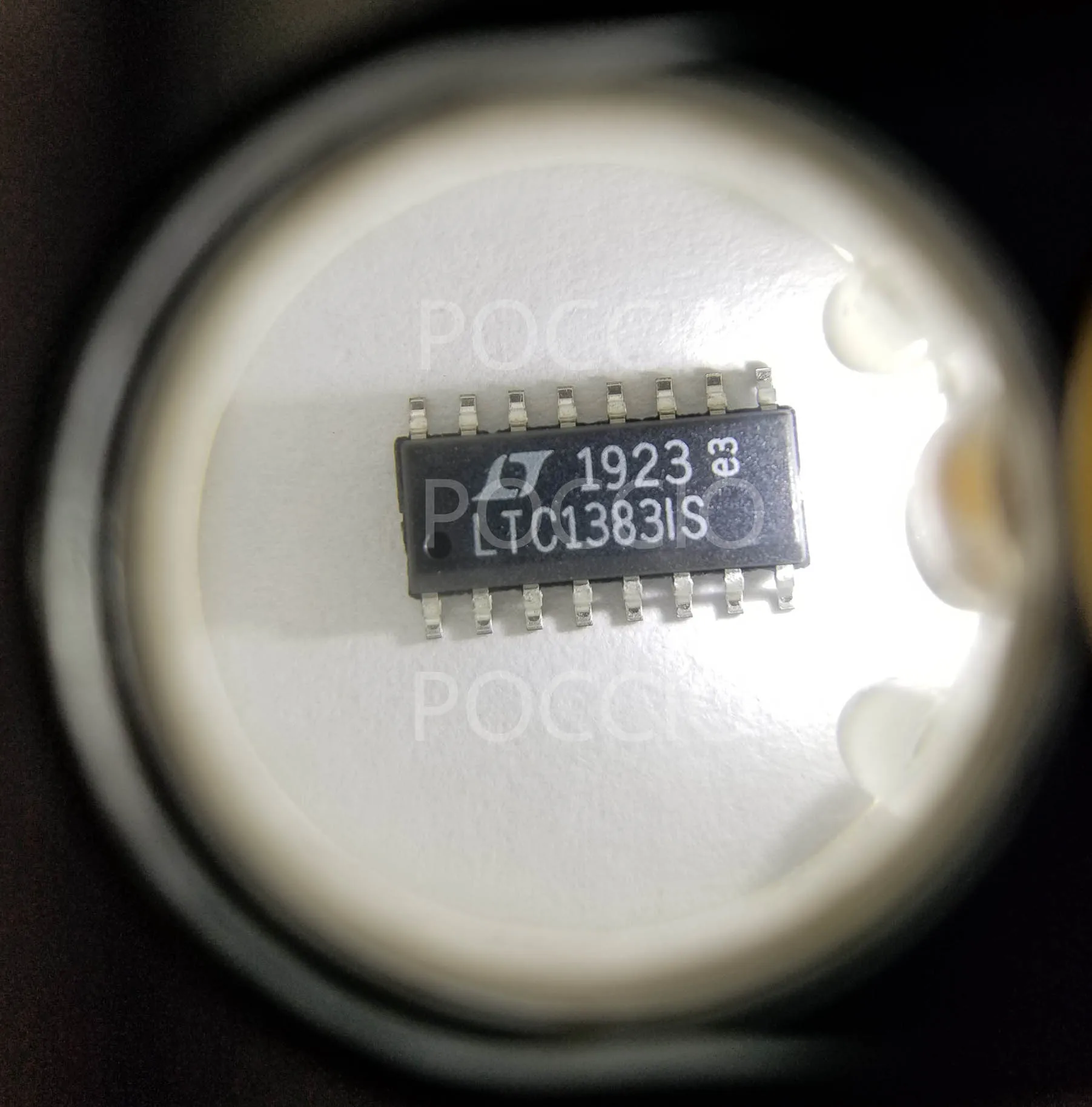

LTC1383CS LTC1383IS LTC1383 - 5V Low Power RS232 Transceiver

Operates from a Single 5V Supply

Low Supply Current: Icc = 220µA

ESD Protection Over ±10kV

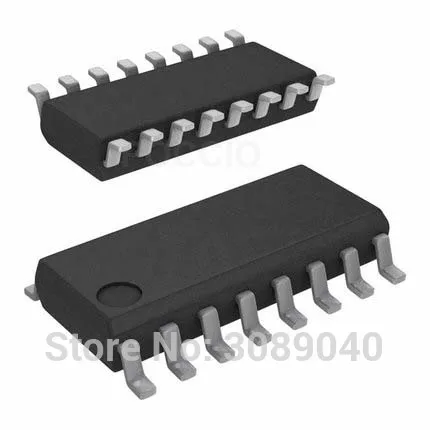

Available in 16-Pin SOIC Narrow Package

Uses Small Capacitors: 0.1µF

Operates to 120kBaud

Output Overvoltage Does Not Force Current Back into Supplies

RS232 I/O Lines Can Be Forced to ±25V Without Damage

Pin Compatible with LT1181A and MAX232A

The LTC1383 is an ultra-low power 2-driver/2-receiver RS232 transceiver that operates from a single 5V supply. The charge pump requires only four space saving 0.1µF capacitors. The supply current (ICC)of the transceiver is only 220µA with driver outputs unloaded.

The LTC1383 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver can operate up to 120kbaud with a 2500pF, 3kΩ load. Both driver outputs and receiver inputs can be forced to ±25V without damage and can survive multiple ±10kV ESD strikes.

Notebook Computers

Palmtop Computers
