Introduction

Size:about 40cm*23cm

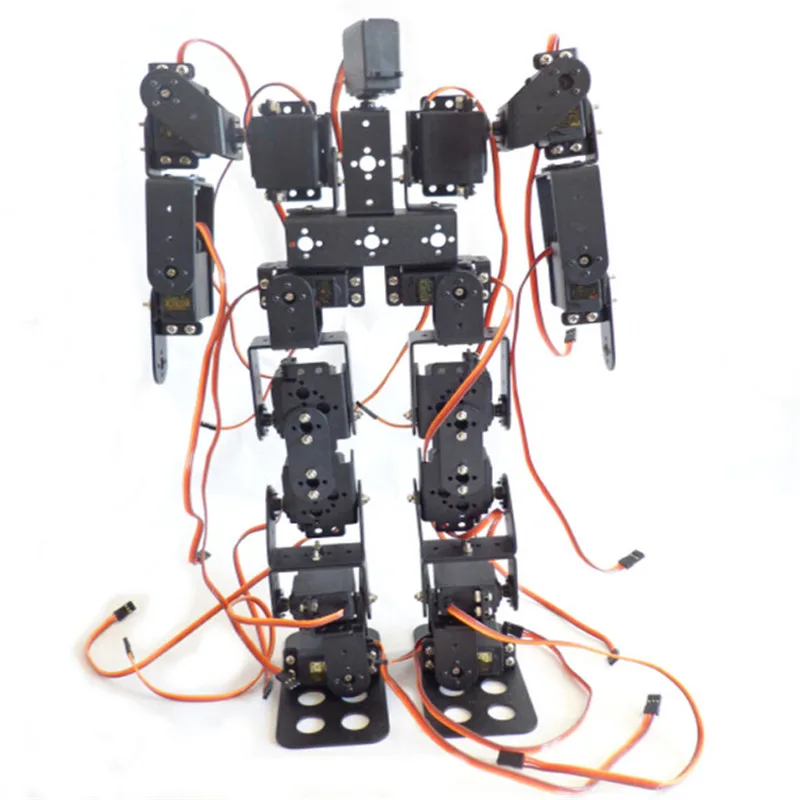

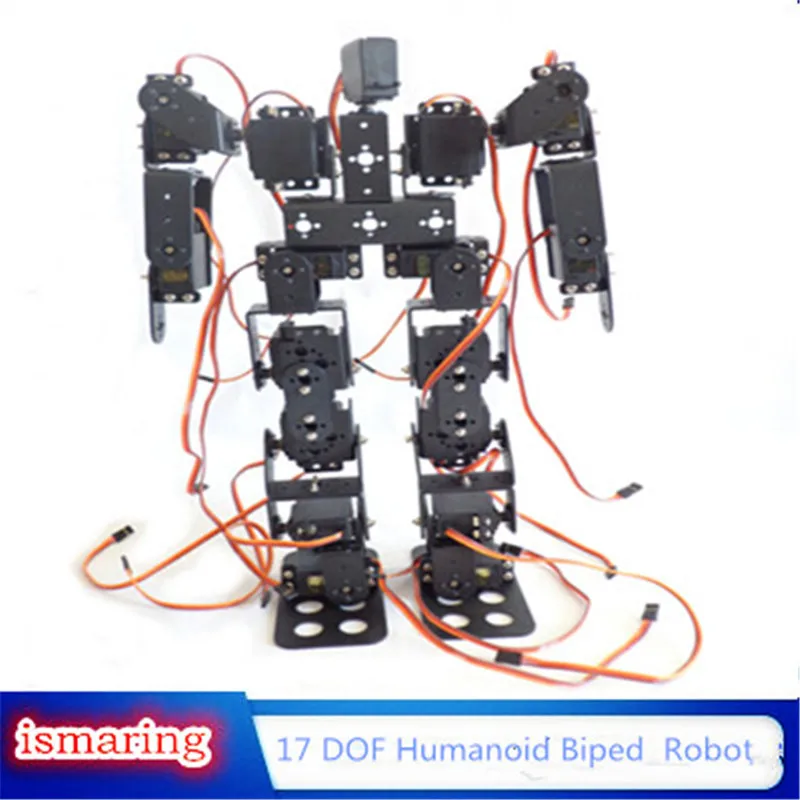

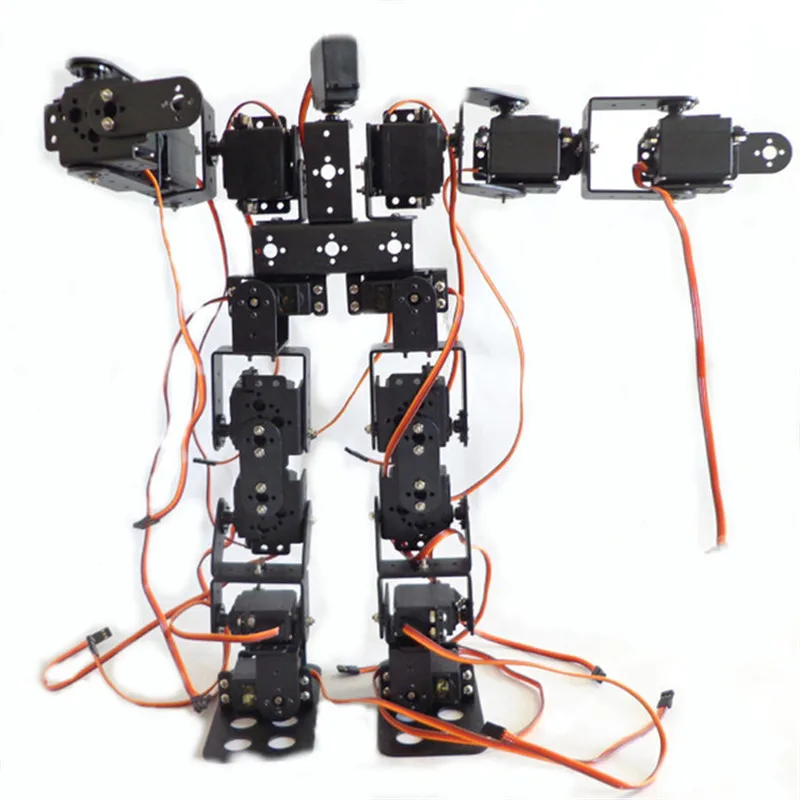

Robots height about 40 cm (standing leg is the bending state), the width is 23 cm, with 17 degrees of freedom.Head 1 degrees of freedom, arm four degrees of freedom, shoulder two degrees of freedom, the crotch of two degrees of freedom, the legs six degrees of freedom, the foot 2 degrees of freedom.

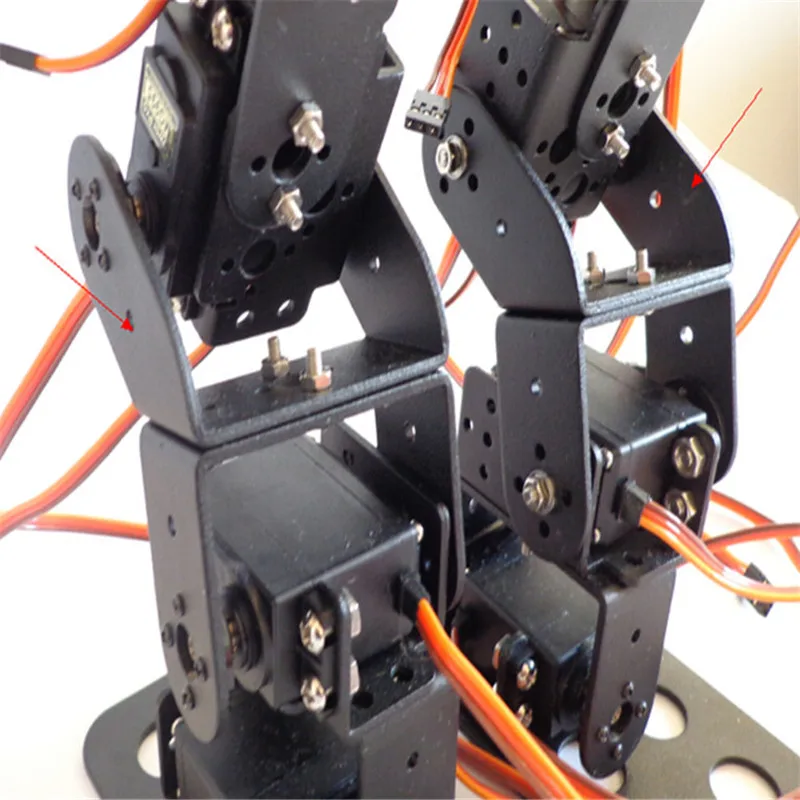

On the basis of the original old version 17 degrees of freedom robot, we do to the robot's leg structure improvement, makes the new version of the leg structure more reasonable, so that robots can do more.

Shipping List:

High torque servo (optional) 17pcs

Metal Steering wheel 17 pcs

Multifunctional Bracket 16 pcs

Long U-shaped Bracket 4 pcs

Short U-shaped Bracket 7 pcs

Tilt U-shaped Bracket 4 pcs

L-shaped support 4pcs

U-shaped beam 1 pcs

One-word bracket 4 pcs

Big Foot plate 2 pcs

Cupped Bearing 14pcs

A full set of screws and nuts

Warm Prompt:

Not included any controller or battery;

For the shipping convenience, the product is unassembled;

Free Presented several screws and nuts.
