BBQ гриль для улицы Capricorn Charcoal bbq Outdoors grill Stove folding Barbecue skewers Barbacoa - Это шаблоны лазерной или плазменной резки.

BBQ гриль для улицы Capricorn Charcoal bbq Outdoors grill Stove folding Barbecue skewers Barbacoa - Это шаблоны лазерной или плазменной резки.

It's a digital file. This is not a finished product.

If you want to buy digital files and delivery no to your city, please write us email to AliExpress.

Подпишись on shop

Digital files-templates for making a blanket in the form of an animal Capricorn or a stand for flowers are elements of the home decor of your street fireplaces and garden, without ske.

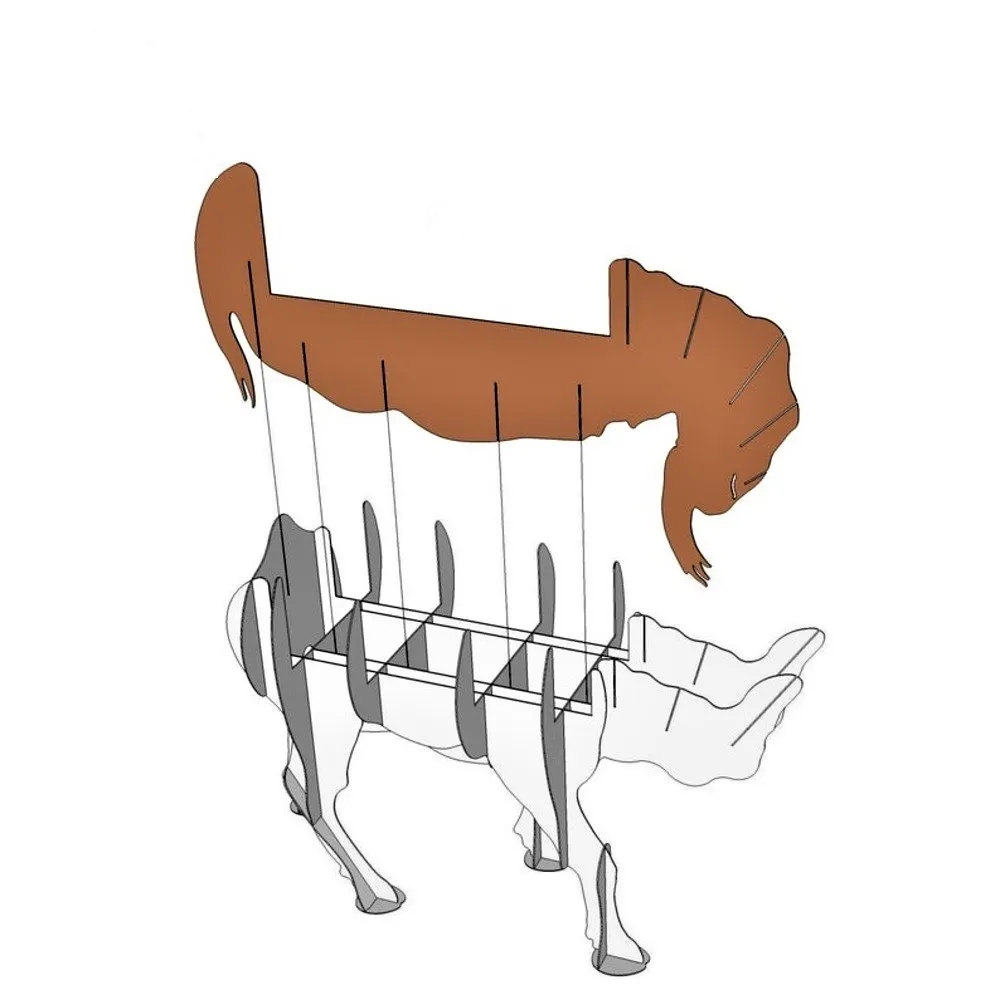

The templates are designed for cutting steel sheets on laser and plasma cutting machines with CNC subsequent assembly with welding and coating with heat-resistant paint.

The thickness of the case material is 2mm.
The thickness of the material is roasting-4mm.
In the drawings the tolerance for the thickness of the metal is 0,5mm.
Accordingly, the thickness of the furrow under the figure is 2,5mm. The thickness of the groove is 4,5mm.
Made this for easy assembly of the structure.

What you will get:
"DXF file
"DWG file
» Instruction in PDF format
» CDR File (CorelDraw X6)

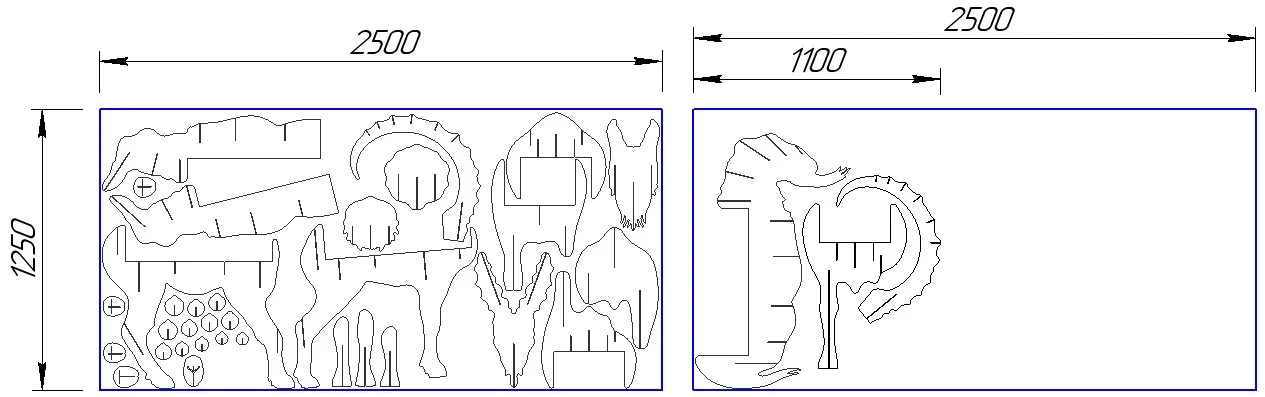

Characteristics of cutting frame

2mm thick sheet (2500x1250mm) - 1,5 PCs

Cutting length-66 meters

Weight of parts-33 kg

Characteristics of cutting жаровни

Sheet thickness 4mm (1525X720mm) - 1 pc

Cutting length is 15,5 meters

Weight of parts-25 kg

If you have any problems with opening or importing the file, please let us know.

Terms of Use
You cannot resell this file, share it or claim any items in this ZIP file as your own.
You can't change it and resell it as your own.

Free shipping

Instant Loading

After payment, please leave your email address, we will send the files to you by email.

As the goods are copier, by this we do not accept return or exchange goods.

Hope customers understand. Thank you very much!

But please contact us if you have any problems with the order.

We do not send cut product, you will receive only digital files by email or AliExpress chat.

If you want to get already cut out on the machine and collect barbecue yourself, write a message to us.

Attention:For assembly will need metal welding(Assembly on gloves).
