Product Description

Our ASI GT camera range includes all the great features and performance of our original cameras but now includes an integrated 5-position ultra-quiet electronic filter wheels as well as new features such as 12V power distribution. Of course we retained features such as the integrated USB2 hub so now you can reduce the number of adapters and cables in your imaging setup with our integrated design.

Our current range of ASI GT cameras includes the ASI183GT and ASI1600GT monochrome CMOS cameras both offering the same outstanding performance of our ASI183 and ASI1600 monochrome cameras.

The internal 5-position electronic filter wheel (EFW) can accept both 1.25” and 31mm filters. The EFW is driven by a whisper quiet high grade stepper motor.

Important Note: The thickness of the 1.25” filter cannot exceed 7mm (without threads), and the thread must be shorter than 2.5mm to avoid the filter wheel striking the camera housing.

The internal 5-position electronic filter wheel (EFW) can accept both 1.25” and 31mm filters. The EFW is driven by a whisper quiet high grade stepper motor.

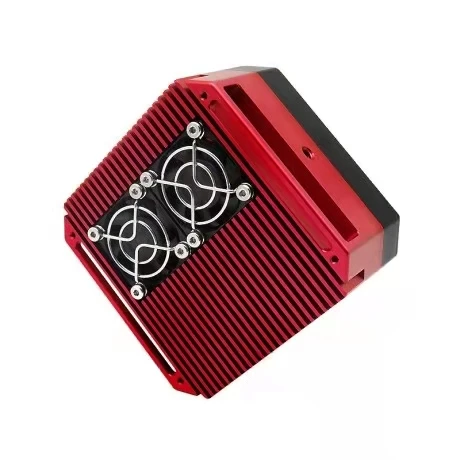

The camera body has 24 heat radiating grooves fitted with dual maglev fans to ensure the temperature difference before and after cooling remains between 40-45℃ below ambient temperature. (Tested at 30℃). The lower the ambient temperature is, the lower the delta-T will be. )

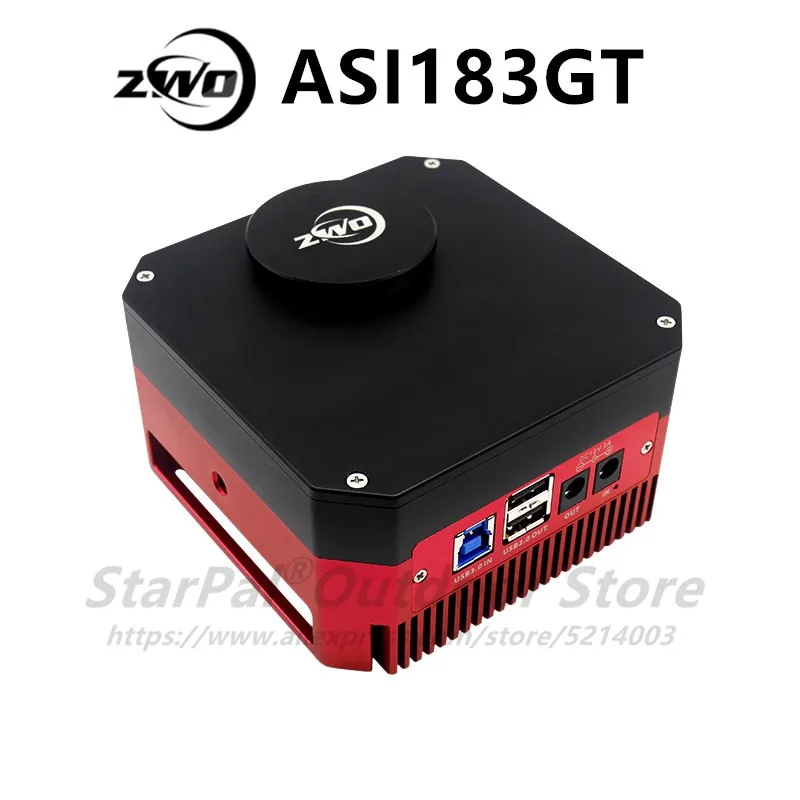

Multiple Ports

12V power supply, USB3.0 port & USB 2.0 Hub.

DDR Memory Buffer

The GT camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability.

The best solutions for a required 55mm back focus

Mechanical Diagram

What is in the box?

Tax
The price list on our website is USD without tax
Please note that buyers are liable to pay tax involved, such as Import tax, VAT , customs handling fee, etc. The additional fees may be collected at time of delivery by courier.

Warranty and Return Policy
We provide 2-year warranty for our products, we will offer the repair service for free within warranty period. After the warranty period, we will continue to provide repair support and service on a charged basis. We do not provide any replacement unless ZWO confirmed the product is DOA (Dead On Arrival).
This warranty does not apply to damage that occurred as a result of abuse or misuse, or caused by a fall or any other transportation failures after purchase.
Customer must pay for shipping when shipping the camera back for repair or replacement. If we confirm you can get a replacement, goods must be returned with all accessories, instructions, etc and must be suitably packed.
If you get a faulty camera, Please contact us as soon as possible. Please describe the problem in detail and we will do our best to help you solve the problem. Most instances perceived problems are simply bad driver install or software configuration.

Drivers and Softwares:

Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting://astronomy-imaging-camera.com/software-drivers
