ELM 327 V1.5 PIC18F25K80 For Ford OBD 2 OBD2 Car Diagnostic Auto For FORScan ELM327 USB OBD2 Scanner CH340 HS CAN/MS CAN Tool

Note:

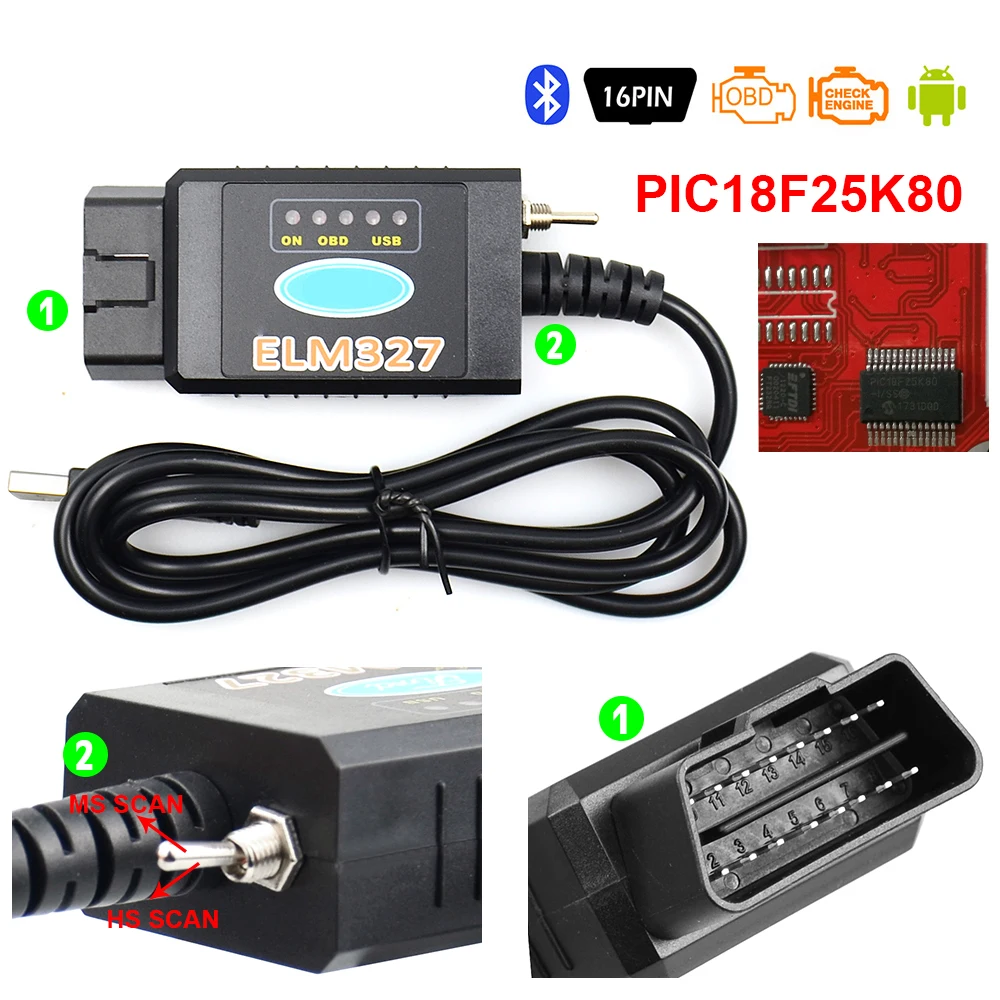

HS MS USB V1.5: ELM327 USB V1.5 version With PIC18F25K80 chip,CH340/FT232RL, 2 chip version can choose ,and HS-CAN/M-S CAN Switch(with CD)

（Many customers use HS-COM/MS-COM V1.5 ELM327 for Ford with FORScan）

1: USB VERSION WITH FTDI

Description:

1.With USB Connection.

2.Plastic ELM327 USB V1.5 Scanner is the latest PC-based scan tool.

3.ELM327 USB Scanner is Version V1.5

simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.


Supported Software:
for ELMconfig
for Forscan
for FOCCCUS
for FF2


Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

AND Many others...

Specifications:

1.OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM

2.Output protocol:RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA


ELM327 USB ELM 327 V1.5 USB Scanner Support OBD2 Protocols:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Package list:

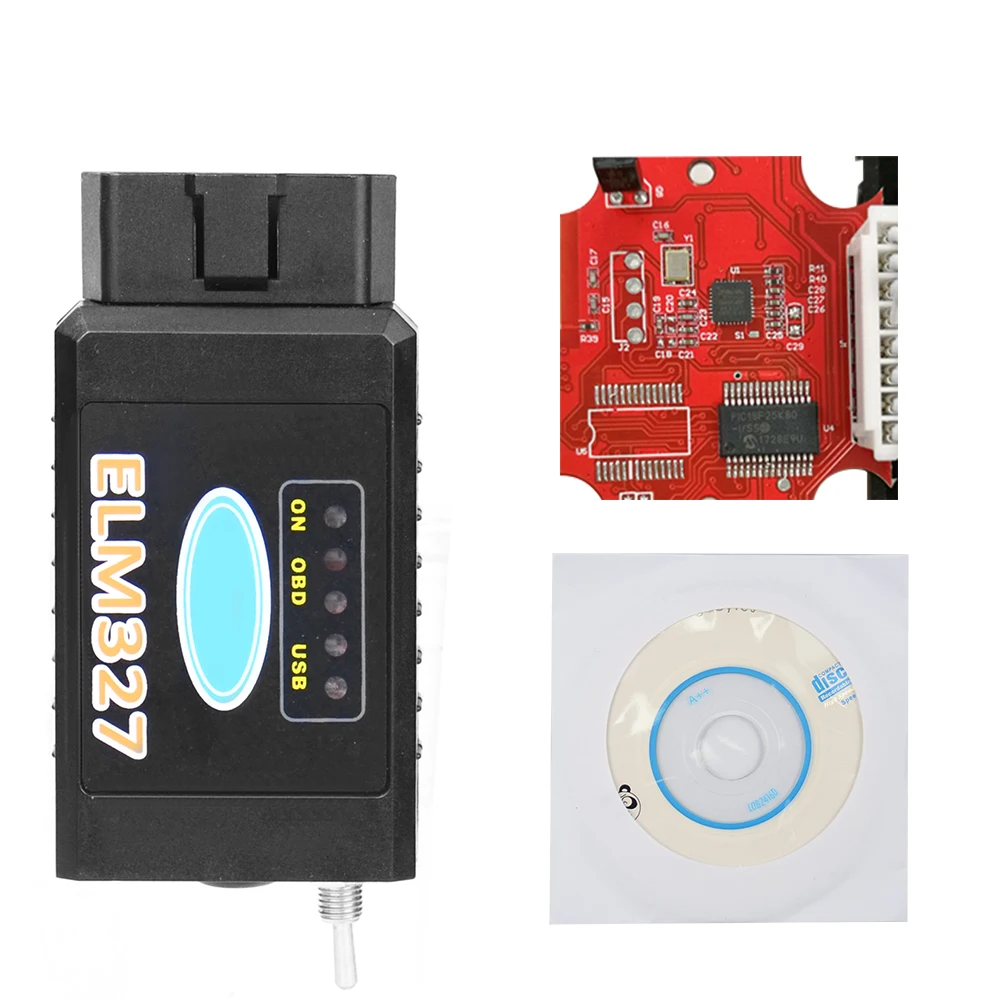

1 x ELM327 USB interface

1 x CD software

2 Bluetooth version with CH340

3: USB WITH CH340
