Global Version Xiaomi Router AX1800 Wi-Fi 6 Dual Band Wireless WiFi 5-Core Chip 4 External Antennas Signal Booster | Компьютеры и офис

Global Version Xiaomi Router AX1800 Wi-Fi 6 Dual Band Wireless WiFi 5-Core Chip 4 External Antennas Signal Booster | Компьютеры и офис

Specifications:

General
Brand：Xiaomi
Model：AX1800
Size：247*141*180mm
Color：White

Hardware
Processor：IPQ6000 quad-core A53 1.2 GHz CPU
Network acceleration engine：Single-core 1.5GHz NPU
ROM：128MB
Memory：256MB
2.4G Wi-Fi：2×2 (the highest support IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)
5G Wi-Fi：2×2 (the highest support IEEE 802.11ax protocol, the theoretical maximum rate can reach 1201Mbps)
Product antenna：4 * external antennas
Product cooling：Passive cooling

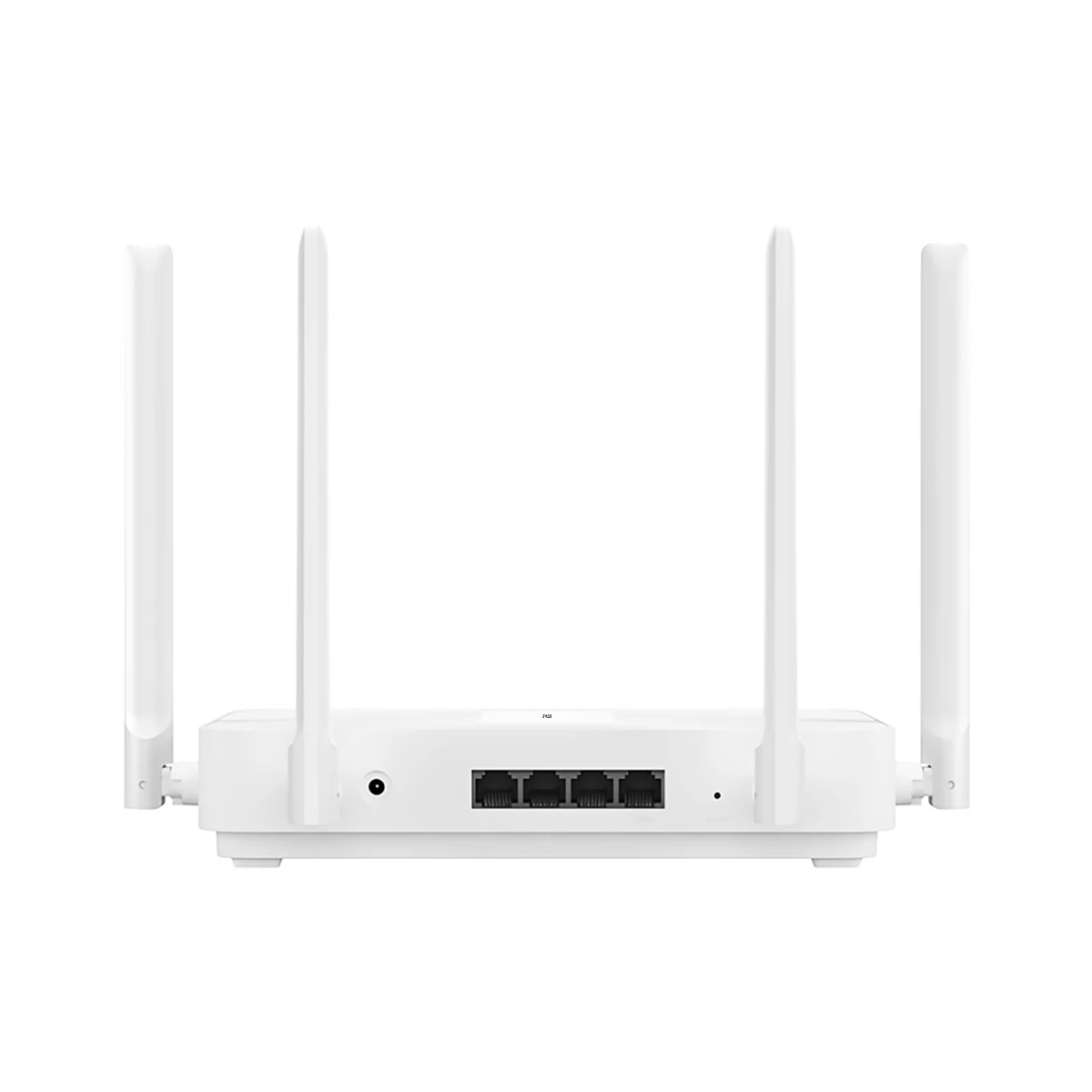

Machine interface
1 10/100/1000M adaptive WAN port (Auto MDI/MDIX);
3 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)
LED indicator：2 (System indicator *1, Internet indicator *1)
System reset button：1
Power input interface：1
Protocol standards：IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Certification standard：GB/T9254-2008; GB4943.1-2011

Wireless Parameters
Dual band：2.4GHz and 5GHz
Wireless channel
2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13;
5GHz Channel: 36, 40, 44, 48, 149, 153, 157, 161,165
Modulation
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0-MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCSO-MCS9 (support 2 streams)
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCSO-MCSI1 (support 2 streams)

Software
Operating system：OpenWRT widely customisable intelligent router operating system MiWiFi ROM
WiFi Encryption：
WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
wireless access control (blacklist and whitelist),
SSID hiding, smart unauthorized access prevention
Network Security：
Access control (blacklist, whitelist), guest network, DoS, SPI firewall,
IP and MAC Address binding, IP and MAC filtering
Management application：Support Web, Android, iOS

Accessories
Power supply：1x (12 V/1 A)

Operating environment
Working temperature：0-40℃
Working humidity：10%-90%RH (non-condensing)
Storage temperature：-40-70℃
Storage humidity：5%-90%RH (non-condensing)

Features:
1. 5 Core chip home Router, enterprise-class powerful performance.

4-Core 64-bit A53 1.2GHz CPU + single-core 1.5GHz NPU module, computing power increased by 130%, 128 devices connected to the CPU occupancy rate is less than 10%, data processing ability is stronger, farewell frequent disconnection or stuck.

2. Independent network acceleration engine. Hardware-level acceleration, less latency waiting.

Single core 1.5GHz NPU (Network Processing Unit), designed to handle network data traffic, while increasing throughput by 21% and reducing CPU usage by 95%. While watching 4K HD network video, you can also play games with friends.

3. New generation of 14nm process technology processor, small body gathers surging energy, lower power consumption, high-end Wifi6 router necessary.

Compared with the 28nm and above processes used in the industry, the integration is higher, the power consumption is lower, the heat generation is reduced by 20%, and the long-term operation is more stable.

4. 256MB Large memory, stable connection of 128 devices.

Optimized for Xiaomi Smart Home, connecting multiple devices without stuck when the Xiaomi smart device is connected to the Internet for the first time, it cooperates with the Mijia App to set up without the need to manually enter a password; it also supports the security and privacy protection of mainstream smart home devices on the market.

5. Wifi6 core technology: OFDMA high efficiency transmission, reduce network congestion, low latency, smoother Internet access for multiple devices.

When multiple devices need to transmit data, OFDMA technology allows the router to complete the data transmission of 8 devices with only one transmission, and the network delay can be reduced by 66%.

6. Wide signal coverage, covering every corner of the house.

4 Independent Signal Amplifiers Enhance Transmission Power And Receiving Sensitivity, Stronger Wall-Through, and Cover One More Room

2.4GHz and 5GHz are equipped with 2 Qorvo high-performance independent signal amplifiers respectively, the signal strength is increased by 4dB, and the theoretical coverage is increased by 50%.

7. 4 High-gain omnidirectional antennas are precisely debugged, with a reasonable structural layout, wider coverage and farther transmission distance.

4 external 5dBi high gain omnidirectional antennas are made of phosphor copper. Support LDPC error correction algorithm, significantly enhance the anti-interference ability and signal coverage during data transmission.

8. Support mesh networking.

Strong combination of multiple routers, seamless coverage of high-speed WlFi6 throughout the house.
5GHz WiFi or network cable can be used for networking. The theoretical rate of wireless networking is up to 1201Mbps. Multiple routers can form a star, chain or wired/wireless network. If the router device in the network changes, it can automatically re-connect to ensure a stable online experience.

9. Tencent online game accelerator is deeply customized, free 3 months membership time, global game play, ultra low latency and more stable.

Support mainstream Chinese service game acceleration and foreign game acceleration, covering all platforms of PC, mobile phone, and computer, and experience the super pleasure of game acceleration.

Package Included:
1 * AX1800 Router
1 * Instruction Manual
1 * Network Cable
1 * Power Supply Cable
