2022 New Spray Nozzle Print Head for canon- IP7200 IP7210 MG5420 5450 QY6-0082 Printers | Электроника

Y9RF 1pcs Durable Print Head Spray Nozzle PrintHead For Canon- IP7200 IP7210 IP7220 IP7240 IP7250 MG5420 5450 5460 MG5510 5520

Description:
It is of high quality.
Feature:
High quality TESTED IN GOOD WORKING SITUATION AND REFURBISHED
Made of high-quality materials, durable and perfectly matched with the original version
Other features: stable characteristics, high reliability, according to the original factory specifications. Easy and simple installation
Applicable model: for Canon- IP7200 IP7210 IP7220 IP7240 IP7250 MG5420 5450 5460 MG5510 5520 5550 5580 MG6400 6420 6450
Use scene: printer nozzle
Printer Head only, other accessories demo in the picture is not included!

Specifications:
Item Type: Printer Head
Material: ABS＋Metal
Color: As shown

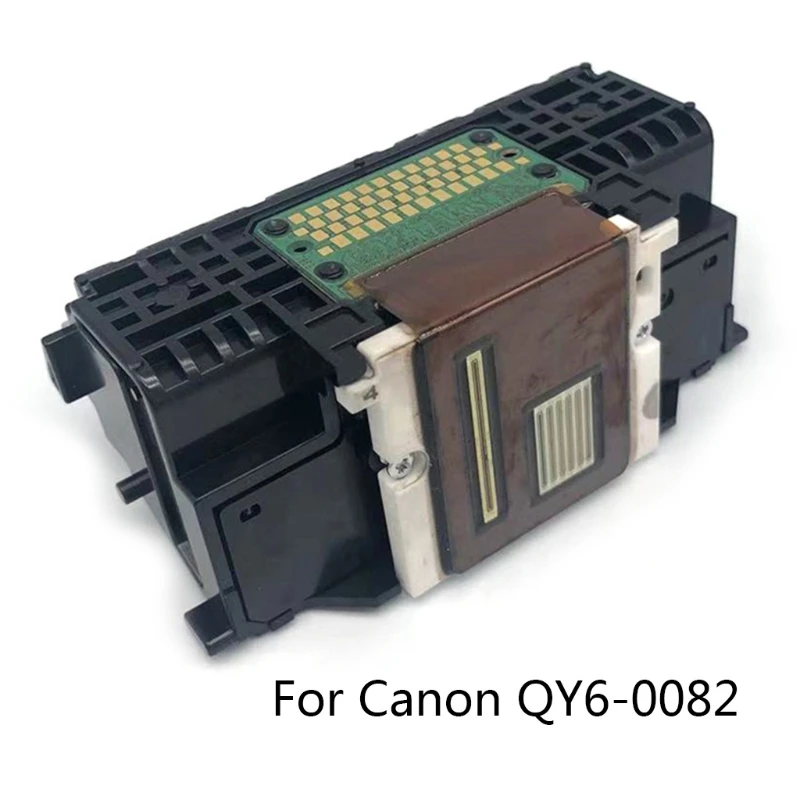

Model: QY6-0082

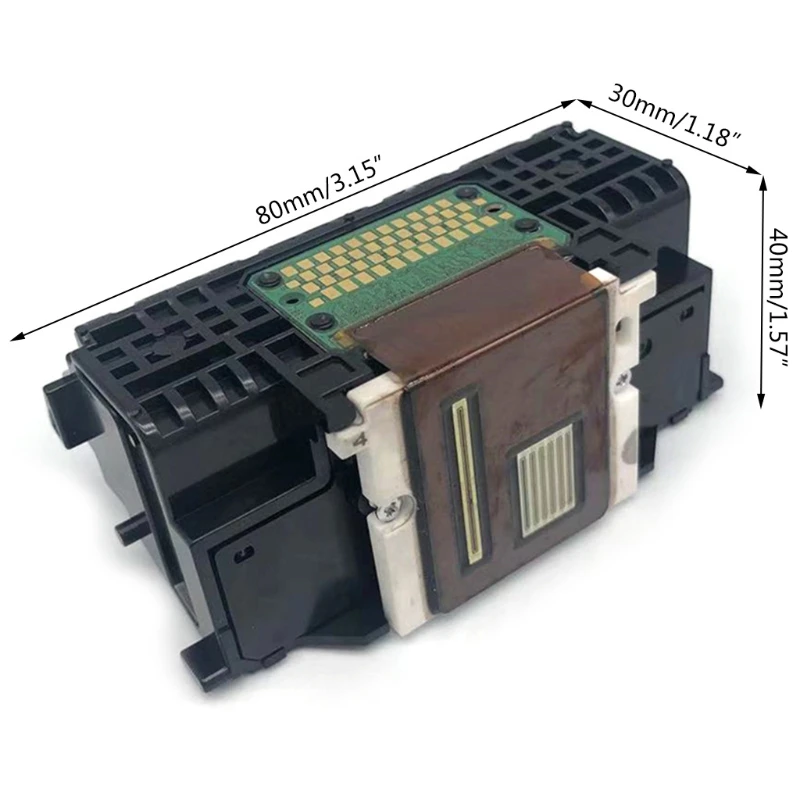

Size: (approx) 8x3x4cm
Weight: (approx) 60 grams
Quantity: 1 Pc

Precautions:
1. The head surface of the nozzle is very fragile and must not be bumped. It must be protected. Its surface layer is an aluminum sheet, and the inner layer is coated with a crystal oscillator and a very small ink tube. It will be concave and deformed when touched. Even if it breaks, the nozzle will be scrapped;
2.Before installation, please make sure that the other parts of the printer are normal, especially the motherboard to ensure that they are normal, otherwise the new print head may be burned out.
3. When connecting the plug and cable, do not bring ink, and make sure that it is in good contact with the socket and does not touch the feet, otherwise, it will cause the nozzle to be short-circuited and burned;
4. The steel shaft should also be clean and smooth. You can wipe it with a paper towel with some lubricating oil. Do not directly add oil to the shaft. The excess oil will flow to the nozzle and cause damage;
5. After the machinery and circuit are all correct, check the water circuit. First, check that the amount of water in the ink cartridge is insufficient; second, check whether the small cleaning blade and the ink suction pump are dirty;
6. There may be air in the newly installed print head, so it will not print normally immediately. Only when the air in the head is completely exhausted can the line be normal; first, intermittent cleaning can be used (only two cleanings at a time, then stop 30 Wash 2 times after 2 minutes) Repeatedly over-cleaning will cause ink accumulation in the cleaning pump, which will not only cause color mixing and ink leakage, but also waste ink; secondly, you can print more pictures to let the nozzle discharge air during work ; Again, if the machine has led out the waste ink tube, you can cut off the power first, and then use a rubber tube to draw out the waste ink tube until 3-5ml of ink is drawn out, then turn it on and clean it once with the machine normally. It is equivalent to artificially extracting the air from the head, and the side effect is that it is easy to cause the cleaning pump to pile up ink.
7. The status of this product is REFURBISHED IN WORKING SITUATION. If it is marked as brand new, it will be on the shelf or for publicity. This description shall prevail, thank you
8. Please let professionals install or operate, damage caused by human causes, NO refund.

Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Printer Head
