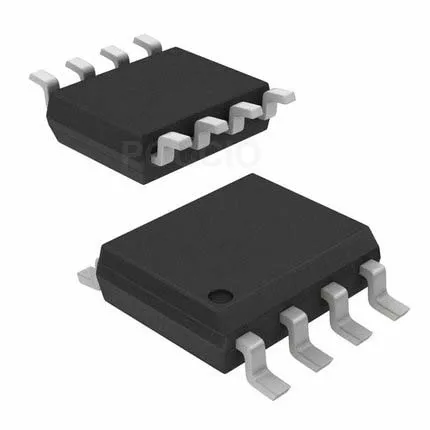

SO-8 Package

12-Bit Resolution

Buffered True Rail-to-Rail Voltage Output

Asynchronous Clear Input

Built-In Reference

Schmitt Trigger On Input Allows Direct Optocoupler Interface

Power-On Reset Clears DAC to 0V

3-Wire Cascadable Serial Interface

Maximum DNL Error: 0.5LSB

Low Cost

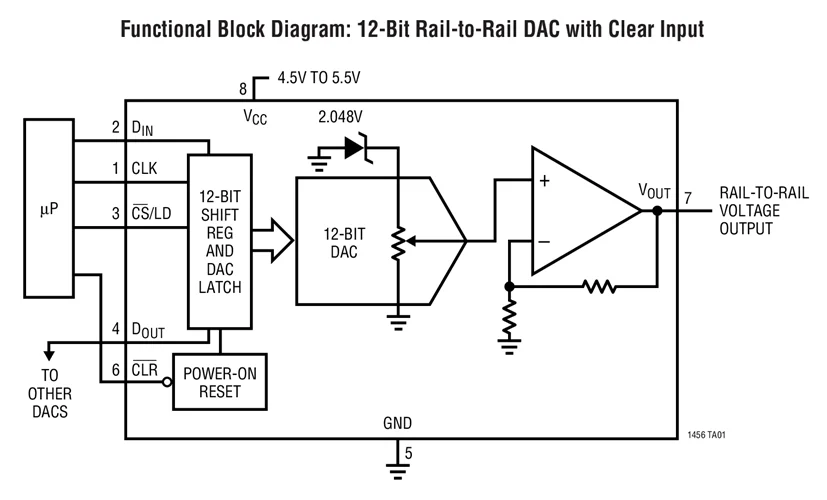

The LTC1456 is a complete single supply, rail-to-rail voltage output, 12-bit digital-to-analog converter (DAC) in an SO-8 package. It includes a rail-to-rail output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The LTC1456 includes aCLRpin that asynchronously clears the DAC to zero scale.

The LTC1456 has an internal 2.048V reference and a fullscale output of 4.095V. It operates on a 4.5V to 5.5V supply, dissipating 2.2mW.

The low power supply current and the space saving SO-8 package make the LTC1456 ideal for battery-powered applications.

Digital Calibration

Industrial Process Control

Automatic Test Equipment

Cellular Telephones
