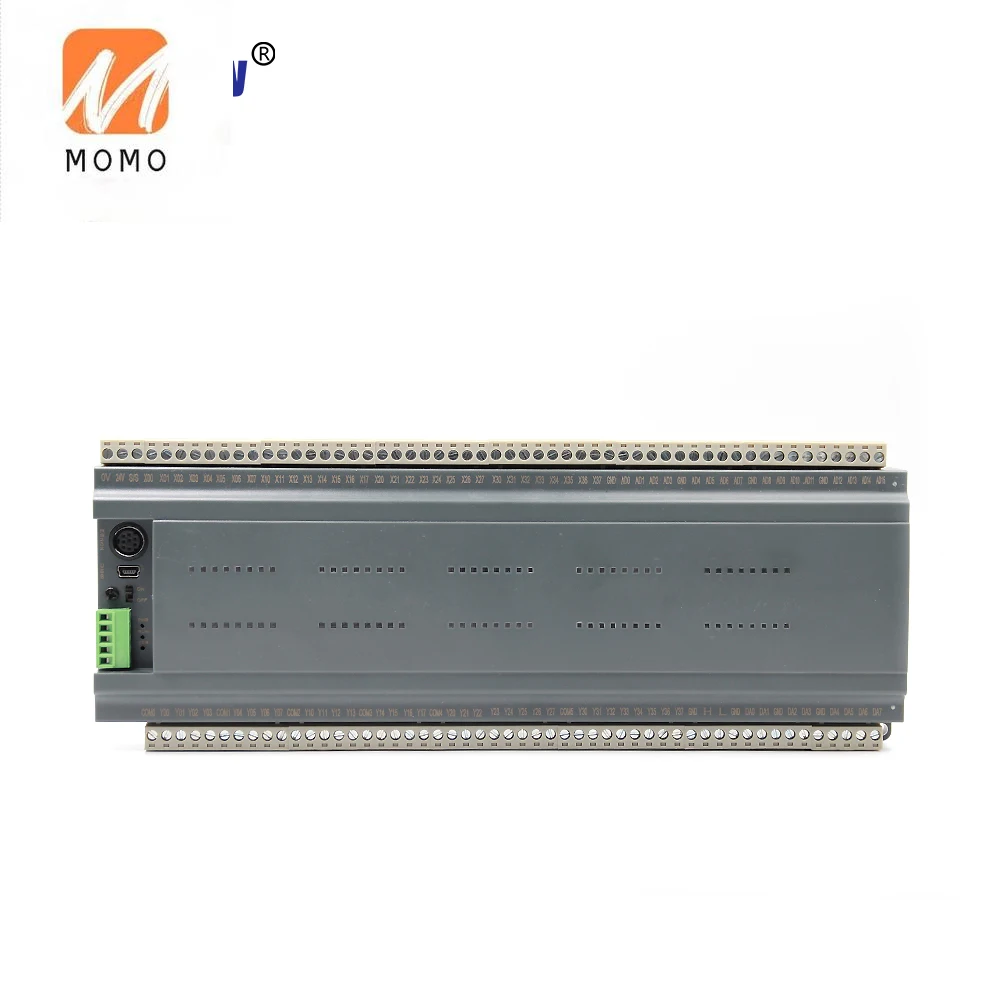

32bit Digital NPN Input Relay Output Programmable PLC Controller RS485 COM Port Compatible with Fx3u-64m | Дом и сад

32bit Digital NPN Input Relay Output Programmable PLC Controller RS485 COM Port Compatible with Fx3u-64m | Дом и сад

CX3G Series Advantages

Compatible with FX3G/FX3U/FX3S

Highly integrated DI/ DO/ AI/ AO/ COM/ USB/ CAN (48M supports Ethernet port)

Max 30DI/ 30DO

Max 16AI/ 8AO

Support PID function

Support customized PNP input

Support high speed functions

Parameters

Model

CX3G-16M

CX3G-24M

CX3G-32M

CX3G-48M

CX3G-34M

CX3G-64M

CX3G-80M

Dimension

85*90*36mm

130*90*36mm

200*90*36mm

285*90*36mm

Cutout size

77*99mm

122*99mm

192*99mm

277*99mm

Installation

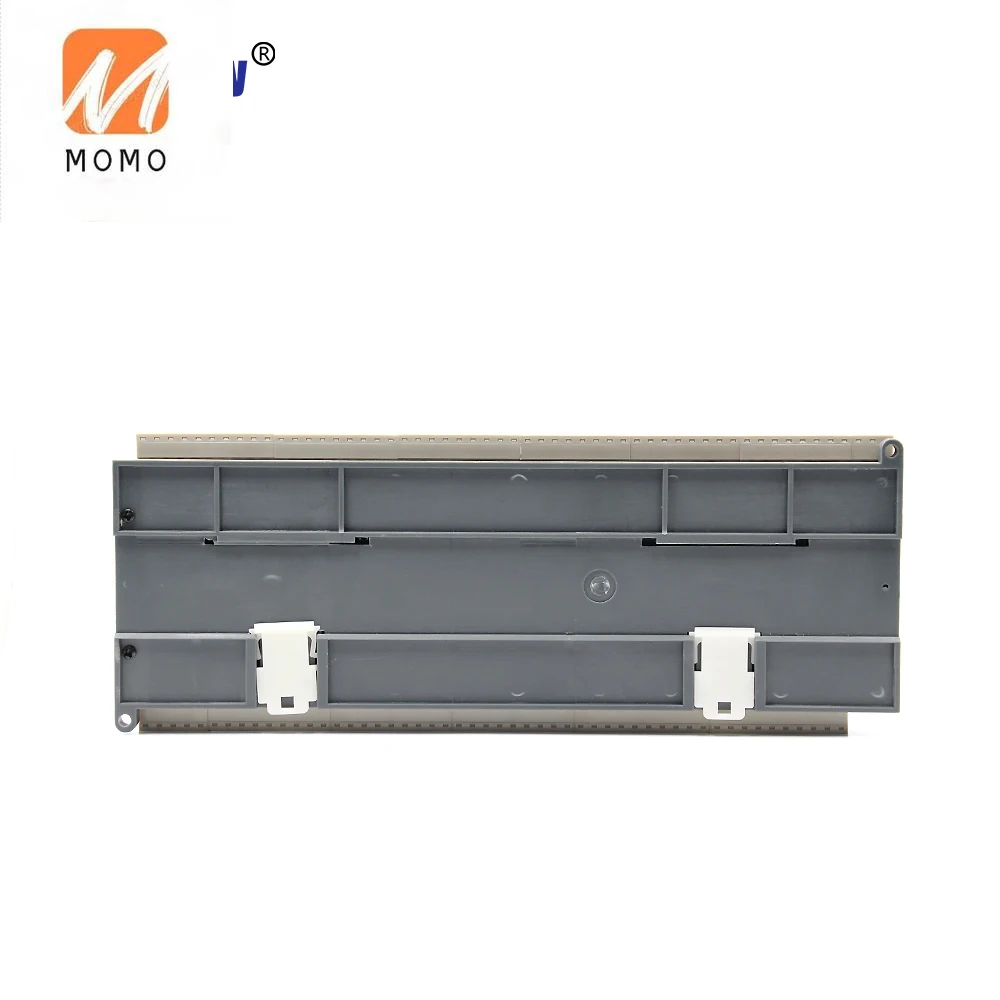

Fixed hole installation and DIN-Rail (35mm )

Features

Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register

I/O level

Input: Passive NPN, public terminal isolated

Transistor output: NPN

Relay output: Normally open dry contact

Digital I/O

8DI/8DO

12DI/12DO

16DI/16DO

24DI/24DO

18DI/16DO

32DI/32DO

40DI/40DO

DO type

Transistor(MT) or mixed(2T6R)

Relay(MR) or transistor(MT) or mixed(MRT)

(Relay output: max load 5A/ transistor output: max load 500mA)

High speed counting

Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz

High speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz

High-speed counting + high-speed pulse < 480KHz

Analog I/O

Null

6AI/4AO

2AI

8AI/4AO

12AI/8AO

16AI/8AO

4AI/4AO

(optional)

AI type

Type E/K/S/T/J thermocouple/ PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

(optional)

0~10V/ 0~5V/ 0-20mA/ 4-20mA

 -5V~5V/ -10V~10V(except for CX3G-16M)

AO type

0~10V/ 0-~5V/ 0~20mA/ 4~20mA

(optional)

-5~5V/ -10~10V (2DA for 1 minus temperature)

Default COM port

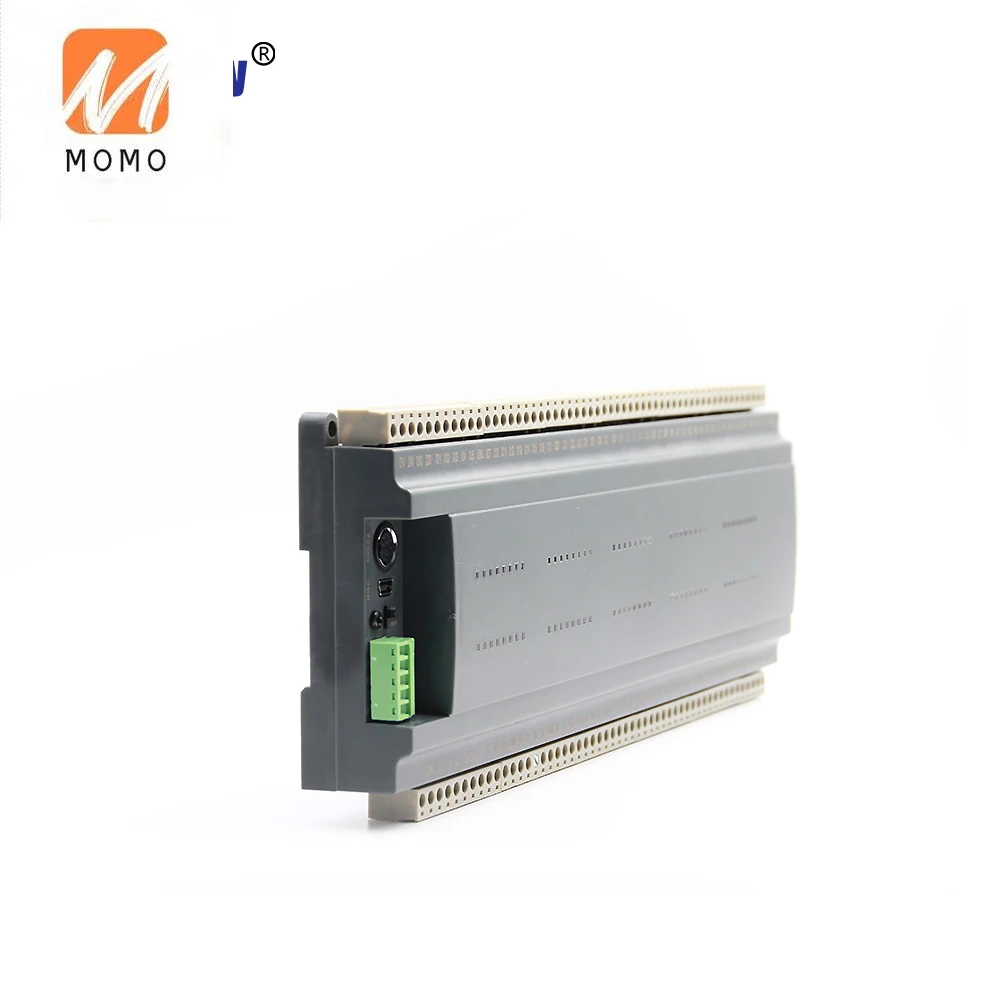

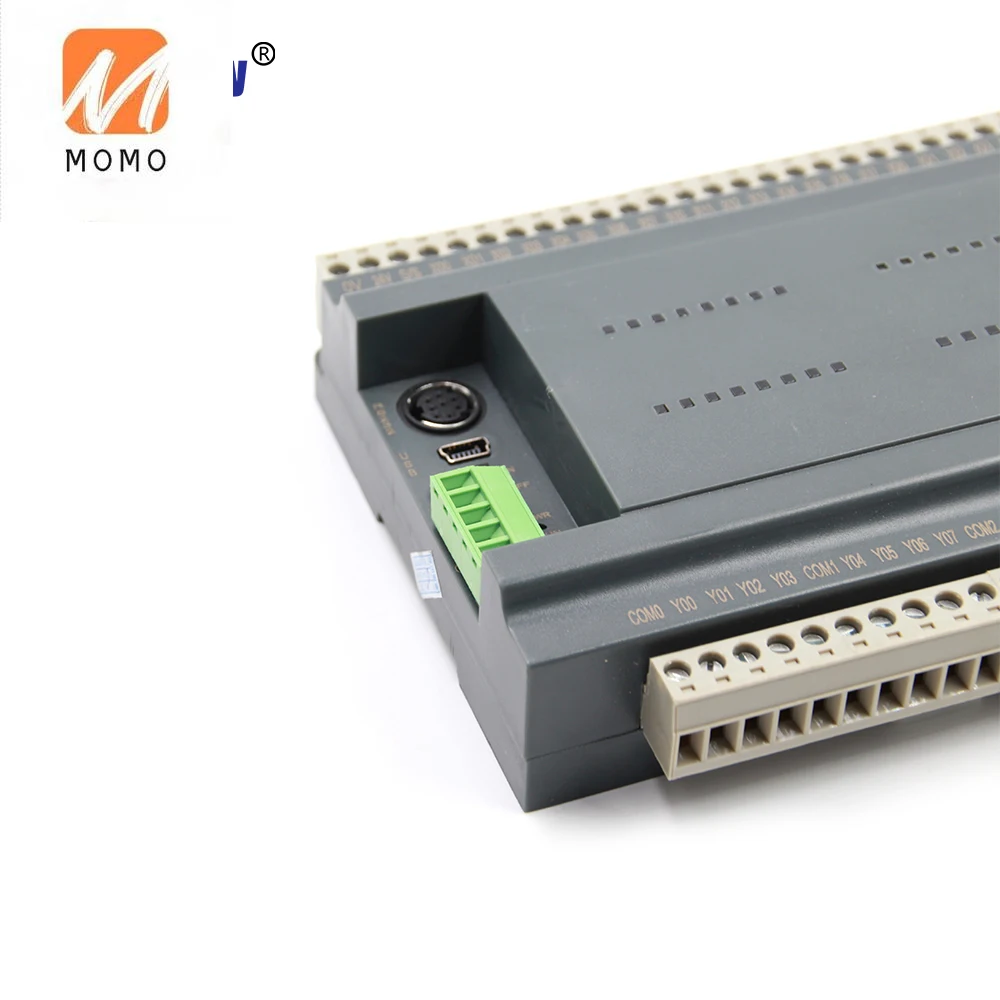

1 Mini type B USB port, 1 Rs232(Interface terminal is mouse female port with 8 holes), 2 RS485 ports

Optional

Default 2 RS485 ports can be customized as

Default 2 RS485 ports can be customized as 1 RS485, 1 RS232,

1 RS485, 1 RS232,

CAN (2.0A/B) port is optional

or 1 RS485, 1 CAN (2.0A/B),

or 1 RS232, 1 CAN (2.0A/B)

CX3G-48M can add Ethernet port.

Software

Suggested models: CX3G-16MT/MRT(-485/232)                       CX3G-24MT/MR/MRT(-6AD4DA -485/232)

CX3G-32MT/MR/MRT(-2AD -485/232)              CX3G-34MT/MR/MRT(-12AD8DA -485/232)

CX3G-48MT/MR/MRT(-8AD4DA -485/232)          CX3G-64MT/MR/MRT(-16AD8DA -485/232)

CX3G-80MT/MR/MRT(-4AD4DA -485/232)

Detailed info. refer to:COOLMAY CX3G PLC Programming Manual  CX3G PLC user manual
