Комплект платы управления HDMI + VGA 2AV для драйвера экрана LCD LED HSD140PHW1-B01 LP140WH4-TLC1 LP140WH4-TLA1 LP140WH2-TLL1 1366X768 включен.

Комплект платы управления HDMI + VGA 2AV для драйвера экрана LCD LED HSD140PHW1-B01 LP140WH4-TLC1 LP140WH4-TLA1 LP140WH2-TLL1 1366X768 включен.

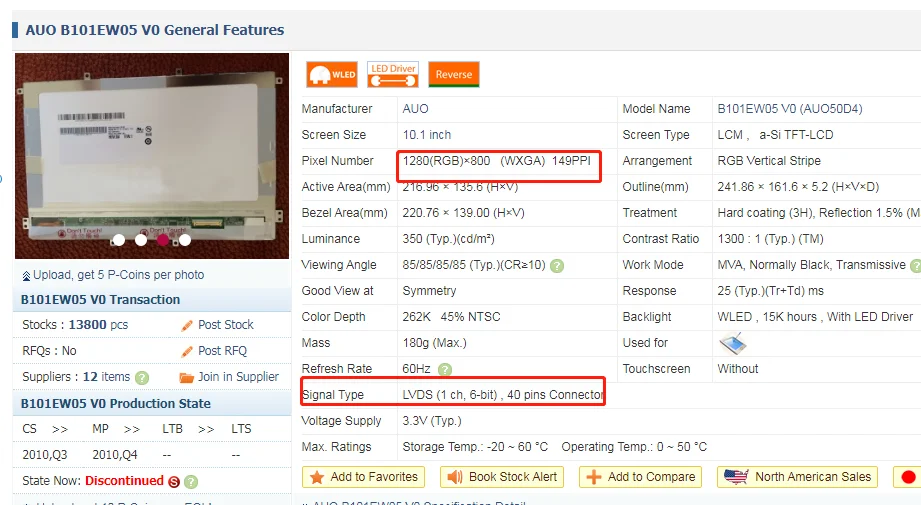

 Please kindly send us your LCD Panel No. for us to double check the controller board can be used before your purchase.

The working power supply is 12V-3A or 12V-4A DC port, internal + external 2.5MM and 5.5MM-

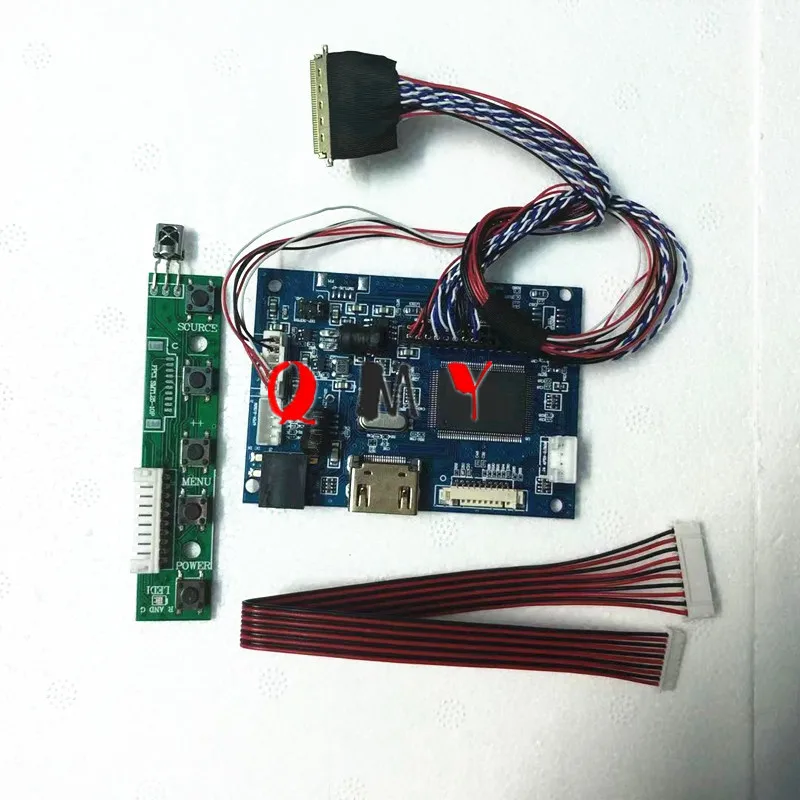

LCD controller board:
HDMI VGA 2AV LCD board for LVDS interface LCD screen
Input power adapter: 12Vdc is greater than 2A.
Enter standby mode when no signal is input
Standby model <1W
Video input: HDMI VGA AV1 AV2
Reverse: When the connector ACC reaches 12V, it supports automatic switching to AV2
OSD: Brightness contrast automatic language, etc.
Languages: English, French, German, Spanish, Italian, etc.
Board size: 91mm x 66mm x 12mm
Note: This AV controller board has no audio output

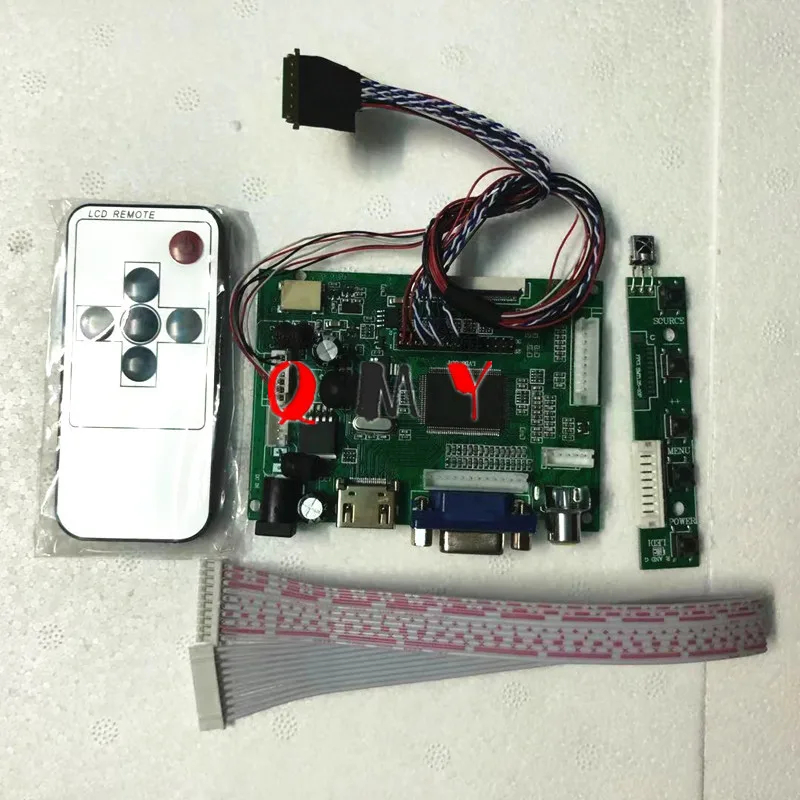

1×HDMI VGA + 2AV LCD controller board

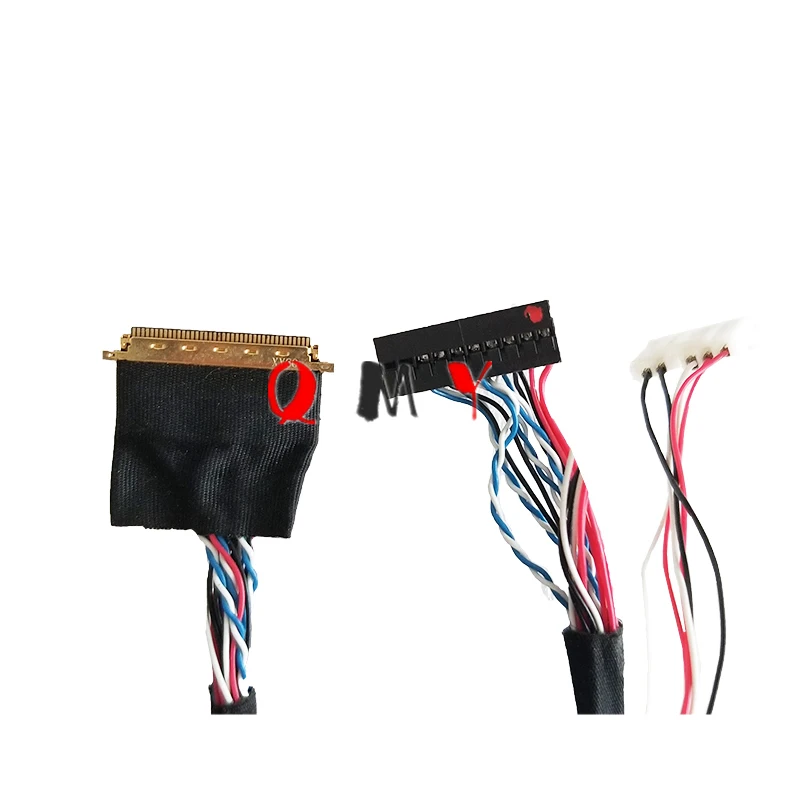

1×40Pin signal line
1 × keyboard with cable
1×Remote control (not including battery)

note! !! !!

 1. Before bidding on this project, please make sure your LCD is normal, otherwise, you will be responsible for this incompatibility responsibility.
 2. If you are very concerned about the resolution setting, please reconsider before bidding!
 3. If you are not good at electronics or have questions about operations, please contact us for guidance, because we are not responsible for wrong operations.
4. After completing the connection, please do not rush to boot! First, use a multimeter to test whether the LCD GND is connected to the controller board GND. If not, please check the connection again. If yes,please test whether there is a short circuit between the red and black wires of the LVDS cable. If a short circuit occurs, it means the opposite connection or other errors. If you have any questions, please feel free to contact us. DIY requires certain professional knowledge, please bear your own risk. When powering up the control board, no metal contacts are allowed, otherwise a short circuit may occur, which may cause the control board to become unusable.
