Updated version of the popular adapter for K-L line for car ECU diagnostics bm9213.

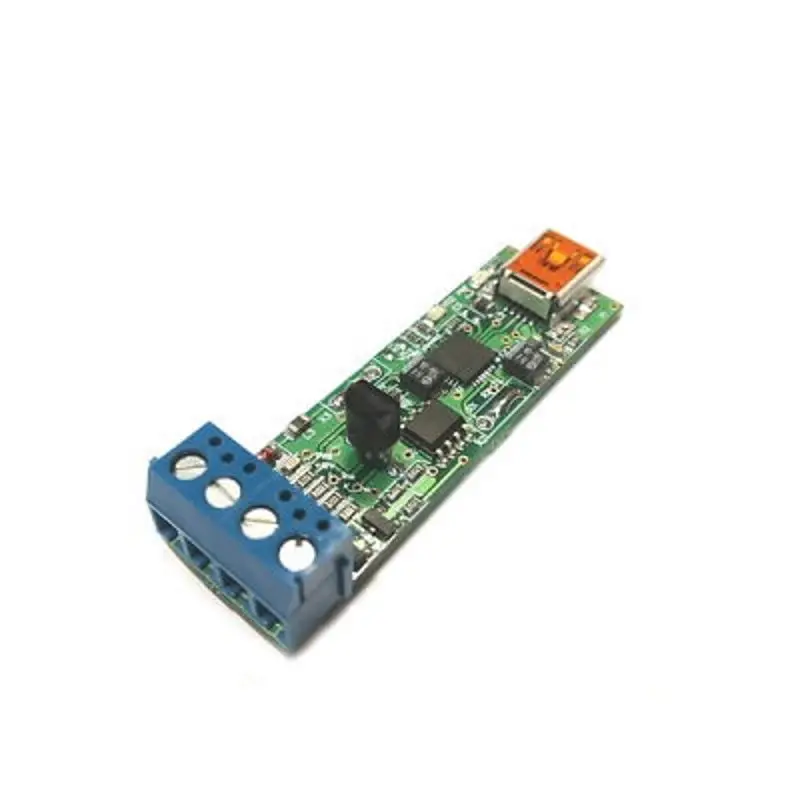

The module is a USB K-L-line Adapter for car, motorcycle and Webasto diagnostics and tuning. Made on cp210x chip from Silicon Labs. With this device, you can read and reset control errors, update software, receive electronic parameters of various sensors and car systems. The program ICD can diagnose cars of the Vaz and gas family, foreign cars by obdtool program, and the program Tiggo diag-cars of Chinese production Chery, great Wall and others (program works with K-Line adapter or ELM327 adapter).

We draw your attention. The module comes with miniUSB connector. To connect the module to a PC, a miniUSB cable is required.

Parameter

Value

Operating voltage, V

5 - 30

Power type

Permanent

Current consumption, no more, MA

20

Recommended operating temperature (°c)

-... 60

Supported interfaces

K-line ISO 9141-1, ISO 9141-2, ISO 14230, kWp 2000, L-line (ALDL).

Supported OS, 32/64 bit

Win98, XP, 2, 7, 8, 8.1, Linux 2.6.х, 3. x. x, Win CE 4.2, Mac OSX

Dimensions, mm

53x16x10

Weight

25

User Manual

Wide Operating voltage range 5v-30v

Support all known OS:
Win98, XP, 2K, 7, 8, 8.1, 10
Win CE
Linux 2.6 X, 3. xl
Android 4.2
Mac OSX

Convenient PC Connection, standard miniUSB cable

Indication of correct driver installation

Memory of the last established data exchange speed.

Protection against incorrect connection of polarity of working voltage, with OBDII pads.

The driver for your PC's operating system can be downloaded here:

//www.silabs.com/products/ development-tools/software/USB-to-UART-Bridge-VCP-drivers

The way to connect to the car is described in detail hereBM9213

If you encounter the fact that your car's EBU supports non-standard data exchange rate, which is characteristic for diagnostic lines, then it is not a trouble. ReadThisThe article.

The USB K Line adapter bm9213m is designed to connect a personal computer (PC) or laptop to the diagnostic channel (to or L-line) of the electronic control unit (((

The module is a converter of levels of logical signals for the exchange of ECU and a standard USB port. The bm9213m is designed to connect a personal computer (PC) or laptop to the diagnostic channel (to or L-line) of the electronic control unit (ECU) of the car to The connection to the PC is carried out using a standard miniUSB cable for lubricated phones.

Universal Adapter K-L-line bm9213 USB to tuning injector car engine

Модуль-1.

Instruction-1 PCs

Check the device can be under windows with setup ce v1.7.exe utility
//masterkit.ru/zip/Setup% 20CE % 20v1.7.zip

Install the cp210x _ VCP driver.
Http://www.silabs.com/Support% 20documents/software/cp210x _ windows_drivers.zip

Install the tool to set a non-standard data exchange rate in bm9213m
//masterkit.ru/zip/BaudRateAliasConfig_ v2.3.zip

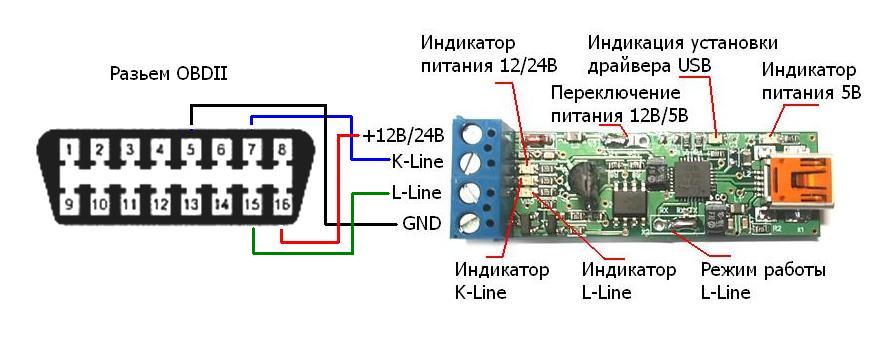

Connect the power supply 12V to the pins X5 (12V), X4 (GND) observing polarity. Must immediately light a diode vd6.

Connect the module to the USB port of the PC. If the driver is successfully installed, the vd2.

From the service-settings menu, select the COM port issued by the operating system and click OK.

Now click one of the diagnostics buttons in the main menu. This should start flashing diodes vd4, VD5

Check is completed. Comfortable operation.

Temperature-30C to + 50c. excluding AKB.

Relative humidity 20-80% without the formation of condensate.

Do not exceed the maximum permissible voltage of the OBDII Connection bus.

Not compliance with this requirement will lead to the output of the device failure.

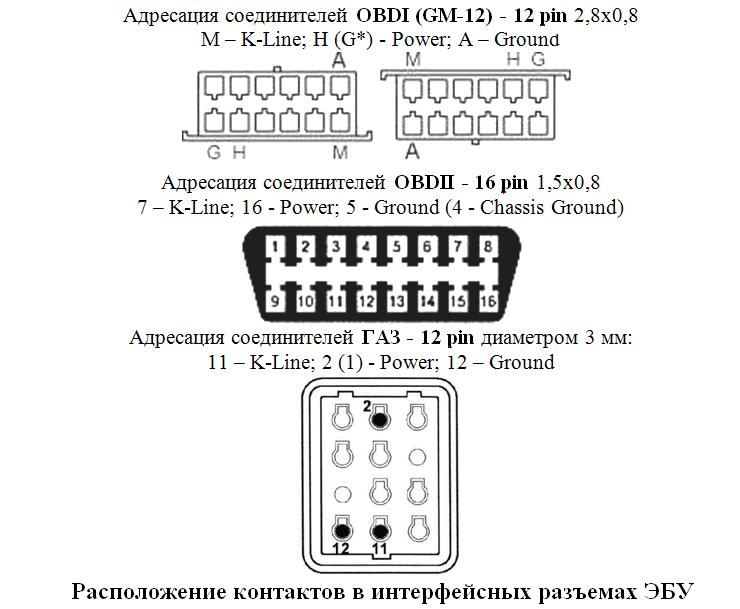

Signals + 12 V and GND need to take with OBD pads of your car.

The kit does not include software and a connector for connecting to the ECU.

Check the module according to the instructions on the site. When checking, both diodes must flash. If the test is OK, rotate the program settings. It is possible to set up a non-standard data exchange speed, read thematic forums on the diagnostics of your car.

That's right, by USB cable. Proven programs can not be recommended yet.

He'll deal with all the EBA that was doing bm9213. The programming algorithm, with the new adapter, has not changed.

You can.

In theory should be.

Will fit.

There is no accurate answer on the model, you need to try.

Under Win10, the driver is exactly. Here you can download drivers for all OS//www.silabs.com/products/ development-tools/software/USB-to-UART-Bridge-VCP-driversIf the exchange speed is known and the software supports work with the port, it should be suitable.

Hello. A. Within 3 days. Sending by mail is carried out after prepayment of the goods.

Must Go

Suitable if your car's ECU supports one of the data exchange protocols for K-Line Diagnostics (iso-9141), L-line (ALDL). This data can be found from an authorized dealer or at the service center, repair your car model or on thematic forums on the Internet.

We have an order on the site//www.elmatrix.ru/catalog/diy/masterkit/automoto/89047/() Put in the order, choose the method of payment and delivery) or search in the stores of our partners, if you are so convenient.

You need. Without them, it will not work.

If Laguna can connect with or L line, it will work. Next, it will depend on the program you will use. She needs to know your car's ECU.

What size is yusb? Dad Mom or micro? The photo does not look like micro!

Installed miniUSB connector.

Utility for module windows

Utility for setting a non-standard data exchange rate in bm9213m

Driver for OS Win XP/Server 2003/Vista/7/8/8.1

Driver for OS Win 7/8/8.1/10

Driver for Windows 2k

Driver for OS wince 6.0 (2.1)

Driver for OS WinCE 5.0 (2.1)

Driver for Mac OSX

Driver for Linux 3.x.x

Linux 2.6.x driver

Driver for Android 4.2 OS
