Multifunctional vehicle Keyboard Joystick Controller cctv camera PTZ Monitor Joystick 8 Inch HD LCD Screen

Description:

1. The multi-function vehicle keyboard display is a supporting product for terminal receivers such as variable speed smart pan/tilt, decoder, and lifting rod.
2. The keyboard display has a built-in 8-inch industrial display, which can be connected to MDVR or MNVR, hard disk video recorders, etc., decodes VGA and AV signals, and uses EIA/RS-485 electrical interface between the keyboard display control bus and the receiver.
3. Without bus drive, one keyboard can control multiple PTZ, lifting poles or decoders, and the maximum communication distance between the keyboard display and the receiver is up to 1Km.
4. At the same time, the built-in control keyboard can conveniently control the variable speed PTZ camera and lifting rod, and also directly control the terminal decoder to realize the front-end equipment such as camera, PTZ, lens, light, wiper, lifting rod, etc. control.

Main Features

▶ Adopting a highly integrated integrated design, a four-dimensional vehicle-mounted control keyboard and an 8-inch high-resolution display, saving space and wiring, and convenient installation;
▶ Set the address range of PTZ camera or decoder: 0-16;
▶ Use 1 VGA high resolution input and 1 BNC input;
▶ It can control various functions of PTZ, lifting rod and warning lights at the same time, and can perform variable speed operation on smart PTZ cameras, with smooth speed, PTZ left and right, up and down control, and lens zoom. Control the rise and fall of the lifting rod;
▶ All functions are operated by shortcut keys: wiper, lighting, calling presets, setting presets, ascending and descending, defrosting, snapping, video switching, etc.; 6. Preset points can be set for PTZ camera ,Recall. 16 preset positions can be set, and the infrared light and wiper of the car PTZ can be controlled;
▶ It adopts 1 RS485 input and 1 RS485 output to ensure that the video recorder and keyboard display can control the car pan/tilt at the same time
▶ Adopt industrial-grade electronic components, industrial-grade design

Product parameter

LCD panel: 8INCH 4:3 LED display panel / Keys and display in English

Resolution: 1280*960

Effective display range: 154.08(H) X 86.58(V)

Video input:1 channel BNC vedio input, 1 Vpp 75, 1 channel VGA interface, NTSC/PAL adaptive

Baud rate: 1200Bps,2400Bps,4800Bps,9600Bps

Communication interface: 1 channel RS-485 input and 1 channel RS-485 output

Control way: support keyboard control

Number of Controllable PTZ: 16pcs

Number of Controllable preset positions: 16pcs

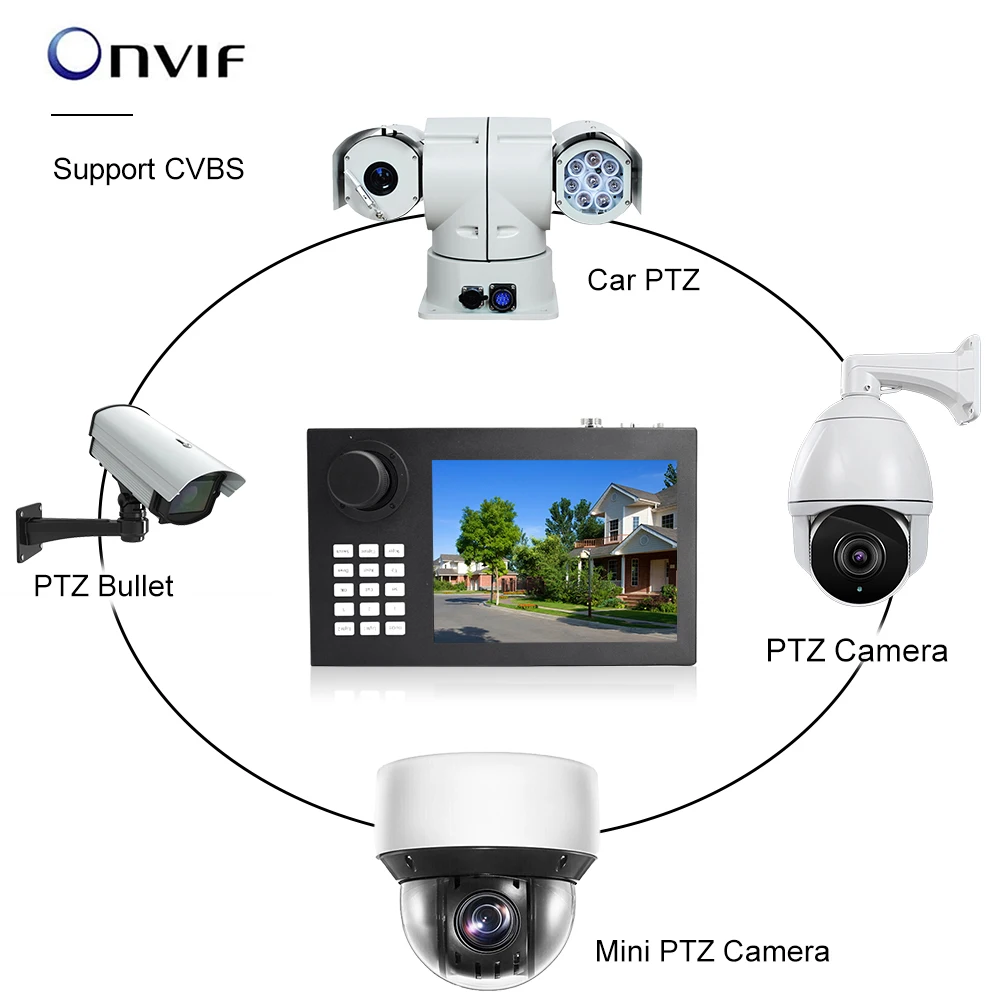

Controllable device type: Vehicle PTZ camera,mobile lifter and police warning light bar

Controllable PTZ shortcut keys: Wiper,light,preset,setup, defrost,Capture,switch etc

Controllable mobile lifter shortcut keys: Infrared lamp, temperature control, capture , Up and down

Controllable police warning light bar shortcut keys:Warning light and alarm

Parameters:Configure and control the default positions

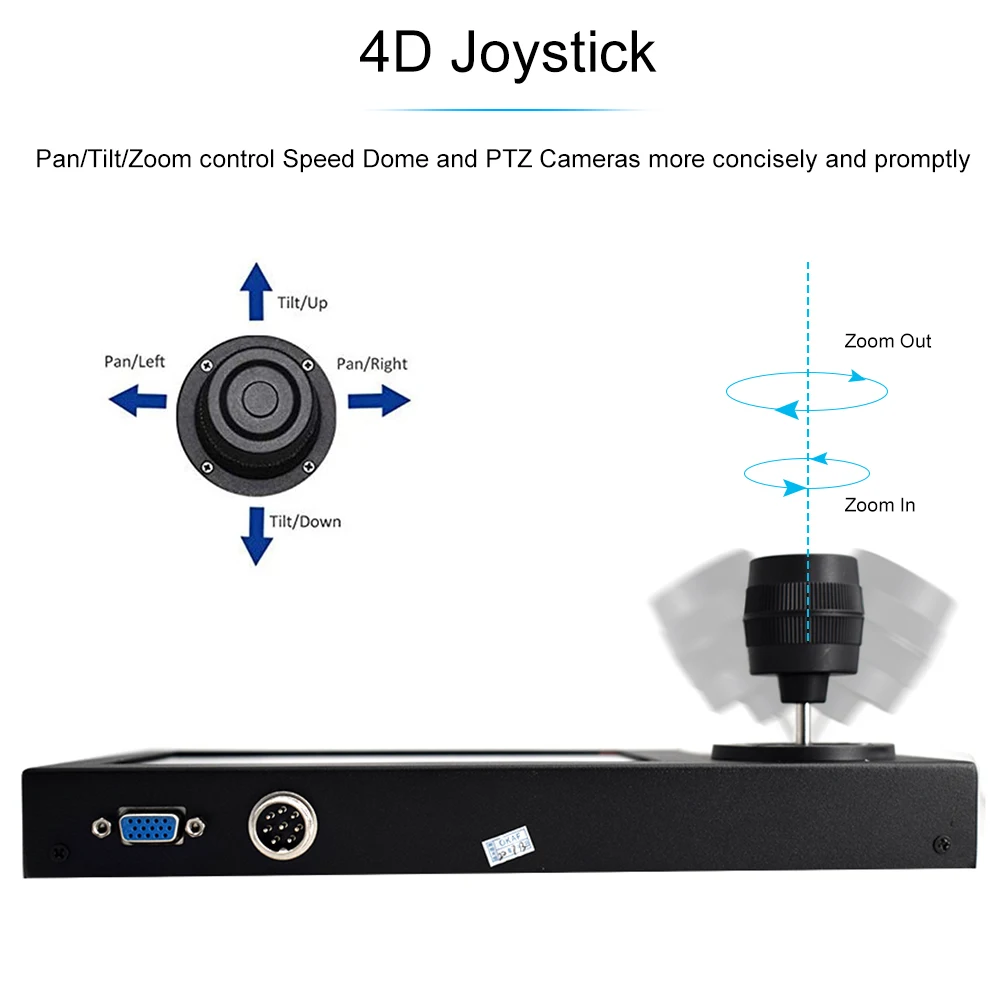

Joystick type: 4 dimensional joystick Material Aluminum alloy shell

Power supply: DC12V±10%

Working temperature: -35℃~+70℃

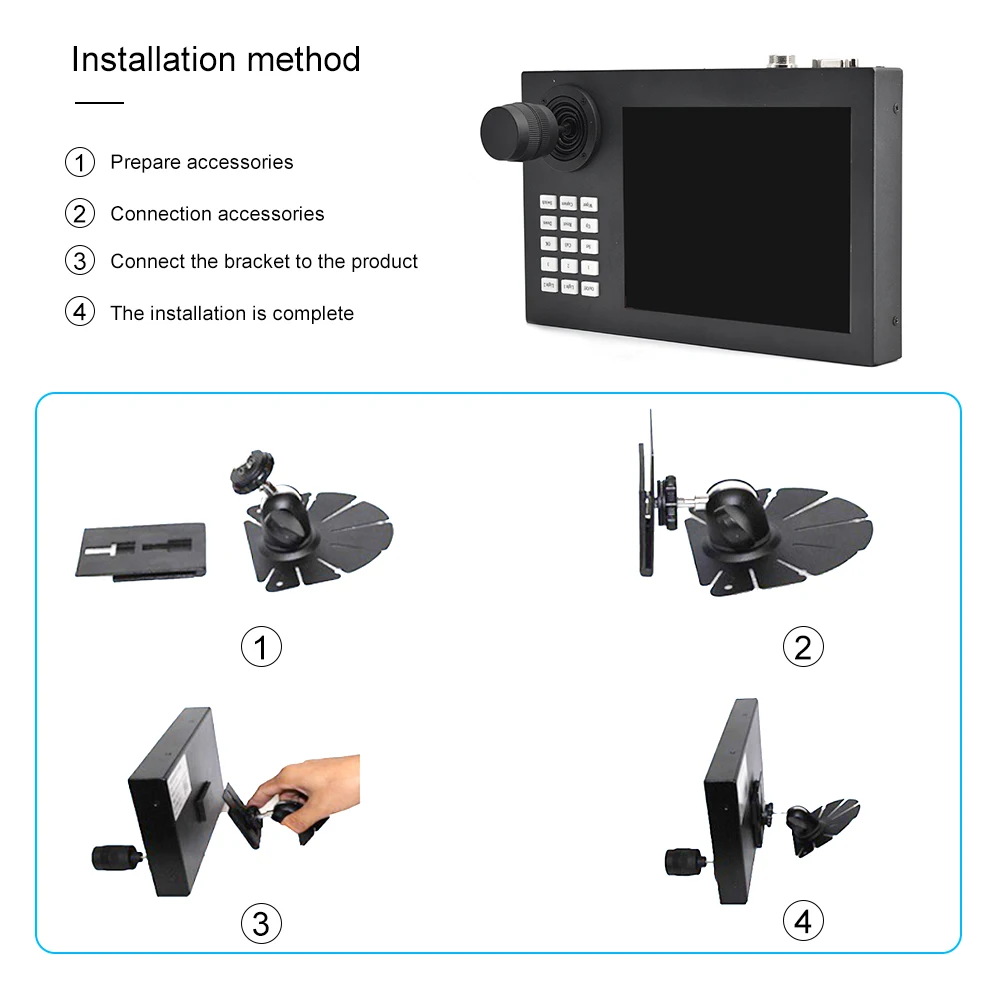

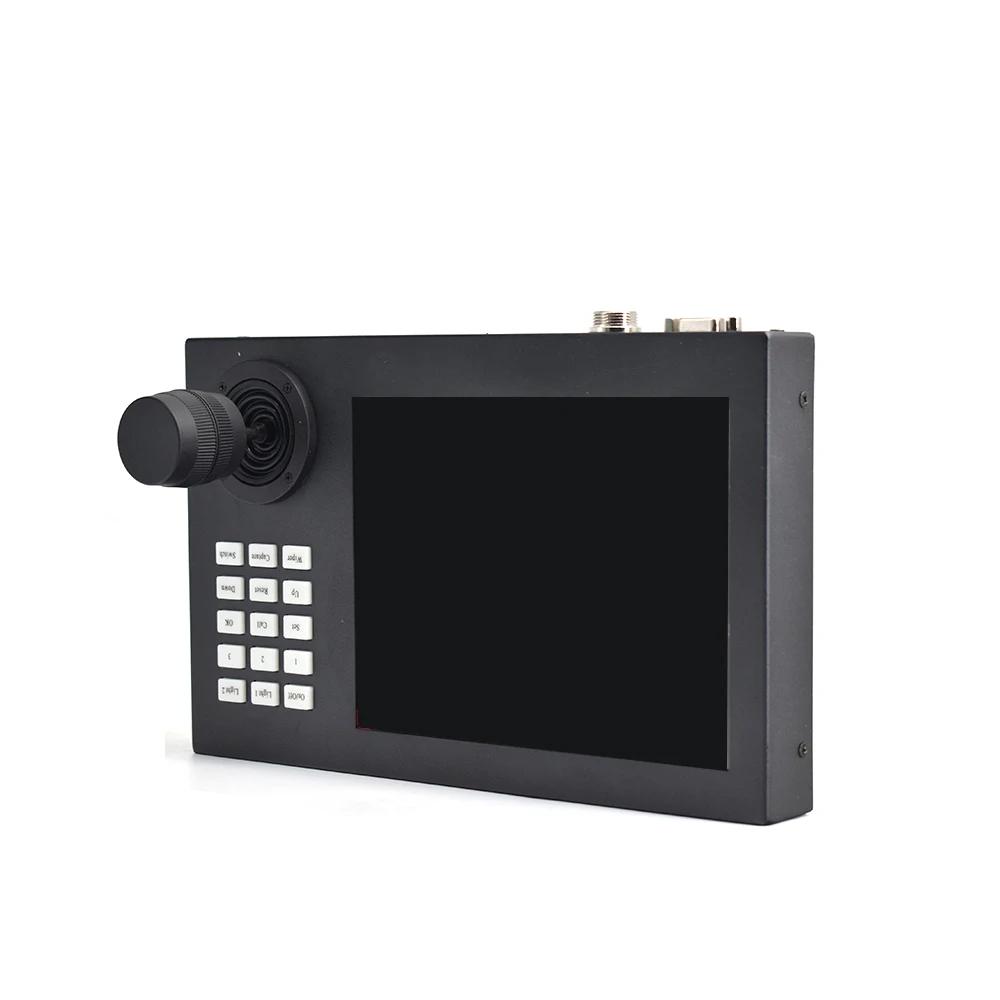

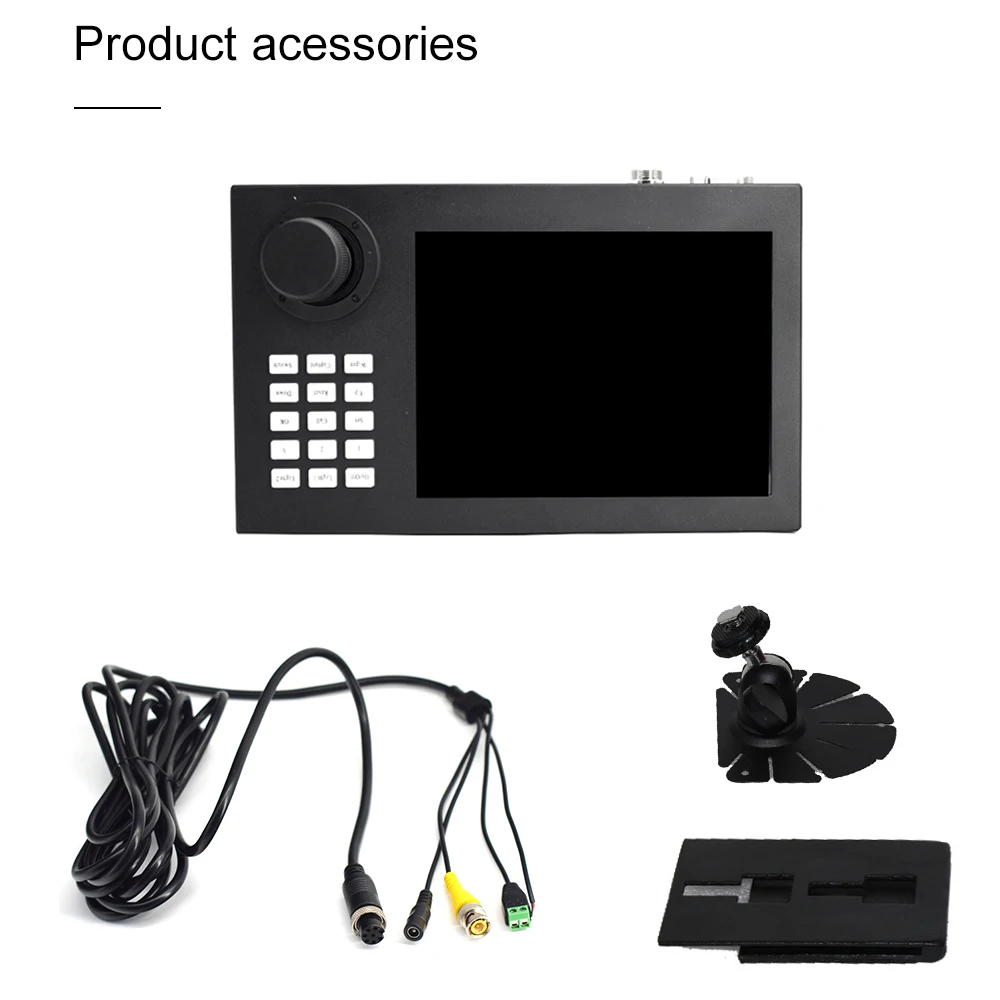

Real Picture Shows
