0-190 Ом 240-33 Ом Датчик уровня топлива 200 мм 250 мм 300 мм 350 мм Индикатор масляного бака для лодок и автомобилей

0-190 Ом 240-33 Датчик уровня топлива 200 мм 250 300 350 Индикатор масляного бака для лодок и автомобилей

Specifications:

- 100% Brand New Digital Fuel Level Sensor Floating Combination
- Digital LED light display , knowing the oil level status real-time
- The front cover is made of 316 stainless steel,It can be used for a long time even in an acid-base or humid environment.
- The harness connector has a snap to ensure a secure connection between the meter and the harness, it is still reliable in applications where vibration is strong.
- Fine waterproof structure design, waterproof and dustproof rating: IP67

The Length of sensor can be Customized , if you need other length or signal , welcome to contact to us to customized

Feature:

- Resolution range: 21 mm

- Signal: 0-190ohm

- Range: 0-100%

- Working volt:9-32VDC

- Operating current: ≤60mA

- Operating temperature: -30~+75℃

- Storage temperature: -40~+85℃

- Gauge Diameter: 52mm / 2inch
- Sensor Height: Approx. 350mm / 13.8 inch

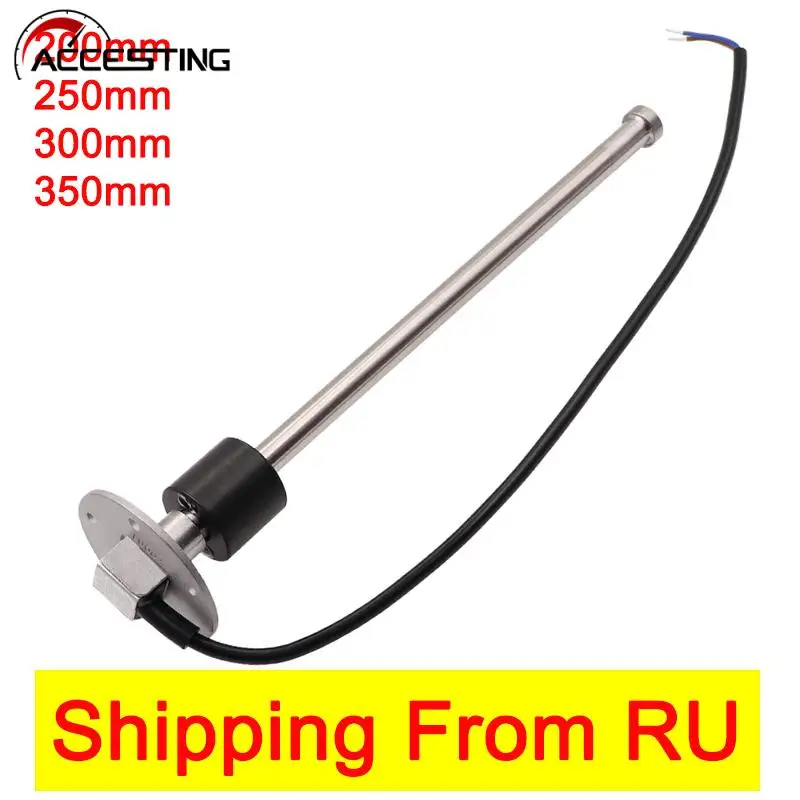

- Sensor Length: 200MM/250MM/300MM/350MM

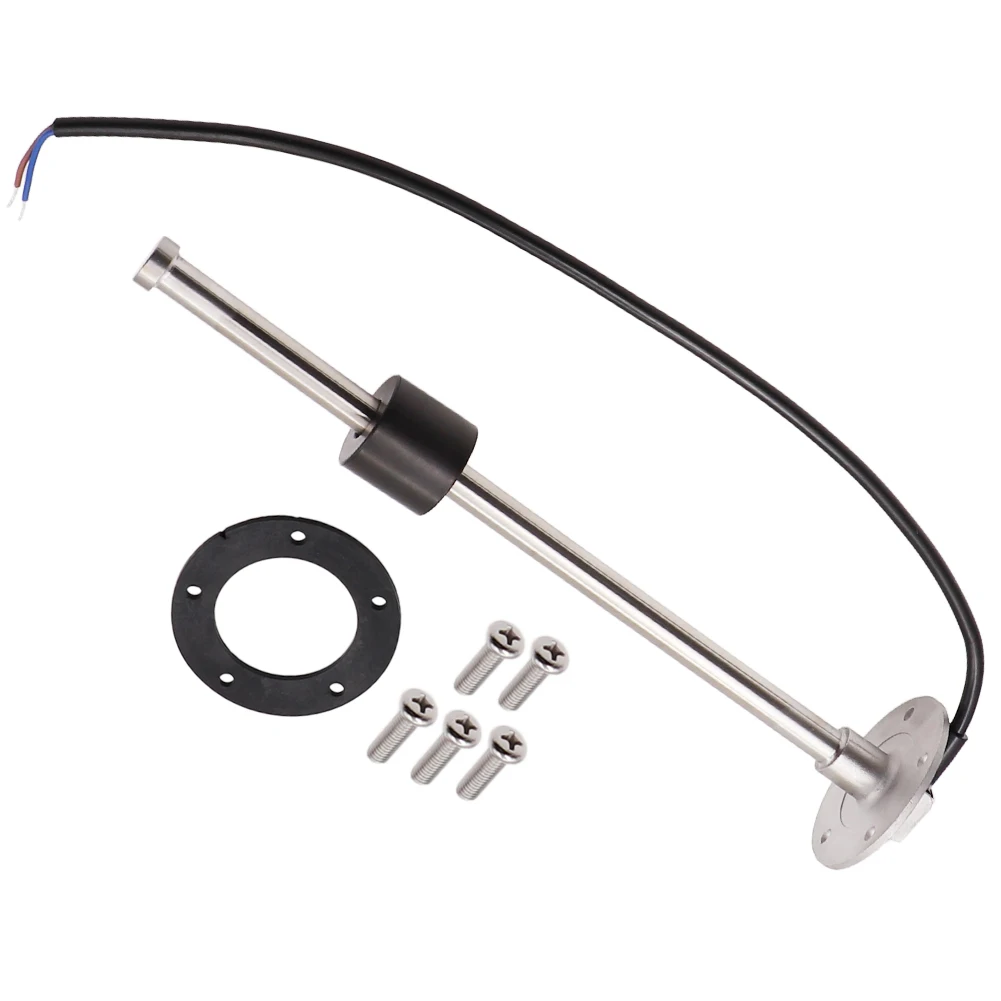

Package:

1 x Sensor

1 x Gasket

5 x Screws

Attention:

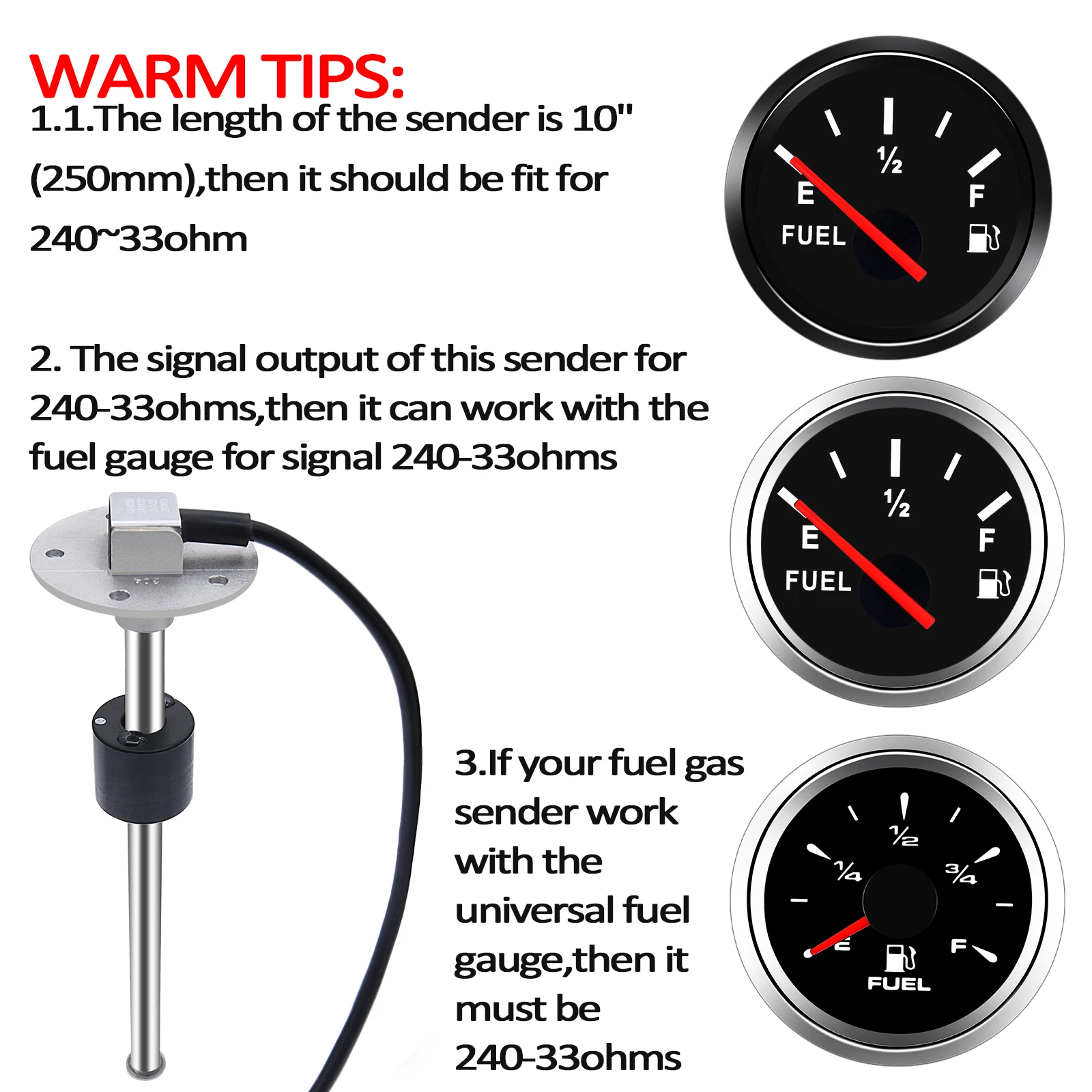

- Empty oil level : 0 ohm / 240 ohm
- Full oil level : 190 ohm / 33 ohm
- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~
