Делитель DisplayPort 1 в 3 Выхода 8K@30Hz 4K@144Hz DP 1.4 Тройной MST SST Хаб Адаптер 1*3 Порта для Ультра HD Дисплея.

Делитель DisplayPort 1 в 3 Выхода 8K@30Hz 4K@144Hz DP 1.4 Тройной MST SST Хаб Адаптер 1*3 Порта для Ультра HD Дисплея.

Note:

1. Need external power supply: when using, please make sure to use USB cable to power the switch.

2. In MST expansion mode, the single port output can reach 8K@30Hz 4K@144Hz, and the three ports output can reach 4K@60Hz at the same time.

3. MST mode of Apple system can only extend one screen (limited by iOS System).

4.The integrated graphics device may have compatibility issues with the DP splitter due to video memory limitations and insufficient bit width. Please run it on the computer where the discrete graphics card is installed.

5.DP cable direct connections are recommended for reliability and compatibility. this Displayport MST SST splitter does not work with any dock.The length of the DP cables connected to both ends of the Splitter should not exceed 3 meters respectively.

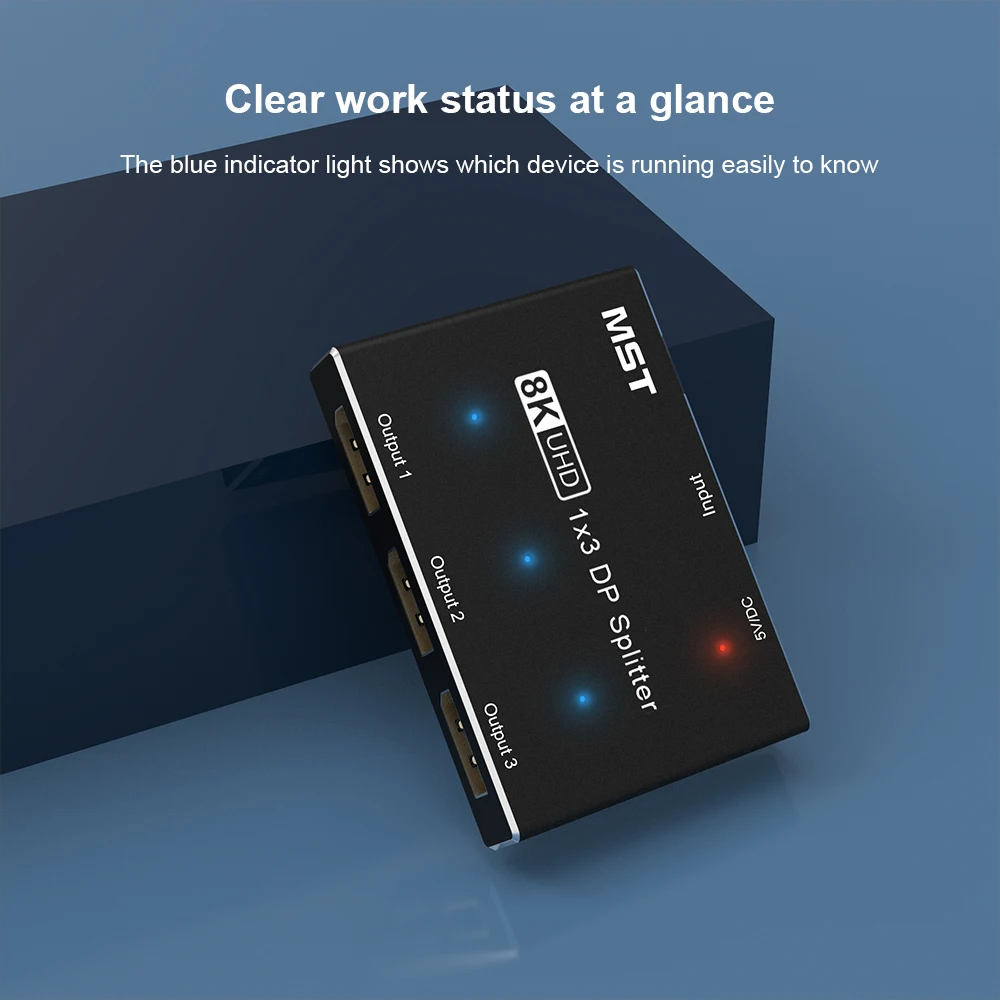

6.When the DP splitter is connected to the power supply, the splitter LED will not light up. This is a normal phenomenon. It is not that the splitter is broken. It must be connected to the computer host or monitor. After waiting for the signal to come in, the LED will light up.

product manual:

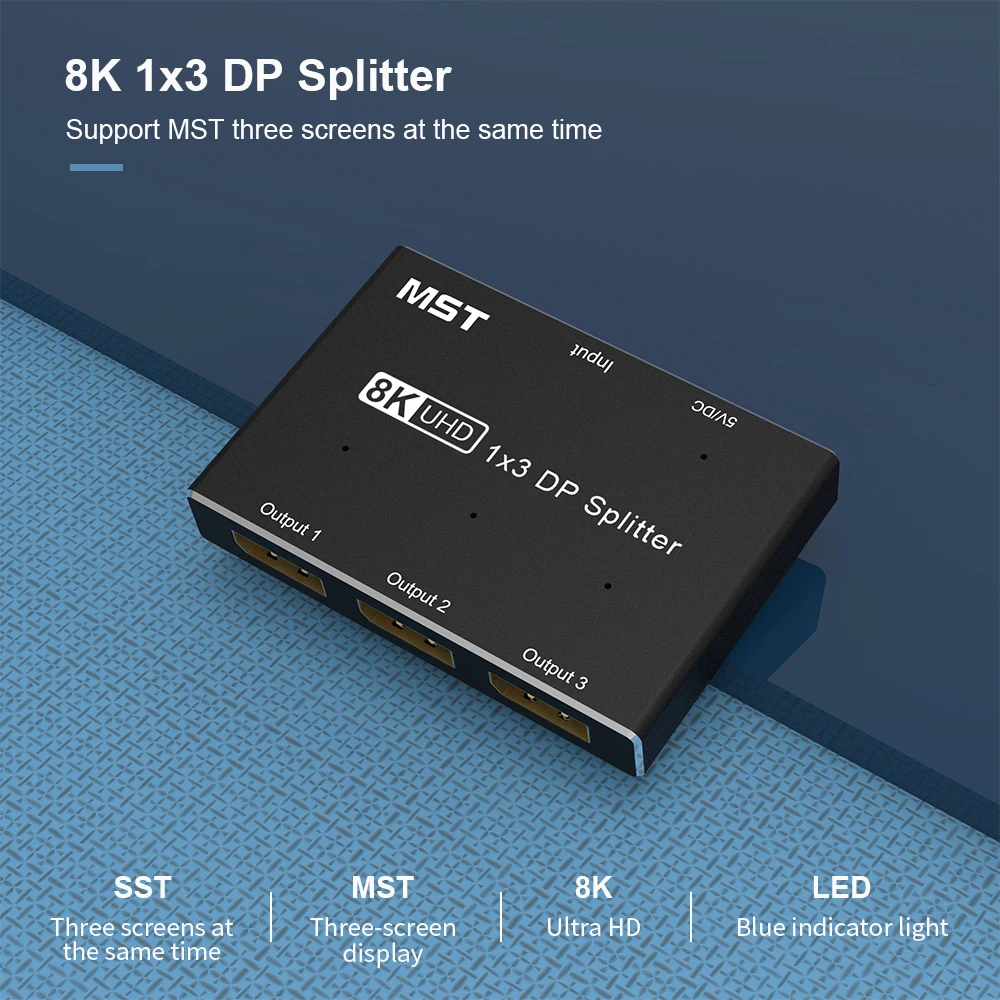

This super slim 1x3 DP splitter is compact and efficient.

It allows you to distribute one HD source to three displays simultaneously without any signal loss.

The system is compatible with DP1.4、DP1.3、DP1.2、DP1.0, Support 3D and 4K、8K ultra HD, Support SST and MST.

This splitter is ideal for home theater, school, hotels and any other installations where needs to take an Ultra HD source to up to 3 Ultra HD displays.

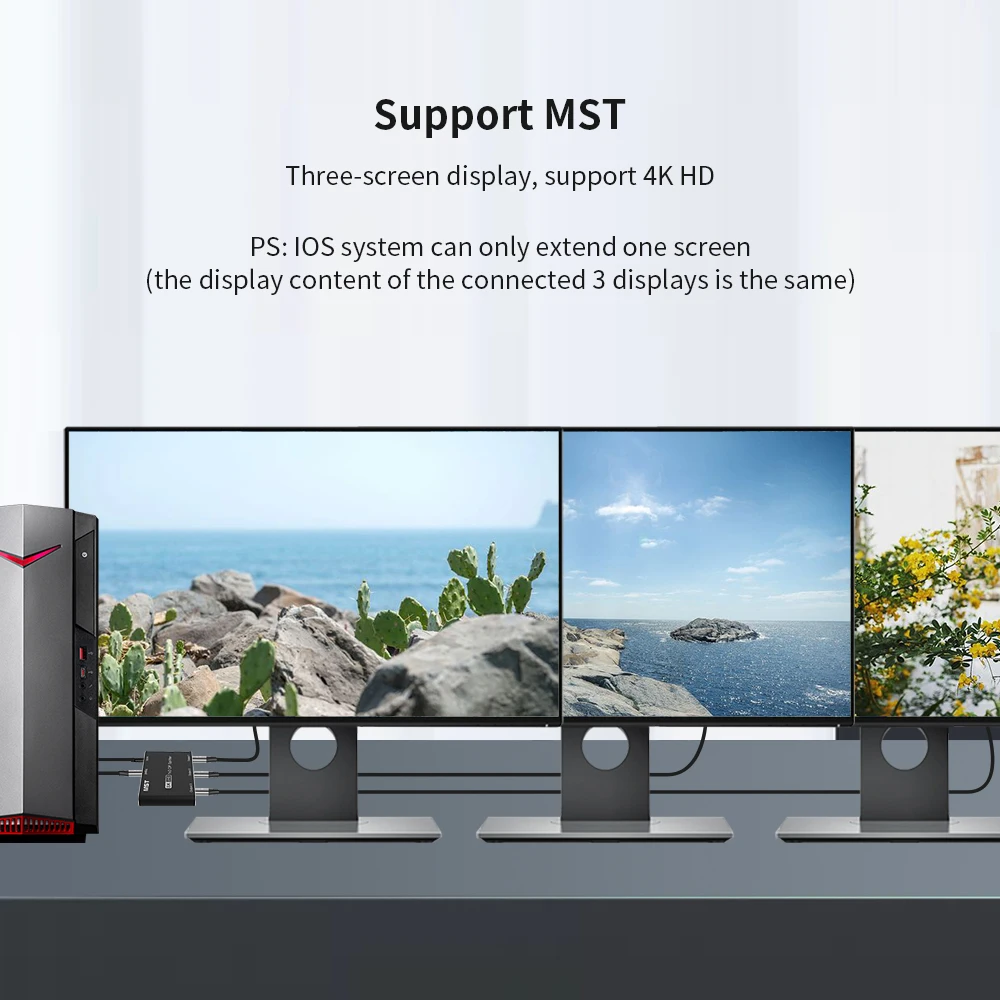

NEW 1x3 DisplayPort Splitter: Split one DP signal into 3 signals. Supports output of 3 same screens in mirror mode or 3 different screens in MST mode. In MST expansion mode, the single port output can reach 8K@30Hz 4K@144Hz, and the three ports output can reach 4K@60Hz at the same time .MST mode of Apple system can only extend one screen (limited by iOS System) .when using, please make sure to use USB cable to power the Splitter switcher.

This super slim 1x3 DP splitter is compact and efficient. It allows you to distribute one HD source to three displays simultaneously without any signal loss. The system is compatible with DP1.4、DP1.3、DP1.2、DP1.0, Support 3D and 4K、8K ultra HD, Support SST and MST. This splitter is ideal for home theater, school, hotels and any other installations where needs to take an Ultra HD source to up to 3 Ultra HD displays.

Support operating system: Apple (iOS) system, Windows system, Android system.pls make sure that the DP soure has already implemented full support for MST/SST. Splitter Support SST (Mirror) and MST (Extended) mode ,Support HDR 4:4:4, 4:2:2, 4:2:0. DP direct connections are recommended for reliability and compatibility. this Displayport MST SST splitter does not work with any dock.

Specifications: Single port display(8K@ 30Hz 7680x4320 ) ,Single port display (4K@ 144Hz 3840x2160),1 to 3 operation supports 4K@60Hz image.Compatible resolution: 8K@30Hz 4K@144Hz, 120Hz, 60Hz 1440P@165Hz, 144Hz, 120Hz, 60Hz 1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (Depends on your graphics card, monitor, operating system and DP cable support).

Note :If you would like to output 8K@30Hz , 4K@144Hz via our splitter in your displays,please make sure your source devices,your cable and your monitors can all support the resolution and refresh rate you need to output. And used under a single port.Vesa certified Displayport cable is needed(most screen flickering or vidoe on/off are caused by non-qualified Displayport cable). If you output an 8K signal, we recommend using an DP 1.4 8K standard cable.

Number of Displays:MST function can not increase the number of displays a video card supports.Regardless of the number of video outputs your video card comes, each video card has a limited number of display it can support.(Most AMD and Nvidia video cards supports no more than 4 dispalys while intel supports no more than 3 displays.)

Specifications:

8K: Single port 7680x4320 @ 30Hz display
4K: Single port 3840x2160 @ 144Hz

Support resolution:

8K@30Hz

4K@144Hz, 120Hz, 60Hz

1440P@165Hz, 144Hz, 120Hz, 60Hz

1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz

(Depends on your graphics card, monitor, operating system and DP cable support)

Package Contents:

1. 1 x DP splitter host

2. 1 x U SB A t o U SB Micr o B power supply line

3. 1 x User Manual
