Optical 10X ZOOM

Support 5 times magnification,more clear image
This is real 5-50mm lens, not Digital Zoom

Pan/Tile Zoom 10X

Support Pal/Tile overall, Flawless Monitoring(90 degrees wertically and 355 degrees horizotally) Built-in 5-50mm Motorized Lens

Support Audio Record

You can check the person voice anytime and anywhere if you have the Wifi or the 4G Single(Camera should be online)

This Function need contact seller to make OEM order, usd 5 for it.

AutoFocus

Multiple alarm detection and notification methods

Support Motion Detection,Camera lens was covered Alarm detection method.
Support Email and APP push notification methods.

Flexible installation

Mount the camera at any angle for perfect fixing

5MP FHD/2MP Resolution Display

5MP 5.0MP/2.0MP High definition image, super infrared night vision H265++ Video

Easy install the APP in your app store(xMeye)

Smart IR-Cut Night Vision

The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark.

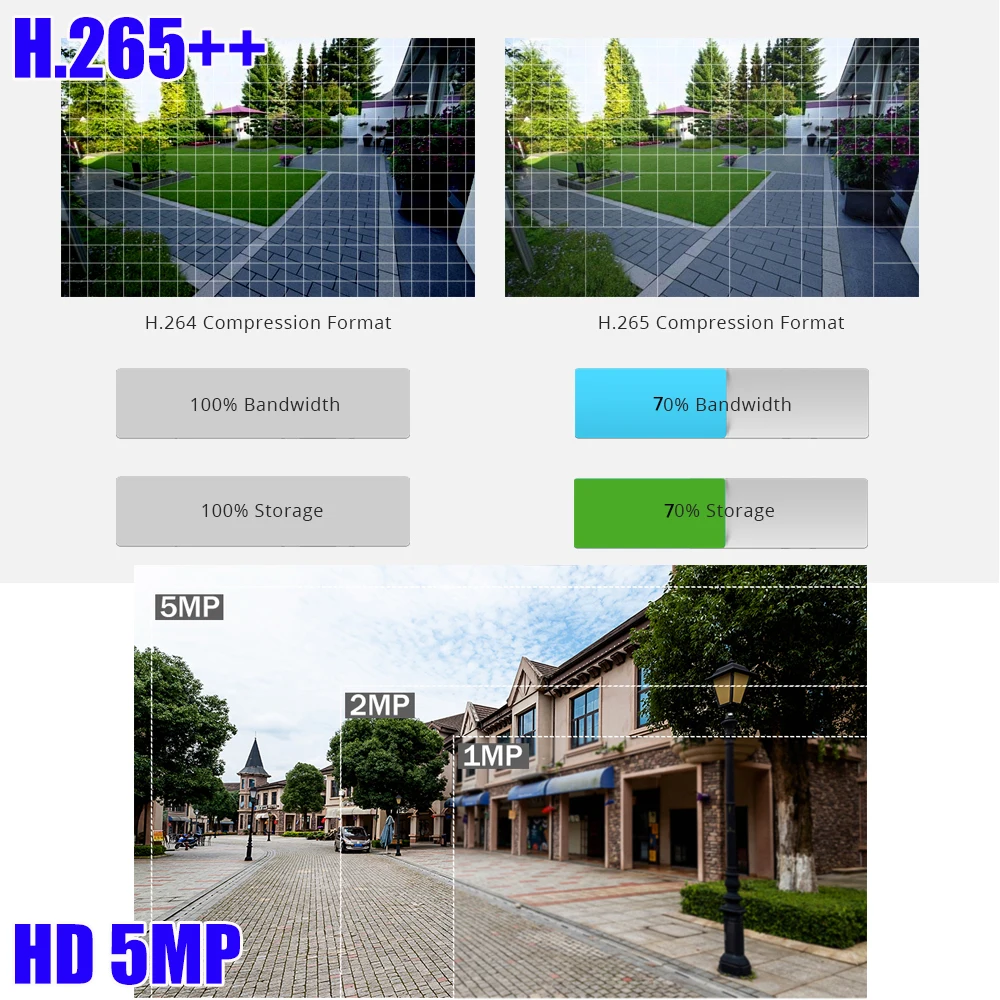

Advanced H.265++ Video Compression

H.265++ doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

Video With Smart Playback

Smart playback available everywhere everytime by NVR !

7 x 24 Hours Work

Long and stable work

P2P Remote Access/Multi-User

Share the same Vision with your families , let all of you protect and pay more attention to your house. P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet .

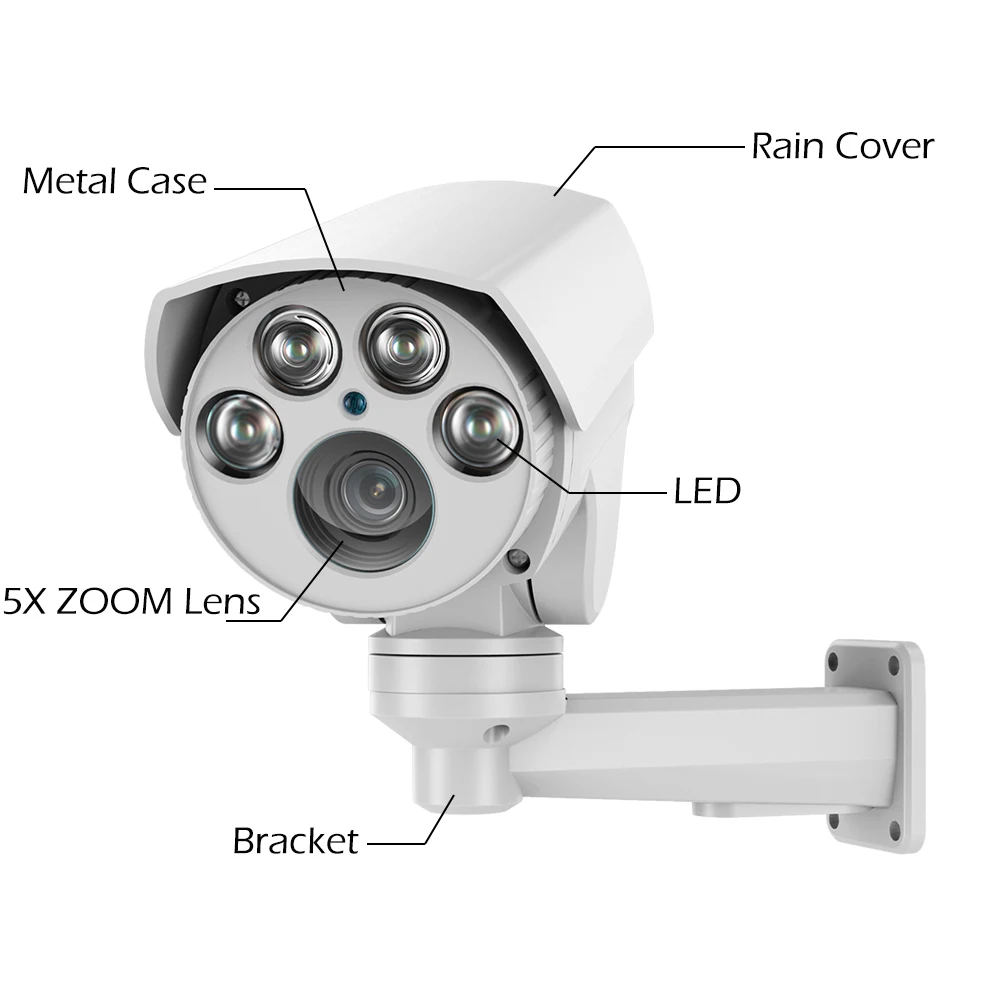

Item Detailed

Package Information

3MP NO POE: Means 1PCS camera 1080P without POE function
3MP WITH POE: Means 1PCS camera with 48V POE Connector (Same as the photo below)
5MP NO POE: Means 1PCS camera 5MP without POE function
5MP WITH POE: Means 1PCS camera 5MP with 48V POE Connector (Same as the photo below)

5MP/3MP HD Black light illumination resolution,clear and fine images;
4 PCS Array LED for 80M Night Vision
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5
Support various mobile monitoring(iPhone,Android)
Provide web,CMS,center platform management software MYEYE,provide SDK development
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

Model

YTQJ-3MP5X(XM535)

YTQJ-5MP5X(Hi3516E)

Camera

Image Sensor

1/2.8" 3.0MP CMOS

XM535+SC3335

1/2.7" 5.0MP CMOS

Hi3516E IMX335

Effective Pixels

2304x1296

2592x1944

Video Compression

H.265++

H.265++

Min. illumination

Color: 0.0001 Lux /  B/W: 0 Lux (IR ON)

Day/Night

IR-CUT

Electronic Shutter

1/1 ~ 1/30000s

S/N Ratio

>50dB

Focal Length

5-50mm (Optical Zoom)

Iris Control

Auto

Focusing

Auto/Manual/One-time auto-focus

Zoom Speed

4S

Angle of View

100°~40°

Minimum Working Distance

10M~200M Daytime 10M~70M Night

PTZ

Pan range

355° endless

Tilt range

0°~90°

Manual Pan speed

1~300°/s

Manual Tilt speed

1~60°/s

Preset Points

220

Guard Points

Max.16 points, dwell time user selectable

Infrared

LEDs

4pcs Array LED Lights

IR Distance

Up to 70 meters

Auto Control IR LED

PWM Function, Intelligent IR illumination & Power Consumption Is Variable, Dependant The Zoom Factor

Function

Backlight Compensation

Open/Close

White Balance

Auto

Exposal Mode

Auto

WDR

Support

Gain Setting

Support

Noise Reduction

Support

Vision Control

Support

Privacy Masking

Support

Power Off Memory

Support

Network

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Protocol

HTTP,TCP/IP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE…

Transmission

Through clouds

Browser

IE8+

Smart Phone

IPhone, iPad, Android, Android Pad

General

Working Humidity

≤95% Non Condensing

Waterproof

IP66

Temperature

-40°C ~ +60°C

P2P

Xmeye

Lightning Protection

Transient voltage 6000V

Size(W×D×H)(mm)

275*160*80mm

Weight(kg)

Attaction:

1.1kg

(The camera online firmware have no PTZ function,so please don't update by yourself.)

Item Display on www.xmeye.net

After you contact the local internet success, you can use other PC anywhere to control the camera,
Just use the camera Serial Number.

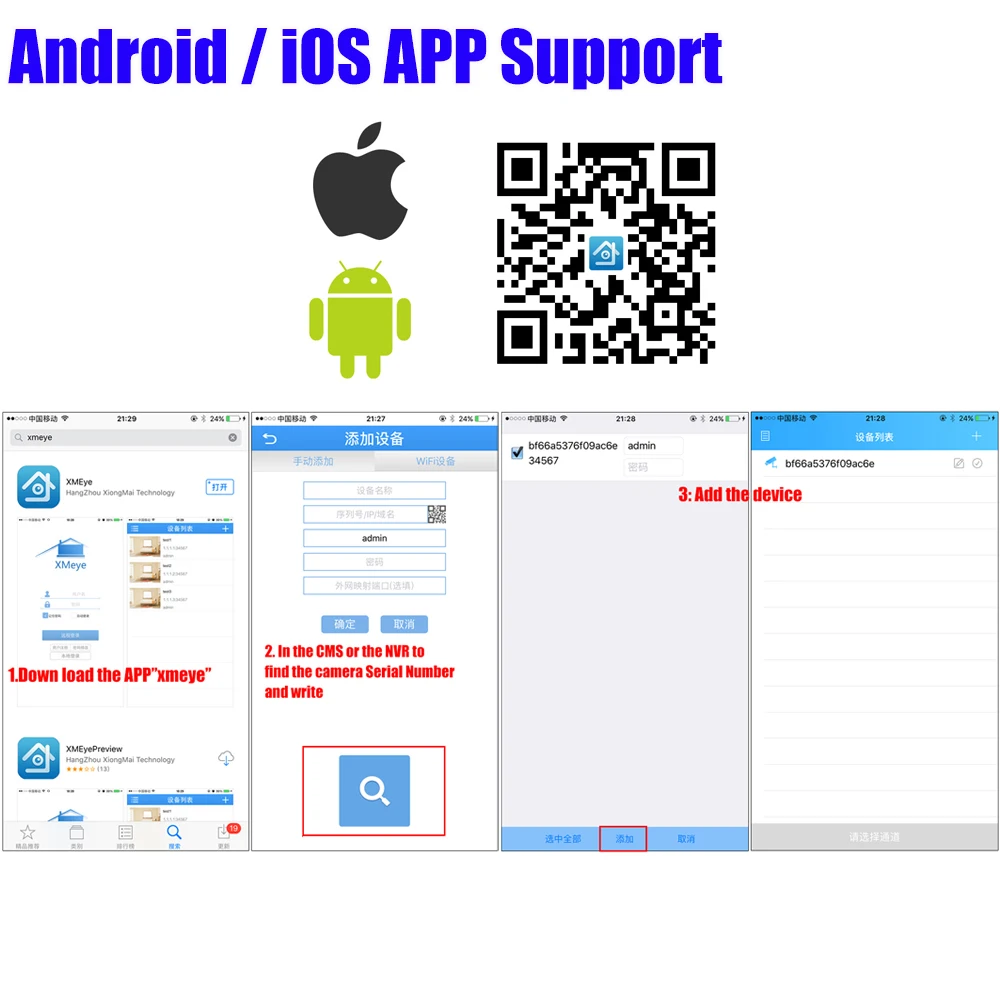

How to contact to the APP?

1: Download the APP from the APP store. Contact the camera to Router or the swich by RJ45 Cable.
2: You can use the local visit to search the camera address, it will show the camera serial number of the name.
