TZT Hantek DSO8152E Digital Handheld Oscilloscope Recorder DMM Spectrum Analyzer Frequency Counter Arbitrary Waveform Generator |

TZT Hantek DSO8152E Digital Handheld Oscilloscope Recorder DMM Spectrum Analyzer Frequency Counter Arbitrary Waveform Generator |

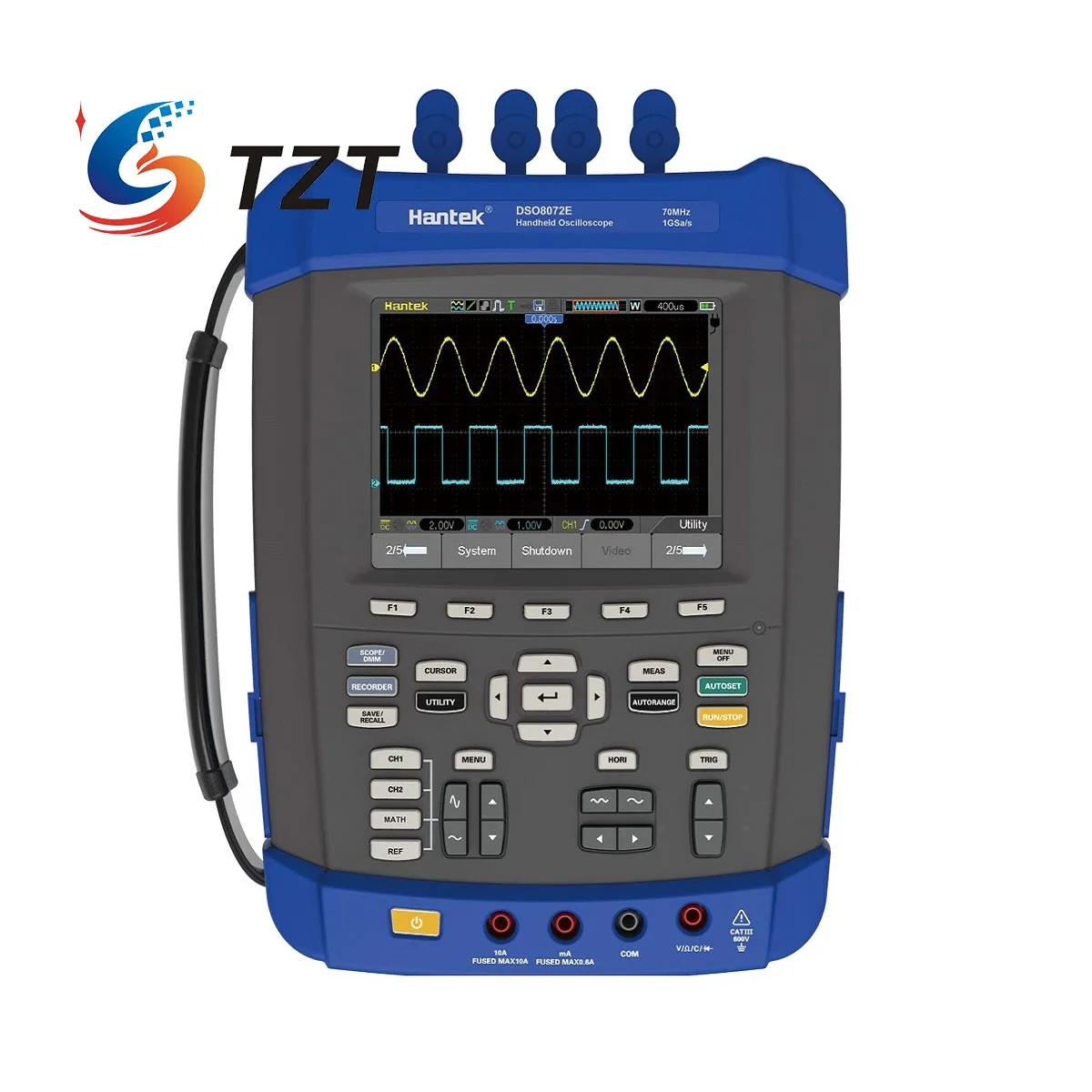

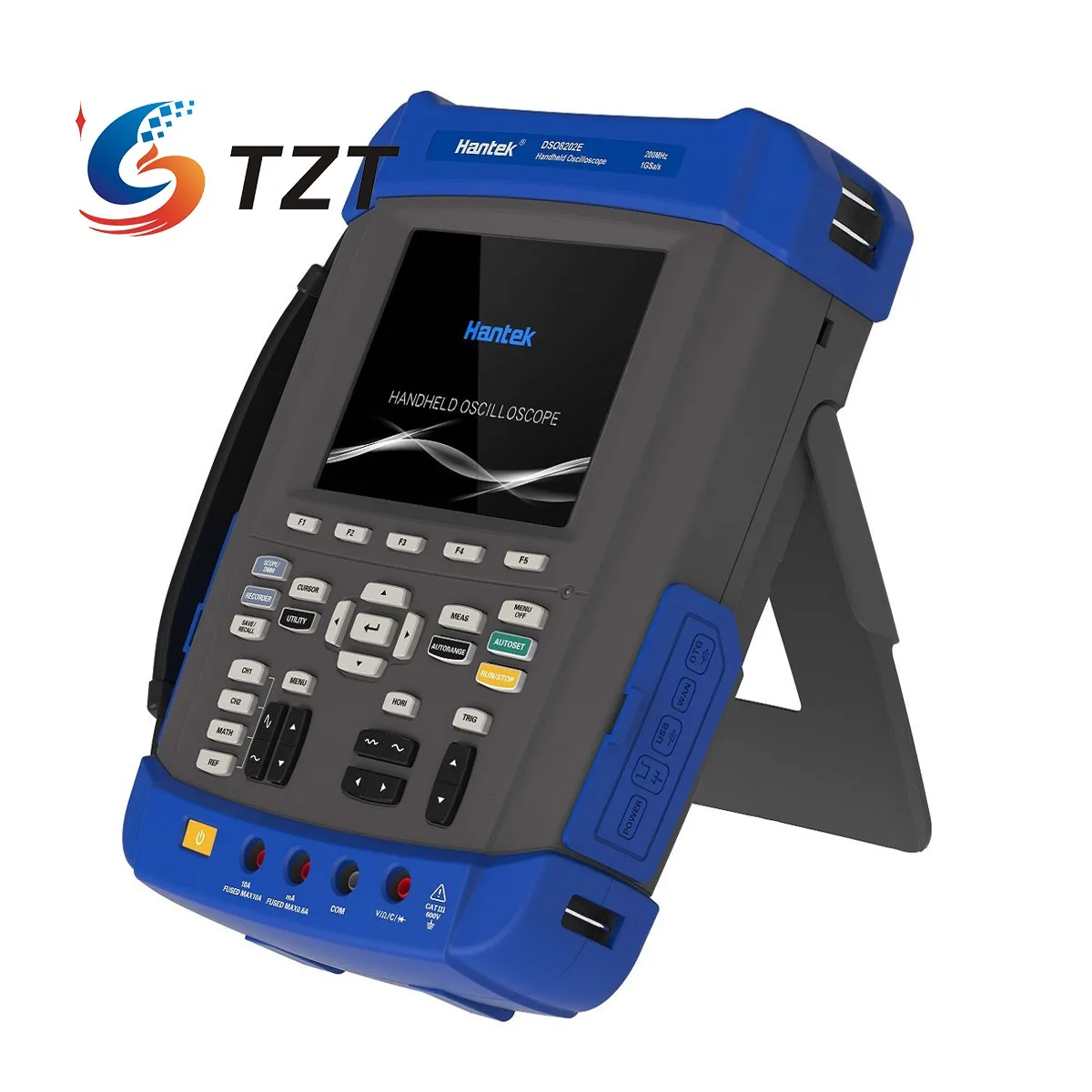

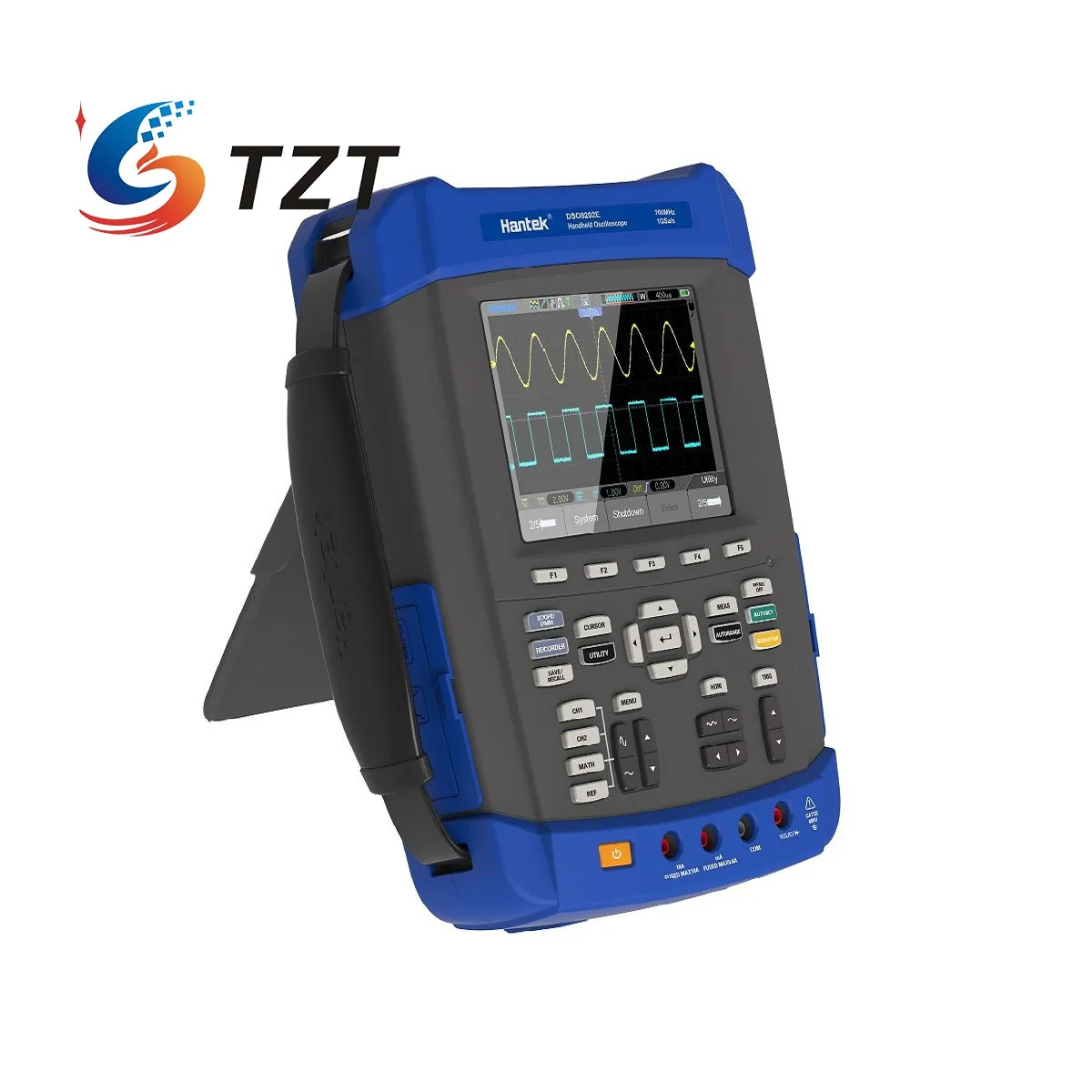

DSO8152E Digital Oscilloscope Description (DSO8000E Series):
- Six in one: Oscilloscope/Recorder/DMM/ Spectrum Analyzer/Frequency Counter/Arbitrary Waveform generator.
- IP-51 rated for dust, drip and shake proof to withstand harsh environments.
- Large fuse confirms to European Safety Standard.
- Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.
- Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.
- Replaceable BNC safety joints, and additional one set of joints.
- High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
- 25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer
- 6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.
-
FFT spectral analysis; Waveform Math: add, subtract, multiply and
divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check
function, apply to engineering application.
- Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
- Record and replay of more than 1000 waveforms.
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)
- USB Host/Device 2.0 full-speed interface; support removable disk;  WIFI/LAN Option, easy to control by PC or long-distance.
- Waveform data can be output in WORD，EXCEL, BMP, JPG as time and voltage.

Package List:
- 1 x DSO8152E Digital Oscilloscope
- Accessories
