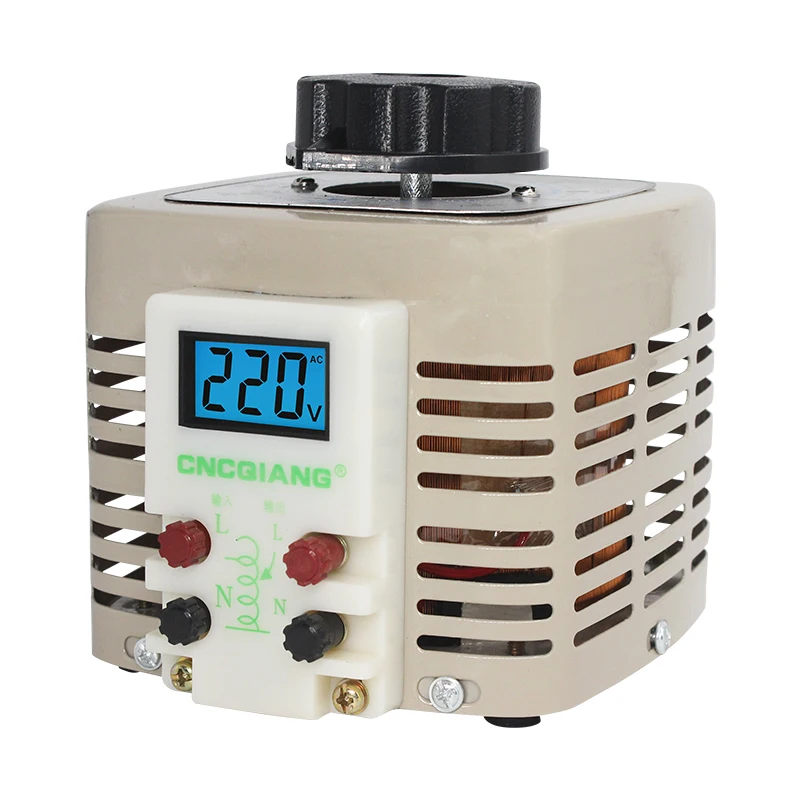

       TDGC2 (TDGC2J) contact voltage regulator with waveform distortion, small size, light weight, high efficiency and easy to use, reliable, long-term operation and other characteristics, can be widely used in industry (eg chemical, metallurgy, instrumentation, electrical and mechanical manufacturing, light workers, etc.), scientific experiments, household appliances, control speed, dimming and power control purposes, the three an ideal AC voltage power supply.

 Regulator Model Specification

Consult the seller for more models you need.

The voltage regulator is in the structure of adjustable compensator, it wind a coil on the loop core,thee brush coincide with the rubbed surface of the coil closely under the spring pressure effect,rotate
the revolving shaft to drive the brush stand, and make the brush move along the coil surf ace to change the contact position of the brush, that means change the turns rate of primary and secondary coil, which
can make the output voltage stepless adjusted within the adjustment range. It has the advantage of no waveform distortion, small volume, less weight, high efficiency, simple and reliable operation, un for
long period and so on.

It is widely used in industry (as chemical industry, metallurgy, instruments, meters, electromechanical manufacturing, light industry etc.), scientific experiment, public facilities and domestic electric appliance to fulfill voltage regulating, temperature control, speed regulating, light adjusting, power control and so on, it is an ideal AC regulated power source.

Note: 1.TDGC/TSGC series products are same with the TDGC2j, TSGC2j series. 2.The said overall size and weight are for reference only.

1.Type:TDGV2

2.Phase:single

3.Input voltage:110/220V

4.Output voltage:0-250V

5.Frequency:50/60Hz

6.Accuracy of voltage stabilization:220V±3%, 110V±6%

7.Adjustable time:<1s(when input voltage has a change of 10%)

8.Working temperature:-5°C~40°C

9.Load power factor:0.8

10.Dielectric strength:1500V/min

11.Insulation resistance:≥2MΩ

12.Display:analog meter(digital meter optional)

Application
　　 The product is special auto transformer which is connected in different forms. Its output voltage can be regulated smoothly and continuously from zero to the maximum value. The provision of and indication meter is made for the models TDGC2 0.2,0.25,0.5KVA. All models find pupular application in industries, agriculture and scientific researches, and are particularly suited to serve as ancillary facilities for such equipment as various machine tools, transistor curve tracers, projecting TV sets, and analytical instruments in petroleum industry, etc.
Model and spec

Model

Phase

Frequency(Hz)

Input voltage(V)

Cutput voltage (V)

Max. Output current (A)

Shape

TDGC2-0.2KVA

1

50/60

110/220

0-250

0.36/0.8

Round

TDGC2-0.25KVA

0.4/1

TDGC2-0. 5KVA

0.88/2

TDGC2-0. 5KVA

0.88/2

TDGC2-1KVA

1.6/4

TDGC2-2KVA

3.2/8

Hexagon

TDGC2-3KVA

4.8/12

Round

TDGC2-5KVA

8/20

Octagon

TDGC2-10KVA

16/40

TDGC2-15KVA

24/60

TDGC2-20KVA

80
