Electronic Digital Dial Indicator Gage Gauge and Magnetic Base, 0-1 Inch/25.4 mm Inch/Metric Conversion Auto Off Featured Measuring Tool

Overview:

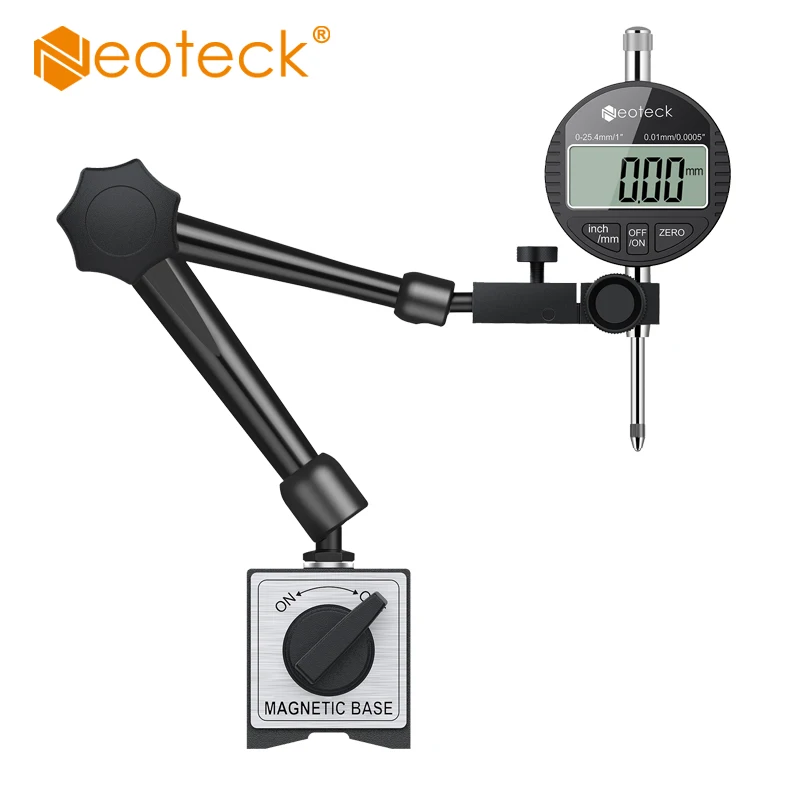

The set includes 0-25.4mm/1 inch digital dial indicator and 176 lbs (80 kg) magnetic base.

Features:
Digital Dial Indicator：
Large LCD Display with 3 Digits
Measuring Range from 0 ~ 25.4 mm (0 ~ 1 inch)

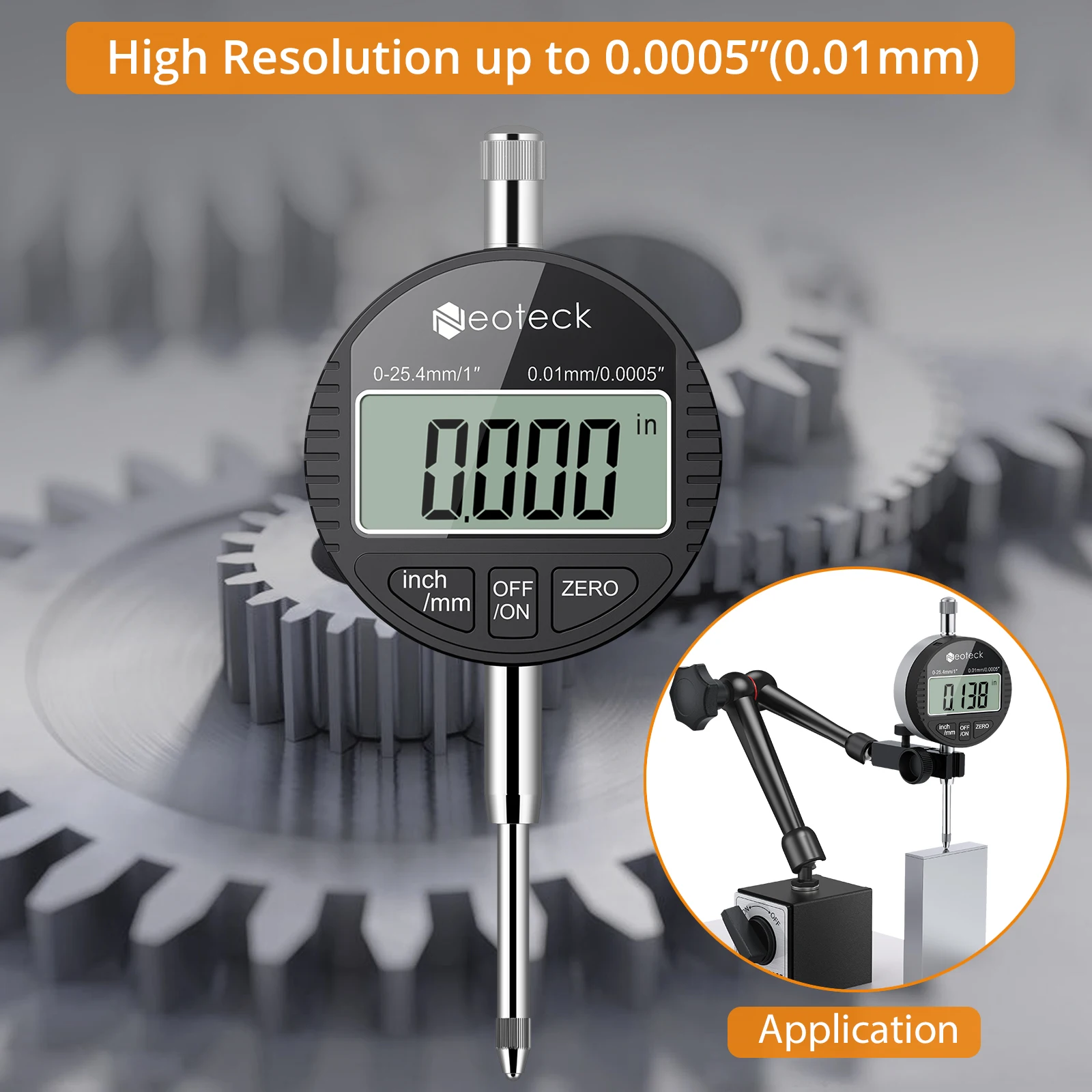

High Resolution up to 0.01 mm (0.0005")
Switchable between mm and inch
Zero Setting

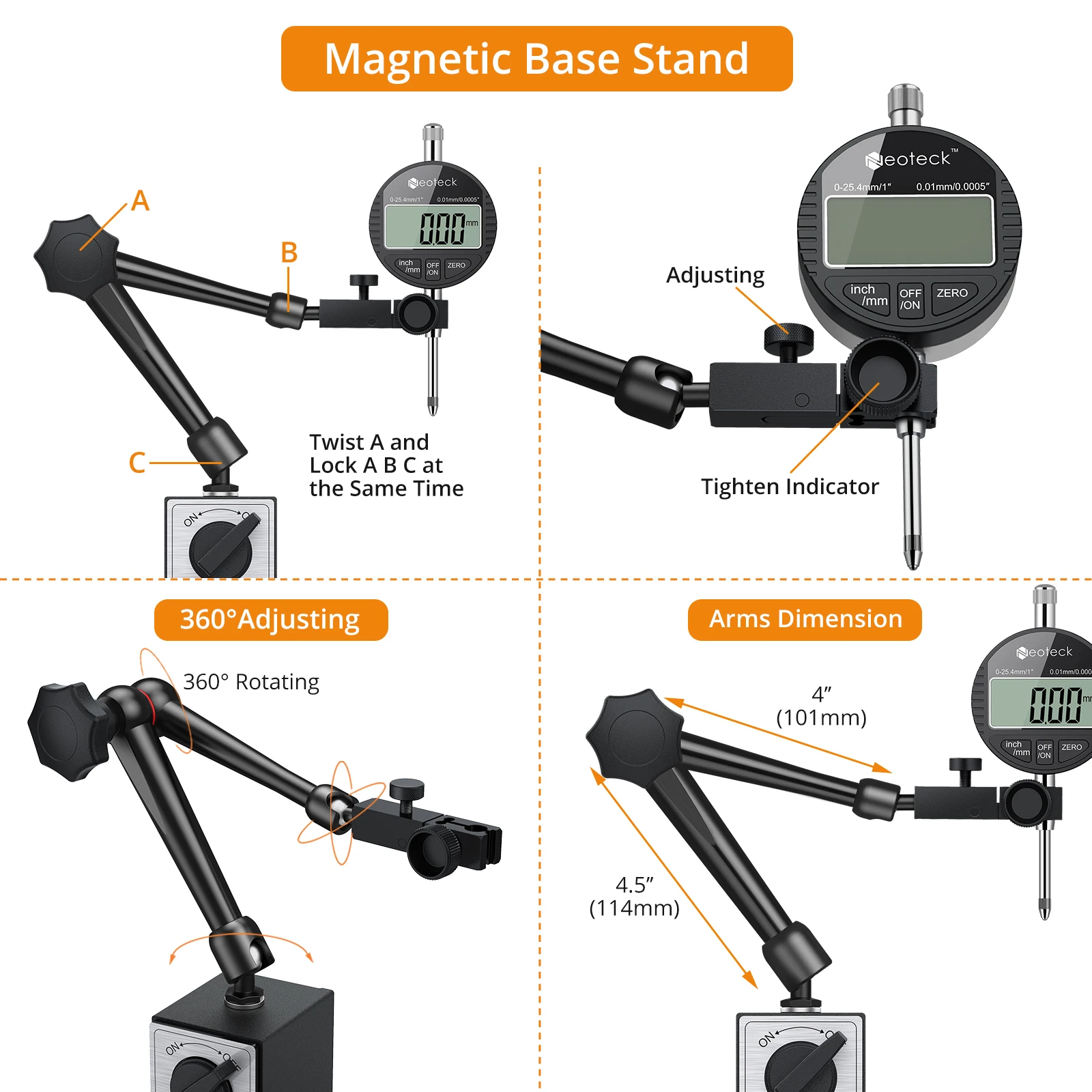

Magnetic Base：
Dimensions of 2 arms: lower arm 4.5"; upper arm 4"; total height 14.1 inches
Two solid magnet surfaces with on/off control can provide a maximum tensile force of 176lbs (176lbs tensile force requires a metal working surface/surface with a thickness of 30mm and above)
Clamping hole diameter 8.5mm, used for conventional digital/dial indicator
Flexible, sturdy, precise rotary joint, can adjust any direction and position, high stability
Compatible with all most dials/digital indicators and other market indicators
The size of the product is 8mm/5/16inch.

Specifications:

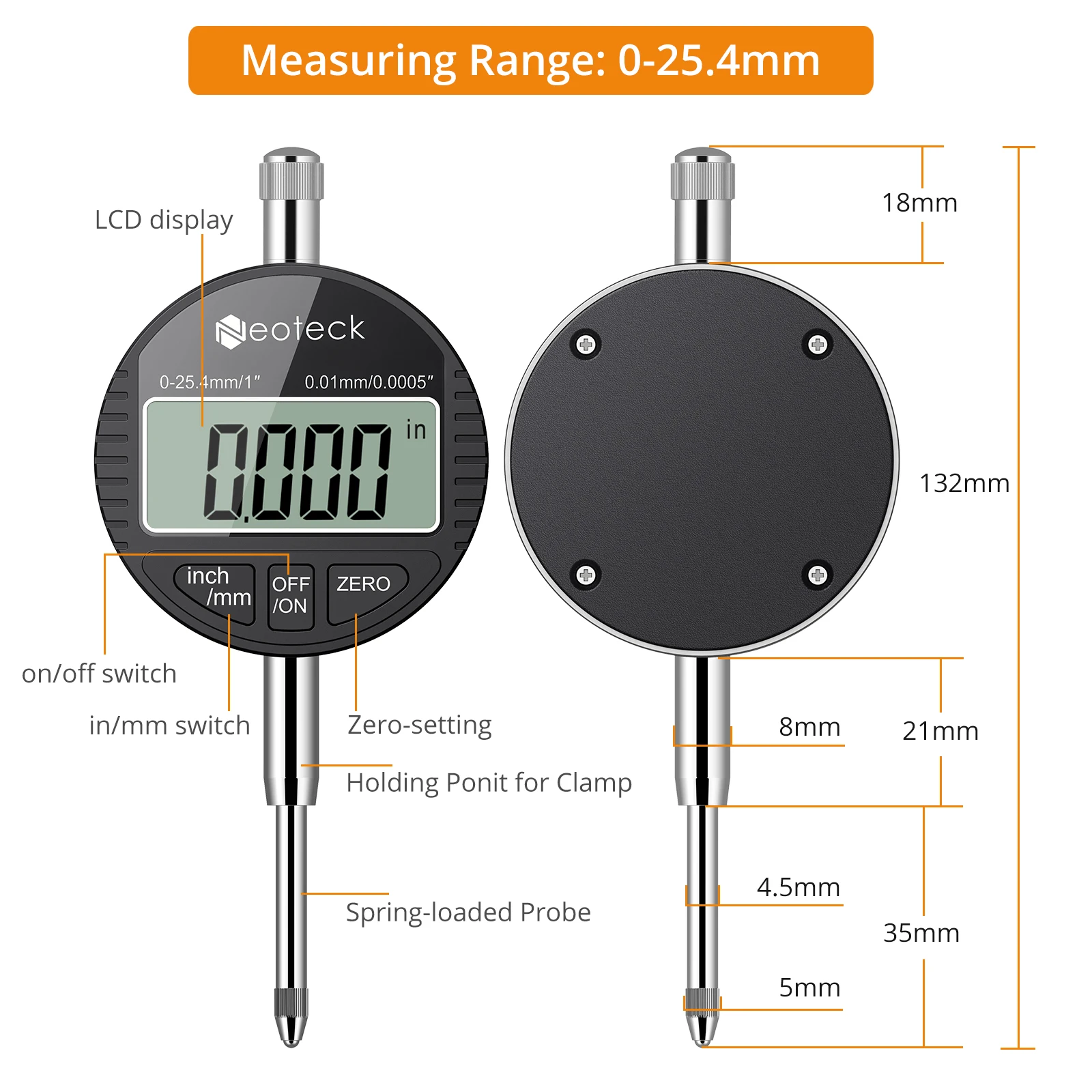

Digital Dial Indicator：
Measuring Range: 0 ~ 25.4 mm (0 ~ 1 inch)
Resolution: 0.01 mm (0.0005 inch)
Response Time: ≤ 0.5 m/s
Operating Temperature: 0 ~ 40 ℃ (32 ~ 104 ℉)
Storage Temperature: -20 ~ 70 ℃ (-4 ~ 158 ℉)
Relative Humidity: ≤ 80% R.H
Material:Aluminum Alloy
Power: 1 x 1.5 V LR44 Button Cell Battery (Not Included)
Item Size: approx. 122 (L) x 55 (W) x 26 (D) mm (4.80 x 2.17 x 1.02 inch)
Item Weight: approx. 129 g (4.55 oz)
Magnetic Base：
Weight：1201.7g
Rally: 176 lbs (80 kg)
Length: About 35 cm/14 inch
Material：Steel
Arm Adjustment：3 joints adjustable
Arm Dimension：Lower arm 4.5 inch, Upper arm 4 inch

Clamping diameter： 5/16 inch ( 8mm)

Package Include:
1 x Digital dial indicator
1 x Magnetic Base
1 x Rear Cover
1 x Instruction Manual
