Видеокамера наружного наблюдения с функцией PTZ, разрешением AHD 1080P, 30-кратным зумом, поддержкой TVI, CVI, CVBS 4IN1, автофокусом, ИК-подсветкой до 60 метров.

Видеокамера наружного наблюдения с функцией PTZ разрешением AHD 1080P 30-кратным зумом поддержкой TVI CVI CVBS 4IN1 автофокусом ИК-подсветкой до 60 метров.

HD 4in1 PTZ 1080P Security Camera 30x Zoom IR Outdoor Medium Speed Dome 2MP

4.5'' 30X ZOOM 3in1 AHD/TVI/CVI/5MP/ 2.0MP PTZ Speed Dome IR Camera Night

4.5'' 30X ZOOM 5MP AHD1080P 2.0 MP PTZ Speed Dome IR Camera Night Outdoor CMOS AUTO3in1 AHD/TVI/CVI

Hotlights;

【TVI/AHD/CVI】 Video interface output - AHD/TVI/CVI selectable, OSD menu available;NOTICE: Default Video Signal is 1080P AHD Signal, Compatible with all 1080P or above Analog DVRs; but you can direct shortcut command through RS485 control to switch the video output signal that you need;
【2MP & 300FT IR LIGHT VISION】 1920 X 1080P Super HD, 2 Megapixel 30X Medium Speed AHD PTZ camera, Infrared/IR-Cut Excellent Night Vision up to 265ft. Suitable for large areas like front yard, parking areas, backyard, garage, etc
【RS485/COAXIAL CONTROL】RS485 (+/-) / coaxial cable connect, real time transmission ,lossless video
【MEDIUM SPEED AHD PTZ CAMERA】Pan-tilt-zoom camera with endless 360°pan & 90°tilt & 30x optical zoom, no blind spots left, commercial grade surveillance camera
【WATERPROOF & WIDE USAGE】 4.5 inch IP66 Waterproof body construction provide stable performance both indoor and outdoor ( Warehouse, Home, Office, Supermarket, Parking, Farm, Villa, Museum)

Model: 54F-2MP

this model can use OSD menu to change camera address

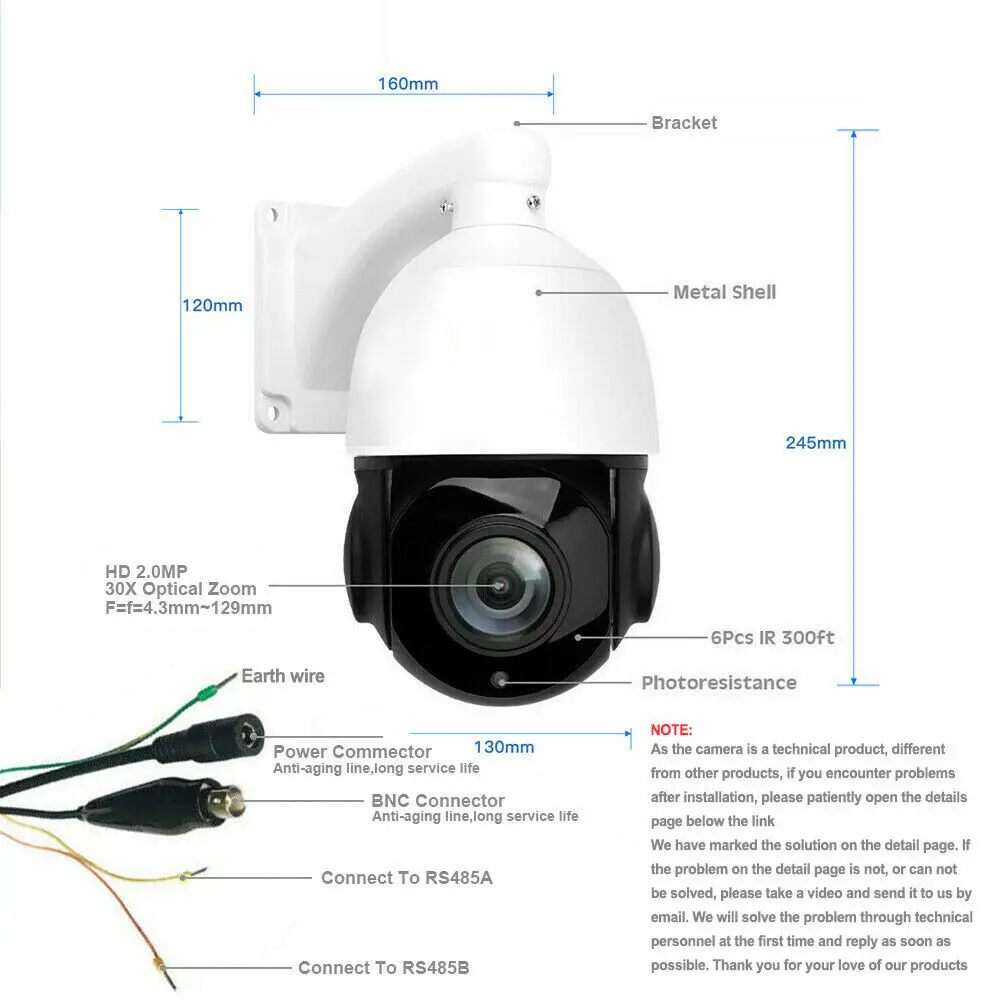

Outdoor Speed Dome PTZ Camera AHD 1080P 30X Zoom TVI CVI CVBS 4IN1 2.0MP Auto Focus CCTV Surveillance Cameras IR 60M

Keep the original analog system

Real-time transmission, lossless video

High definition 1080P, 30X zoom

Long distance transmission up to 500 meters

OSD menu available/with 6pcs IR-Led.IR range:80M

IR illumination&power consumption is variable dependant on the zoom factor

Camera

Sensor: 1/3'' Sony 323 CMOS

Effective Pixels: 1080P 1920(H) x 1080(V)

Total Pixels: 2.0MP

Lens: 30X f=4.7mm~94mm

Iris: F1.6~F3.0

Min. illumination: Color: 0.5Lux \ B/W: 0.05Lux

BLC: Support

WB: Indoor/outdoor/auto/manual

D/N: IR-Cut

S/N Ratio: ≥50dB

WDR: DWDR

Waterproof IP66

Metal Housing Material, Outdoor Use, Waterproof IP66

30X Zoom

20X Optical Zoom + 10X Digital Zoom

Pan Tilt Rotation

Horizontal: 360 Degree & Vertical: 93 Degree

Dome

DSP: NVP2441

Horizontal Rotation Speed: 0.1°-60°/s

Horizontal Rotation Range: 360°

Tilt Rotation Speed: 0.1°-45°/s

Tilt Rotation Range: 93º

Auto Flip: Horizontal 180°, vertical 93°

Ratio Speed: Support

Preset Points: 220

Go to Preset Speed: 1-9 grades setting available

360° Scan: User programmable

A-B Scan: User programmable

A-B Scan Speed: 1-9 grades setting available

Dwell Preset: 1-60s interval available

Guard Tours: 3 groups

Guard Points: Max.16 points, dwell time user selectable

OSD Menu: Chinese, English

PWR on Action: Memory/Pattern 1/Tour 1/360 scan/AB scan/Preset 1-8/None

Signal Transfer: AHD/CVI/TVI/CVBS selectable

Park Time: 1-60 mins setting available

Pan and Tilt Position Display: Support

Baud Rate: 1200/2400/4800/9600bps

Communication: RS485 /coaxical cable

Operating Temperature: Indoor: 0°~ +40°: Outdoor: -40°~ +60°

Operating Humidity: ≤95% non condensing

Power Supply: DC12V 3A

Power Consumption: ≤5W

Lightning Protection: Transient voltage 6000V

IR Parameters

Auto Control IR LED: PWM

LEDs: Array 42Mil

IR Distance: Up to 80 meters

IR illumination On: 1-15 grades selectable

Package Included

1 x 4.5" 4 in 1 Medium Speed Dome Camera

1 x English Manual

Please read this before purchasing

Q:Why does my camera work well with PTZ control but no video?

A:This is AHD/TVI/CVI 1080P and analog 4-in-1 camera. We send out camera with AHD 1080P signal by default. If your DVR is not AHD or 4in1 DVR, it's indeed no picture, pls make sure if your DVR compatible with the camera before biding.
