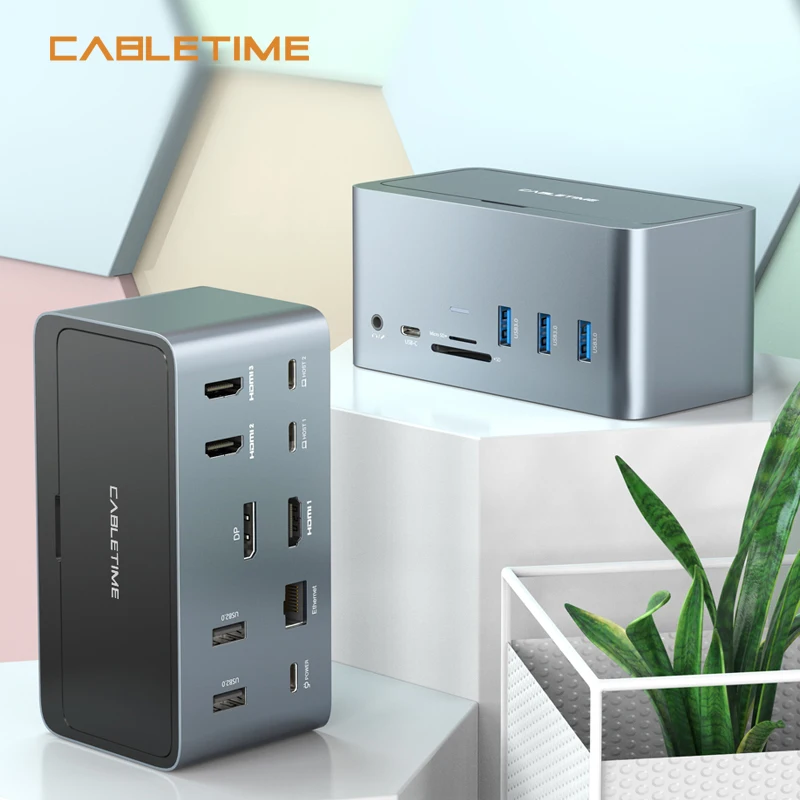

CABLETIME USB HUB 16 in 2 Docking Station C Type 3.0 Multi Dock HDMI DP RJ45 SD/TF PD 100W for MacBook Pro |

CABLETIME USB HUB 16 in 2 Docking Station C Type 3.0 Multi Dock HDMI DP RJ45 SD/TF PD 100W for MacBook Pro |

Multi 16 in 2 USB Docking Station Interfaces:

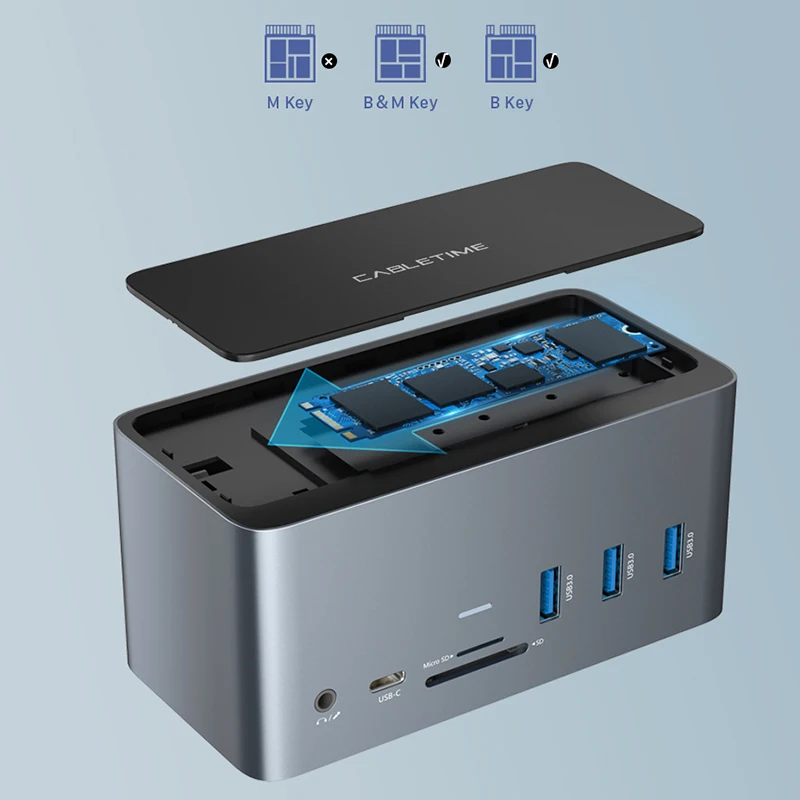

SSD:Data transmission up for 5Gbps Just support NGFF Agreement,can not support NVME SSD.

Host 1 no have PD charging,data transmission function.But support Billboard,audio and video transmission

Host 2 support PD charging,data transmission,billboard,audio and video transmission


3*4K HDMI Port:Video bandwidth MAX 3G & MAX 6G,Video resolution: 4K/60hz/10bit (MAX).

DP(1.2) Port:Video bandwidth up for 8G.

USB-C Port:Support USB 3.0 5Gb transfer rate, backward compatible with USB2.0/1.1/1.0

3*USB 3.0-A Port:Support USB 3.0 5Gb transfer rate, backward compatible with USB2.0/1.1/1.0

2*USB 2.0-A Port:Support USB 2.0 480Mbps transfer rate, backward compatible with USB1.1/1.0

Audio Port: 3.5mm with 8 channels,sampling rate 192khz/16bit.

RJ45 Ethernet Port:Support for 10/100/1000Mbps.

SD/TF Card Slot:Support for SDXC, SDHC, SD, MMC, RS-MMC Card Micro SDXC&SD,Micro SDHC.

PD Charging Port:Supports up to 100W input.

Package Included:

1 x CABLETIME Docking Station

1 x Dual USB-C to Dual USB-C Cable

1 x USB-C to USB-C Cable

1 x User Manual

1x Warranty Card

Quadruple Display:

HOST 1 Drive HDMI1 (4k@60Hz),HOST 2 Drivers DP(1080P@60Hz), HDMI2 (4k@60Hz), HDMI3(4k@30Hz).

1. Support the use of MST function on windows system (multi-screen different display extended mode).

2. When the dual male heads are connected to the computer under the Mac os system, the HDMI output can be combined with DP or HDMI to form three external monitors. MST different screen expansion; if more monitors are connected at the same time, the HDMI output screen can only be used as SST display.

3. If the mac computer is pre-installed with windows system, all external monitors can be
used for MST different screen expansion.

Notice:

Before you purchase, please confirm your source device own the USB-C port which supports DP Alt Mode:

1. USB-C 3.1 Gen 1: 5Gbps bandwidth, only several models like Macbook 2015 could support one Display

2. USB-C 3.1 Gen 2: 10Gbps bandwidth, supports one or two Displays

3. USB 3.2: 20Gbps bandwidth, support three Displays

4. Thunderbolt 3/4: 40Gbps bandwidth,support quadruple displays.(With two HOSTs)

# Half-Speed Thunderbolt 3: 20Gbps bandwidth only, support three Displays

Multi 13 in 1 USB Docking Station Interfaces:

Note:

1.DC Charger just support EU Plug (Model 1)

2.Can not Support SSD NVME Agreement, just Support NGFF Agreement.

3.For Macbook:Support to 4K 30Hz

4.For Windows:Graphics card AMD with DP1.4, RTX2060 or above as required can reach 4K60Hz,if not can reach 4K30Hz.

--------Widely Compatible:--------

Plug and play,no driver required. The CABLETIME 13 in 1 dual USB-C docking station is compatible with MacBook Pro 2020/2019/2018/2017/2016, MacBook Air 2018/2019/2020, the latest laptops and smart devices with Type C port. To use this product, please make sure your host with USB C port supports DisplayPort Alt Mode (USB 3.1 Gen2 Type-C). The docking station is not compatible with USB-A to USB-C adapters.

------HDMI Resolution:--------

HDMI resolution and DP1.2 resolution up to 4K@60Hz. If the input source only supports DP1.2, HDMI up to 2K 2560x1600, 1920x1080 (1080P ) and lower resolutions will be displayed at 30Hz. When the DisplayPort port is connected, the resolution of HDMI will be limited to 1920x1080P@60Hz Max.
