Body dimensions 110x70x120mm

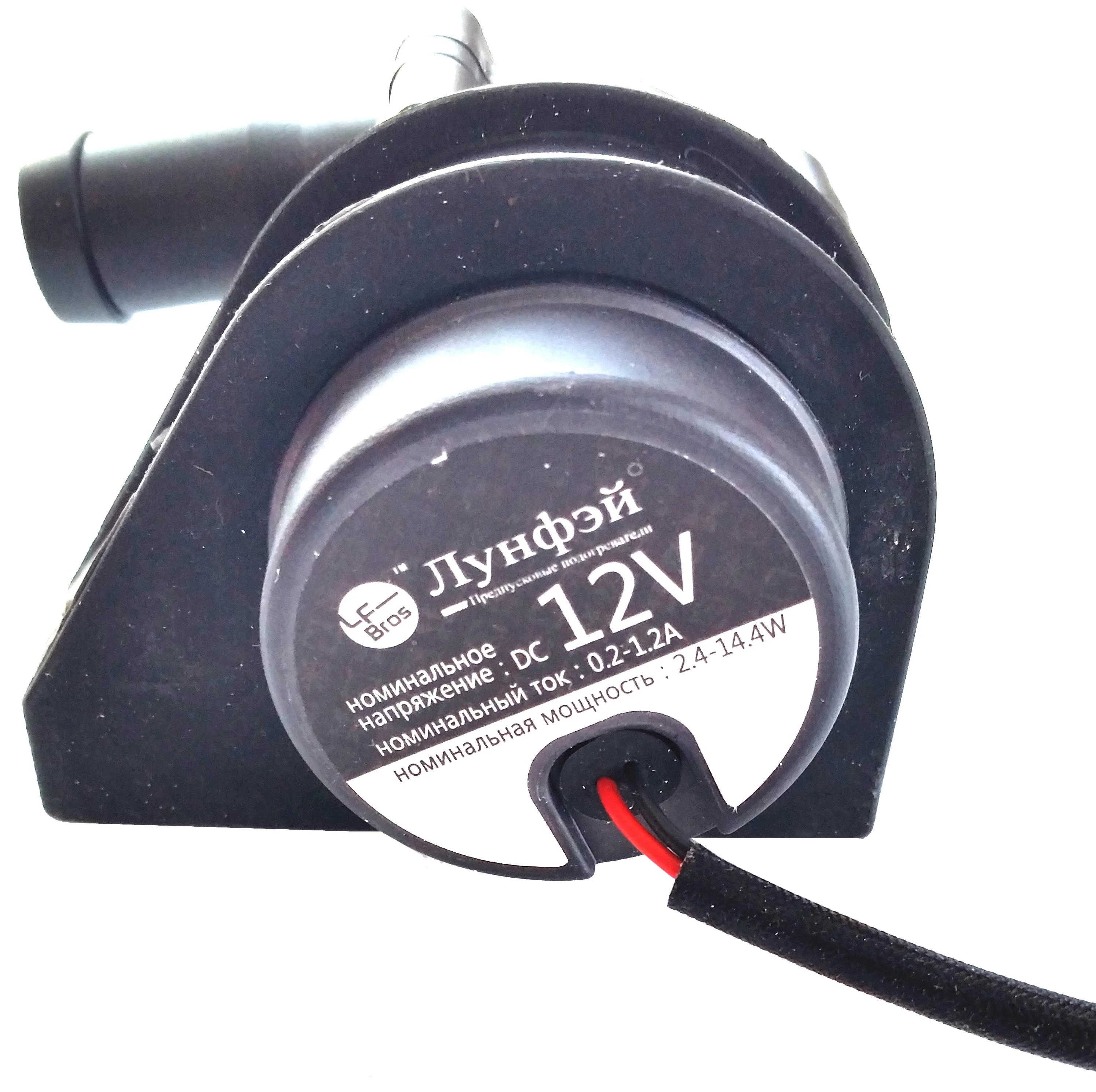

Rated Voltage: DC 12V or 24V
Rated Power: 2.4-14.4 W (Current 0,2...1,2 A), power is regulated by microprocessor
Water supply height: 2 m
Outer diameter of the pipes: 16mm (20mm, specify when ordering).
Maximum flow: 10L/min (600L/h)
Working mode: Continuous
Noise: less than 40
Transmission of the moment on the impeller-magnetic coupling
Shaft oil seal-missing
Impeller bearings-ceramics
Rubber mounting bracket-vibrator.

Advantages and features of an additional lunfey pump for coolant.

Improved heat transfer standard heater

Increase the air temperature from the stove to + 5 + 8 degrees, especially at idle speeds and even on a stub hot engine (it will be warm for a while when the engine is is is

Similar pumps are installed on many expensive cars.

Necessary when installing additional heating radiators

It is extremely desirable to use additional cabin heaters for example in passenger gasels, as the power of a standard pump is not enough. Perfectly improves the circulation of the Oz, the heat will be all.

In the off state does not interfere with the RO protocol.

High quality product

The pump is from a well-known manufacturer of senseless heaters "lunfey", which has proven itself in the market.

Pump in disassembled form

The pump in disassembled form consists of a vibration absorber, a stator body, a stator, a rotor cup, a rotor with a flange and a impeller in the chamber..

The product is made of high-quality materials by injection molding plastics using innovative technologies.

On the case there is a rubber vibration absorber with a mounting hole. The wire is additionally protected by Braid.

Contact of electrical and mechanical parts is completely excluded (this problem exists in the "gazelevsky" pompoms).

The electric motor is installed without coal counters, there are no rubbing parts, the anchor rotates only the electromagnetic field through the walls of the Cup. The stator windings are completely separated from the coolant. There are no oil seals, lubrication and bearings here.

The pump has a ceramic rotor shaft, which ensures minimal resistance and significantly increases the service life (up to 20000 hours).

The shaft has a powerful neodymium magnet.The processor controls the supply power of antifreeze, to ensure constant flow of the engine, regardless of engine speed, and to save energy.

A capacitor is installed to suppress interference.The seals use silicone rings that do not change their properties in wide temperature and time limits.

The impeller has a special hydrodynamic form to increase the impact.

Recommendations on the use of lunfei pumps:

1.!!!!! !! Do not include without cooling liquid filling. It will lead to breakage!!!
2. remove the pump blower, install below the top level of the pump.
3. keep the cooling system clean.
4. the pump is only for 12 V voltage on-board network (if need 24 V. Please specify when ordering).
5. do not violate polarity.

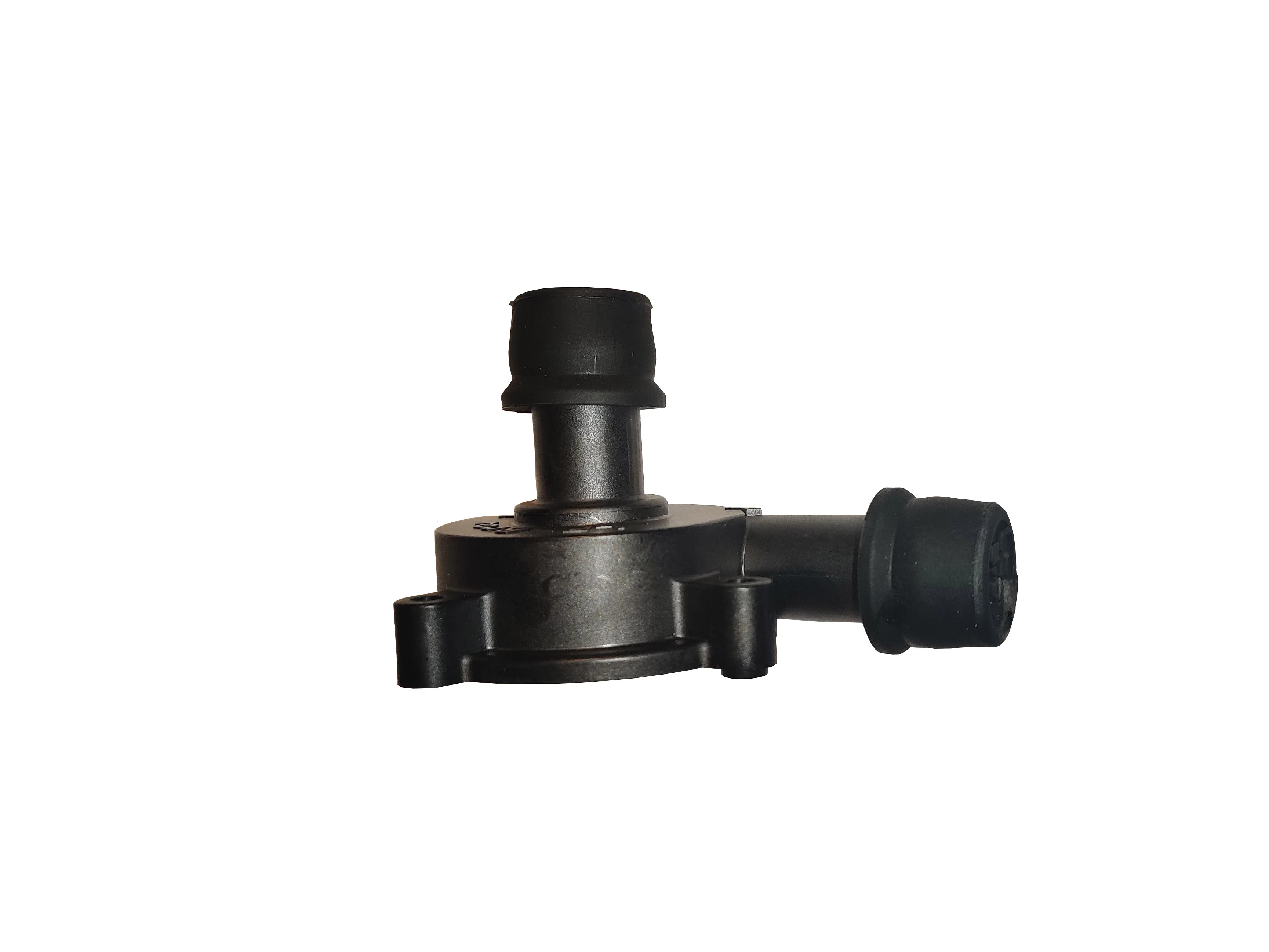

Cover with pipes for 16mm can be purchased separately
