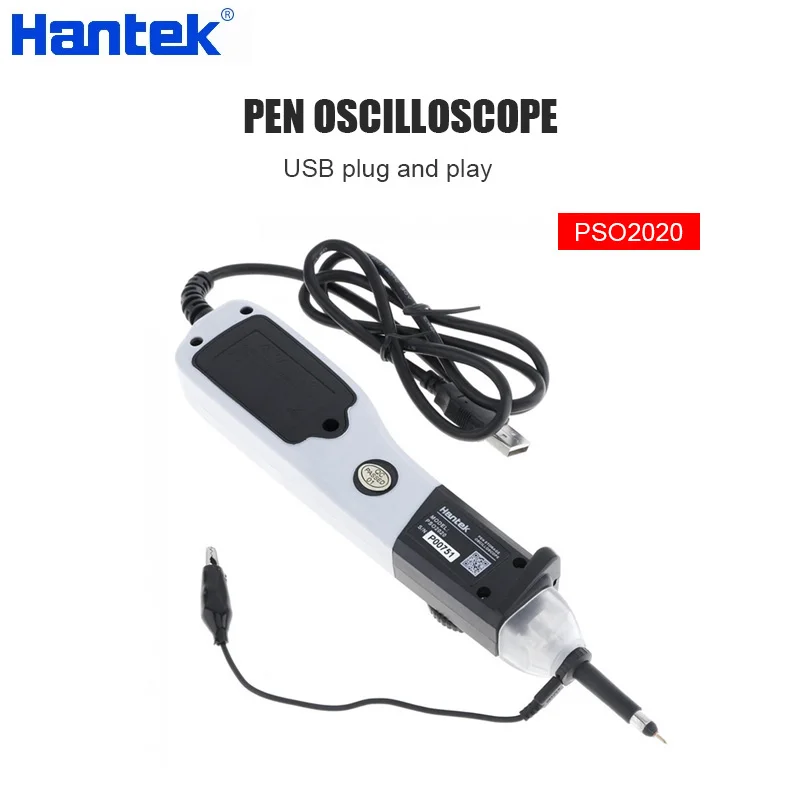

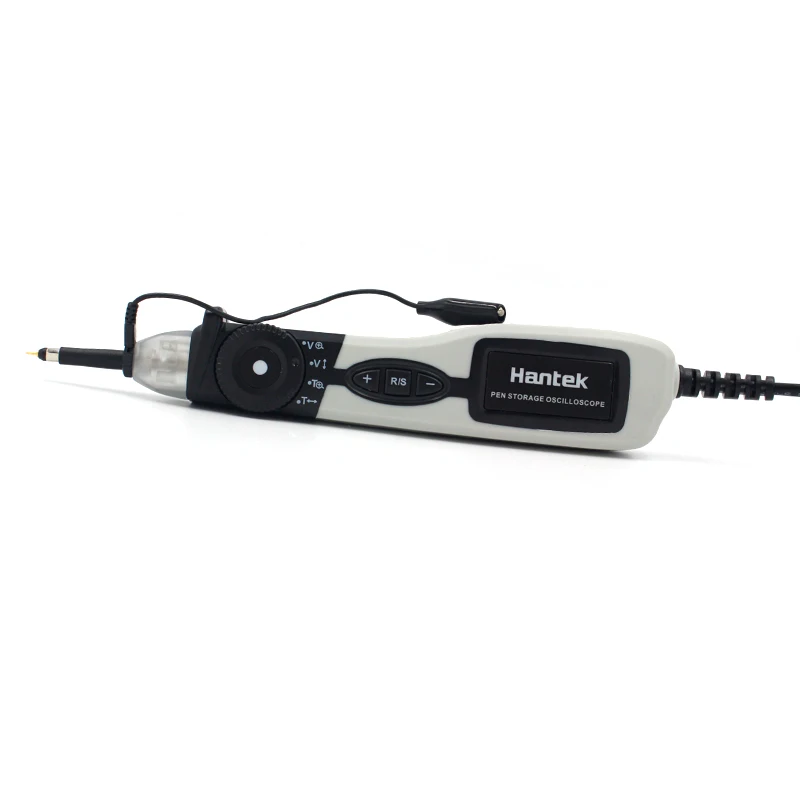

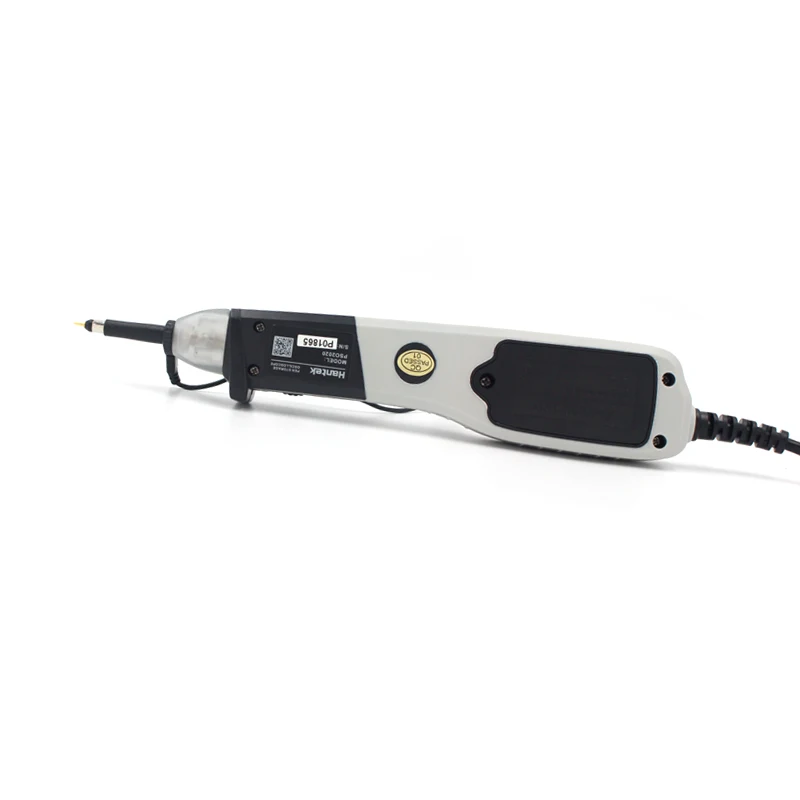

Hantek PSO2020 Handheld Oscilloscope Portable Pen Type PC Based Storage Digital Osciloscopio 20MHz 1 Channel Logic Analyzer

Plug and play device,Power by USB inferface.

Driver and software established quickly and easily,easy to handle PC Program.

*Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.

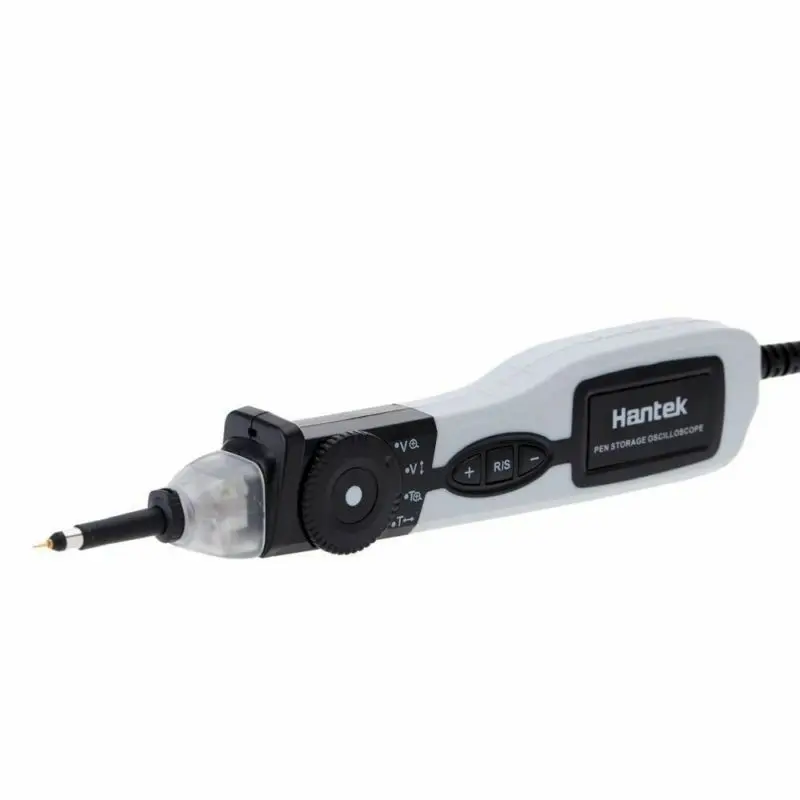

*Change the voltage/time division gear with single hand, no need to operate on the computer.
*Built-in LED light, providing better light for user's convenient operation in dark environment.

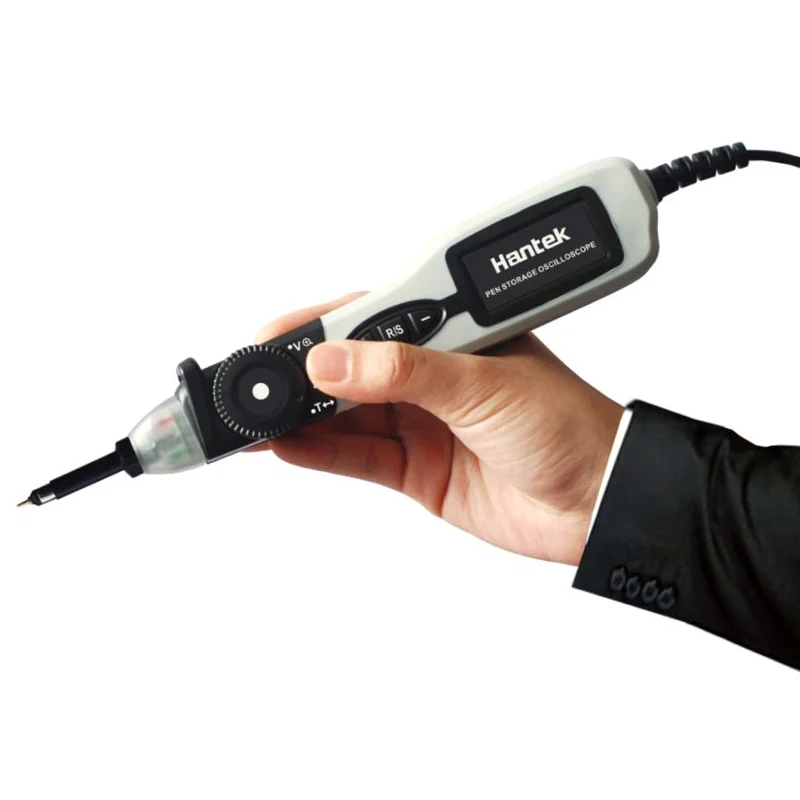

*Light weight and portable in design, suitable for use.
*DVM(digital voltmeter)function, real-time display the voltage measurement results.
*20MHz bandwidth, meet the requirements of measurement.
*Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
*Operating system:Windows NT,Windows2000/XP, WIN7/8.
*Possible to connect to laptop directly, high cost performance.

Specifications:

Vertical
Channel: 1
Bandwidth: 20MHz
Input Impedence: 1MΩ
Input Sensitivity: 20mV/div to 50V/div
Input Coupling: DC/AC/GND
Vertical Accuracy: ±3%
Resolution: 8 bits
Memory Depth:Maximum 1M/CH
Max. Measurement Voltage: ±50V (Without any attenuation)
Input Protection: 100V (DC+AC Peak)

Horizontal
Max. Sample Rate: 96MSa/s
Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)

Trigger
Trigger Source: CH1
Trigger Type: Edge Trigger

Cursor and Measurement
Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Cross, Trace, Horizontal, Vertical
Math: +,- , x,÷, FFT
Voltage Range: 20mV to 20V/div @ x 1 probe

Others
FFT: Rectangular, Hanning, Hamming, Blackman
Auto Set: Yes
Interface: USB 2.0
Power Supply: USB Power Supply
Dimensions: 230 * 40 * 20mm / 9.05 * 1.57 * 0.8in
Weight: 135g / 4.76oz
Package Size: 30 * 12 * 3.5cm / 11.8 * 4.72 * 1.4in (L * W * H)
Package Weight: 263g / 9.29oz

This product does not come with batteries

Package List:

1 * PSO 2020 Pen Oscilloscope
1 * CD
Due to air transportation restrictions, the product does not come with batteries

Characteristic:

Vertical

Channel

1

Bandwidth

20MHz

Input Impedence

1MΩ

Input Sensitivity

20mV/div to 50V/div

Input Coupling

DC/AC/GND

Vertical Accuracy

±3%

Resolution

8 bits

Memory Depth

Maximum 1M/CH

Max. Measurement Voltage

±50V (Without any attenuation)

Input Protection

100V (DC+AC Peak)

Horizontal

Max. Sample Rate

96MSa/s

Time Base Range

1ns/div to 5000s/div (Step by 1-2-5)

Trigger

Trigger Source

CH1

Trigger Type

Edge Trigger

Cursor and Measurement

Voltage Measurement

Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,

Time Measurement

Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Math

+,- , x,÷, FFT

Voltage Range

20mV to 5V/div @ x 1 probe

Others

FFT

Rectangular, Hanning, Hamming, Blackman

Auto Set

Yes

Interface

USB 2.0

Power Supply

USB Power Supply

Volume

200x120x 35(mm)

Weight

1Kg (After Packing)
