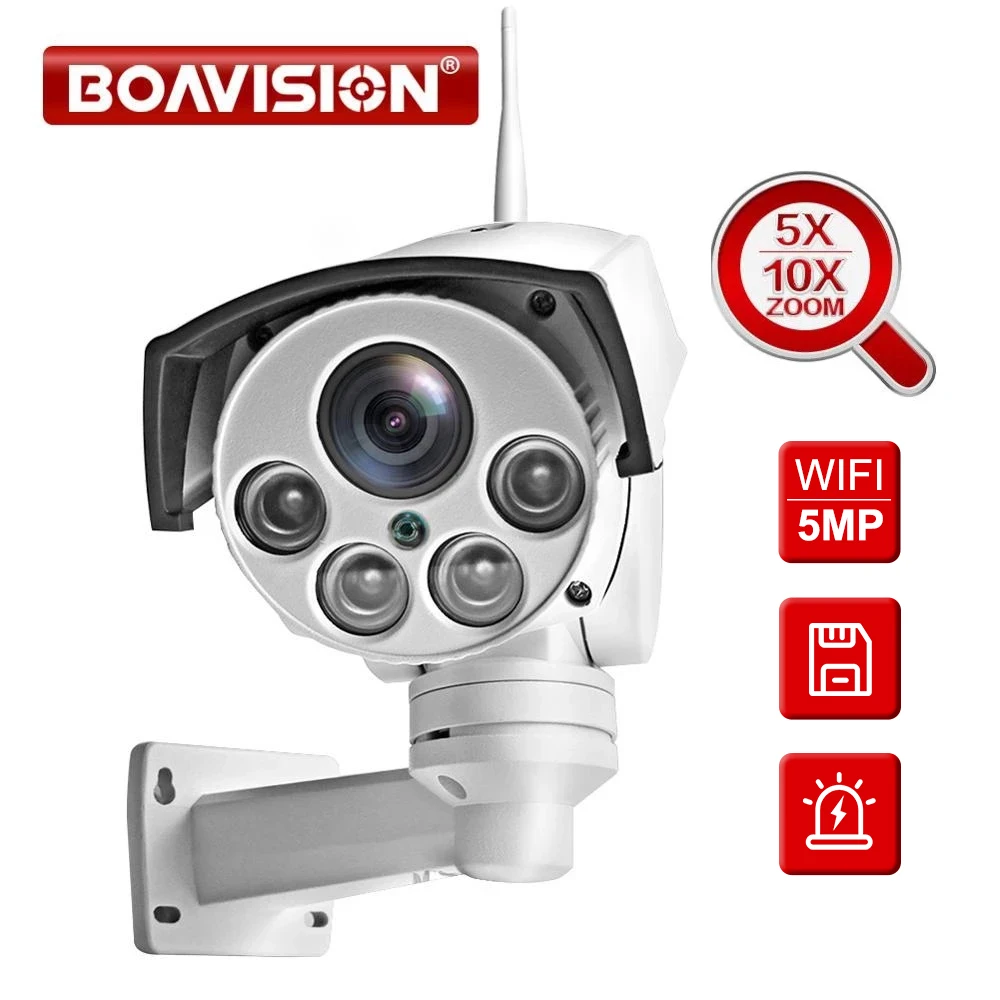

HD 5MP WIFI PTZ IP Camera

Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset

HD 5MP Resolution

5.0MP High Definition Image, Clear And Fine Images

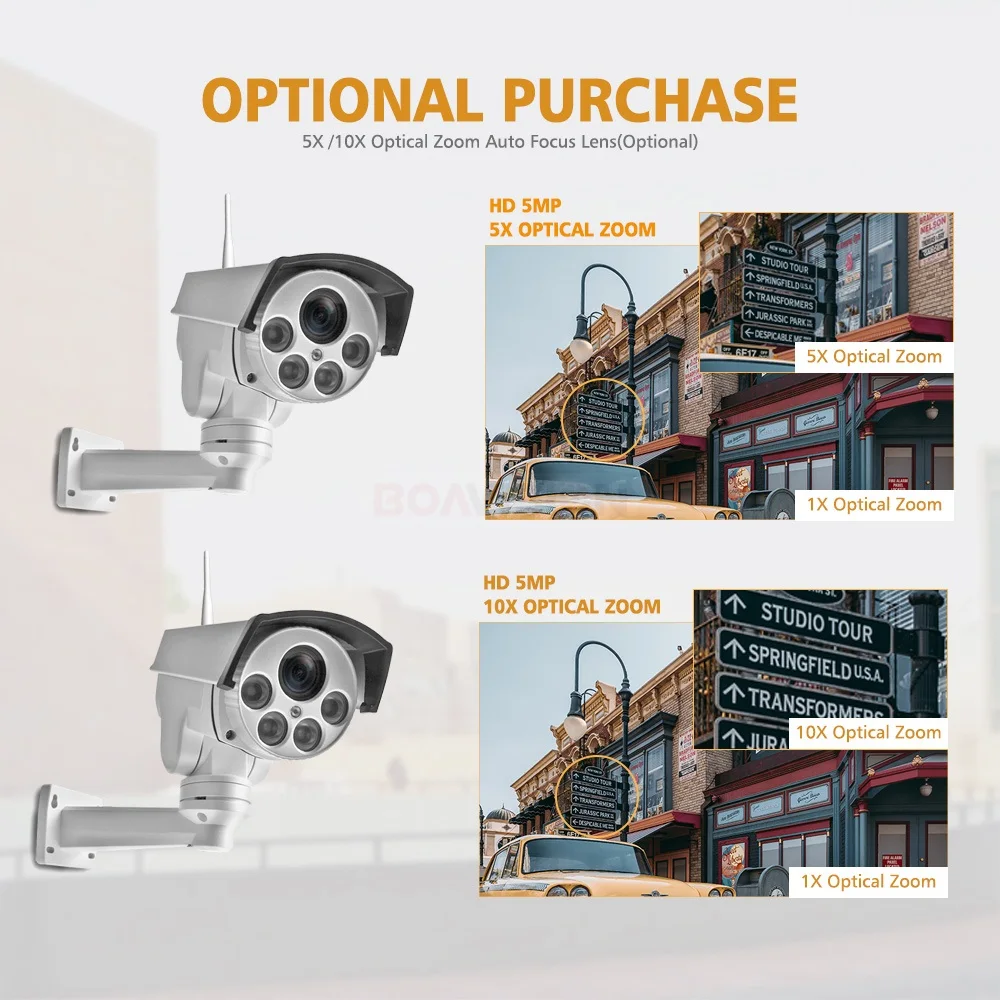

Optional Purchase

5X / 10X Optical Zoom Auto Focus Lens (Optional)

Application Scenarios

HD 5MP High-Definition Camera Imaging More Clear

Support P2P

Support P2P, View & Anywhere & Anytime;

Provide Android & IOS APP (CamHi) And Professional CMS PC Client Software

Built-In Microphone

Audio Input: Built-In Microphone

Support 8 Preset Points

Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset

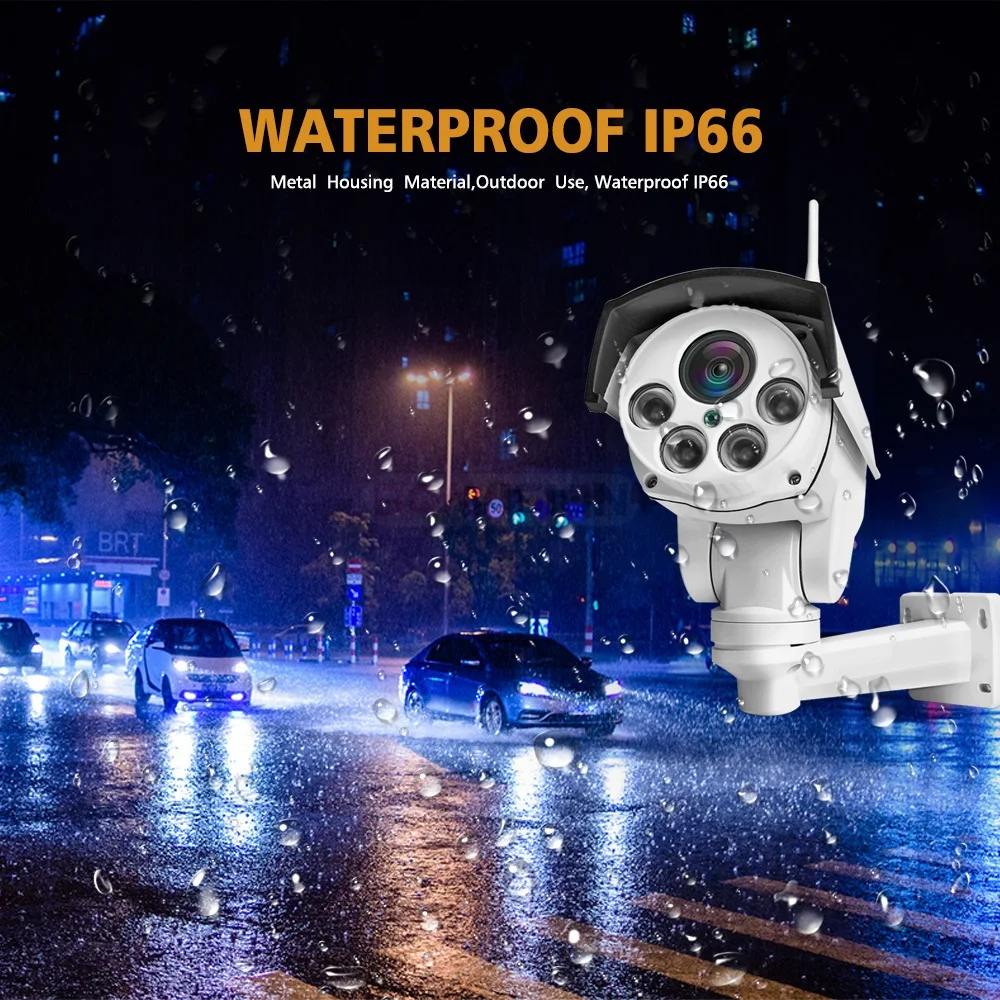

Waterproof IP66

Metal Housing Material, Outdoor Use, Waterproof IP66

Pan Tilt Rotation

Horizontal: 300 Degrees & Vertical: 60 Degrees

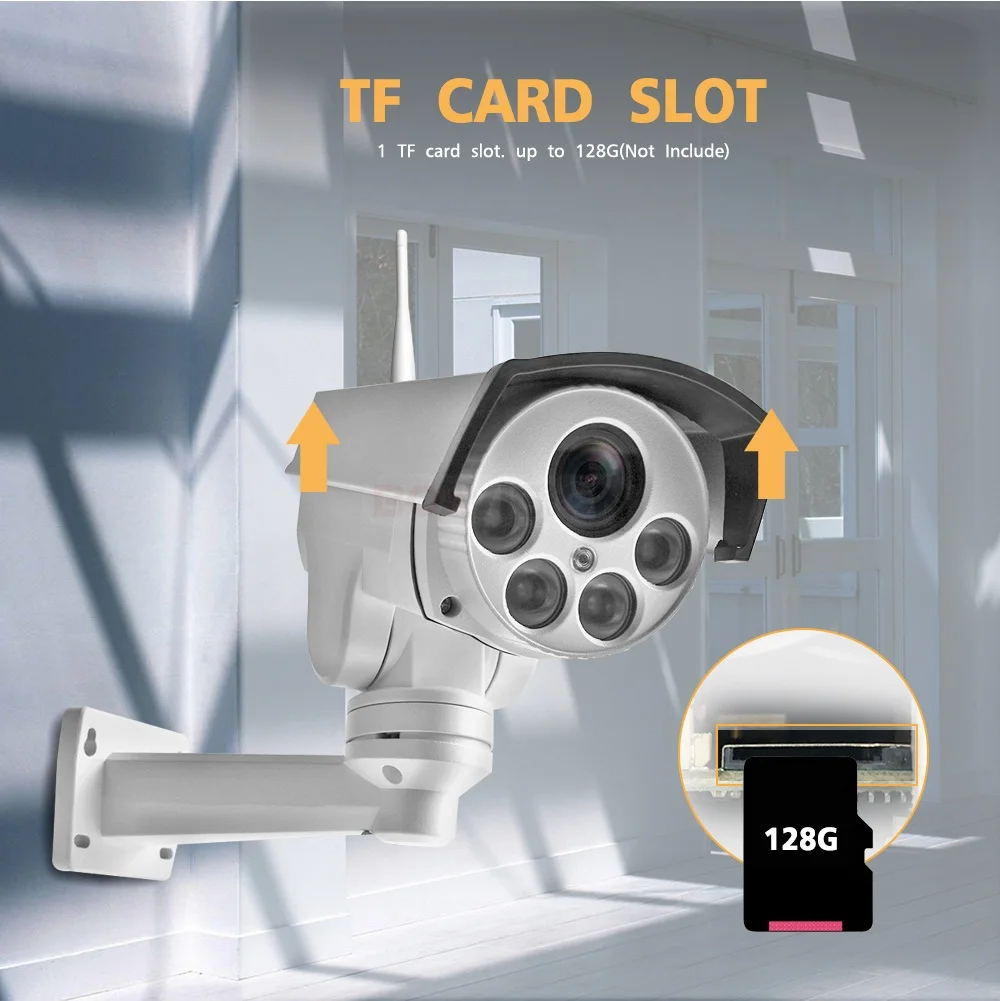

TF Card Slot

1 TF Card Slot, Up To 128G ( Not Included )

5X / 10X Optical Zoom (Optional)

5X Optical Zoom Auto Focus Lens (2.7-13.5mm);

10X Optical Zoom Auto Focus Lens (4.7-47mm)

Product Size

Elegant Outline And Easy Installation

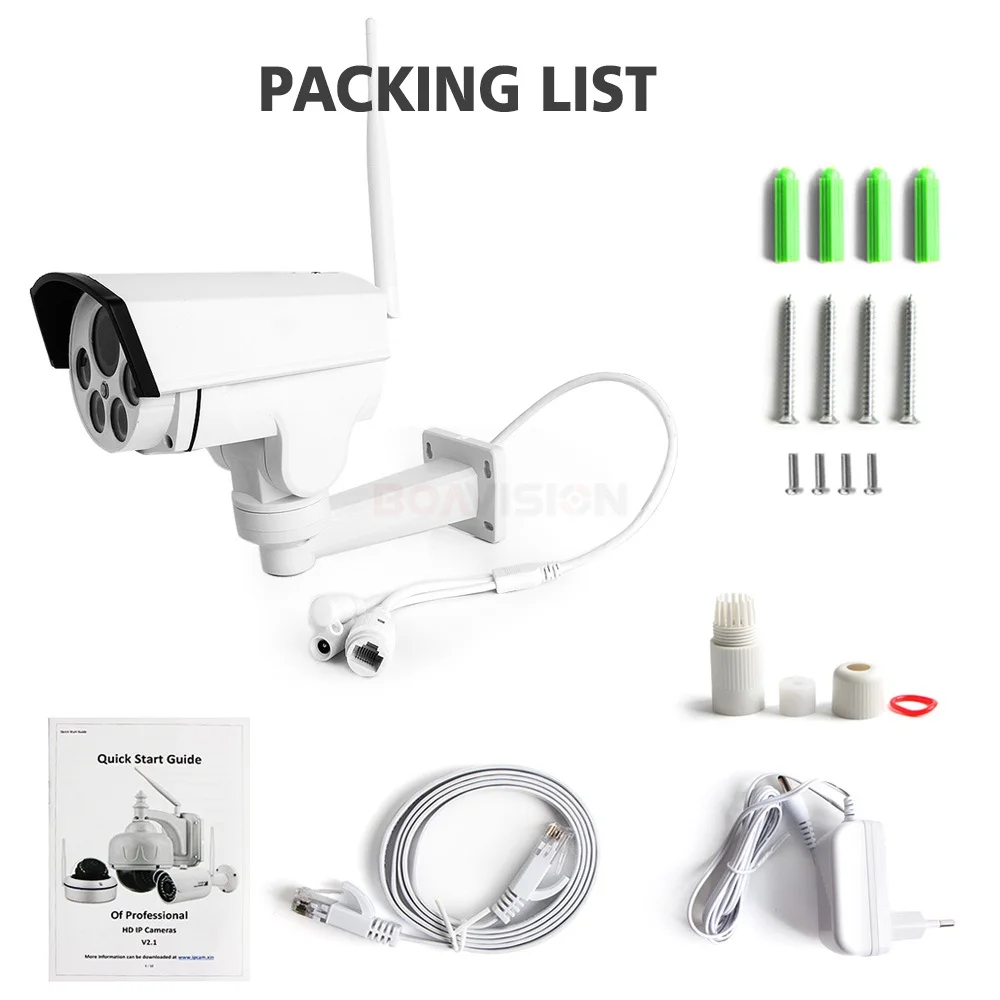

Packing List

View Via Mobile Phone

Download "CamHi" From Google Play Store

Features :

Support WIFI Connection ,Support AP Mode

Support HD5MP(2560x1920)or 4MP(2560x1440) High Quality Resolution

Support TF/Micro Memory Card, up to 64G (Optional)

5X /10X Optical Zoom Auto Focus Lens(Optional)

Pan tilt rotation, horizontal:300° & vertical:60°Ø

4pcs array infrared LEDs, 50m Night Vision

Support P2P, View & Anywhere & Anytime

Elegant Outline And Easy Installation

Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m

Provide Android & ios APP (CamHi) and professional CMS PC client software

Outdoor Use,Waterproof IP66

Audio: Built-in Microphone

Support 8 preset points, Zoom lens status can be saved during the preset

Specifications:

Model

B989W

B989W-10X

Camera

Operating system

Embedded Linux OS

Processor Sensor

HI3516EV300+IMX335

Lens interface type

M12

Lens

5X Optical zoom auto focus lens

(2.7-13.5mm)

10x Optical Zoom Auto Focus Lens

(4.7-47mm)

View angle

89.9°-26.2°

70°-9°

Min.illumination

0.05 Lux / 0 Lux(IR on)

Day&Night mode

Auto IR-CUT

Night vision distance

4pcs Array infrared LEDs, 50m Night Vision

Video

Video compression

standard

H.265/H.264 Main Profile/H.264 Baseline

Video streaming

Dual streaming

Video resolution

First stream: 5MP(2560x1920) or 4MP(2560x1440)

Second stream: 800x600 or 800x448

JPEG stream :(Monitoring for mobile phones), 800x600 or 800x448

Video code rate

32 to 8192Kbps. supports constant bitrate/variable bitrate

Video frame rate

15fps

Image settings

Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror

Image enhancement

Backlight compensation,Automatic white balance,

Digital WDR, 3D digital noise reduction

Audio

Audio Input

Built-in Microphone

Audio Output

N/A

Function

Motion detecting

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the specified mailbox,

 alarm upload pictures and videos to the FTP server,

alarm write pictures and videos to Micro SD card, alarm message push

Privacy mask

Maximum support 4 users to simultaneously browse

OSD

Support camera name, date and time information superimposed

User management

Supports user and rights management

Simultaneous viewers

Maximum support 4 users to simultaneously browse

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,

DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

Connection protocol

Support ONVIF 2.0(backward compatible)

Wireless

Wireless standards

IEEE802.11b. 802.11g. 802.11n Draft

Frequency range

2.4 GHz  to  2.4835 GHz

Wireless Security

64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate

11b: 11Mbps,11g :54Mbps,11n :135Mbps

PTZ

Rotation angle

Horizon:0° to 300°. Vertical: 0° to 60°

Horizontal speed

12°/S

Vertical speed

12°/S

Preset

Support 8 preset points, Zoom lens status can be saved during the preset

Interface

Power interface

1 5.5mm power interface

Ethernet

1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot

1 TF card slot. up to 128G(Not Include)

Reset button

Support

General
Specification

Power supply

DC 12V 2A

power

Day: 3W;  Night: 8W

Operating temperature

-20 to +60 degree

Operating humidity

10% to 95%

Material

Metal Housing Material,Outdoor Use, IP66

Installation

Rack mounting

Size(W×D×H)(mm)

150*90*125

Weight(kg)

1.0kg

Accessories

1*1.5M Power supply. 1bag*Screws. 1*manual,1*antenna

Package Size(W×D×H)

204*184*133mm

Package Weight

1.2kg

Packing List:

1*Wifi IP Camera

1*DC 12V 2A Power Supply

1*Manual

1*Screws Bag

1*Antenna

1*Network Cable
