M5Stack Official Unit Cam Wi-Fi Camera (OV2640) | Demo Board

Brand NameM5StackOriginMainland ChinaCertificationCECertificationFCCCertificationRoHSDemo Board TypeARMMeasurement unitpiece/piecesEach pack11 095,98 ₽1 095,98 ₽Add to CartBuy now1 095,98 ₽loaderReviews

5,0

4 reviews40000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalAnonymous user2 May 2023

Show morePetr S.31 December 2021

all its OK

Show moreTakahiko S.15 January 2022

Show moreOpen 4 reviewsDescriptionPRODUCT DETAILSDescription

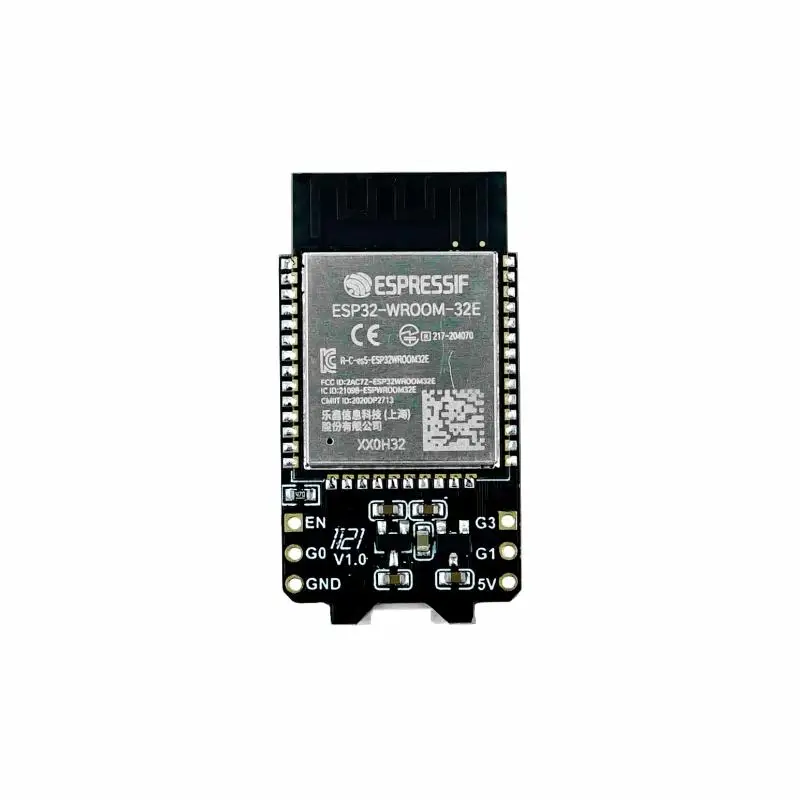

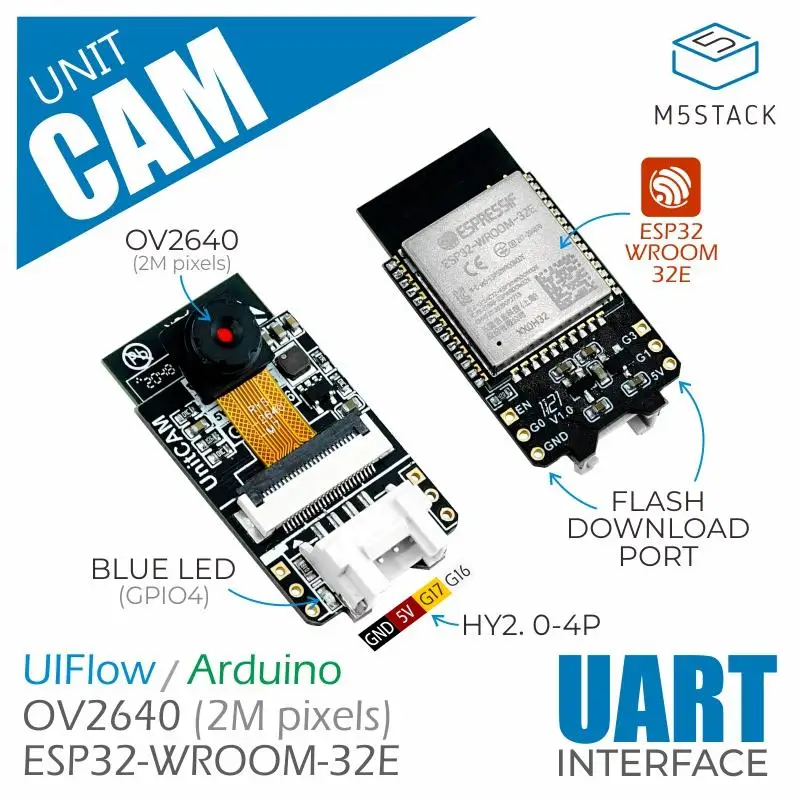

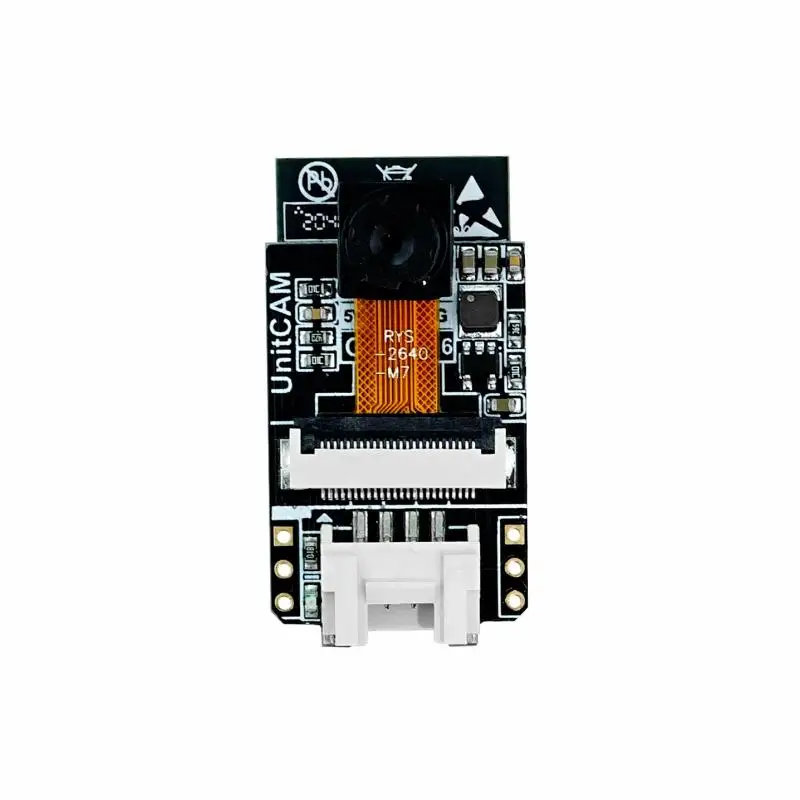

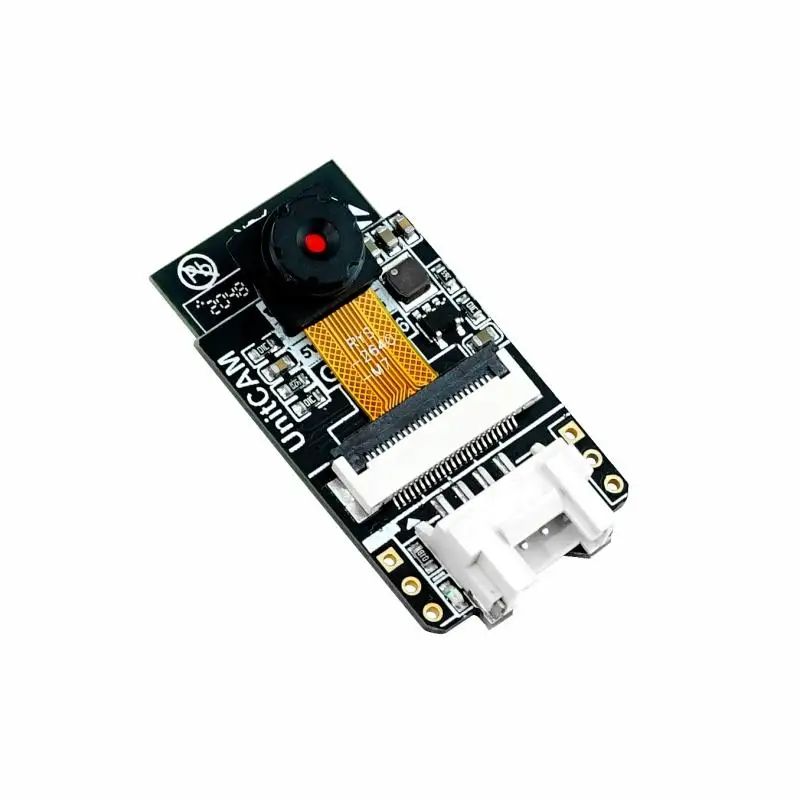

Unit CAM M5 launched a very cost-effective WiFi camera, using ESP32-WROOM-32E control core + 2MegaPixel image sensor (OV2640) solution on the hardware, using the most simplified design, no extra peripherals. The factory software integrates image transmission firmware, provides image data acquisition, image parameter (white balance, exposure, gain, size and other attributes) adjustment interface, users can directly acquire image data through UART or WiFi, and interact with the camera. Support UIFlow graphical programming call, realize zero development, out-of-the-box user experience. The compact design and cost performance are suitable for various wireless camera application scenarios.

Product Features Simplified design ESP32 control core 2MegaPixel camera (OV2640) UART communication (support image data acquisition, image parameter adjustment and other interfaces) WIFI image transmission Programming platform: ESP-IDF/Arduino/UIFlow Include 1x Unit CAM Applications WiFi camera Remote monitoring Specification Resources Parameter Flash 4M Firmware default communication method UART: 115200bps 8N1 Camera OV2640 Maximum resolution 2MegaPixel Unit CAM firmware default picture transfer rate 12fps OV2640 supports output format YUV(422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data OV2640 supports the maximum image transfer rate UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps DFOV 66.5° Net weight 4.7g Gross weight 5.3g Product Size 45*20*12mm Package Size 60*60*15mm LEARN AND DOCUMENTSDOCUMENTS

---
