KORAD KA3010D - Линейный источник питания переменного напряжения с цифровой регулировкой напряжения и током 30В 10А для лабораторных и научных работ.

KORAD KA3010D - Линейный источник питания переменного напряжения с цифровой регулировкой и током 30В 10А для лабораторных научных работ.

Unavailable in Russian Federation

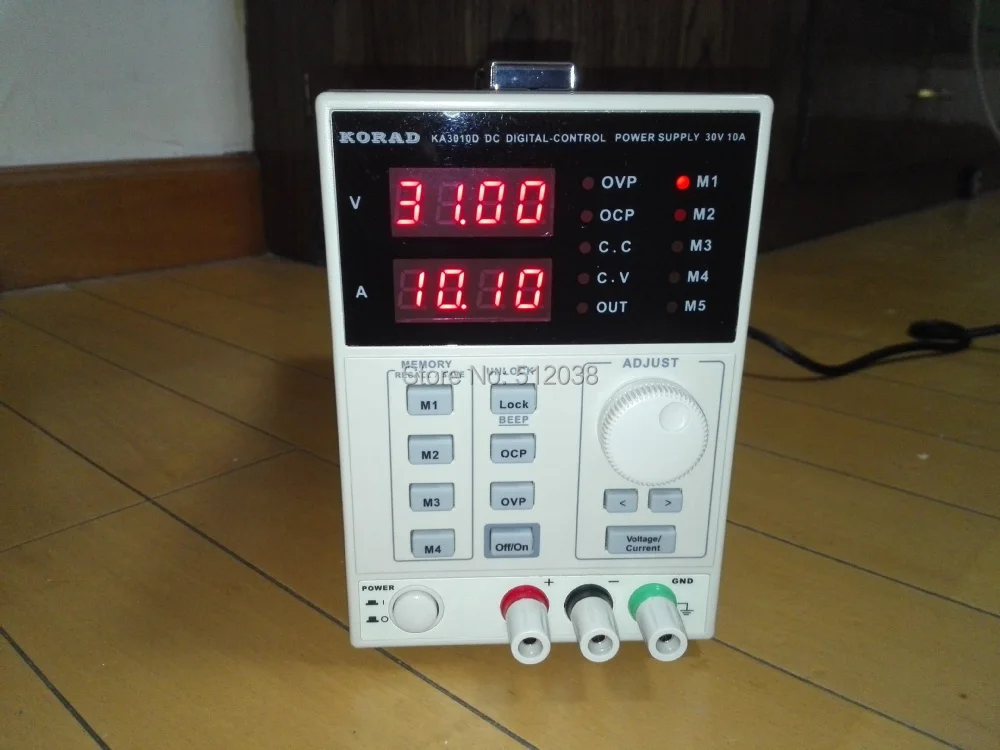

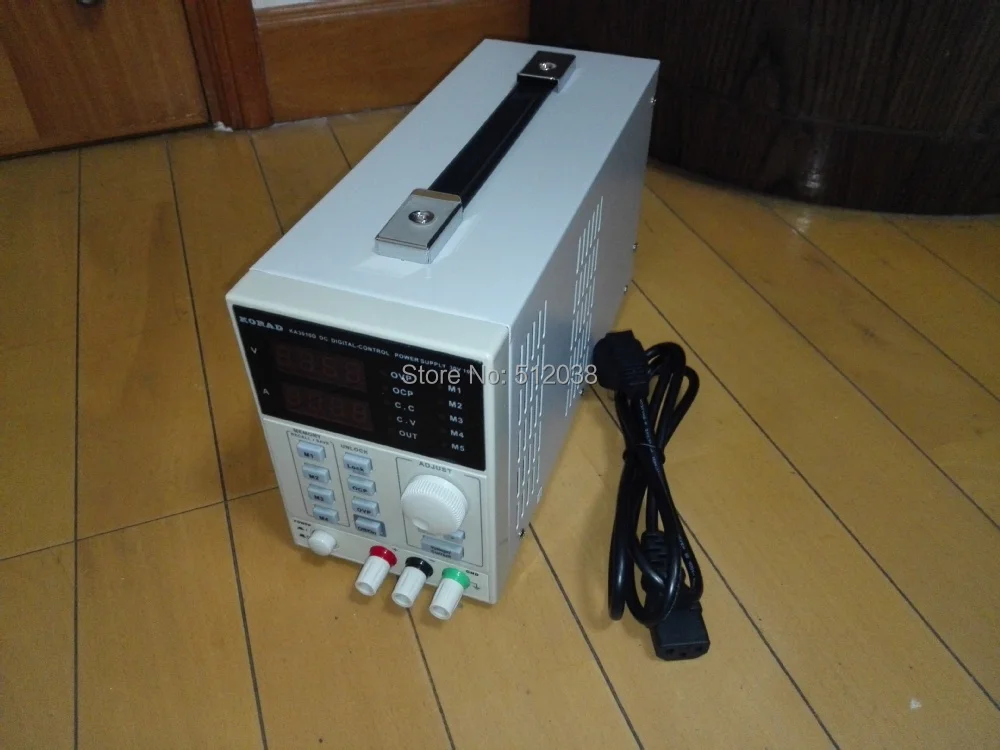

KORAD KA3010D -Precision Variable Adjustable 30V, 10A DC Linear Power Supply Digital Regulated Lab Grade

Application:

R & D debugging

Quality control & inspection

Automatic testing in production line

School lab for teaching

Repairing

Features:

    Complete digital control

    10 mV / 1 mA high accuracy and resolution

    Low noise and ripple

    CV / CC constant voltage and current modes

    Arbitrary set protection, OCP and OVP with high reliability

    5 sets of parameters can be stored inside

    Output switch control

    Power-off memory function

    Keyboard lock function to prevent operators from misusing

    Easily alternative to the traditional digital-display power supplies

Accurately generating the required voltage and current

KA series power supplies provide the output voltage from 30V to 60V, and the resolution with 10V and 10mA.

Professional power supply design; intuitionistic operation

More than one power supplies can be superimposed with parallel connection

5 kinds of programmable preset and set

Just press the buttons RECALL and SAVE; then the stored data can be recalled and the users' settings can be saved respectively.

Avoiding the damage of the loads

The cut off values of Over Voltage Protection and Over Current Protection can be set. And the buttons can be locked by the keyboard lock function to prevent the users from improper operation so that some undesired results appear in the key tests.

Model

KA3010D

Voltage Range / Current Range

0-30V  /  0-10A

Load Regulation

Voltage: ≤0.01%+2mv  /  Current: ≤0.1%+5mA

Line Regulation

Voltage: ≤0.01%+3mv  /   Current: ≤0.1%+3mA

Setup Resolution

Voltage: 10mV   /     Current: 1mA

Setup Accuracy( 25 °C + - 5 °C)

Voltage: ≤0.5%+20mV   /   Current: ≤0.5%+10mA

Ripple(20hz-20M)

Voltage: ≤2mVrms    /    Current: ≤5mArms

Temp. Coefficient

Voltage: ≤100ppm+10mV  /  Current: ≤100ppm+5mA

Read Back Resolution

Voltage: 10mV   /   Current: 1mA

Read Back Temp. Coefficient

Voltage: ≤100ppm+10mv   /   Current: ≤100ppm+5mA

Reaction Time(10% Rated load)

Voltage: ≤100mS   /   Current: ≤100mS

Operation Environment

Indoor use

Altitude: ≤ 2000m

Ambient temperature 0 ~ 40°C

Relative humidity ≤ 80%

Accessories

User manual, Power cord (1.2M)

Weight and Dimension

4.5 kg  /  110(W)*156(H)*260(D)

Storage Environment

Ambient temperature   -10°C ~ 70°C

Relative humidity       ≤ 70%

instruction manual :

//drive.google.com/file/d/0B2sTR4hnbhvUaDk5MHNpeUVjWlU/view?usp=sharing
