Новейший XTOOL X100 PAD PLUS OBDII автомобильный диагностический инструмент профессиональный программатор ключей сканер с 12 видами специальных функций.

Новейший XTOOL X100 PAD PLUS OBDII автомобильный диагностический инструмент профессиональный программатор ключей сканер с 12 видами специальных функций.

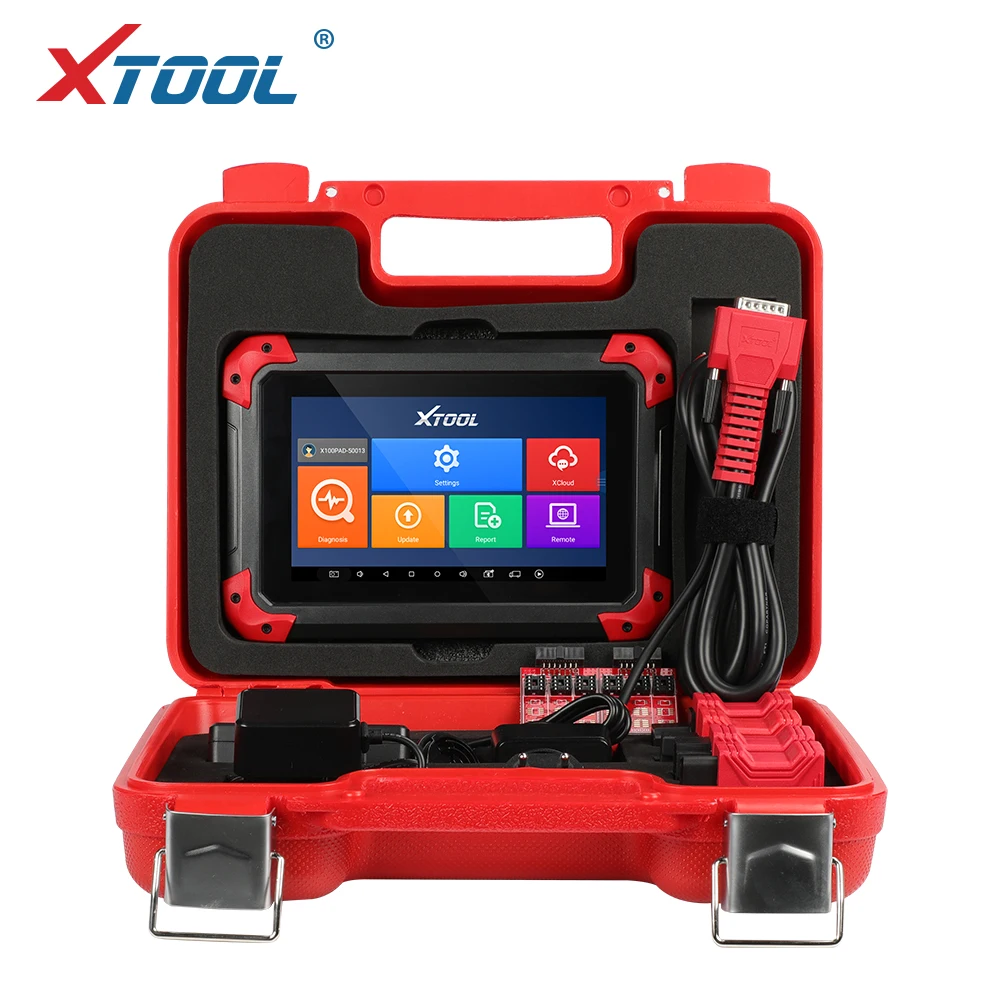

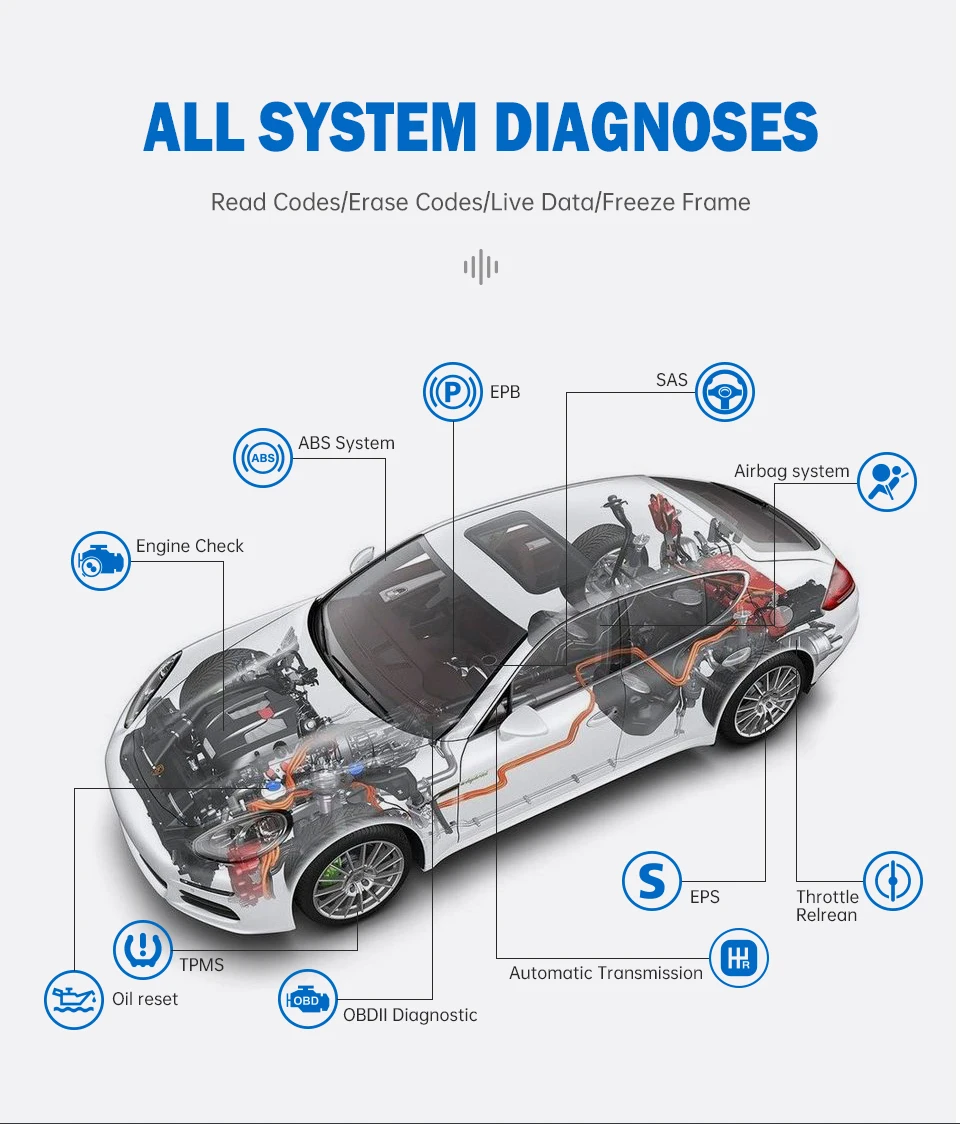

Introductions XTOOL X100 PAD Plus is an advanced tablet scan tool based on the Android operating system X100 PAD Plus is a tablet with the latest technologies to perform key programming,Diagnostic , oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration Full Systems Diagnoses The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

1.Auto VIN Scan The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles. ECU Information – retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications. Read Codes – displays detailed information of DTC records retrieved from the test vehicle’s ECU. On some vehicles, freeze frame data can also be retrieved for viewing. Erase Codes – erases DTC records and other data from the test vehicle’s ECU. Live Data – retrieves and displays live data and parameters from the test vehicle’s ECU.Display live data in text, graph & analog for easy data review.

Complete OBD2 functions Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs) Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

■ 12 Kinds of Special Reset Service Functions *Oil Reset Service: Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light; *Electronic Parking Brake (EPB) Service : Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc. *Steering Angle Sensor (SAS) Service: Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared. *Tire Pressure Monitor System (TPMS) Service: The TPMS service function include displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors *DPF Service : carry out numerous functions to the Diesel Particulate Filter system. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. *BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information. *IMMO Service : enables you to disable the lost vehicle keys and program a replacement key fob. EEPROM Adapter: Works with the Old car models when this car chips or key need make programmer

X100 PAD PLUS Details 1 Year Warranty 2.Free update Online 3.Technical Support Online View Teamview 4.Support Multi-Language
