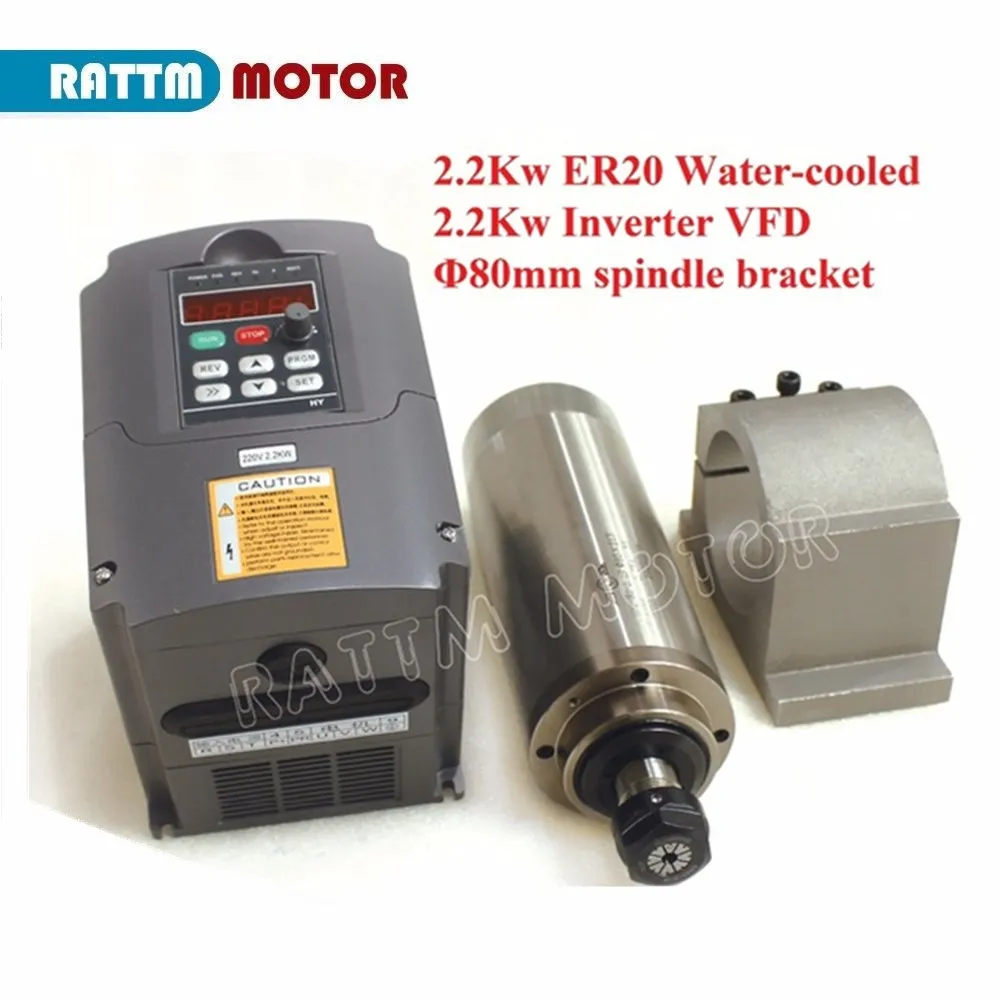

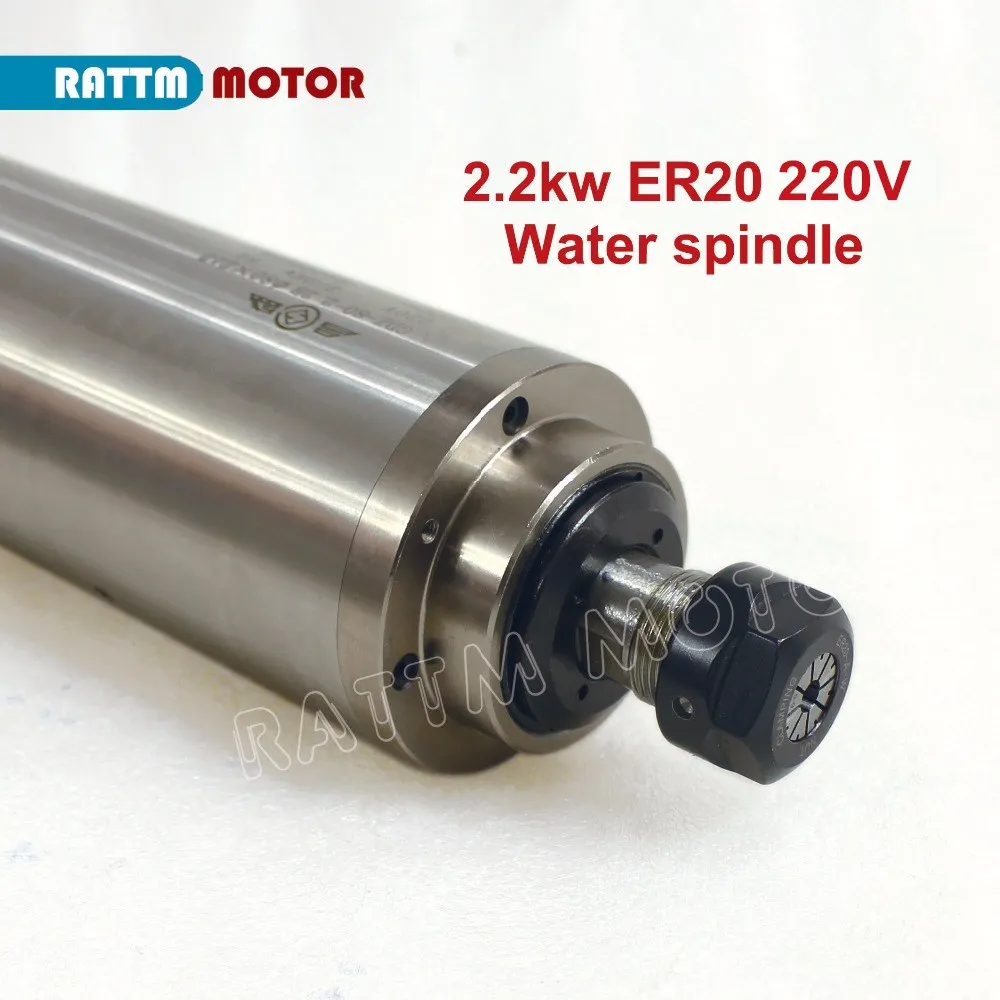

1 x 2.2KW ER20 Water-cooled spindle motor

1 x 2.2KW 220V VFD Inverter  2HP

1 x 80mm spindle bracket

Specification:

Material: Stainless Steel

Size: Φ 80x213mm(Middle body diameter:80mmxLength:213mm)

Power: 2.2Kw

Voltage: 220VAC

Current: 8A

Frequency: 0-400Hz

Speed: 10-24000rpm

Cooling: Water-cooling

Precision tapered bore: 0.01mm

Runout off: Less than 0.02mm

Bearing Lubrication: Grease

Collet size:ER20

Bearings: 3 bearings(C7005x2 + C7002x1),P4 class

Net Weight: 5.1kg

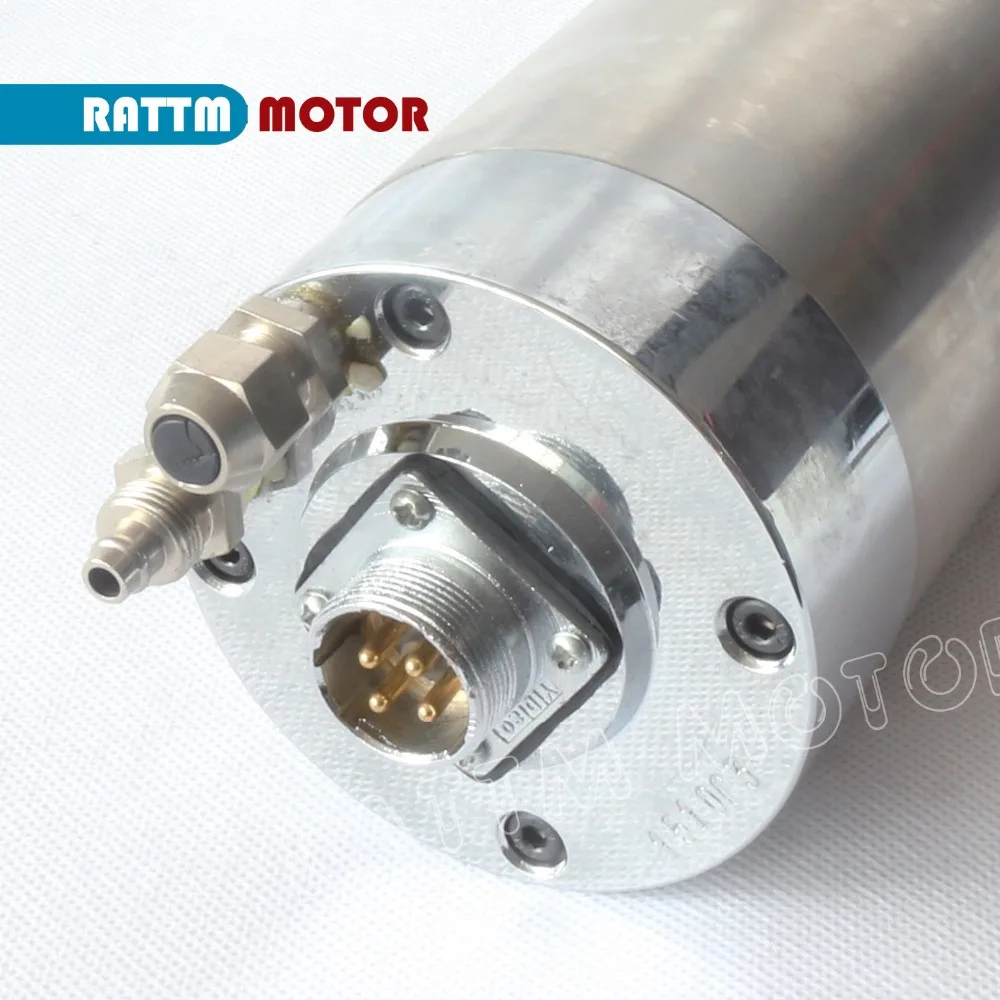

Power supply interface: Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

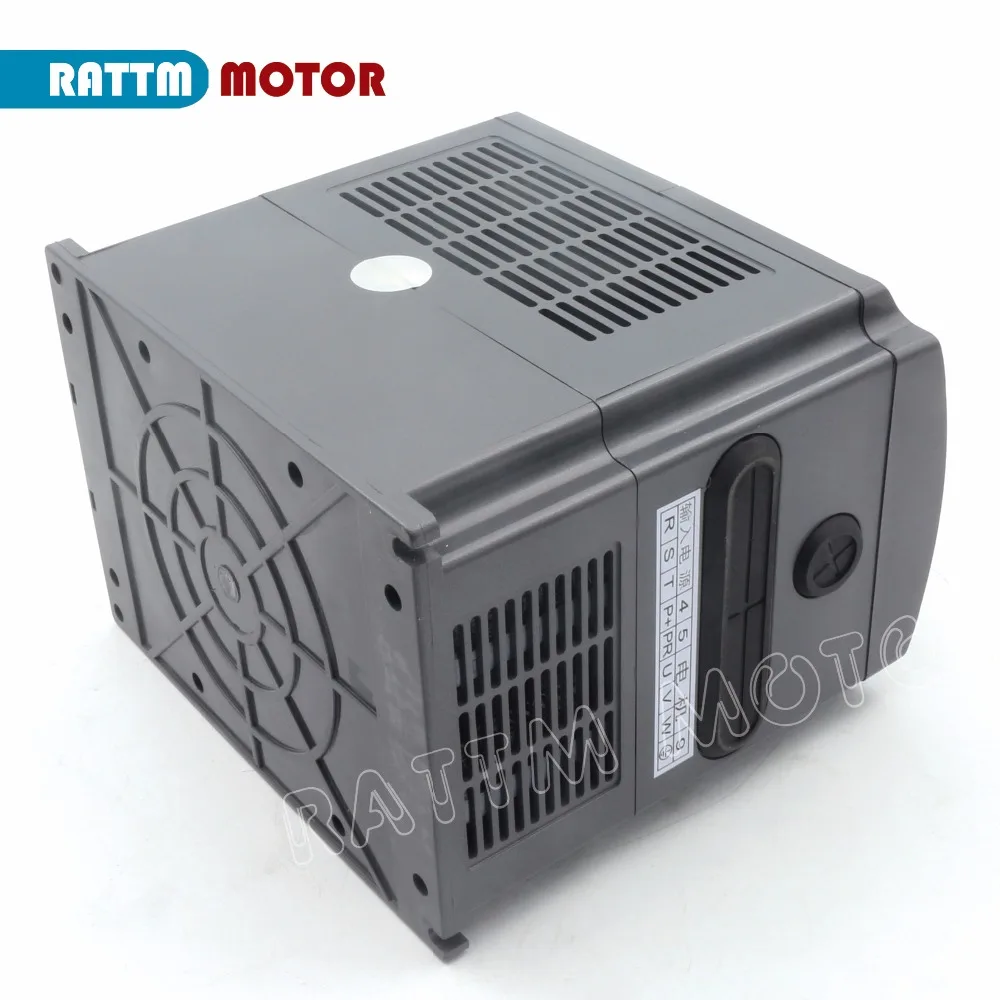

2. 2.2kw Inverter VFD

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;10)With perfect error protection and short circuit starting protection capability;

Tech parameters:
1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 220V(+/-15%)

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

Specification

Series

HY inverters

Control ModeControl Mode

SPWM

Input Power

380V class:380V(+/-15%);220V class:220V(+/-15%)

5-Digits Display & Status Indicator Lamp

Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.

Communication Control

RS-485

Working Temperature

-10~40 Celsius Degrees

Humidity

0-95% Relative Humidity(without dew)

Vibration

Below 0.5G

Frequency Control

Range

0.1~2500.0Hz

Accuracy

Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees)

Setting Resolution

Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency

Output Resolution

0.1Hz

Operator Setting Method

Press directly keys to set.

Analog Setting Method

External Voltage 0-5V,0-10V,4-20mA,0-20mA.

Other Functions

Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.

General Control

Ramp Control

Selectable 4-speed steps ramp-up and -down time (0.1-6500s).

V/F Curve

Set V/F curve at will.

Torque Control

Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.

Multi-Inputs

6
multi-function input terminals for 8speed steps control, program
operation, switching of 4-speed Ramp, UP/DOWN function, counter,
external emergency stop and other functions.

Multi-Outputs

5
multi-output for displaying of running, zero speed, counter, external
abnormity, program operation and other information and warnings.

Other Functions

Auto
Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC
Braking, Auto Reset and Restart, Frequency Track, PLC Program Control,
Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable
(Up to 20KHz), etc.

Protection Functions

Overload Protection

Electronic relay protection motor drive

Drive(for constant torque  150% per min. for the kinds of fan 120% per min.)

FuseProtection

When the fuse breaks, the motor will stop.

Over-voltage

220V class:DC Voltage >400V

380V class:DC Voltage >800V

Under-voltage

220V class:DC Voltage <200V

380V class:DC Voltage <400V

Restart After Instant Stop

Restart with Frequency Track after Instant Stop

Stall Protection

Stall protection in ramp operation

Output Short Circuit

Electrical circuit protection

Other Functions

Fin
over-heat protection, restriction of reverse running, direct start
after power on, fault reset, parameter lock PID, one-drive-more, etc.

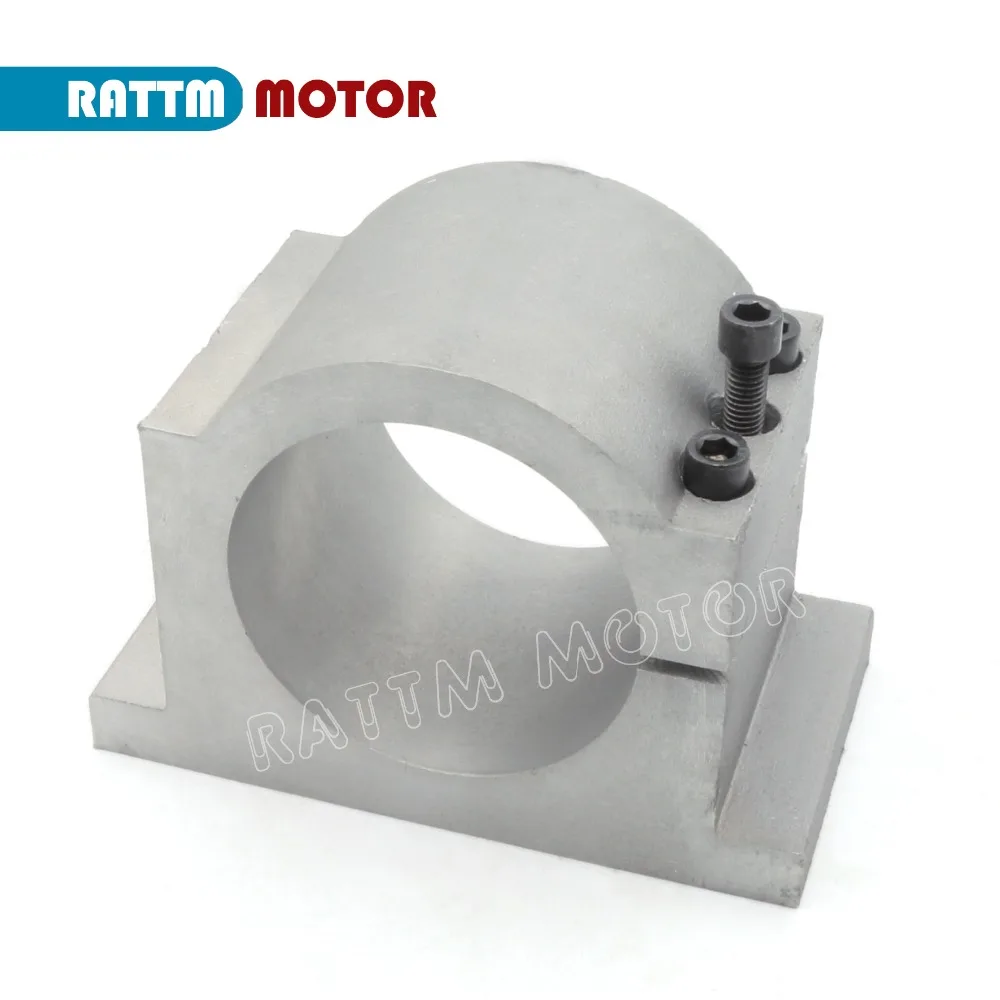

3. 80mm cast aluminium bracket
