433Mhz High Power Wireless RF Remote Control Switch AC 110V 220V 30A 1000M For Factory Farm Office Exhaust Fan Pump Ceiling Lamp

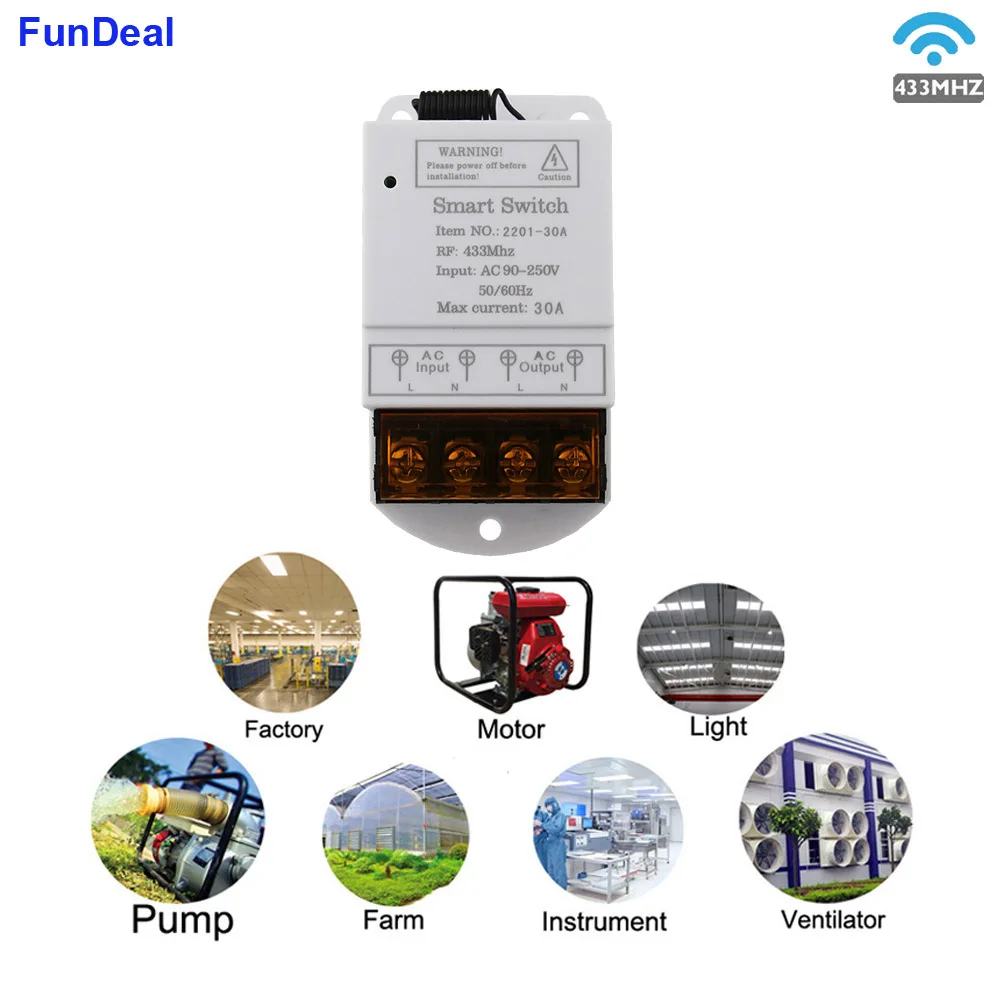

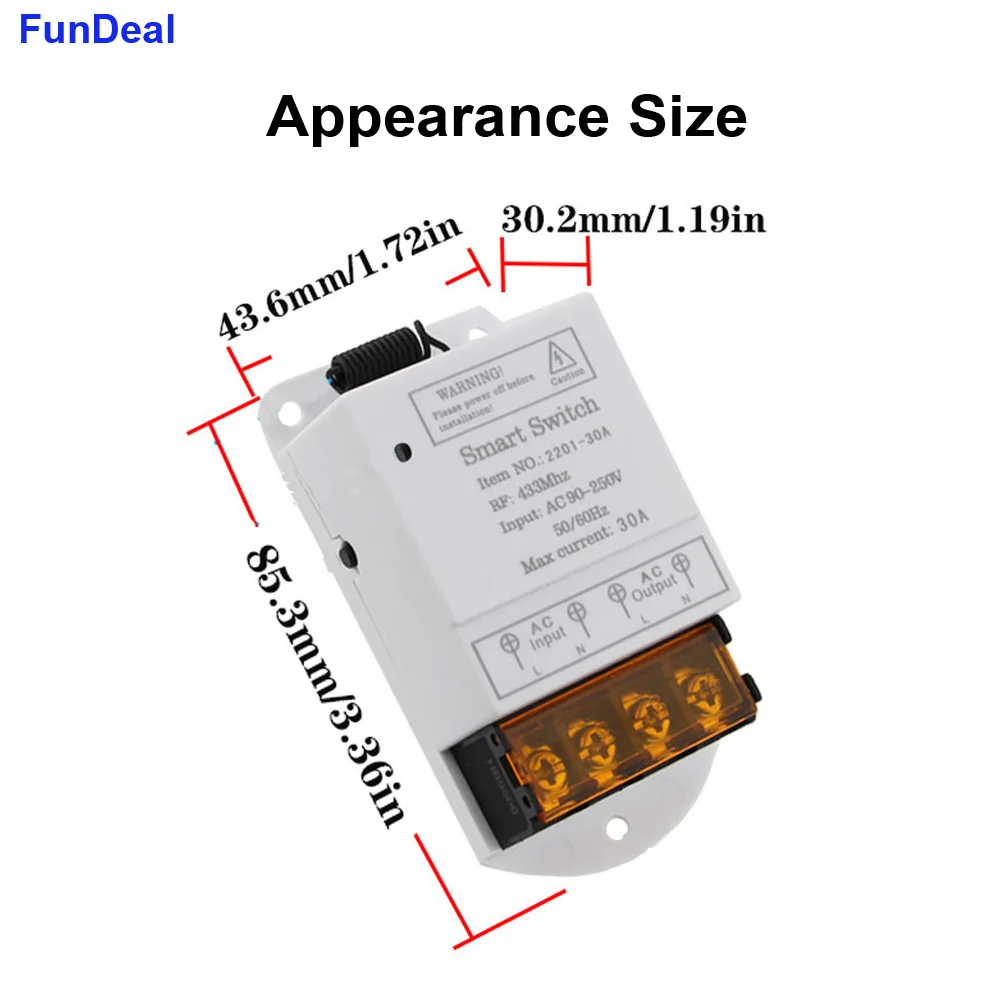

Receiver data：

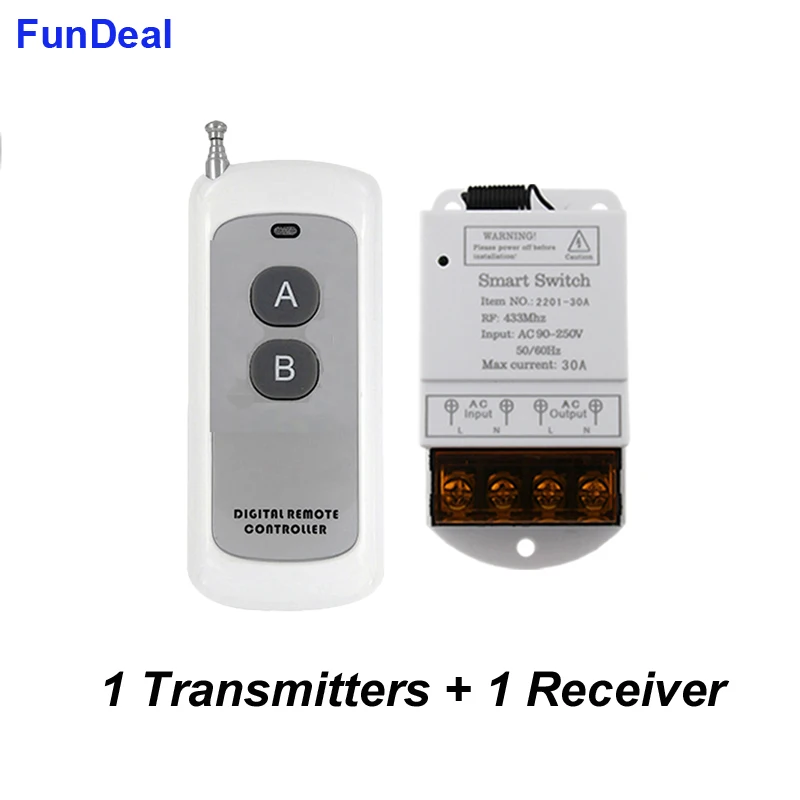

Specifications Of The Remote Control:
Operating frequency: 433.92MHz
Power by 23A 12V lithium battery     (Battery  included ),
Material: PVC.
Button: 2 buttons

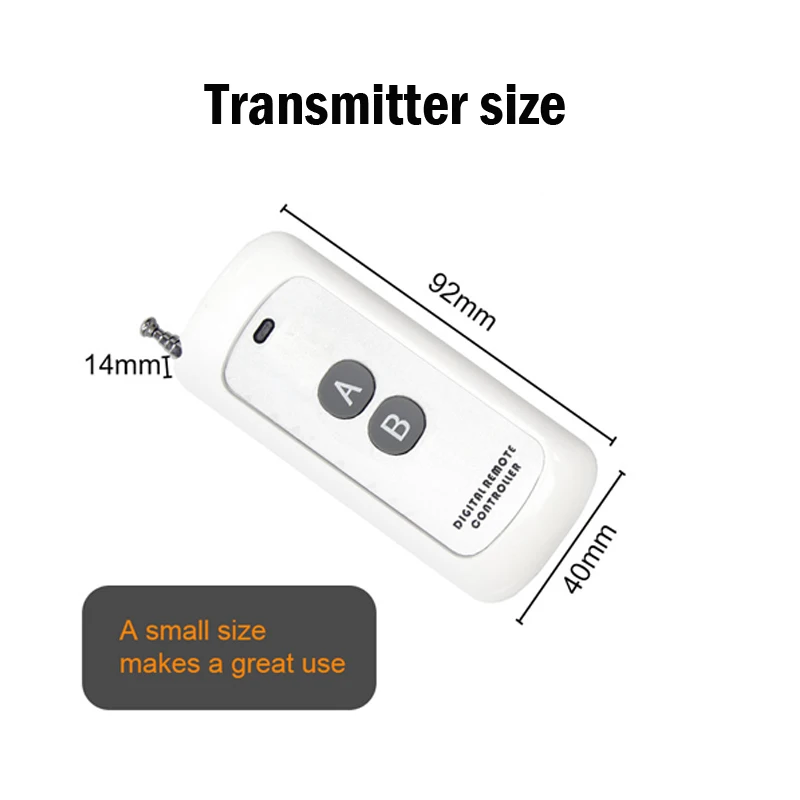

Size:   92mm x 40mm x 14mm;
Operating voltage: 12V ;
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 200m.

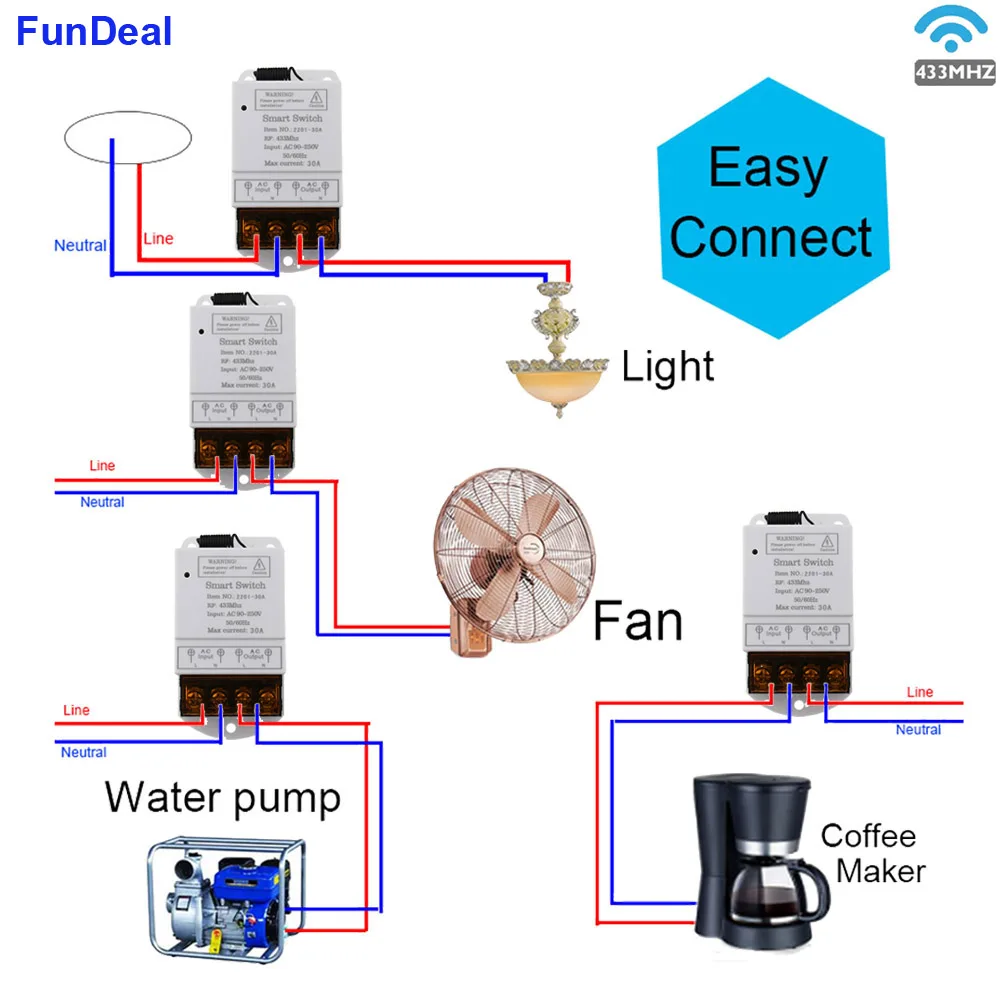

APPLICATION

About Working mode:

1,Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
2,Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
3,Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

4,Time delay mode:Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s or 20s, the relay disconnect automatically.
5,Automatic energize when power on:when power supply, the relay connects.

Clearing the code :

Push the learning button on the receivers for 9 times, until the LED indicator OFF and then flash,until it flash for 5 times. it mean the code have been cleared successfully;
After clearing the code, all the remote control can not work any more.

Learning the code :(momentary)
Push the learning key on the receiver once time , it comes into momentary setting mode .
Wait for a moment , the LED will be on, it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .

Learning the code : ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode
Wait for a moment , the LED will be on , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .

Learning the code :( Latching )

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF
Push the learning key on the receiver triple time , it comes into latching mode .
Wait for a moment , the LED indicator on the receiver board will be on,
Push the remote button A,
LED flash for 3 times .
Push the remote button B .
Led indicator flash for 3 times and then come off,
learning successfully.
A = ON , B = OFF .

Learning the code :( Time delay mode )
Push the learning key on the receiver forth time , the time dealy for 5 seconds .
Push the learning key on the receiver fifth time , the time delay for 10 seconds.
Push the learning key on the receiver sixth time , the time delay for 15 seconds .

Push the learning key on the receiver seventh time , the time delay for 20 seconds .The LED indicator will be on .Push the remote button , LED indicator flashes 3 times and then off, learning successfully .

Learning the code : (Automatic energize when power on)

Push the learning key on the receiver eight times , it comes into setting mode

Wait for a moment , the LED will be on , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .

NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
